Bushings are required for PVC male adapters and threaded conduits, as well as when any conductors are #4 and larger. However, a bushing is not always required when using PVC conduit. According to 352.46, a bushing is only required if the conduit enters a fitting and the fitting does not provide equivalent protection.

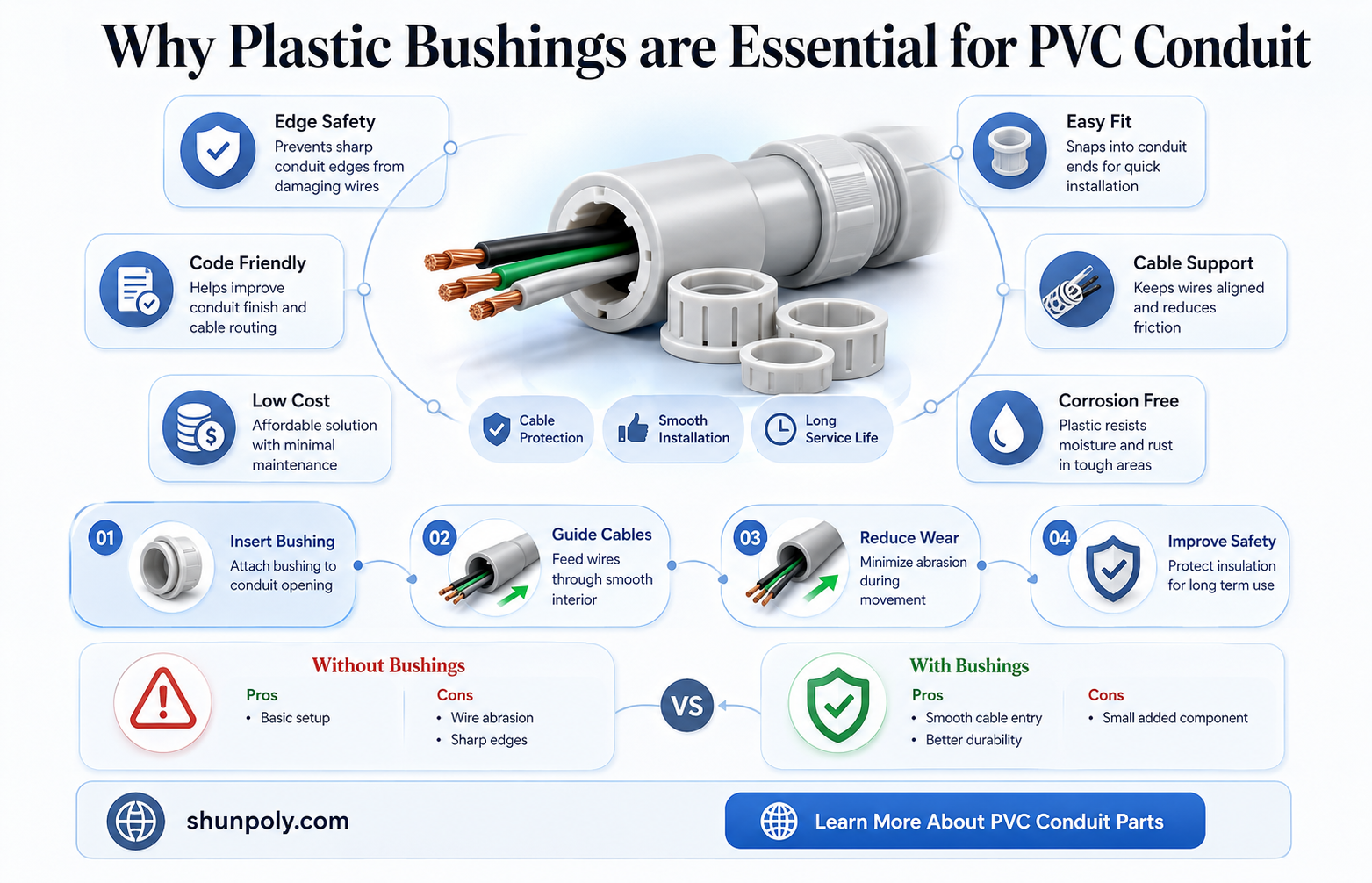

Are plastic bushings required on PVC conduit?
| Characteristics | Values |
|---|---|
| Required on PVC conduit | Not required, but some prefer to use it for completeness |
| Required on PVC MA's and threaded conduit | Yes |
| Required on any conductors | Yes, #4 and larger |
| Required on RMC and PVC connectors | Yes, unless the box has a hub |
| Required on IMC and NUCC | Yes |
| Required on raceways containing conductors | Yes, #4 AWG or larger |
| Required on ungrounded conductors | Yes, 4 AWG or larger |
| Required on PVC if the conduit enters a fitting | Yes, unless the fitting provides equivalent protection |
Explore related products
What You'll Learn
- Bushings are required for PVC MA's and threaded conduit
- Bushings are required when any conductors are #4 or larger
- Bushings are not required when PVC terminal adapters are used
- A bushing is typically not required when using PVC conduit
- NEC 300.4.f states ungrounded conductors 4 AWG or larger must have bushings
Bushings are required for PVC MA's and threaded conduit
Bushings are required for PVC MAs and threaded conduits. This is to protect conductors from abrasion. A metal or plastic bushing must be installed on conduit threads at terminations, regardless of conductor size. However, if the box, fitting, or enclosure is designed to provide this protection, then a bushing is not necessary.
According to 300.4(G), conductors 4 AWG and larger that enter an enclosure must be protected from abrasion by a fitting that provides a smooth, rounded, insulating surface. This is typically achieved through the use of an insulated bushing. However, if the fitting provides equivalent protection, a bushing is not required.
There is some debate on whether or not a bushing is required when using PVC conduit. Some sources indicate that a bushing is not required for PVC terminal adapters, while others suggest that a bushing is necessary for completeness, even if it seems like overkill.
It is important to note that local regulations and codes may vary, and it is always recommended to consult with a licensed electrician or relevant authority to ensure compliance with local standards.
Harney and Sons Tea: Plastic-Free or Not?
You may want to see also
Explore related products
Bushings are required when any conductors are #4 or larger
When installing electrical wiring, it's important to understand the requirements for bushings when using PVC conduit. Bushings are necessary when using conductors that are #4 or larger in size. This is a requirement to ensure safety and compliance with electrical codes.
The National Electrical Code (NEC) outlines specific guidelines for the use of bushings with PVC conduit. The code requires that bushings be used to protect the conduit from sharp edges that could damage the wiring. This is especially important for larger conductors, as they require more space and can be more easily damaged during installation or maintenance.
The purpose of a bushing is to provide a smooth, insulated surface for the conductors to pass through. This helps to prevent abrasion or cutting of the wiring insulation, which could lead to electrical hazards such as short circuits or fires. By using a bushing, the conduit is protected from sharp edges on boxes, enclosures, or other fittings that might otherwise damage the wiring.
When using #4 or larger conductors, the size and type of bushing become critical. The bushing must be properly sized to fit the conduit and provide adequate clearance for the conductors. It should also be made of a suitable material, typically plastic or PVC, that is compatible with the conduit and provides the necessary insulation and protection.
It's important to note that not all PVC conduits are created equal. Some types of PVC conduit, such as Schedule 40 and Schedule 80, have different wall thicknesses and may require specific bushing sizes or types. It is always recommended to consult the manufacturer's instructions and local electrical codes to ensure the correct bushing is selected for the specific conduit being used.
Paper vs Plastic: Cost Comparison of Cups
You may want to see also
Explore related products
Bushings are not required when PVC terminal adapters are used
Bushings are typically used to protect wires and cables from abrasion and provide a smooth, round surface for them to pass through. While some sources suggest that a bushing is generally not required when using PVC conduit, the specific requirements may vary depending on the application and local regulations.
When it comes to PVC terminal adapters, it is indicated that bushings are not required. This is because the terminal adapter itself can provide equivalent protection to the wires or conductors passing through. In this case, the adapter serves a similar function to a bushing, eliminating the need for an additional component.
However, it is important to note that the specific requirements may depend on the local electrical codes and regulations. While some sources suggest that a bushing may not be necessary with PVC terminal adapters, it is always a good idea to consult with a licensed electrician or local electrical inspector to ensure compliance with the applicable codes and standards.
Additionally, while PVC is a non-conductive material, there may be specific instances where a bushing is required for added protection. For example, when using larger wires or conductors, a bushing can help prevent abrasion and ensure a smooth passage. It is always recommended to refer to the relevant codes and guidelines, such as the National Electrical Code (NEC), to determine the specific requirements for a particular installation.
In summary, while bushings are not required when PVC terminal adapters are used, it is important to consider the specific application, local regulations, and the recommendations of electrical professionals to ensure safe and compliant installations. Consulting with experts and adhering to established standards can help ensure the protection of wires and conductors, maintain system integrity, and prevent potential electrical hazards.
Practice Enhances Human Brain Plasticity: The Power of Repetition
You may want to see also
Explore related products
A bushing is typically not required when using PVC conduit
The NEC rule further specifies that conductors 4 AWG and larger that enter an enclosure must be protected from abrasion by a fitting that provides a smooth, rounded, insulating surface. This is unless the design of the box, fitting, or enclosure provides equivalent protection. In this case, a bushing may not be required.
It is important to note that there is some disagreement among professionals regarding the need for a bushing with PVC conduit. Some sources indicate that a bushing is not required when using PVC terminal adapters, while others suggest that a bushing is required for PVC MA's and threaded conduit.
Ultimately, the decision to use a bushing with PVC conduit may depend on specific circumstances and local regulations. It is always recommended to consult with a licensed electrician or local AHJ to ensure compliance with applicable codes and standards.
The Difference Between Plastic and Rubber
You may want to see also
Explore related products
NEC 300.4.f states ungrounded conductors 4 AWG or larger must have bushings
The National Electrical Code (NEC) 300.4(F) states that if 4 AWG or larger ungrounded circuit conductors enter a cabinet, box, or raceway, an insulating bushing or equivalent must be used. This is to prevent electrical shocks and short circuits, which are more likely to occur with larger AWG wire sizes due to their larger current-carrying capacity.
According to the American Wire Gauge (AWG) system, a standardized wire gauge system used in the United States, a larger AWG number indicates a smaller wire diameter. Therefore, wires of 4 AWG or larger have a larger diameter and can carry more current. To ensure safety, the NEC requires the use of insulating bushings or similar protective measures for these larger wire sizes.
It is important to note that the NEC has been revised over the years to provide clearer guidelines. The 2023 NEC, in Section 300.4(G), clarifies that insulated conductors of size 4 AWG and larger require protection from abrasion when entering a cabinet, enclosure, box, or raceway before the conductors are pulled or installed. This revision addresses the common practice of installing a protective bushing after the conductors have been pulled to avoid damage during the wire pull.
The protection methods mentioned in the NEC include using an identified fitting with a smooth, rounded insulating surface, a listed metal fitting with smooth rounded edges, or separating the conductors from the raceway using insulating material that is securely fastened in place. These methods aim to protect the conductor insulation from potential damage during installation and long-term damage from the pressure between the conductor and the fitting.
While the NEC provides clear guidelines, there may be local variations in interpretation and enforcement. Some sources suggest that PVC conduit does not typically require a bushing, while others state that a bushing is required for PVC conduit with #4 or larger wire. It is always advisable to consult with local electrical professionals and authorities for specific requirements and best practices.
Do LEDs Emit Heat Strong Enough to Melt Plastic?
You may want to see also
Frequently asked questions
Plastic bushings are required on PVC conduit when any conductors are #4 and larger.
Yes, bushings are also required when the conduit enters a fitting unless the fitting provides equivalent protection.
Bushings are used to protect conductors from abrasion by providing a smooth, rounded, insulating surface.
Yes, an alternative to using a bushing is to use a PVC terminal adapter or a box adapter that provides equivalent protection.
