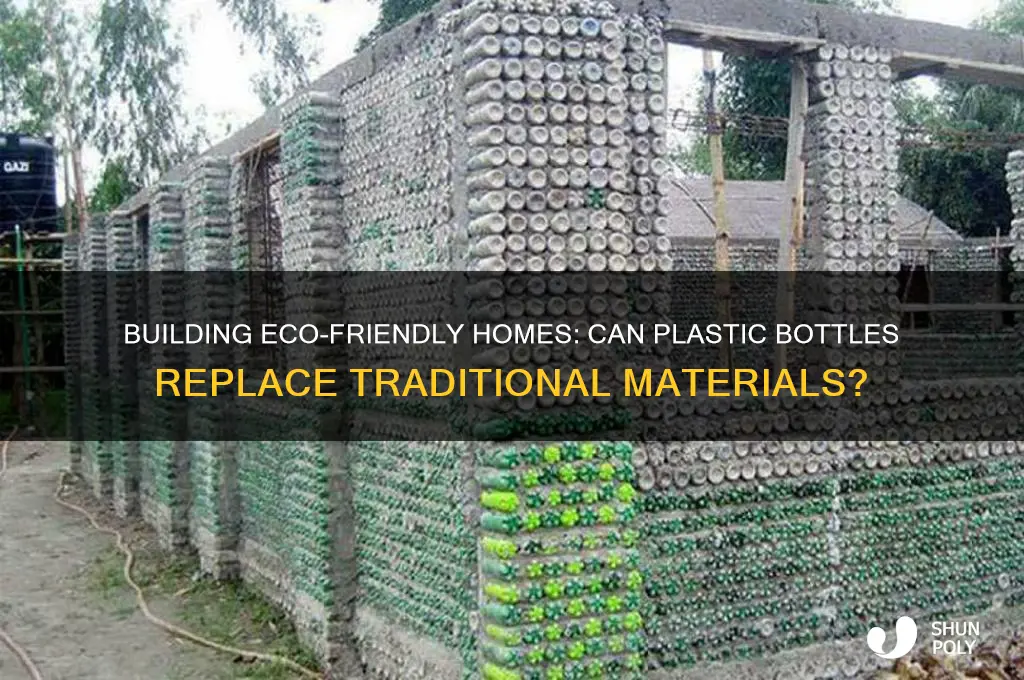

The concept of building houses out of plastic bottles has gained attention as an innovative and sustainable solution to both housing shortages and plastic waste. By filling plastic bottles with sand or other materials, they can be stacked and bound together to create sturdy walls, offering a cost-effective and eco-friendly alternative to traditional construction methods. This approach not only repurposes millions of plastic bottles that would otherwise end up in landfills or oceans but also provides durable, insulated structures that can withstand various environmental conditions. Communities in developing countries have already embraced this method, showcasing its potential to address housing needs while promoting environmental stewardship. However, challenges such as structural integrity, building codes, and long-term durability remain areas of exploration as this unconventional building technique continues to evolve.
| Characteristics | Values |
|---|---|
| Feasibility | Yes, houses can be built using plastic bottles as a primary building material. |
| Structural Integrity | Plastic bottles filled with sand or earth provide excellent insulation and strength, comparable to traditional bricks. |
| Environmental Impact | Reduces plastic waste, lowers carbon footprint compared to conventional construction materials. |
| Cost-Effectiveness | Significantly cheaper than traditional materials, especially in areas with abundant plastic waste. |
| Insulation Properties | High thermal insulation due to the air trapped in the bottles, reducing heating/cooling costs. |
| Durability | Can last for decades if properly constructed and maintained, resistant to pests and moisture. |
| Construction Technique | Bottles are typically filled with sand or earth and stacked in a staggered pattern, often bound with mud or cement. |
| Aesthetic Appeal | Can be designed to look modern or rustic, depending on finishing materials and techniques. |
| Regulatory Approval | May require local building code approvals, as it is a non-traditional construction method. |
| Examples of Use | Successfully implemented in countries like Nigeria, South America, and parts of Asia for affordable housing. |
| Sustainability | Highly sustainable, as it repurposes waste and reduces demand for new construction materials. |
| Labor Intensity | Requires more manual labor compared to conventional construction but can be community-driven. |
| Fire Resistance | Can be treated with fire-retardant materials to improve safety, though inherently less flammable than some plastics. |
| Scalability | Suitable for small to medium-sized structures, but larger projects require careful planning and engineering. |
Explore related products
What You'll Learn
- Structural Integrity: Can plastic bottles support a house's weight and withstand environmental stresses
- Insulation Properties: Do plastic bottle walls provide effective thermal and sound insulation
- Construction Techniques: What methods are used to build houses with plastic bottles
- Environmental Impact: How does using plastic bottles for construction reduce waste and carbon footprint
- Cost Efficiency: Is building with plastic bottles more affordable than traditional materials
Structural Integrity: Can plastic bottles support a house's weight and withstand environmental stresses?
Plastic bottles, when filled with sand and stacked or interlocked, can indeed bear significant weight, but their structural integrity as a primary building material hinges on meticulous design and execution. For instance, a single 2-liter bottle filled with sand can support up to 200 kilograms when compressed vertically, thanks to the sand’s density (1.6 g/cm³) and the bottle’s ability to distribute pressure evenly. However, horizontal forces, such as wind or seismic activity, pose greater challenges. To mitigate this, bottles are often laid in staggered patterns and bound with cement or wire mesh, creating a composite structure that enhances shear strength. Without such reinforcement, the bottles’ inherent flexibility can lead to buckling under lateral stress, rendering the structure unsafe.
Environmental stresses further complicate the equation, as plastic degrades under prolonged UV exposure, temperature fluctuations, and moisture. PET (polyethylene terephthalate), the material in most bottles, loses 50% of its tensile strength after 5 years of sun exposure. To counteract this, builders must apply protective coatings, such as lime plaster or bitumen, and incorporate overhangs or shading elements into the design. Additionally, regions with extreme weather—hurricanes, heavy snowfall, or earthquakes—demand additional bracing and deeper foundations. For example, a plastic bottle house in South America withstood a 7.0-magnitude earthquake due to its flexible yet reinforced walls, demonstrating that resilience is achievable with careful engineering.
Comparing plastic bottle construction to traditional methods reveals both advantages and limitations. While concrete has a compressive strength of 20–40 MPa, a sand-filled bottle wall achieves only 2–5 MPa. However, the lightweight nature of plastic bottles reduces foundation requirements, making them suitable for soft or unstable soils. Cost-effectiveness is another draw: a 60-square-meter bottle house can be built for $5,000–$10,000, compared to $50,000–$100,000 for a conventional home. Yet, longevity remains a concern; plastic bottle structures typically last 20–30 years, whereas concrete or brick buildings endure for centuries. Thus, while viable for temporary or low-cost housing, plastic bottle construction is not a universal solution.
For those considering this approach, practical steps include sourcing uniform bottles (e.g., 500ml or 2-liter sizes), cleaning and drying them thoroughly to prevent mold, and filling them with dry, compacted sand to maximize density. Bottles should be laid in a honeycomb pattern, with each layer offset for stability, and bound with a 1:3 cement-sand mortar. Regular maintenance, such as inspecting for cracks or UV damage, is essential to prolong the structure’s life. While plastic bottle houses may not rival traditional builds in durability, their low cost, eco-friendly appeal, and adaptability to local materials make them a compelling option for specific contexts, particularly in developing regions or as emergency shelters.
Can Plastic Bottle Caps Be Recycled in Australia? A Comprehensive Guide
You may want to see also
Explore related products
Insulation Properties: Do plastic bottle walls provide effective thermal and sound insulation?
Plastic bottle walls, when properly constructed, can offer surprising thermal insulation benefits. The air trapped within the bottles acts as a natural insulator, similar to double-glazed windows. This air pocket disrupts heat transfer, slowing the movement of warmth from inside to outside during winter and vice versa in summer. Studies suggest that walls built with tightly packed, clean plastic bottles filled with sand or earth can achieve U-values (a measure of heat loss) comparable to those of traditional insulation materials like fiberglass.
For instance, a project in South America demonstrated that plastic bottle walls reduced heating needs by up to 30% compared to conventional brick structures.
Sound insulation, however, presents a different challenge. While the air pockets within the bottles can dampen some high-frequency sounds, plastic itself is a relatively rigid material. This rigidity allows sound waves to travel more easily through the structure. To enhance soundproofing, consider incorporating additional layers within the wall assembly. A layer of dense material like mass-loaded vinyl or even recycled rubber tires between the bottle layers can significantly improve sound absorption.
Additionally, filling the bottles with a denser material like gravel instead of sand can further reduce sound transmission.
It's crucial to remember that the effectiveness of plastic bottle walls as insulators depends heavily on construction techniques. Bottles must be tightly packed to minimize air gaps, which can compromise insulation performance. Proper sealing at joints and around openings like windows and doors is equally important to prevent thermal bridging, where heat bypasses the insulation.
For optimal results, consult with a professional familiar with sustainable building techniques to ensure your plastic bottle walls meet your desired insulation standards.
DIY Candy Dispenser: Crafting Fun with Plastic Bottles
You may want to see also
Explore related products
Construction Techniques: What methods are used to build houses with plastic bottles?
Plastic bottles, when filled with sand and stacked like bricks, form the core of a surprisingly sturdy building material. This technique, popularized by projects like the Eco-TEC bottle houses in South America, relies on the bottles’ inherent strength and interlocking design. To construct a wall, bottles are filled with clean, dry sand to prevent degradation and then laid in a staggered pattern, much like traditional masonry. Mortar, often a mixture of clay, soil, or cement, binds the bottles together, creating a solid, load-bearing structure. This method not only recycles waste but also provides excellent insulation due to the air trapped within the bottles.
Another innovative approach involves using plastic bottles as formwork for concrete structures. In this method, bottles are arranged in a framework, often in a honeycomb pattern, and then filled with concrete. Once the concrete sets, the bottles remain in place, acting as permanent insulation. This technique, used in projects like the Bottle Houses in Canada, reduces the amount of concrete needed while enhancing thermal efficiency. It’s crucial to ensure the bottles are tightly packed and secured to prevent voids or weak spots in the concrete.
For lighter, non-load-bearing applications, plastic bottles can be cut, shaped, and interlocked to create modular panels or bricks. These panels are often filled with insulating materials like foam or fiber and then assembled into walls or partitions. This method is particularly useful for temporary shelters or low-cost housing, as it requires minimal tools and expertise. However, it’s essential to treat the plastic surfaces to prevent UV degradation, which can weaken the material over time.
A more experimental technique involves melting down plastic bottles to create bricks or blocks. This process, while energy-intensive, produces a denser, more uniform building material. The melted plastic is poured into molds and allowed to cool, resulting in blocks that can be stacked and bonded with adhesive or mortar. While this method reduces the insulating properties of the bottles, it offers greater structural integrity and durability. Care must be taken to ensure proper ventilation during the melting process to avoid toxic fumes.
Each of these techniques highlights the versatility of plastic bottles in construction, but they also come with challenges. Proper cleaning, filling, and treatment of the bottles are critical to ensure longevity and safety. Additionally, local building codes and regulations may restrict the use of unconventional materials, so it’s essential to consult with authorities before starting a project. Despite these hurdles, building with plastic bottles offers a sustainable, cost-effective solution to housing needs while addressing plastic waste.
Identifying Food-Safe Plastic Bottles: A Comprehensive Guide for Consumers
You may want to see also
Explore related products
Environmental Impact: How does using plastic bottles for construction reduce waste and carbon footprint?
Plastic bottles, often seen as environmental villains, can be repurposed into building materials, significantly reducing waste and carbon footprint. By diverting these bottles from landfills or oceans, where they can take up to 450 years to decompose, we transform them into a resource. For instance, a single-story house might require 10,000 to 14,000 bottles, each weighing approximately 20 grams. This reuse prevents the equivalent of 280 kilograms of plastic waste, showcasing a tangible reduction in environmental burden.
The construction process itself offers a lower carbon footprint compared to traditional building methods. Filling plastic bottles with sand or earth and stacking them in a modular design eliminates the need for energy-intensive materials like bricks or concrete. Producing one ton of concrete emits roughly 400 kilograms of CO2, whereas repurposing plastic bottles avoids these emissions entirely. Additionally, the thermal insulation properties of plastic bottle walls reduce energy consumption for heating or cooling, further lowering the building’s lifecycle emissions.
A comparative analysis highlights the efficiency of this approach. Traditional construction relies heavily on mining, manufacturing, and transportation, all of which contribute to carbon emissions. In contrast, plastic bottle construction uses locally sourced materials (sand, earth, and recycled bottles), minimizing transportation costs and emissions. For example, a project in South America reduced construction emissions by 30% by using plastic bottles instead of conventional materials, proving the method’s scalability and effectiveness.
To maximize environmental benefits, follow these practical steps: collect bottles from local recycling centers or community drives, clean and dry them thoroughly, and fill them with sand or earth on-site to avoid unnecessary transport. Ensure the bottles are tightly packed and bound with materials like chicken wire or cement for structural integrity. By adopting this method, individuals and communities can actively contribute to waste reduction and sustainable living, turning a global plastic problem into a local construction solution.
Do Plastic Bottles Scare Deer? Uncovering the Truth Behind the Myth
You may want to see also
Explore related products
Cost Efficiency: Is building with plastic bottles more affordable than traditional materials?
Plastic bottle construction leverages waste materials, but does it offer a cost advantage over traditional building methods? The answer hinges on labor, availability, and scale. In regions with abundant plastic waste, such as parts of Africa and Asia, collecting bottles can be virtually free. For instance, a 20-square-meter eco-dome designed by Ecotec uses approximately 1,500 PET bottles, which could be sourced locally at minimal cost. However, in areas where plastic waste is managed efficiently, purchasing bottles or relying on donations may offset savings. Traditional materials like bricks or concrete, while more expensive per unit, often require less labor-intensive preparation, making them cost-competitive in developed economies.
Labor intensity is a critical factor in the cost equation. Filling bottles with sand or earth and arranging them in a structure demands significant manual effort, often relying on unskilled labor. For a small-scale project like a garden shed, this might translate to 200–300 hours of work, depending on the design. In contrast, traditional construction methods, though more expensive in materials, can be completed faster with machinery and skilled workers. For example, laying bricks for a similar structure might take only 50–70 hours with a small crew. Thus, the "affordability" of plastic bottle construction depends heavily on whether labor costs are a concern.
A comparative analysis reveals that plastic bottle construction shines in low-income regions with high unemployment rates. In Nigeria, for instance, a community center built using 14,000 plastic bottles cost approximately $3,000, significantly less than the $10,000–$15,000 required for a comparable brick structure. The savings stem from free materials and community-driven labor. However, in the U.S., where labor costs are higher and building codes stricter, plastic bottle construction might require additional expenses for structural reinforcement or professional oversight, eroding its cost advantage.
To maximize cost efficiency, consider these practical steps: First, source bottles locally to eliminate transportation costs. Second, design structures with simple, modular shapes to reduce labor time. Third, incorporate bottles as infill within a traditional frame to balance cost and durability. For example, a hybrid design using a wooden frame with plastic bottle insulation can cut material costs by 30–40% while meeting structural requirements. Finally, explore partnerships with recycling programs or local businesses to secure bottles at no cost. While plastic bottle construction isn’t universally cheaper, strategic planning can make it a viable, budget-friendly option in specific contexts.
Creative DIY Piggy Bank: Upcycle Plastic Bottles for Savings Fun
You may want to see also
Frequently asked questions
Yes, houses can be built using plastic bottles as a primary construction material. The bottles are typically filled with sand or earth to provide stability and insulation, then stacked and bound together with a mixture of mud, cement, or other adhesives.
Yes, when constructed properly, houses made of plastic bottles can be very durable. The filled bottles create a sturdy structure, and the plastic provides resistance to pests and moisture. With proper maintenance, these homes can last for decades.
Yes, using plastic bottles for construction is environmentally friendly because it repurposes waste that would otherwise end up in landfills or oceans. It also reduces the need for traditional building materials like bricks or concrete, which have a higher carbon footprint.
The cost varies depending on the size, design, and location, but building a house out of plastic bottles is generally more affordable than traditional construction. The primary expense is labor, as the bottles themselves are often sourced for free or at a low cost.
