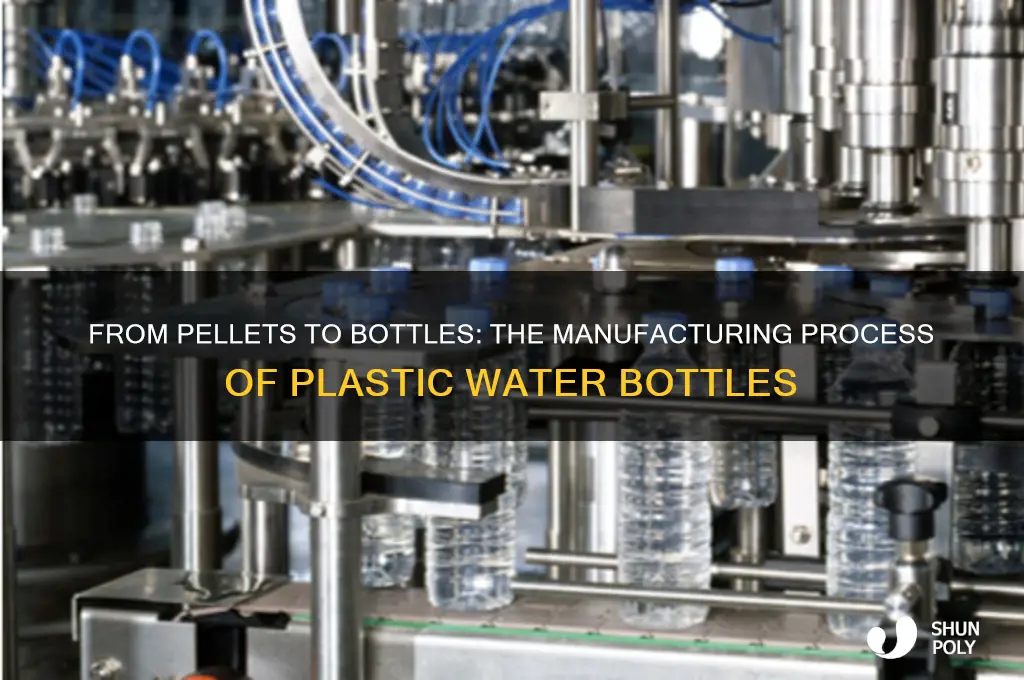

Plastic water bottles are manufactured through a multi-step process that begins with the production of raw materials, primarily polyethylene terephthalate (PET), a lightweight and durable plastic. The process starts with the extraction and refining of petroleum, which is transformed into PET resin pellets through a chemical reaction. These pellets are then heated and melted in an injection molding machine, where they are injected into bottle-shaped molds under high pressure. Once cooled and solidified, the bottles are removed from the molds, trimmed of excess material, and inspected for quality. Next, the bottles undergo a stretch blow molding process, where they are reheated and stretched into their final shape using compressed air. After shaping, the bottles are cleaned, sterilized, and prepared for filling. Labels and caps are added in subsequent steps, and the finished bottles are packaged for distribution. This efficient and highly automated process allows for the mass production of plastic water bottles, meeting the global demand for portable hydration solutions.
Explore related products
What You'll Learn
- Material Selection: Choosing PET resin for clarity, strength, and recyclability in bottle production
- Blow Molding Process: Heating preforms, blowing air to shape bottles in molds
- Quality Control: Inspecting bottles for defects, leaks, and dimensional accuracy
- Labeling and Printing: Applying labels, logos, and regulatory information using adhesives or shrink sleeves
- Capping and Packaging: Sealing bottles with caps, grouping, and packing for distribution
Material Selection: Choosing PET resin for clarity, strength, and recyclability in bottle production
PET resin, or polyethylene terephthalate, stands out as the material of choice for manufacturing plastic water bottles due to its unique combination of clarity, strength, and recyclability. Its transparency rivals that of glass, ensuring consumers can visually verify the purity of the water inside, while its lightweight nature reduces transportation costs and carbon emissions compared to heavier materials. Unlike traditional plastics like PVC or polystyrene, PET is free from harmful chemicals such as BPA, making it a safer option for food and beverage packaging. This trifecta of properties positions PET as the ideal candidate for a product that demands both functionality and sustainability.
Selecting PET resin involves a precise manufacturing process that begins with the polymerization of terephthalic acid and ethylene glycol. The resulting pellets are then heated to a molten state at approximately 260–280°C (500–536°F) and injected into bottle molds. During this stage, the material’s inherent strength is maximized through a process called stretch blow molding, where the molten PET is stretched both axially and radially to align its molecules, enhancing tensile strength and impact resistance. This ensures the bottle can withstand the rigors of transportation and handling without compromising its structural integrity.
One of the most compelling reasons for choosing PET is its recyclability. PET falls under the resin identification code 1, making it widely accepted in recycling programs globally. When recycled, PET can be transformed into new bottles, clothing fibers, or industrial strapping, reducing the demand for virgin materials and minimizing environmental impact. For instance, a single recycled PET bottle can save enough energy to power a 60-watt light bulb for up to six hours. However, achieving a closed-loop recycling system requires consumer participation in proper waste segregation and industry investment in advanced recycling technologies.
Despite its advantages, the use of PET is not without challenges. Its production relies on petroleum-based feedstocks, contributing to greenhouse gas emissions and resource depletion. To mitigate this, manufacturers are increasingly incorporating post-consumer recycled (PCR) PET into their production lines, with some bottles containing up to 100% recycled content. Additionally, innovations like bio-based PET, derived from renewable sources such as sugarcane, are emerging as viable alternatives. These advancements underscore the importance of material selection not just for performance, but also for long-term environmental stewardship.
In practical terms, choosing PET resin for water bottle production is a decision that balances immediate needs with future sustainability goals. For manufacturers, it offers a cost-effective solution with proven market acceptance. For consumers, it provides a safe, lightweight, and recyclable packaging option. By prioritizing PET, the industry can address the growing demand for bottled water while minimizing its ecological footprint. As technology advances, the potential for PET to become even more sustainable—through increased recycling rates and bio-based alternatives—positions it as a cornerstone of responsible packaging design.
Recycling Plastic Bottles: Empty or Not, What’s the Right Way?
You may want to see also
Explore related products
Blow Molding Process: Heating preforms, blowing air to shape bottles in molds
The blow molding process is a cornerstone of plastic water bottle manufacturing, transforming simple preforms into the familiar containers we use daily. It begins with preforms, small, test-tube-shaped plastic pieces, which are heated to a precise temperature range of 190°–220°C (374°–428°F). This critical step softens the plastic, making it pliable enough to expand without cracking but not so hot that it loses structural integrity. The heating time is equally crucial, typically lasting 10–20 seconds, depending on the preform’s thickness and material composition.
Once heated, the preform is transferred to a mold, where compressed air is injected at a pressure of 20–40 bar. This air acts as the shaping force, pushing the molten plastic against the mold’s inner walls. The mold itself is a marvel of engineering, designed to withstand high pressures and temperatures while ensuring the bottle’s final dimensions are consistent. The blowing process takes mere seconds, during which the plastic cools slightly, retaining its shape as it solidifies. This rapid cooling is essential to prevent warping or deformation.
A key advantage of blow molding is its efficiency. It allows for the production of thousands of bottles per hour, making it ideal for meeting global demand. However, precision is paramount. Even slight variations in temperature, air pressure, or mold alignment can result in defects like uneven walls, bubbles, or weak spots. Manufacturers often use infrared heating and automated systems to maintain consistency, ensuring every bottle meets quality standards.
Comparatively, blow molding stands out from other molding techniques, such as injection molding, due to its ability to create hollow objects with minimal material waste. While injection molding is better suited for solid parts, blow molding excels in producing lightweight, durable containers like water bottles. This makes it not only cost-effective but also environmentally advantageous, as less plastic is used per unit.
For those interested in sustainability, understanding blow molding highlights opportunities for improvement. Innovations like using recycled PET (rPET) preforms or optimizing heating processes to reduce energy consumption are gaining traction. By refining this process, manufacturers can minimize their environmental footprint while maintaining the efficiency that makes plastic water bottles so ubiquitous. Mastery of blow molding, therefore, is not just about production—it’s about balancing innovation with responsibility.
Plastic Bottles as Cat Deterrents: Myth or Effective Solution?
You may want to see also
Explore related products
Quality Control: Inspecting bottles for defects, leaks, and dimensional accuracy
Plastic water bottles, once molded and cooled, undergo rigorous quality control checks to ensure they meet safety and functionality standards. The first line of defense is visual inspection, where trained operators or automated systems scan bottles for surface defects like scratches, discoloration, or deformities. Even minor imperfections can compromise the bottle’s integrity or consumer appeal, making this step critical. Advanced systems use high-resolution cameras and AI algorithms to detect flaws invisible to the naked eye, ensuring consistency across thousands of units.
Leak testing is another non-negotiable step in quality control. Bottles are subjected to pressure or vacuum tests to identify weak seals or micro-cracks. For instance, a common method involves filling bottles with water, sealing them, and then inverting them to check for drips. Automated machines can test hundreds of bottles per minute, flagging any that fail. This process not only prevents product recalls but also safeguards consumers from potential contamination or spillage.
Dimensional accuracy is equally vital, as bottles must fit standard caps and dispensing systems. Precision tools like calipers or laser scanners measure critical dimensions—neck diameter, height, and wall thickness—against predefined tolerances. Deviations as small as 0.1 mm can render a bottle unusable, especially in automated filling lines. Manufacturers often use statistical process control (SPC) to monitor these measurements in real-time, adjusting production parameters to minimize variability.
Beyond these tests, some manufacturers employ destructive testing on sample batches to assess material strength and durability. Bottles are subjected to drop tests, crush tests, or exposure to extreme temperatures to simulate real-world conditions. While this method sacrifices a few units, it provides invaluable data on the overall batch quality. Such proactive measures ensure that only bottles meeting stringent criteria reach the market.
Finally, traceability systems are integrated into quality control to track each bottle’s journey from raw material to finished product. Barcodes or RFID tags record inspection results, allowing manufacturers to pinpoint issues if defects are later reported. This transparency not only enhances accountability but also facilitates swift recalls if necessary. In an industry where consumer trust is paramount, such meticulous quality control is not just a step—it’s a commitment.
DIY Mosquito Trap: Easy Plastic Bottle Solution for Bug-Free Nights
You may want to see also
Explore related products
Labeling and Printing: Applying labels, logos, and regulatory information using adhesives or shrink sleeves
Labels and logos transform a generic plastic water bottle into a branded, informative product. This critical step in manufacturing involves precision and adherence to regulatory standards. Two primary methods dominate the industry: adhesive labeling and shrink sleeve application. Each offers distinct advantages depending on design complexity, bottle shape, and cost considerations.
Adhesive labeling, a traditional and cost-effective method, involves applying pre-printed labels to bottles using specialized glues. Modern adhesives are engineered for durability, ensuring labels withstand refrigeration, condensation, and handling. This method suits flat or slightly curved bottles and designs with fewer intricate details. For optimal results, manufacturers must control temperature and humidity during application to prevent wrinkling or misalignment. Regulatory information, such as recycling symbols or ingredient lists, is often printed directly on these labels to comply with legal requirements.
Shrink sleeves, in contrast, offer a 360-degree branding canvas, conforming seamlessly to bottle contours, including complex shapes and textures. Made from materials like PVC, PETG, or OPS, these sleeves are printed, cut to size, and applied over the bottle. Heat exposure then shrinks the sleeve, creating a tight, tamper-evident fit. This method is ideal for eye-catching designs, promotions, or bottles with unconventional shapes. However, it typically incurs higher costs due to material and energy requirements.
Choosing between adhesives and shrink sleeves requires balancing aesthetics, functionality, and budget. Adhesive labels excel in simplicity and cost-efficiency, while shrink sleeves provide unmatched design flexibility and tamper resistance. Regardless of the method, ensuring clarity and permanence of regulatory information is non-negotiable. Manufacturers must also consider environmental impact, opting for recyclable materials and minimizing adhesive residue to align with sustainability goals.
In practice, successful labeling demands meticulous planning. Designers should account for bottle curvature, material compatibility, and ink durability. For shrink sleeves, precise seam placement and heat application are crucial to avoid distortion. Adhesive labels require clean, dry surfaces for optimal adhesion. Regular quality checks during production ensure consistency, preventing costly recalls or regulatory penalties. By mastering these techniques, manufacturers can elevate both the visual appeal and informational integrity of their plastic water bottles.
Storing Acid in Plastic Bottles: Safe Practices and Risks Explained
You may want to see also
Explore related products
Capping and Packaging: Sealing bottles with caps, grouping, and packing for distribution
The final stage of plastic water bottle manufacturing is a symphony of precision and speed, where loose bottles transform into retail-ready packs. Capping, grouping, and packaging are the crucial steps that ensure product integrity, consumer safety, and efficient distribution. This phase demands meticulous attention to detail, as any misalignment or contamination can compromise the entire production run.
High-speed capping machines dominate this stage, employing various technologies like pressure, snap-on, or screw-on mechanisms to secure caps onto bottles. These machines can seal thousands of bottles per hour, ensuring a tight, leak-proof seal. The choice of capping method depends on bottle design, cap type, and desired torque specifications. For instance, sports cap bottles often require a precise snap-fit, while screw-on caps demand consistent torque application to prevent leakage during transit.
After capping, bottles are grouped into predetermined quantities, typically ranging from 6 to 24 bottles per pack. This grouping is achieved through automated systems that use sensors and robotic arms to arrange bottles into specific configurations, such as 2x3 or 3x4 patterns. The grouping process must account for bottle size, shape, and weight to maintain stability and prevent damage during packaging. For example, larger 1-liter bottles might be grouped in smaller packs to avoid excessive weight, while smaller 500ml bottles can be packed in larger quantities.
Packaging materials play a critical role in protecting bottles during transportation and display. Shrink wrap, a popular choice, is applied using heat tunnels that shrink the plastic film tightly around the grouped bottles. This method provides a secure, tamper-evident seal while allowing for easy product visibility. Alternatively, cardboard boxes or trays can be used, offering additional protection and branding opportunities. The choice of packaging material depends on factors like bottle weight, distribution channels, and sustainability goals. Some manufacturers are now exploring biodegradable or recyclable packaging options to reduce environmental impact.
Quality control is paramount throughout the capping and packaging process. Vision systems and sensors inspect bottles for proper cap placement, seal integrity, and packaging defects. Any bottles that fail to meet specifications are automatically rejected, ensuring only high-quality products reach consumers. Additionally, packaging lines often incorporate metal detectors to identify and remove any foreign objects that may have inadvertently entered the production process.
By seamlessly integrating capping, grouping, and packaging, manufacturers ensure that plastic water bottles are not only produced efficiently but also delivered to consumers in a safe, secure, and visually appealing manner. This final stage is a testament to the intricate choreography of modern manufacturing, where technology and precision converge to meet the demands of a thirsty world.
Understanding the Plastic Components in Liquor Bottles: A Comprehensive Guide
You may want to see also
Frequently asked questions
Plastic water bottles are primarily made from polyethylene terephthalate (PET), a lightweight, durable, and recyclable plastic. Other materials, such as high-density polyethylene (HDPE), may also be used for certain bottle types.
The process begins with PET resin being heated and molded into a preform (a test-tube-shaped piece). The preform is then transferred to a blow molding machine, where it is heated again and stretched into the final bottle shape using compressed air. After cooling, the bottle is trimmed, inspected, and prepared for filling.
Yes, PET plastic water bottles are recyclable. Many manufacturers incorporate recycled PET (rPET) into their production to reduce environmental impact. This involves collecting, cleaning, and reprocessing used bottles into new ones, which helps conserve resources and minimize waste.
