3D printing is a process that involves melting plastic to create a three-dimensional object. There are various types of plastic materials available for 3D printing, each with unique qualities suited to specific applications. The melting point of these plastics varies, with some requiring high temperatures beyond the capabilities of consumer-level printers. When heated, plastics release toxic particles into the air, which can be harmful when inhaled. Therefore, it is important to ensure proper ventilation when using a 3D printer to mitigate potential health risks.
| Characteristics | Values |
|---|---|
| Process | Plastic filament is heated to a melting point and deposited, built from the bottom up one layer at a time until a 3D model is created |
| Extruder | The part of the 3D printer that melts and deposits the melted plastic |
| Nozzle | The part of the extruder that deposits the melted plastic material |
| FDM/FFF | Fused Deposition Method/Fused Filament Fabrication, an additive manufacturing process in which a spool of plastic filament is heated to a melting point |
| Materials | Dozens of plastic materials are available for 3D printing, including PLA, ABS, PETG, Nylon, and PVA |
| Melting Point | The melting point varies depending on the material, ranging from 185-270°C |
| Health Concerns | Heating plastic can release toxic particles into the air, which can cause health issues when inhaled |
Explore related products
What You'll Learn

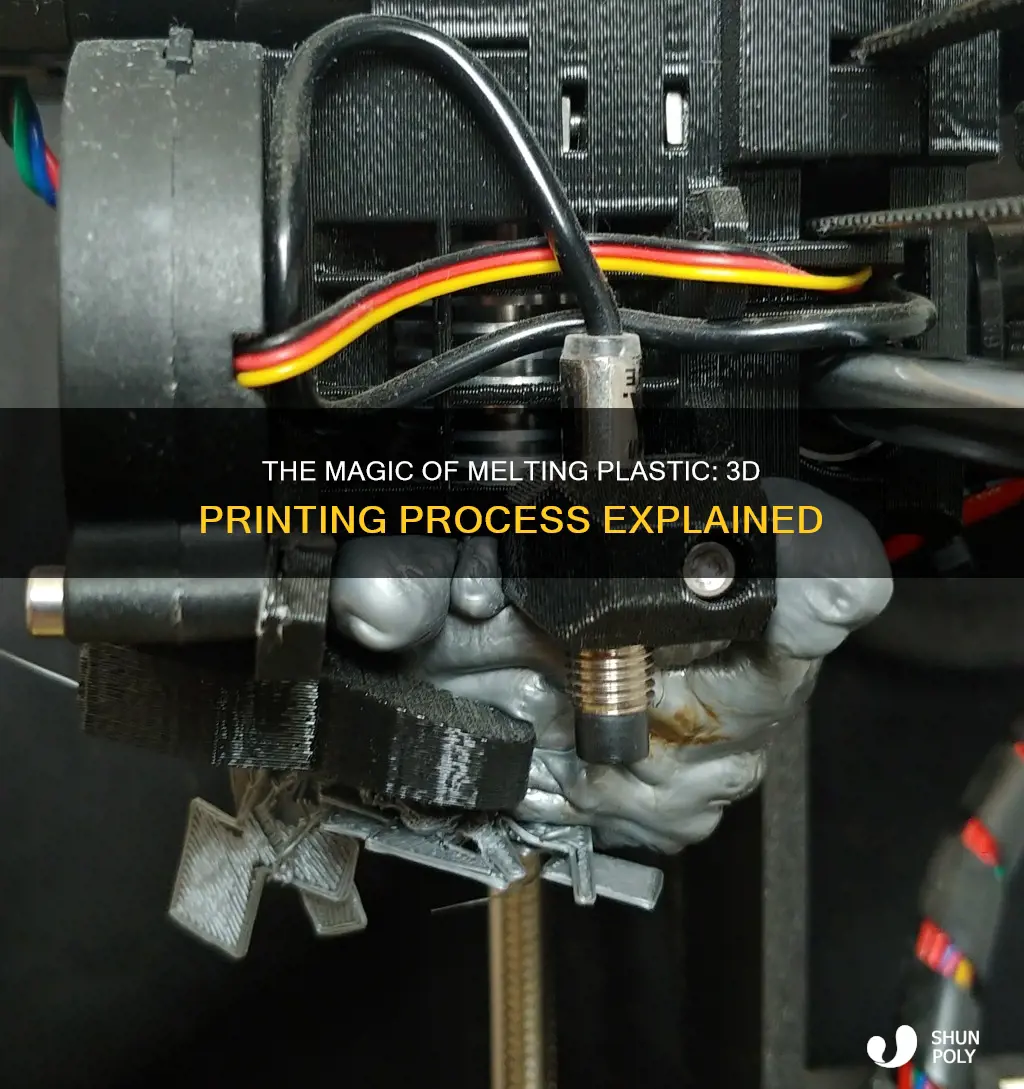

The extruder melts the plastic
The extruder is a key component of a 3D printer, responsible for melting and depositing the plastic material that will form the desired 3D object. The extruder temperature typically ranges from 185°C to 270°C, depending on the type of plastic filament being used. For example, PLA has an extruder temperature range of 190-220°C, while Nylon is recommended to be extruded at temperatures between 220-270°C.
The extruder itself consists of a nozzle, which is the part that deposits the melted plastic. The nozzle size can vary, and smaller nozzles can produce finer details in the printed object. During the printing process, the plastic filament is fed into the extruder, where it is heated to its melting point. This melting point varies depending on the type of plastic, with some plastics having higher melting temperatures than others. For example, Nylon has a higher melting point than PLA.
Once the plastic is melted, it is carefully deposited layer by layer onto a build plate, following a pre-determined design. This process is known as Fused Filament Fabrication (FFF) or Fused Deposition Method (FDM). The layers are built up one by one from the bottom up until the desired 3D model is created. This additive manufacturing process allows for complex shapes and structures to be created by building up layers of melted and solidified plastic.
It is important to note that heating plastic can release toxic particles into the air, which may pose health risks. Therefore, it is recommended to use 3D printers in well-ventilated areas or with proper ventilation systems in place to mitigate these potential hazards. The process of melting plastic in 3D printing is similar to that used in plastic manufacturing plants, where plastic is melted and extruded to create various products.
Plastic Surgery: Don't Fade, Embrace Your True Self
You may want to see also
Explore related products
Different plastics have different melting points
The melting point of plastic varies depending on its type and chemical composition. For example, low-density polyethylene (LDPE) melts at around 115-135°C (239-275°F), while high-performance plastics like polyether ether ketone (PEEK) can have melting points as high as 343°C (649°F). Polyethylene (PE) typically melts around 115-135°C (239-275°F), while polypropylene (PP) melts around 130-171°C (266-340°F). Higher-performance thermoplastics, such as polyamide (nylon), can have melting points ranging from 180-300°C (356-572°F).
In 3D printing, the plastic filament is heated to its melting point and then deposited, building the object from the bottom up one layer at a time. The melting point of the plastic is critical, as it determines the temperature the printer must heat the filament to. Different printers have different capabilities, with some able to reach higher temperatures than others.
The type of plastic used will depend on the desired properties of the final product. For example, in the textile industry, plastics with high melting points, such as polyester, are used to produce durable, wrinkle-resistant fabrics that can withstand high-temperature washing and drying. In the automotive and aerospace industries, high-performance plastics with high melting points are crucial for manufacturing load-bearing components that must withstand significant mechanical stress and high temperatures without degrading.
Additionally, the melting point of plastic can be influenced by additives. Heat stabilizers, for instance, can be added to increase a plastic's melting temperature, making it more suitable for high-temperature applications.
Plastic Sticks: Good Choice for Drums?
You may want to see also
Explore related products
The nozzle deposits the melted plastic
The nozzle is a crucial component of the 3D printing process, as it is responsible for depositing the melted plastic material with precision to create the desired object. This process is known as Fused Filament Fabrication (FFF) or Fused Deposition Modelling (FDM). The nozzle is part of the extruder, which is the component that melts the plastic filament and ensures its controlled deposition.
The nozzle moves along the X, Y, and Z axes, following a pre-determined path directed by the 3D printing software. This software slices the digital 3D model into thin layers, which the nozzle then traces, depositing plastic layer by layer. The thickness of these layers, or slices, can vary depending on the design and range from 0.1 mm to a few millimetres.
The melted plastic hardens rapidly after being deposited, fusing with the previously laid layers to create a strong and cohesive structure. This process is repeated until the entire object is complete. The nozzle's accuracy and consistency in depositing the melted plastic are critical to ensuring the quality and accuracy of the final printed object.
Additionally, the nozzle plays a role in achieving the desired surface finish. By adjusting the nozzle size and deposition rate, the surface of the printed object can be made smoother or rougher, depending on the requirements. The nozzle's ability to deposit plastic accurately also contributes to the overall aesthetics of the printed object.
In conclusion, the nozzle is a vital component in the 3D printing process, as it directly contributes to the formation of the object by depositing the melted plastic material with precision and control. The movement of the nozzle along the designated axes and its ability to consistently deposit plastic according to the digital model ensure that the final printed object meets the desired specifications.
Plastic in Stomach: What Happens?
You may want to see also
Explore related products
The plastic is heated to its melting point
The plastic filament used in 3D printing is heated to its melting point to make it malleable and form it into the desired shape. This process is called the Fused Filament Fabrication (FFF) method or Fused Deposition Method (FDM). The extruder, or nozzle, is the part of the 3D printer that melts the plastic. The melting point varies depending on the type of plastic used, with common 3D printing materials including PLA, ABS, PETG, Nylon, and PVA. For example, the extruder temperature for PLA is 190-220°C, while for ABS it is 220-250°C.
It is important to note that heating plastic can release toxic particles into the air, which can be harmful to health if inhaled. Therefore, it is recommended to use a ventilation hood or open a window when using a 3D printer.
The melting point of the plastic is crucial in determining the success of the printing process. If the temperature is too low, the plastic may not melt properly, resulting in a poor-quality print. On the other hand, if the temperature is too high, the plastic may burn, releasing harmful chemicals into the air.
Different types of printers have different capabilities in terms of the temperatures they can reach. Some high-end printers can achieve temperatures above 450°C, but these are typically more expensive and may not be suitable for desktop use.
Overall, the process of melting plastic in 3D printing involves heating the plastic filament to its specific melting point to make it malleable and shape it into the desired object. This process requires careful consideration of the type of plastic and the potential health risks associated with heating plastic.
Plastic Retainers and MRI: Safe or Not?
You may want to see also
Explore related products
The plastic is formed to specifications of the print
The plastic used in 3D printing is typically in the form of a filament or powder. The plastic filament is heated to a melting point and deposited, built from the bottom up, one layer at a time, until a 3D model is created. This process is known as Fused Filament Fabrication (FFF) or Fused Deposition Modelling (FDM). The FDM technique is the most widely used form of 3D printing at the consumer level.
The FDM process involves feeding a spool of plastic filament into an extruder, which melts the plastic and deposits it onto a build plate. The extruder is responsible for melting and depositing the plastic, forming each layer of the 3D model. The number of layers of plastic used to create the outer layer of the 3D model is known as the "shells". Each layer, or "slice", varies in thickness depending on the design, typically ranging from 0.1 mm to a few millimetres.
The plastic filament used in FDM can be made from a variety of materials, including Acrylonitrile Butadiene Styrene (ABS), Polylactic Acid (PLA), nylon, and Polyethylene Terephthalate (PET). ABS is the most commonly used plastic in the industry and is known for its flexibility and impact resistance. It has a printing temperature range of 230°C to 160°C. On the other hand, PLA is a corn-based plastic that is biodegradable and does not give off fumes during printing.
The choice of plastic material depends on the specific requirements of the print. For example, PET is ideal for objects intended for food contact as it is semi-rigid and has good resistance. It requires printing temperatures between 75°C and 90°C. If higher heat resistance is needed, more advanced FDM printers can use specialised materials with higher heat resistance properties.
Hanging Basket Liners: Plastic Baskets and Their Needs
You may want to see also
Frequently asked questions
The extruder melts the plastic filament.
The extruder heats the plastic filament to a melting point.
The melting point depends on the type of plastic. For example, the extruder temperature for PLA is 190-220°C, while for ABS it is 220-250°C.
The melted plastic is deposited, built up layer by layer, to create a 3D model.
Yes, heating plastic can release toxic particles into the air, which can cause health issues when inhaled. It is recommended to have proper ventilation when using a 3D printer.
