Installing motherboard plastic tabs, or standoffs, is a crucial step in preventing damage to your computer. Standoffs are small pieces of plastic or metal that resemble screws and act as spacers between the motherboard and the case, preventing them from touching each other and causing a short circuit. While most standoffs are metallic, plastic standoffs are used to elevate the motherboard and do not secure it to the base plate. The process of installing plastic standoffs involves marking the standoff locations, aligning the motherboard, and screwing in the standoffs by hand or with a screwdriver, ensuring a tight fit without overtightening.
| Characteristics | Values |
|---|---|
| First Step | Check if the motherboard's I/O shield is integrated or separate. |
| Second Step | Lay the case on its side, ensuring no cables are in the motherboard tray. |
| Third Step | Gently place the motherboard inside the main chamber, ensuring the screw standoffs align with the holes. |
| Fourth Step | If the screw standoffs don't align, adjust their positions and ensure the motherboard lays flat. |
| Fifth Step | Secure the motherboard with small screws that match the chassis and standoffs. |
| Sixth Step | Connect the PSU cables to the motherboard, including the eight-pin CPU power connector and the 24-pin connector. |
Explore related products
What You'll Learn
Check the motherboard's I/O shield

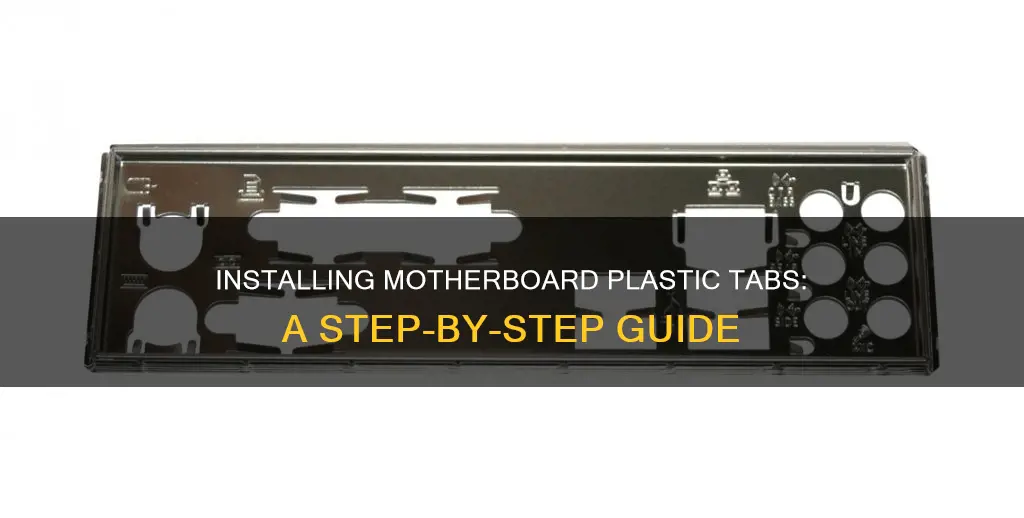

The motherboard I/O shield is a metal plate that surrounds the motherboard's onboard USB, audio, and network ports. It is crucial to install the I/O shield to protect the motherboard from small objects, insects, and static discharge.
Before installing a new motherboard, check if it comes with its own I/O shield. If it does, and your case has an old I/O shield already installed, you must remove the old one first to avoid compatibility issues. Gently press the old shield from outside the case until it clicks and falls inside; you can apply more pressure if needed.
Next, check the orientation of the new I/O shield. Ensure that each port cut-out on the shield aligns perfectly with its respective port on the motherboard, leaving no ports blocked. This step is important to avoid installing the I/O shield upside down.
You may notice prongs or little metal bumps around the port cut-outs on the I/O shield. These prongs ground the ports to protect the motherboard from static discharge. It is advisable to bend these prongs before installing the shield.
Finally, place the case on a flat surface to ensure it does not move during installation. With the correct orientation, place the I/O shield inside the case from the inside, aligning it with the motherboard. Gently push the shield by applying equal force to each corner one by one to fit it correctly.
Plastic Surgery Speculations: Dita Von Teese's Transformation
You may want to see also
Explore related products
Lay the case down on its side
Once the case is in a stable position, you can begin preparing the motherboard for installation. Gently lay the motherboard inside the main chamber of the case. Take your time with this step to ensure that the screw standoffs inside the case align correctly with the holes on the motherboard. If they don't line up perfectly, don't force the motherboard into place. Instead, carefully remove the motherboard, unscrew any misplaced standoffs, and then reposition them to match the motherboard's hole pattern.
It's important to ensure that the motherboard is properly secured and doesn't have any trapped cables underneath. Plastic standoffs are commonly used for this purpose. These standoffs are usually flat on the bottom (the part that touches the baseplate) and pointed at the top. The pointed top end of the plastic standoff compresses slightly so that you can push it through a mounting hole on the motherboard. Check your motherboard's manual or the manufacturer's website to see if plastic standoffs are recommended for your specific model.
If everything lines up correctly and the motherboard is laying flat, you're ready to proceed to the next step. Take the small screws that came with your chassis and start screwing them into the standoffs. Refer to the chassis manual to identify the correct size of screw for motherboard mounting, as different cases may require different screw sizes and types. Tighten these screws securely, following any torque specifications provided by the manufacturer, to ensure a solid connection between the motherboard and the case.
How to Use White Out on Plastic Surfaces
You may want to see also
Explore related products
Position the motherboard inside the case
Before placing the motherboard inside the case, ensure that the I/O shield is in place. The I/O shield is a metal plate that surrounds the motherboard's onboard USB, audio, and network ports. If it's separate, press it down firmly into the big rectangular void at the rear of the case, from the inside facing out, until it clicks into position.
Now, lay the case down on its side, ensuring no cables are laying around in the motherboard tray. Then, gently place the motherboard inside this main chamber. The screw standoffs inside the case should line up with the holes on the motherboard. If they don't, simply remove the motherboard, unscrew any misplaced standoffs, and reposition them.
Double-check that the motherboard is laying flat, the I/O ports line up with the shield, and there are no trapped cables underneath. If everything looks good, take the small screws that came with your chassis and start screwing them into the standoffs. Refer to your chassis manual to determine the correct screw size for motherboard mounting.
With these screws fastened, the motherboard should now sit securely inside the case. However, leave it lying down for now, as it's time to start making connections.
Clean Your Dog's Water Bowl: A Step-by-Step Guide
You may want to see also
Explore related products
Secure the motherboard with screws
To secure the motherboard with screws, you will need to use standoffs and small screws. The standoffs are usually hexagon-shaped and have a male and female end. They should be included with your case, along with the necessary screws. Check the case manual to see what you should get and compare it with what the motherboard requires.
First, screw the standoffs into the correct holes in the case, underneath the motherboard. Then, place the motherboard on top of the standoffs, aligning the standoffs with the screw holes in your motherboard. Finally, screw the motherboard in place with the provided screws.
It is important to ensure that the motherboard is laying flat and that the I/O ports line up with the shield (if separate) before securing it with screws. Additionally, check that there are no trapped cables underneath.
If your chassis came with several sizes of small screws, refer to the manual to identify the correct size for motherboard mounting.
Black Plastic's Effect on Tomato Ripening
You may want to see also
Explore related products
Connect PSU cables
Connecting the PSU cables is a crucial step in installing a motherboard. Here's a detailed guide on how to do it:
Locate the PSU Connectors:
The PSU (Power Supply Unit) provides the motherboard with the power it needs to function. The first step is to identify the PSU connectors. The most important one is the 24-pin connector, which supplies power to the entire motherboard. This connector is typically divided into two parts: a 20-pin connector and a 4-pin connector, ensuring compatibility with both older and newer motherboards.
Connect the 24-Pin Connector:
To connect the 24-pin PSU cable, start by inserting the smaller 4-pin segment into the corresponding pins on the motherboard. Then, line up the wider 20-pin piece and push it down firmly until it is fully seated. This ensures a secure and proper connection.
Connect the 8-Pin CPU Power Connector:
There is also an 8-pin CPU power connector located at the top-left of the motherboard. Find the matching power cable and plug it into the connector. This provides power to the processor.
Connect Additional PSU Cables:
Depending on your system configuration, you may need to connect additional PSU cables. For example, if you have a dedicated graphics card, you'll need to connect the 6-pin or 8-pin connector to supply additional power. The most potent GPUs on the market may even require two 8-pin connectors.
SATA Cable Connections:
If you're using SATA-connected storage devices, such as hard drives or SSDs, you'll need to connect the SATA cables. These cables provide power and data transfer to the storage devices.
Always refer to your motherboard's manual for specific instructions and ensure that you handle all components with care to avoid damage during the installation process.
Plastic Pencils: Cheaper Alternative to Wood?
You may want to see also
Frequently asked questions
Motherboard plastic tabs, also known as standoffs, are small plastic pieces that are used to separate the motherboard from the case and prevent electrical shorts. They are usually flat on the bottom and pointed at the top.
Motherboard plastic tabs are important because they create space between the motherboard and the case, preventing electrical shorts and potential damage to the motherboard and its connected components.
To install motherboard plastic tabs, first check that the screw standoffs inside your case line up with the holes on your motherboard. If they don't, adjust or reposition the standoffs. Once aligned, place the motherboard into the case, ensuring it lays flat and that there are no trapped cables.
Motherboard mounting screws are typically not included with the motherboard. They are usually provided with the case, as each case has unique mounting screw requirements. Check the hard drive bays of your case for the appropriate screws and standoffs.
It is generally not recommended to install a motherboard without plastic tabs, as it may lead to electrical shorts and damage. However, if your case has a metal backing with raised areas that replace the standoffs, you may not need additional plastic tabs.
