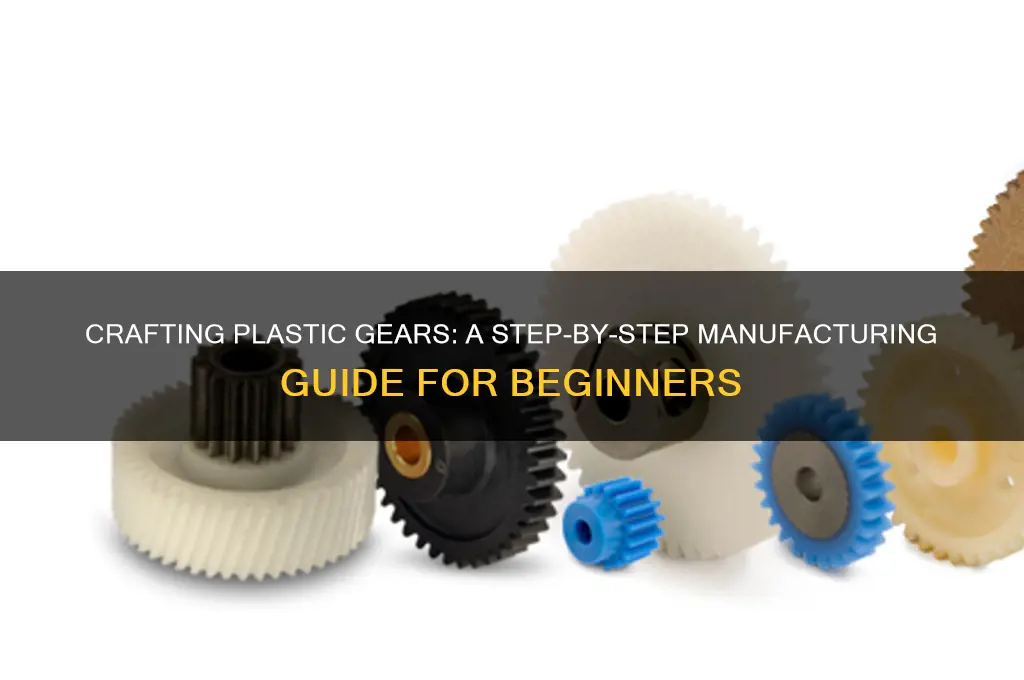

Making plastic gears involves a precise manufacturing process that begins with selecting the appropriate plastic material, such as nylon, acetal, or polycarbonate, based on the gear's intended application and performance requirements. The chosen material is then molded using injection molding, the most common method, where molten plastic is injected into a gear-shaped mold under high pressure. Alternatively, gears can be machined from plastic billets for custom or low-volume production. After molding, the gears undergo post-processing steps like deburring, polishing, and, if necessary, secondary operations like drilling or tapping. Design considerations, such as tooth profile, pitch, and material shrinkage, are critical to ensure proper meshing and functionality. Quality control measures, including dimensional inspections and load testing, are employed to verify the gears meet specifications before they are ready for use in machinery, automotive systems, or consumer products.
| Characteristics | Values |
|---|---|
| Material Selection | Engineering plastics like POM (Acetal), Nylon, PET, PBT, or UHMWPE are commonly used due to their strength, durability, and machinability. |
| Design Considerations | Gear geometry (spur, helical, bevel), tooth profile, pressure angle (typically 20°), module, and backlash are critical design parameters. |
| Manufacturing Methods | Injection molding, CNC machining, 3D printing, and hobbing are the primary methods. Injection molding is most cost-effective for high volumes. |
| Mold Design | Requires precise tooling with core and cavity inserts for gear teeth. Mold flow analysis ensures proper material distribution. |
| Surface Finish | Post-processing like tumbling, polishing, or coating may be applied to improve durability and reduce friction. |
| Tolerances | Tight tolerances (e.g., ±0.05 mm) are maintained to ensure proper meshing and performance. |
| Lubrication | Some plastics are self-lubricating, but external lubricants may be needed for high-load applications. |
| Post-Processing | Deburring, heat treatment (for dimensional stability), and quality inspection are essential steps. |
| Cost Factors | Material cost, tooling expense, production volume, and secondary operations influence overall cost. |
| Applications | Widely used in automotive, consumer electronics, medical devices, and industrial machinery. |
| Environmental Impact | Recyclable plastics and sustainable manufacturing practices are increasingly important. |
Explore related products
What You'll Learn
- Material Selection: Choose durable plastics like POM, Nylon, or PETG for gear manufacturing
- Design Considerations: Optimize tooth profile, pressure angle, and backlash for functionality
- Molding Techniques: Use injection molding or 3D printing for precise gear production
- Post-Processing: Deburr edges, polish surfaces, and ensure dimensional accuracy
- Quality Testing: Verify strength, wear resistance, and alignment under load conditions
Material Selection: Choose durable plastics like POM, Nylon, or PETG for gear manufacturing
The choice of material is critical in plastic gear manufacturing, as it directly impacts performance, durability, and cost. Among the myriad options, POM (Polyoxymethylene), Nylon, and PETG (Polyethylene Terephthalate Glycol) stand out for their unique properties. POM, for instance, offers exceptional dimensional stability and low friction, making it ideal for high-precision gears. Nylon, on the other hand, excels in applications requiring impact resistance and flexibility. PETG combines ease of manufacturing with good chemical resistance, suitable for gears exposed to harsh environments. Each material brings distinct advantages, but their selection depends on the specific demands of the gear’s application.
When selecting a material, consider the operating conditions of the gear. POM is often the go-to choice for applications requiring minimal wear and smooth operation, such as in office equipment or automotive components. Its ability to self-lubricate reduces the need for additional maintenance. Nylon, with its superior toughness, is preferred in heavy-duty applications like power tools or machinery where gears may experience sudden shocks or high loads. PETG, while less rigid than POM or Nylon, is valued for its ease of printing in 3D manufacturing processes, making it a cost-effective option for prototyping or low-stress applications.
A comparative analysis reveals trade-offs between these materials. POM’s high stiffness and low moisture absorption make it superior in humid environments, but it is more expensive than Nylon or PETG. Nylon’s ability to absorb moisture can lead to dimensional changes, requiring careful consideration in precision applications. PETG, while versatile, lacks the mechanical strength of POM or Nylon, limiting its use in high-stress scenarios. Understanding these trade-offs ensures the material aligns with both functional requirements and budget constraints.
Practical tips for material selection include testing prototypes under real-world conditions to evaluate performance. For instance, subject POM gears to continuous operation to assess wear rates, or expose Nylon gears to varying temperatures to monitor dimensional stability. When using PETG, ensure the printing parameters are optimized to achieve maximum strength. Additionally, consult material data sheets for specific properties like tensile strength, impact resistance, and thermal expansion coefficients. This data-driven approach ensures the chosen material meets the gear’s operational demands while minimizing long-term costs.
In conclusion, the selection of POM, Nylon, or PETG for plastic gear manufacturing hinges on balancing performance, cost, and environmental factors. POM’s precision and durability make it a premium choice, Nylon’s toughness suits high-impact applications, and PETG’s accessibility benefits prototyping and low-stress uses. By carefully evaluating these materials against the gear’s intended application, manufacturers can optimize both functionality and efficiency, ensuring the final product meets or exceeds expectations.
Creative Braiding Techniques: Transforming Plastic into Durable, Eco-Friendly Rugs
You may want to see also
Explore related products
Design Considerations: Optimize tooth profile, pressure angle, and backlash for functionality
The tooth profile of a plastic gear is its backbone, dictating how it meshes with its counterpart and distributes load. Involute profiles are standard due to their ability to maintain a constant velocity ratio, but cycloidal profiles offer smoother engagement at low speeds. For plastic gears, where material flexibility is higher than metal, a slightly modified involute profile can compensate for deflection under load. This modification involves adjusting the tooth thickness and root radius to prevent premature wear and ensure consistent performance.
Pressure angle, typically 20° or 14.5°, influences load distribution and efficiency. A 20° angle provides higher strength and load capacity, making it suitable for most plastic gear applications. However, a 14.5° angle reduces sliding friction, which can be advantageous in high-speed, low-torque scenarios. When designing plastic gears, consider the material’s stiffness and the application’s torque requirements. For instance, acetal (POM) gears can handle higher pressure angles due to their rigidity, while nylon gears may benefit from a lower angle to minimize stress concentration.
Backlash, the gap between meshing teeth, is critical for preventing binding and accommodating thermal expansion. In plastic gears, where dimensional changes due to temperature are more pronounced, a backlash of 0.002 to 0.005 inches per inch of pitch diameter is recommended. However, excessive backlash can lead to noise and reduced accuracy. Use precision molding techniques and account for material shrinkage during cooling to achieve the desired backlash. For gears in precision applications, such as robotics, tighter tolerances (within ±0.001 inches) are essential.
Optimizing these parameters requires a balance between theoretical calculations and practical testing. Finite Element Analysis (FEA) can predict stress distribution and deformation, but real-world testing under load and temperature variations is indispensable. For example, a gear designed for a 3D printer extruder must withstand both high torque and frequent temperature fluctuations. Iterative prototyping, using materials like ABS or PETG for initial tests, allows for fine-tuning the tooth profile, pressure angle, and backlash before finalizing the design in high-performance plastics like PEEK or polycarbonate.
In summary, designing plastic gears demands a meticulous approach to tooth profile, pressure angle, and backlash. Tailor the tooth profile to compensate for material flexibility, select the pressure angle based on load and speed requirements, and carefully control backlash to ensure smooth operation. By integrating analytical tools with practical testing, engineers can create gears that maximize functionality and longevity in their intended applications.
Were Any Lombard Covers Made from Plastic? Exploring the Materials
You may want to see also
Explore related products
Molding Techniques: Use injection molding or 3D printing for precise gear production
Injection molding stands as the cornerstone of mass-producing plastic gears, prized for its ability to churn out high volumes with pinpoint accuracy. The process begins with melting plastic pellets in a barrel, which are then injected under high pressure into a mold cavity shaped like the gear. This method excels in creating gears with tight tolerances, essential for applications like automotive transmissions or precision machinery. For instance, a typical injection molding cycle for a small plastic gear might last 20-30 seconds, allowing for rapid production rates. However, the upfront cost of designing and machining the mold can be substantial, often ranging from $5,000 to $50,000, depending on complexity. Despite this, the per-unit cost plummets as production scales, making it ideal for large orders.
3D printing, on the other hand, offers unparalleled flexibility and accessibility for prototyping or small-batch production. Techniques like Fused Deposition Modeling (FDM) or Stereolithography (SLA) build gears layer by layer, directly from digital designs. This eliminates the need for expensive molds, reducing initial costs to nearly zero. For example, printing a single gear prototype using PLA filament on an FDM printer might take 1-2 hours and cost less than $1 in materials. While 3D-printed gears may lack the surface finish or strength of injection-molded ones, advancements in materials like nylon or carbon-fiber composites are bridging this gap. This makes 3D printing a viable option for custom gears in robotics, hobbyist projects, or low-stress applications.
Choosing between injection molding and 3D printing hinges on production scale, material requirements, and budget. Injection molding reigns supreme for high-volume, high-precision gears, but its steep setup costs make it impractical for small runs. Conversely, 3D printing shines in low-volume scenarios, enabling rapid iteration and customization. For instance, a startup developing a new gear mechanism might 3D print prototypes to test designs before committing to injection molding for mass production. Understanding these trade-offs ensures the right technique is selected for the job.
Material selection plays a critical role in both molding techniques. Injection molding supports a wide range of engineering plastics, such as ABS, POM (Delrin), or PEEK, each offering unique properties like strength, flexibility, or heat resistance. For 3D printing, material options are more limited but expanding, with filaments like PETG or TPU providing durability and flexibility. A practical tip: always match the material to the gear’s intended use. For example, POM is ideal for low-friction applications like conveyor systems, while ABS works well for general-purpose gears in moderate loads.
In conclusion, both injection molding and 3D printing offer distinct advantages for producing precise plastic gears. Injection molding delivers unmatched precision and scalability for large orders, while 3D printing provides cost-effective flexibility for small-scale or custom projects. By carefully considering factors like volume, material, and budget, manufacturers can leverage these techniques to meet their specific needs effectively. Whether mass-producing gears for industrial machinery or prototyping a novel design, the right molding technique ensures optimal results.
Fiestaware and Plastic: Unraveling the Truth Behind the Material
You may want to see also
Explore related products
Post-Processing: Deburr edges, polish surfaces, and ensure dimensional accuracy
Sharp edges and rough surfaces are inevitable byproducts of plastic gear manufacturing, whether through injection molding, 3D printing, or CNC machining. These imperfections, if left unaddressed, can lead to increased friction, premature wear, and even gear failure. Post-processing steps like deburring, polishing, and dimensional verification are critical to transforming a raw gear into a functional, reliable component.
Deburring, the removal of sharp edges and burrs, is the first line of defense against these issues. Burrs, those tiny raised edges left by machining or molding, act like microscopic daggers, tearing at mating gear teeth during operation. Think of them as speed bumps on a highway, causing unnecessary resistance and wear. Deburring can be achieved through manual methods like sanding or filing, but for precision and consistency, automated techniques like tumbling with abrasive media or vibratory finishing are preferred.
Vibratory finishing, for instance, involves placing the gears in a vibrating container filled with abrasive media like ceramic beads or plastic pellets. The vibration causes the media to rub against the gears, gradually smoothing out burrs and creating a uniform edge profile. The duration of this process depends on the gear size, material, and desired finish, typically ranging from 30 minutes to several hours.
While deburring tackles the edges, polishing addresses the overall surface finish. A smoother surface reduces friction, allowing gears to mesh more efficiently and quietly. Polishing can be achieved through various methods, from simple hand buffing with a soft cloth to more advanced techniques like vapor polishing, which uses a solvent vapor to melt and smooth the surface. The choice of method depends on the desired finish level and the gear's application. For example, gears used in high-precision applications like robotics may require a mirror-like finish achievable only through vapor polishing.
In the pursuit of smooth edges and polished surfaces, it's crucial not to lose sight of dimensional accuracy. Deburring and polishing can inadvertently remove material, altering the gear's critical dimensions. This is where precise measurement and quality control come into play. Coordinate measuring machines (CMMs) and optical comparators are invaluable tools for verifying tooth thickness, pitch diameter, and other critical parameters after post-processing. Any deviations from the design specifications must be addressed through careful adjustment of the deburring and polishing processes.
Post-processing is not merely a cosmetic touch; it's a vital step in ensuring the performance and longevity of plastic gears. By meticulously deburring edges, polishing surfaces, and verifying dimensional accuracy, manufacturers can transform raw components into high-quality gears capable of meeting the demands of diverse applications, from the whirring mechanisms of toys to the precise movements of industrial machinery.
Plastic Stemless Wine Glasses: Are They Available and Worth It?
You may want to see also
Explore related products
Quality Testing: Verify strength, wear resistance, and alignment under load conditions
Plastic gears, while lightweight and cost-effective, must withstand rigorous demands in applications ranging from automotive systems to consumer electronics. Quality testing ensures these components perform reliably under stress, avoiding costly failures. One critical aspect is verifying strength through tensile and flexural testing. Standardized methods like ASTM D638 measure a material’s ability to resist breaking under tension, while ASTM D790 assesses bending strength. For instance, acetal (POM) gears, known for their stiffness, typically exhibit tensile strengths of 60–70 MPa, making them suitable for high-load scenarios. However, even robust materials can fail if not tested under real-world conditions.
Wear resistance is another cornerstone of gear durability, particularly in high-cycle applications. Abrasion tests, such as the Taber Abraser, simulate repeated friction by rotating a gear against an abrasive wheel under controlled pressure. For nylon gears, which are prone to wear in dry environments, lubricants or additives like molybdenum disulfide can reduce surface degradation by up to 40%. Comparative studies show that gears with a surface hardness of 80–90 Shore D outperform softer variants by lasting 2–3 times longer in abrasive conditions. Practical tip: Always test wear resistance at the expected operating temperature, as thermal expansion can alter material behavior.
Alignment under load is often overlooked but critical for minimizing backlash and ensuring smooth power transmission. A common method involves applying a controlled torque while measuring angular deflection using a dial indicator. Misalignment as small as 0.02 mm can lead to premature failure in high-speed systems. For example, polypropylene gears, which are flexible but prone to warping, require tighter alignment tolerances than rigid materials like PEEK. To mitigate this, incorporate stress-relief features like fillets and use molds with precision-machined cores to maintain dimensional accuracy during production.
Instructively, a comprehensive testing regimen should integrate these three parameters into a staged process. Begin with static strength tests to validate material selection, followed by dynamic wear trials over 10,000–100,000 cycles, depending on the application. Conclude with load alignment checks at 75%, 100%, and 125% of the expected operating torque. Caution: Avoid over-relying on theoretical calculations; empirical testing reveals nuances like material creep or fatigue that simulations miss. For instance, a gear designed for 50 Nm may fail at 40 Nm if micro-cracks form during manufacturing—a flaw only detectable through rigorous testing.
Persuasively, investing in quality testing is not just a technical necessity but a strategic advantage. Gears that pass stringent tests reduce warranty claims, enhance customer trust, and lower long-term costs. Consider the automotive industry, where plastic timing gears must endure millions of cycles without failure. Manufacturers who adopt ASTM and ISO testing standards report defect rates below 0.1%, compared to 2–3% for untested components. By prioritizing strength, wear resistance, and alignment verification, engineers ensure plastic gears meet—and exceed—the demands of modern applications.
From Pellets to Protection: The Process of Making Plastic Gloves
You may want to see also
Frequently asked questions
Common materials for plastic gears include nylon, acetal (POM), polypropylene (PP), polyethylene (PE), and PBT (polybutylene terephthalate), chosen for their durability, machinability, and cost-effectiveness.
Plastic gears are typically made using injection molding, hobbing, or 3D printing, depending on the required precision, volume, and material properties.
Strength and durability are ensured by selecting the right material, optimizing gear design (e.g., tooth profile and thickness), and applying proper manufacturing techniques like reinforcing with fibers or additives.
No, plastic gears are not suitable for high-temperature, high-load, or high-speed applications where metal gears are preferred. They are ideal for low to moderate stress environments.
Plastic gears are lighter, quieter, more corrosion-resistant, and less expensive to produce compared to metal gears, making them ideal for applications like automotive, electronics, and consumer goods.
