Plastics are incredibly versatile materials that can be shaped into a wide variety of forms and products. The process of shaping plastics involves several key steps, starting with the selection of the appropriate type of plastic for the desired application. Once the plastic has been chosen, it is typically melted down to a liquid state using heat. This molten plastic can then be molded into the desired shape using a variety of techniques, such as injection molding, blow molding, or rotational molding. After the plastic has been shaped, it is allowed to cool and solidify, resulting in a durable and long-lasting product. The ability to shape plastics with precision and consistency has made them an essential material in many industries, including automotive, medical, and consumer goods.
| Characteristics | Values |
|---|---|
| Process | Injection Molding, Blow Molding, Extrusion, Thermoforming, Rotational Molding |
| Temperature | Typically between 180°C to 320°C (356°F to 608°F) |
| Pressure | Varies; Injection Molding: 100-300 MPa, Blow Molding: 1-5 MPa |
| Material | Thermoplastics (e.g., PET, HDPE, PVC), Thermosets (e.g., Epoxy, Phenolic) |
| Mold Material | Steel, Aluminum, Copper, Graphite, Plastic |
| Cycle Time | Seconds to minutes, depending on the process and part size |
| Part Size | From small (e.g., bottle caps) to large (e.g., automotive parts) |
| Surface Finish | Smooth, Textured, Matte, Glossy |
| Color | Virtually any color, including clear and multi-colored |
| Strength | Tensile strength ranges from 10 MPa to over 100 MPa |
| Flexibility | Rigid to highly flexible, depending on the material and design |
| Weight | Lightweight to heavy, depending on the material and part size |
| Cost | Varies widely based on material, process, and volume |
| Environmental Impact | Recyclable, but contributes to pollution if not managed properly |
| Applications | Packaging, Automotive, Medical, Aerospace, Consumer Goods |
| Innovations | 3D Printing, Biodegradable Plastics, Smart Plastics with embedded sensors |
Explore related products
What You'll Learn
- Injection Molding: Molten plastic injected into molds to form precise shapes; common for mass production
- Extrusion: Plastic forced through dies to create continuous profiles like pipes, tubes, and sheets
- Blow Molding: Air inflates molten plastic within a mold, forming hollow objects like bottles and containers
- Thermoforming: Heat and pressure shape plastic sheets into desired forms, often used for packaging
- Additive Manufacturing: Layer-by-layer deposition of plastic material to create complex 3D shapes; also known as 3D printing
Injection Molding: Molten plastic injected into molds to form precise shapes; common for mass production
Injection molding is a pivotal process in the plastics industry, renowned for its ability to produce intricate and precise shapes with high efficiency. This method involves heating plastic until it becomes molten and then injecting it into a mold cavity. Once the plastic cools and solidifies, it takes on the exact shape of the mold, allowing for the mass production of identical parts. This technique is particularly valuable for creating complex geometries that would be difficult or impossible to achieve with other molding methods.
The process begins with the design of the mold, which is typically made from steel or aluminum. The mold consists of two halves: the injection side, which contains the cavity where the molten plastic is injected, and the ejection side, which forms the exterior of the part. The two halves are designed to fit together perfectly, ensuring that the plastic fills the cavity uniformly and accurately.
During the injection molding process, the molten plastic is forced into the mold cavity under high pressure. This pressure is necessary to ensure that the plastic fills the cavity completely and to prevent the formation of air pockets or voids. The plastic is then allowed to cool and solidify, a process that can take anywhere from a few seconds to several minutes, depending on the size and thickness of the part.
One of the key advantages of injection molding is its ability to produce parts with a high degree of precision and consistency. This is achieved through the use of precise mold designs and the careful control of process parameters such as temperature, pressure, and injection speed. Additionally, injection molding can be used to produce parts from a wide range of plastic materials, each with its own unique properties and characteristics.
Injection molding is also a highly efficient process, making it ideal for mass production applications. The ability to produce large quantities of identical parts quickly and cost-effectively has made injection molding a cornerstone of the plastics industry. From automotive components to consumer products, injection molding plays a critical role in the production of a vast array of plastic parts.
In conclusion, injection molding is a versatile and efficient process for shaping plastics into precise and complex forms. Its ability to produce high-quality parts with consistency and speed has made it an indispensable technique in the modern plastics industry.
The Impact of Plastics on Marine Ecosystems: A Growing Concern
You may want to see also
Explore related products
Extrusion: Plastic forced through dies to create continuous profiles like pipes, tubes, and sheets
Extrusion is a pivotal process in the manufacturing of plastic products, where raw plastic material is forced through a die to create continuous profiles such as pipes, tubes, and sheets. This method is highly efficient for producing long, uniform shapes with consistent cross-sections. The process begins with the plastic being fed into an extruder, where it is melted and then pushed through the die under high pressure. The die shapes the molten plastic into the desired profile, and as it exits, the plastic cools and solidifies, retaining its form.
One of the key advantages of extrusion is its ability to produce complex profiles with precision. The dies can be custom-made to create a wide variety of shapes, including those with intricate details or specific dimensions. This makes extrusion ideal for applications where uniformity and accuracy are critical, such as in the production of medical tubing or construction materials.
In addition to its versatility, extrusion is also a cost-effective process. It allows for high production rates and minimizes waste, as the plastic can be continuously fed into the extruder and the process can run for extended periods without interruption. This efficiency makes extrusion a popular choice for large-scale manufacturing operations.
However, the extrusion process does have some limitations. It is primarily suited for producing long, continuous shapes, and it can be challenging to create products with complex geometries or varying thicknesses. Additionally, the cooling process can sometimes lead to warping or other defects if not carefully controlled.
Despite these challenges, extrusion remains a fundamental technique in the plastic manufacturing industry. Its ability to produce high-quality, uniform products at a low cost makes it an indispensable tool for a wide range of applications. From plumbing and construction to medical devices and consumer goods, extruded plastic products are all around us, showcasing the versatility and importance of this manufacturing process.
The Hidden Danger: How Plastic Pollution Impacts Cows and Our Food Chain
You may want to see also
Explore related products

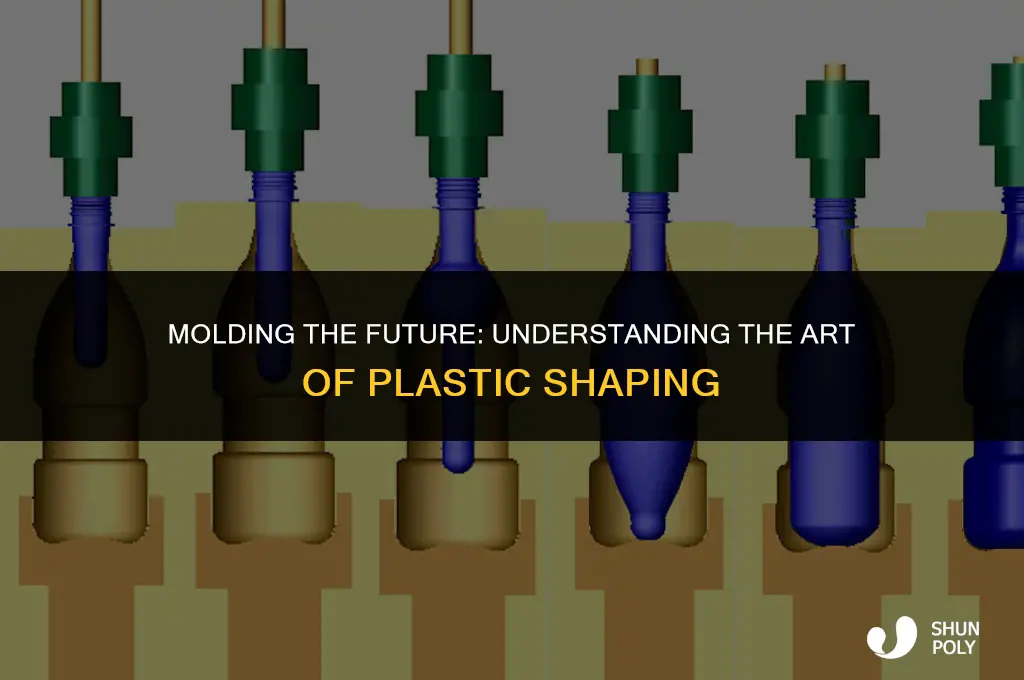

Blow Molding: Air inflates molten plastic within a mold, forming hollow objects like bottles and containers
Blow molding is a fascinating process that transforms molten plastic into hollow objects with remarkable precision. At its core, the technique relies on the principle of inflating heated plastic within a mold, allowing it to take on the mold's shape as it cools and solidifies. This method is particularly well-suited for creating containers, bottles, and other hollow items that require a high degree of uniformity and structural integrity.
The blow molding process begins with the plastic being heated to a molten state, typically through injection molding or extrusion. Once the plastic reaches the desired temperature, it is transferred to a mold that has been specifically designed to produce the final product. The mold consists of two halves that are clamped together, creating a cavity that matches the shape of the intended object.
Air is then introduced into the mold, either through a needle or a small opening, and it rapidly inflates the molten plastic, forcing it to conform to the mold's contours. As the plastic expands, it stretches and thins, creating a uniform wall thickness throughout the object. The air pressure is carefully controlled to ensure that the plastic is evenly distributed and that the final product meets the required specifications.
After the plastic has been inflated and has taken on the mold's shape, it is allowed to cool and solidify. This process can be accelerated through the use of cooling channels within the mold or by applying a cooling agent to the exterior of the mold. Once the plastic has hardened, the mold is opened, and the finished product is ejected.
Blow molding offers several advantages over other plastic shaping techniques. It allows for the creation of complex shapes with ease, and it can produce large quantities of uniform products quickly and efficiently. Additionally, blow molding can be used to create objects with varying wall thicknesses, which can be beneficial for applications where strength and durability are critical.
In conclusion, blow molding is a versatile and effective method for shaping plastics into hollow objects. By leveraging the principles of inflation and solidification, this technique can produce a wide range of products with exceptional precision and consistency. Whether used for creating everyday items like bottles and containers or for more specialized applications, blow molding remains a vital tool in the plastic manufacturing industry.
Unveiling the Journey: How Plastics Get a Second Life Through Recycling
You may want to see also
Explore related products
Thermoforming: Heat and pressure shape plastic sheets into desired forms, often used for packaging
Thermoforming is a versatile plastic shaping process that utilizes heat and pressure to mold plastic sheets into intricate forms. This method is particularly favored in the packaging industry due to its ability to create lightweight, durable, and cost-effective containers. The process begins with a plastic sheet being fed into a thermoforming machine, where it is heated to a pliable temperature. Once the sheet reaches the desired temperature, it is pressed against a mold using a combination of vacuum and pressure. The plastic then takes on the shape of the mold, forming a precise and consistent product.
One of the key advantages of thermoforming is its ability to produce parts with complex geometries and fine details. This is achieved through the use of custom molds that can be designed to meet specific product requirements. Additionally, thermoforming allows for the creation of parts with varying wall thicknesses, which can be beneficial for applications that require both strength and flexibility. The process is also relatively fast and efficient, making it suitable for high-volume production runs.
Thermoforming is commonly used for a wide range of applications beyond packaging, including medical devices, automotive components, and consumer goods. In the medical field, thermoformed parts are often used for disposable syringes, blister packs, and other sterile packaging. In the automotive industry, thermoforming is used to produce parts such as dashboard covers, door panels, and protective casings. For consumer goods, thermoformed products can include everything from toy packaging to protective covers for electronics.
Despite its many advantages, thermoforming does have some limitations. One of the main challenges is the need for specialized equipment and molds, which can be expensive to produce. Additionally, the process can be sensitive to variations in material properties and environmental conditions, which can affect the quality and consistency of the final product. To overcome these challenges, manufacturers often invest in advanced thermoforming machines and quality control systems to ensure precise and reliable production.
In conclusion, thermoforming is a highly effective method for shaping plastic sheets into complex forms, offering numerous benefits for a variety of industries. Its ability to produce lightweight, durable, and cost-effective parts makes it a popular choice for packaging and other applications. While the process does have some limitations, advancements in technology and manufacturing techniques continue to improve its efficiency and versatility.
Eco-Friendly Mailing: How Many Stamps Does Your Plastic Mailer Need?
You may want to see also
Explore related products
Additive Manufacturing: Layer-by-layer deposition of plastic material to create complex 3D shapes; also known as 3D printing
Additive manufacturing, commonly known as 3D printing, is a revolutionary process that allows for the creation of complex three-dimensional shapes by depositing layers of plastic material. This method stands in stark contrast to traditional subtractive manufacturing techniques, which involve removing material to achieve the desired shape. In additive manufacturing, the process begins with a digital model of the object, which is then sliced into thin layers. These layers are sequentially deposited by the 3D printer, building up the object from the bottom up.
One of the key advantages of additive manufacturing is its ability to produce intricate designs that would be difficult or impossible to create using traditional methods. This includes objects with internal cavities, complex geometries, and customized features. Additionally, 3D printing allows for rapid prototyping, enabling designers and engineers to quickly test and iterate on their ideas. The process is also highly efficient, as it minimizes material waste and can be automated, reducing labor costs.
There are several different types of 3D printing technologies, each with its own strengths and limitations. Some of the most common include fused deposition modeling (FDM), stereolithography (SLA), and selective laser sintering (SLS). FDM is a popular choice for hobbyists and educators due to its affordability and ease of use. SLA, on the other hand, is known for its high precision and is often used in professional settings. SLS is a more advanced technique that uses a laser to fuse powdered materials, resulting in strong and durable objects.
Despite its many benefits, additive manufacturing is not without its challenges. One of the main limitations is the range of materials that can be used. While there are a growing number of options available, including various types of plastics, metals, and ceramics, the selection is still more limited compared to traditional manufacturing methods. Additionally, the speed of 3D printing can be a factor, as larger or more complex objects can take several hours or even days to complete.
In conclusion, additive manufacturing is a transformative technology that is reshaping the way we design and produce objects. Its ability to create complex shapes with minimal material waste and rapid prototyping capabilities make it an invaluable tool for a wide range of industries, from aerospace to healthcare. As the technology continues to evolve, we can expect to see even more innovative applications of 3D printing in the future.
Unveiling the Hidden Chemicals: A Deep Dive into Plastic Additives
You may want to see also
Frequently asked questions
The primary methods used to shape plastics include injection molding, extrusion, blow molding, and thermoforming. Each method is suited for different types of products and involves heating the plastic to a malleable state before shaping it into the desired form.
Injection molding works by heating plastic pellets until they melt and then injecting the molten plastic into a mold cavity. The plastic is then cooled and solidified within the mold, taking on the shape of the cavity. This method is commonly used for producing complex, high-volume parts.
Extrusion involves heating plastic pellets and then forcing the molten plastic through a die with a specific cross-sectional shape. The plastic is continuously pushed out of the die, forming a long, uniform profile. This process is often used for creating items like pipes, tubing, and plastic sheets.
Blow molding is advantageous for creating hollow objects with complex shapes, such as bottles and containers. The process involves heating a plastic parison (a tube-like piece of plastic) and then using air pressure to inflate it within a mold. This allows for the creation of lightweight, durable products with intricate designs.
