Omar Khalid
A wobbly fan is a common issue that many homeowners face. Not only is it a visual distraction, but it can also cause the motor's bearings and bushings to wear down over time, leading to annoying squeaks and whines. Balancing a fan is not an overly complicated task, but it does require some troubleshooting as there could be several reasons for the wobble. This includes dust buildup, warped blades, or a faulty motor mount. To identify which blade is causing the issue, you can dab each tip with a different-colored fluorescent paint or use a small mirror and a laser pointer. Once the problem blade is identified, adjustments can be made by gently bending it or using a balancing kit with weights to achieve stability. For free-spinning, direct-drive fans, a simple method involves sticking a nerf dart into the cracks of the grill and slowly spinning the blades to identify any misalignments.
| Characteristics | Values |
|---|---|
| Tools required | None; a balancing kit may be needed for stubborn wobbles |
| Fan type | Free-spinning, direct-drive fans where the shaft can be placed horizontally |
| Fan power | Ensure the fan is unplugged or turned off at the switch |
| Fan blades | Check for warping or damage; ensure all blades are at the same height |
| Blade movement | Move the blades as far from the motor as possible to reduce vibration |
| Blade attachment | Tighten any loose screws on the blade brackets without overtightening |
| Blade weight | Use tape and washers to adjust the weight of the blades |
| Blade comparison | Compare the lightest blade to the heaviest and adjust until they are balanced |
| Blade tracking | Use fluorescent paint or tape to identify each blade |
Explore related products
What You'll Learn
Identify the problem blade
To identify the problem blade, first turn off the fan and wait for it to come to a complete stop. Then, use a damp cloth to clean each blade and its attachment to the motor housing. This is important because dust and dirt buildup can cause imbalance and wobbling. Next, tighten any loose screws on the blade brackets using a screwdriver. Be careful not to overtighten, as this can strip the screws or damage the blades.
Now you are ready to begin the process of identifying the problem blade. First, label each blade with a numbered piece of masking tape so you can keep track of any adjustments you make. Then, attach the plastic clip from your ceiling fan balancing kit to one of the blades about halfway up its length. Turn on the fan to see if the instability has improved. If it has, you have found the problem blade. If not, repeat the process with the other blades until you find the one causing the instability.
Another method to identify the problem blade is to use a "helper weight". First, remove one side of the safety cage or grill. Then, clean the blades and label them. Next, attach a dime or similar small weight to the tip of one of the blades with clear tape. Hold another blade at the top center and let go, noting how far the weighted blade rotates down. Repeat this process several times, noting where the weighted blade stops each time. If it doesn't rotate, try something heavier. If it rotates too far and swings back, try something lighter. By comparing the rotation of the blades with different weights attached, you can identify which blade is heavier and, therefore, unbalanced.
If your fan has four blades, make sure to compare opposite blades, as they should be equal (blade 1 = blade 3, blade 2 = blade 4). You can also try taping a dime to each blade in turn and releasing it from the 3 o'clock position to measure how far each blade rotates. Rank the blades from heaviest to lightest, and start adding tape to the lightest blade, retesting until they all rotate the same distance.
Additionally, you can try flipping the blade assembly over to move the blades further from the motor, which can reduce vibration. However, this method is not recommended for curved fan blades designed to spin in one direction, as it can make them inefficient.
Unlocking the Mystery of Plastic Name Tags
You may want to see also
Explore related products
Clean the blades
Cleaning the blades of your plastic fan is a simple task that can be done without disassembling the fan. It is important to clean your fan regularly, especially if it is placed in an area with cooking or aerosol usage, as this can cause a build-up of dirt and dust.
To clean the blades, first turn off the fan and unplug it from the power source. Next, use a hairdryer or compressed air to blow away any dust from the surface of the blades. Be sure to turn the fan around to clean the backside of the blades as well. You can also use a handheld or full-sized vacuum with a dusting brush attachment to carefully go over all the surfaces of the fan, paying extra attention to the motor exhaust vents and electrical cord. If you have a pedestal fan, don't forget to clean the pole and the base.
For a more thorough cleaning, you can disassemble the fan by following the instructions in the user manual or on the manufacturer's website. Loosen the screws holding the wire housing in place with the appropriate type of screwdriver and remove any clips holding the wire mesh in place. Keep in mind that disassembling the fan may void the warranty, so it is important to consult the instructions before proceeding.
If you prefer not to disassemble the fan, there are a few alternative methods you can try. One method is to lay the fan flat on a sheet with the blades pointing up or down and pour clean, dry sand or salt through the grills. This will brush off the fan blades and spill onto the sheet, taking the dust with it. Another method is to use a steamer and a towel to mop up any grime and water residue. You can also try spraying soapy water on the blades and grills and using a long-handled brush to scrub away any dirt.
Ohio River's Plastic Pollution: A Growing Concern
You may want to see also
Explore related products
Adjust the blades' weight
Adjusting the weight of the fan blades is a common method to balance a fan. This can be done by using a balancing kit, which typically includes small weights with an adhesive backing, or by using household items such as tape, coins, or putty.
To begin, ensure the fan is unplugged and switched off. You may also want to clean each blade with a damp cloth and tighten any loose screws on the blade brackets.
One method to adjust the blade weight is to use a balancing kit. Place the plastic clip from the kit halfway up the length of one blade and turn on the fan to observe if the instability has improved. Repeat this process for each blade to identify the problem blade. Once you've located the blade causing the instability, slide the clip towards the end of the blade in small increments, checking for improvement after each adjustment. When you find the position that offers the most stability, place one of the balance weights in the centre of the fan blade, parallel to the clip. Remove the clip and turn the fan on again to test if the instability has been resolved.
If you don't have access to a balancing kit, you can use household items to adjust the blade weight. One method is to use tape, such as duct tape or electrical tape, to add weight to the lighter blades. Start by sticking a small piece of tape to the centre of the lightest blade and compare its rotation to the heaviest blade. Adjust the amount of tape on the lightest blade until both blades travel the same distance during the test, indicating they are balanced. Repeat this process for the other blades, ensuring that opposite blades are equal in weight.
Another method using household items is static balancing, which involves adding small weights to the blades. First, mount the fan so that the blades spin like the hands of a clock. Turn the fan by hand to identify the heaviest blade, which will always end up at the 6 o'clock position. Add small weights, such as putty or coins, to the opposite blade(s) until all the blades react equally and none of them want to settle at the bottom. Place the weights at the centre of gravity of the blades, and adjust this point if needed due to the weight of the bracket holding the blades. Ensure that each blade has the same angle of mount so that they behave consistently when cutting through the air.
By adjusting the weight of the fan blades, you can effectively balance your fan and improve its performance, reducing excessive wear on the fan motor and extending its lifespan.
Hot Water and Plastic: What's the Deformation Risk?
You may want to see also
Explore related products
Move the blades away from the motor
Moving the fan blades away from the motor is a good way to balance your fan and reduce irritating vibrations, especially on high speed. This method does not require any special tools or the removal of blades, drilling, or adding weights.
First, ensure your fan is unplugged and one side of the grill is removed. If your fan is operated by a thermostat, make sure the power is turned off at the breaker. You can then proceed to move the blades.
If your fan allows the blades to be moved up and down the shaft, move them as far from the motor as possible. You can try flipping the blade assembly over to get the blades further away from the motor. However, this is not recommended for curved fan blades designed to spin in one direction, as they will be inefficient.
If your fan blades are attached to the shaft, you will need to remove them with a puller or by sliding them off. Hold the shaft close to the motor with vice grips and use a channel lock on the hub of the blade, turning it to break the rust. You can also try lubricating the opening of the hub, removing the set screw, and placing an adjustable wrench on the shaft, then rotating the blade while holding the shaft to loosen it. Remember to use additional lubricant as needed.
Once you have moved the blades away from the motor, put the safety grill back on and test your fan.
Big Lots' Giant Plastic Tubs: What You Need to Know
You may want to see also
Explore related products

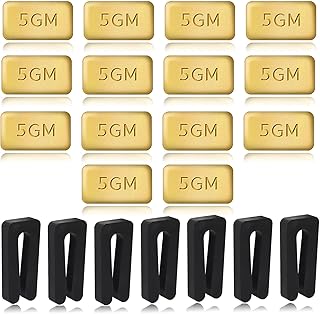

Use a balancing kit
If basic balancing techniques do not work, you may need to use a balancing kit to balance a plastic fan blade. Balancing kits can be purchased from local home centres or the fan manufacturer. Before using the kit, ensure that the fan is cleaned and the screws are tightened. Place a numbered piece of masking tape on each blade so you can keep track of them. Use a ruler or yardstick to measure the distance between each blade's leading edge and the ceiling. Keep the ruler vertical and manually move the blades to measure each one. If an edge is out of alignment, gently bend the blade's bracket up or down by hand.
Once you have found the problem blade, take the clip provided in the kit and place it in the middle of the trailing edge of the blade. Observe the fan from a ladder to see how the extra weight affects it. Turn the fan off and slide the clip out towards the end or back towards the motor. Turn the fan on again and see if there is a change. Continue moving and testing the clip's position on this blade or others until the wobbling stops.
Now, use a piece of tape to temporarily secure one of the kit's self-adhesive weights to the top of the blade's centreline, in line with the clip. Remove the clip and see how the fan runs. You may need to add more than one weight to get the fan to run smoothly. Once you find the position that offers the most stability, position one of the balance weights in the centre of the fan blade, parallel to the clip. Stick or glue the weight in position and then remove the clip.
Choosing the Right Thickness of Plastic for Crawl Spaces
You may want to see also
Frequently asked questions
To identify which blade is causing the wobble, dab each blade tip with a different-coloured fluorescent paint. Observe the fan as it spins to identify which blade is behaving erratically.
First, turn off the fan and wait for it to come to a complete stop. Then, clean the fan blades with a damp cloth. Next, tighten any loose screws on the blade brackets. Finally, adjust the weight of the fan blades by adding weights or tape to the blades.
First, identify the lightest and heaviest blades. Then, adjust the weight of the lightest blade by attaching tape to it and gradually increasing the length of the tape until the distance travelled by the lightest blade is equal to that of the heaviest blade. Repeat this process for the middle blade.
Balancing a plastic fan blade does not require any special tools. However, it is recommended to have a damp cloth, a screwdriver, and tape (duct tape, masking tape, or self-adhesive weights).
