The plastic limit of soil is the moisture content at which soil begins to behave as a plastic material. At this water content, the soil will crumble when rolled into threads. The plastic limit is determined by repeatedly moulding a small ball of moist plastic soil and manually rolling it out into a 3.2mm (1/8in) thread. This test is part of the Atterberg Limits Test, which also includes the liquid limit and shrinkage limit tests. The liquid limit is the water content at which soil changes from a plastic to a liquid state, and the shrinkage limit is the water content at which the soil specimen does not decrease in volume, despite further loss of moisture. The plastic limit is important because it is used to calculate the plasticity index of the soil, which is useful for classifying fine-grained soils.
| Characteristics | Values |
|---|---|
| Plastic Limit | The moisture content at which soil begins to behave as a plastic material. |
| Plastic Limit Roller Device | A device that can be used to perform the test for Plastic Limit. |
| Plasticity Index | Calculated by subtracting the Plastic Limit from the natural water content of the sample, then dividing by the result of that subtraction. |
| Liquid Limit | The water content at which soil changes from a plastic to a liquid state. |
| Flow Index | Calculated using the values of Liquid Limit and Plastic Limit. |
| Toughness Index | Calculated using the values of Liquid Limit and Plastic Limit. |
| Atterberg Soil Indexes | Compare the test values mathematically to express different plasticity and consistency characteristics. |
Explore related products
What You'll Learn
- Plastic limit is the moisture content at which soil behaves as plastic
- The plastic limit of soil is determined by rolling it into threads
- Liquid limit and plastic limit are used to calculate flow index
- Plastic limit is used to calculate the plasticity index of soil
- Plastic limit is used to classify fine-grained soil
Plastic limit is the moisture content at which soil behaves as plastic
The plastic limit of soil is the moisture content at which it begins to behave as a plastic material. At this water content, the soil will crumble when rolled into threads of 3.2mm (or 1/8") in diameter.
The plastic limit is determined by repeatedly remoulding a small ball of moist plastic soil and manually rolling it out into a thread. This process is continued until the thread crumbles before being completely rolled out. The plastic limit is, therefore, the average moisture content of all trials.
The plastic limit test can be performed by hand or with a plastic limit roller device. The hand method involves rolling a small amount of soil (1.5-2.0g) into an ellipsoidal mass and then rolling this out into a thread of uniform diameter. This is done by applying pressure between the palm or fingers and a ground glass plate. The thread is deformed with each stroke so that its diameter reaches 3.2mm, with a recommended rate of 80-90 strokes per minute.
The plastic limit is one of the Atterberg limits, which refer to the liquid limit and plastic limit of soil. These limits are used internationally for soil identification, classification, and strength correlations. The liquid limit is the water content at which the soil changes from a plastic to a liquid state. The plastic limit is the water content at which the soil changes from a plastic to a semi-solid state. The other two Atterberg limits are the shrinkage limit, which is the water content at which the soil changes from a semi-solid to a solid state, and the liquid limit, which is the water content at which the soil changes from a liquid to a plastic state.
Attaching Plastic Lattice to Posts: A Step-by-Step Guide
You may want to see also
Explore related products
The plastic limit of soil is determined by rolling it into threads
The plastic limit of soil is the moisture content at which it begins to behave as a plastic material. This is when the soil will crumble when rolled into threads.
The plastic limit can be determined by the thread rolling test, which is the most popular and standardised method. This involves rolling a small ball of moist plastic soil into a thread of 3.2mm (1/8in) in diameter. The thread should be rolled out until it crumbles before being completely unrolled. This can be done by hand, or with a plastic limit roller device. The plastic limit is then the moisture content at which the thread crumbles.
The thread rolling test has been criticised for requiring a lot of judgement from the operator, which may affect the results. The pressure applied, the speed of rolling, the size of the sample, and the type of soil can all impact the outcome.
An alternative method is the thread bending test, which is accurate, quick, simple, and low-cost. This test involves bending soil threads of 3mm in diameter and 52mm in length until they crack. The bending produced and the water content are measured, and the plastic limit can be determined with minimal operator interference.
Are Plastic Septic Tanks Legal in Wisconsin?
You may want to see also
Explore related products
![Landscape Edging No Dig - 33FT Garden Edging Borders [Extra Tall 4IN High] Flexible with 30 Metal Spikes 4 Inch 2 Connector for Yard Guard, Lawn Edging, Garden Border, Fence, Flower](https://m.media-amazon.com/images/I/71X0niyza8L._AC_UL320_.jpg)
Liquid limit and plastic limit are used to calculate flow index
The liquid limit and plastic limit are used to calculate the flow index of soil, which is a measure of its behaviour and consistency. The liquid limit (LL) is the water content at which a soil changes from a plastic to a liquid state. The plastic limit (PL) is the water content at which soil changes from a plastic to a semi-solid state.
The liquid limit is determined by placing a soil sample in a brass cup and dividing it with a grooving tool. The cup is then dropped onto a hard rubber base, and the number of drops required for the groove to close is counted. This test is performed by a Liquid Limit machine. The plastic limit is determined by rolling out a thread of soil on a flat, non-porous surface. The soil is rolled into a thread of 3.2mm (1/8 inch) in diameter, and the test is repeated until the thread crumbles before being completely rolled out. This moisture content at which the thread crumbles is the plastic limit.
The flow index is a measure of the soil's plasticity and consistency characteristics. It is calculated by subtracting the plastic limit from the liquid limit. Soils with a high flow index have a higher clay content and will exhibit volume changes in response to moisture conditions. They may expand when wet and shrink when dry.
The liquid limit, plastic limit, and flow index are important parameters in soil mechanics and are used to classify soils and predict their behaviour in different moisture conditions. These tests were developed by Albert Atterberg in 1911 and later refined by Arthur Casagrande, who standardised the apparatus and procedures.
Plastic Numbers: Understanding the Meaning of Those Symbols
You may want to see also
Explore related products
Plastic limit is used to calculate the plasticity index of soil
The plastic limit of soil is a measure of the moisture content at which soil begins to behave as a plastic material. At this water content, the soil will crumble when rolled into threads. The plastic limit is determined by repeatedly moulding a small ball of moist plastic soil and manually rolling it out into a 1/8-inch thread. The plastic limit is the average moisture content of all trials, and it is used to calculate the plasticity index of the soil.
The plasticity index is a measure of the relative consistency or liquidity of the soil. It is calculated by subtracting the plastic limit from the liquid limit, which is the water content at which the soil changes from a plastic to a liquid state. The liquid limit is determined by rolling a soil sample into a thread until it reaches a point where it no longer crumbles and can be formed into a groove.
The plasticity index is used to classify soils and to predict their behaviour in different engineering applications. Soils with a high plasticity index have a higher clay content and are more likely to expand or shrink with changes in moisture content. The plasticity index is also used to calculate the activity number of a soil sample, which is the ratio of the plasticity index to the clay-size fraction (particles finer than 2 µm). Soils with a high activity number are considered active and will exhibit volume changes in response to moisture conditions.
The plastic limit, liquid limit, and plasticity index are also used to calculate other soil properties such as the liquidity index and consistency index. The liquidity index is the ratio of the difference between natural water content, plastic limit, and liquid limit. It is used to predict the soil's behaviour at different moisture contents. The consistency index indicates the soil's firmness and is calculated as the ratio of the difference between the liquid limit, natural water content, and plastic limit. These indices provide valuable information about the engineering properties of the soil and its suitability for various construction and geotechnical applications.
Plastic Pollution: Millions of Tons of Waste
You may want to see also
Explore related products
Plastic limit is used to classify fine-grained soil
The Atterberg limits are a basic measure of the critical water content of a fine-grained soil. Depending on its water content, soil may appear in one of four states: solid, semi-solid, plastic, and liquid. In each state, the consistency and behaviour of soil are different, and consequently, so are its engineering properties. Thus, the boundary between each state can be defined based on a change in the soil's behaviour. The Atterberg limits can be used to distinguish between silt and clay and to distinguish between different types of silts and clays.
The plastic limit of a soil is the moisture content at which soil begins to behave as a plastic material. At this water content (plastic limit), the soil will crumble when rolled into threads of 3.2mm (1/8in) in diameter. The plastic limit test is performed by repeatedly rolling an ellipsoidal-sized soil mass by hand or using a plastic limit roller device on a non-porous surface. The Plastic Limit is the moisture content at which the thread crumbles before being completely rolled out.
The plastic limit is determined by repeatedly remoulding a small ball of moist plastic soil and manually rolling it out into a 1/8-inch thread. The thread shall be further deformed on each stroke so that its diameter reaches 3.2 mm, taking no more than 2 minutes. Normally, 80-90 strokes per minute are recommended. The plastic limit is used to calculate the plasticity index (PI) of the soil, which is a measure of the plasticity of the soil. The PI is the difference between the liquid limit and the plastic limit, and it represents the range of water contents where the soil exhibits plastic behaviour.
Soils with a high PI tend to have a high clay content, while those with a lower PI tend to have a lower clay content. The liquidity index (LI) is another measure that is used to scale the natural water content of a soil sample to the limit. It is calculated as a ratio of the difference between natural water content, plastic limit, and liquid limit. The consistency index (Ic) indicates a soil's consistency (firmness). It is calculated as CI = (LL-W)/(LL-PL), where W is the existing water content. The sum of the Liquidity index and Consistency index is equal to 1.
Attaching Snap-on Plastic Grommets: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The plastic limit of soil is the moisture content at which the soil begins to behave as a plastic material.
The plastic limit of soil is determined by repeatedly remoulding a small ball of moist plastic soil and manually rolling it out into a 1/8-inch thread. The plastic limit is the moisture content at which the thread crumbles before being completely rolled out.

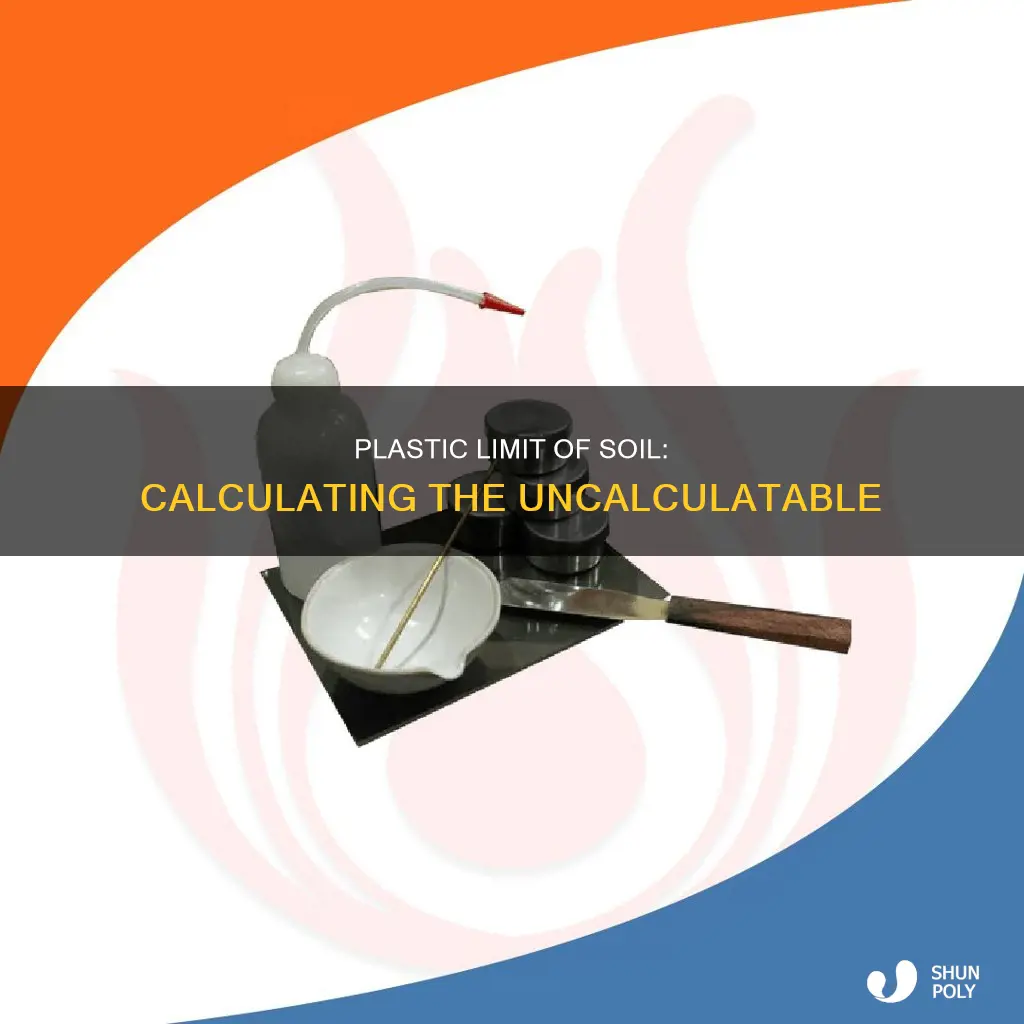

You will need a ground glass plate, a plastic limit roller device or a spatula/pill knife, and a balance.
Take a 20-gram sample of soil and select a 1.5 to 2-gram specimen for testing. Roll the soil between your palm or fingers on the glass plate to form a thread of uniform diameter. Continue rolling until the thread reaches a diameter of 3.2mm or 1/8 inch, then reform it into a ball. Knead the soil, then repeat the rolling process until the thread crumbles. Determine the water content of the soil at this point.
The plastic limit is used, along with the liquid limit, to classify fine-grained soils and to calculate various indices such as the flow index, toughness index, and plasticity index.
