Connecting an ice maker with plastic tubing is a straightforward process that ensures a steady supply of water to your appliance. The first step involves gathering the necessary materials, including plastic tubing, a compression fitting, and a saddle valve or a tee fitting, depending on your water supply setup. Begin by turning off the water supply to avoid any leaks during installation. Next, cut the plastic tubing to the appropriate length, ensuring it reaches from the water source to the ice maker with some slack for movement. Attach one end of the tubing to the saddle valve or tee fitting, securing it tightly to prevent leaks. Then, connect the other end to the ice maker’s water inlet, using a compression fitting for a secure seal. Finally, turn the water supply back on and check for any leaks, adjusting connections as needed. This method is cost-effective and can be completed with basic tools, making it a popular DIY project for homeowners.
| Characteristics | Values |
|---|---|
| Tubing Material | Food-grade plastic (typically polyethylene or PEX) |
| Tubing Diameter | 1/4 inch (standard size for ice maker connections) |
| Tubing Length | Varies depending on distance between water source and ice maker (typically 10-20 feet) |
| Connection Type | Compression fittings or push-to-connect fittings |
| Tools Required | Adjustable wrench, tube cutter, deburring tool, Teflon tape (if using compression fittings) |
| Water Source | Cold water supply line (typically under the sink or near the refrigerator) |
| Shut-off Valve | Required to control water flow to the ice maker |
| Saddle Valve | Alternative to a traditional shut-off valve (clamps onto existing water line) |
| Tubing Preparation | Cut tubing to desired length, deburr edges, and ensure clean, square cuts |
| Fitting Installation | Tighten compression fittings securely or push tubing into push-to-connect fittings until fully seated |
| Leak Testing | Turn on water supply and check all connections for leaks |
| Insulation | Insulate tubing if it passes through unheated areas to prevent freezing |
| Maintenance | Periodically inspect tubing and fittings for signs of wear, leaks, or damage |
| Safety Precautions | Turn off water supply before installation or maintenance, relieve water pressure if necessary |
| Compatibility | Ensure tubing and fittings are compatible with your ice maker model and water supply system |
Explore related products
What You'll Learn

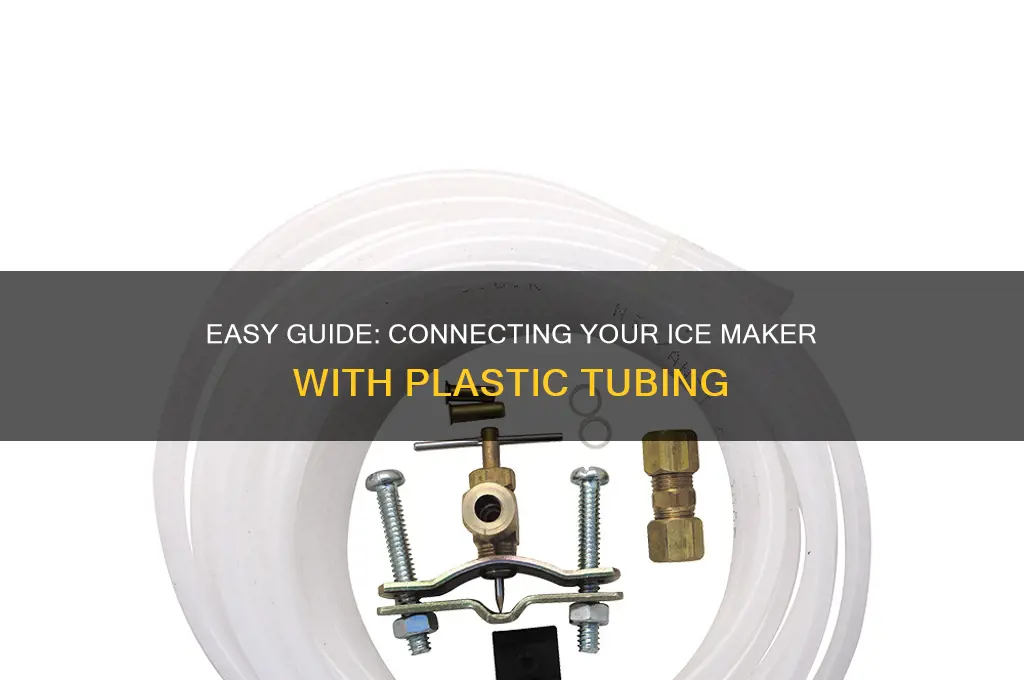

- Gather Tools & Materials: Tubing, cutter, clamp, saddle valve, drill, Teflon tape, and instructions
- Locate Water Supply: Identify nearest cold water line for ice maker connection
- Install Saddle Valve: Drill hole, attach valve to pipe, and secure tightly
- Cut & Connect Tubing: Measure, cut tubing, attach to valve and ice maker inlet
- Test for Leaks: Turn on water, check connections, ensure no leaks before use
Gather Tools & Materials: Tubing, cutter, clamp, saddle valve, drill, Teflon tape, and instructions
Before embarking on the task of connecting an ice maker with plastic tubing, it's essential to assemble the necessary tools and materials. A well-prepared toolkit ensures a smooth and efficient installation process, minimizing the risk of errors or delays. The required items include plastic tubing, a tubing cutter, a clamp, a saddle valve, a drill, Teflon tape, and a set of clear instructions. Each component plays a critical role in establishing a secure and leak-free connection between the water supply and the ice maker.
Analyzing the tools and materials, the plastic tubing serves as the primary conduit for water flow, typically made from durable polyethylene or PVC. A tubing cutter is indispensable for achieving clean, precise cuts, ensuring a snug fit with the saddle valve and ice maker inlet. The clamp provides additional security, preventing the tubing from slipping or disconnecting under pressure. Meanwhile, the saddle valve, when properly installed, allows for a direct tap into the water supply line without the need for extensive plumbing modifications.
From an instructive perspective, begin by measuring the distance from the water supply line to the ice maker to determine the required length of tubing. Use the tubing cutter to trim the plastic tubing to size, ensuring a straight cut to avoid leaks. Wrap the threads of the saddle valve with Teflon tape, applying 3-4 layers in a clockwise direction to create a tight seal. Position the saddle valve on the supply line and tighten it securely, then drill a small pilot hole if necessary to ensure proper penetration. Attach the tubing to the valve using the clamp, leaving enough slack to connect it to the ice maker without strain.
A comparative approach highlights the advantages of using these specific materials. Plastic tubing, for instance, is more flexible and easier to work with than copper piping, making it ideal for tight spaces and DIY installations. The saddle valve offers a simpler alternative to traditional T-fitting methods, reducing the risk of leaks and the need for soldering. Teflon tape, when applied correctly, outperforms pipe dope in creating a reliable seal, as it remains stable under varying temperatures and pressures.
In conclusion, gathering the right tools and materials is the foundation of a successful ice maker installation. By understanding the purpose and proper use of each item—tubing, cutter, clamp, saddle valve, drill, Teflon tape, and instructions—you can approach the task with confidence. Practical tips, such as double-checking measurements and testing for leaks before finalizing connections, further ensure a hassle-free setup. With everything in place, you're ready to proceed to the next steps of the installation process.
Mastering Acrylics on Plastic: Tips for Durable, Vibrant Adhesion
You may want to see also
Explore related products
Locate Water Supply: Identify nearest cold water line for ice maker connection
The first step in connecting an ice maker with plastic tubing is pinpointing the nearest cold water line. This isn't just about convenience; it's about efficiency and safety. Cold water lines are typically located under kitchen sinks, behind refrigerators, or near dishwashers. Start by inspecting these areas, looking for a shut-off valve or a supply line that’s easily accessible. If the line is hidden behind walls or cabinets, consider consulting a plumber or using a stud finder to avoid unnecessary damage.
Once you’ve identified the cold water line, assess its compatibility with your ice maker’s needs. Most ice makers require a 1/4-inch copper or plastic supply line. If the existing line is larger, you’ll need a reducer fitting to ensure a snug connection. Avoid using hot water lines, as they can damage the ice maker’s components and compromise the quality of the ice. Proximity matters—the closer the water supply, the less tubing you’ll need, reducing the risk of leaks and improving water flow efficiency.
Before making any connections, turn off the water supply at the shut-off valve to prevent spills. If there’s no valve nearby, you may need to shut off the main water supply to your home. Use a bucket and towel to catch any residual water when disconnecting the line. Once the water is off, attach a self-piercing saddle valve (if using one) or a tee fitting to the cold water line. Ensure the connection is tight and secure, using Teflon tape or pipe dope on threaded fittings to prevent leaks.
A common mistake is underestimating the importance of water pressure. Ice makers typically require a minimum of 20 psi to function properly. If the water pressure is too low, the ice maker may produce smaller cubes or fail to operate. Use a pressure gauge to test the supply line if you’re unsure. Additionally, consider installing a filter on the supply line to prevent sediment and impurities from clogging the ice maker’s mechanism, especially if your water has high mineral content.
Finally, double-check your work before turning the water back on. Inspect all connections for tightness and ensure the tubing is routed properly, avoiding sharp bends or kinks that could restrict flow. Once the water is restored, open the ice maker’s valve and check for leaks. If everything is secure, you’re one step closer to enjoying a steady supply of ice. Remember, a well-located and properly connected water supply is the foundation of a reliable ice maker system.
Hospital Plastic Surgeon Salaries: Unveiling Earnings and Career Insights
You may want to see also
Explore related products
Install Saddle Valve: Drill hole, attach valve to pipe, and secure tightly
Installing a saddle valve is a critical step when connecting an ice maker with plastic tubing, as it provides a reliable water source without the need for major plumbing alterations. The process begins with drilling a small hole into the water supply pipe, typically a 1/2-inch copper pipe, using a 1/8-inch drill bit. Precision is key here—ensure the hole is clean and free of burrs to prevent leaks. Position the saddle valve directly over the hole, aligning the valve’s piercing pin with the drilled opening. Tighten the valve’s clamp securely around the pipe using a wrench, but avoid over-tightening to prevent damage to the pipe or valve.
Once the valve is attached, test the connection by turning on the water supply and checking for leaks. If water seeps from the joint, loosen the clamp slightly, reposition the valve, and tighten again. A properly installed saddle valve should provide a leak-free connection, ensuring a steady water flow to the ice maker. This method is favored for its simplicity and minimal disruption to existing plumbing, making it a go-to choice for DIY enthusiasts.
However, it’s essential to consider the limitations of saddle valves. They are not suitable for all pipe materials—avoid using them on plastic pipes, as they may not seal properly. Additionally, saddle valves can restrict water flow if not installed correctly, potentially affecting ice maker performance. For optimal results, pair the saddle valve with a 1/4-inch plastic tubing line, ensuring compatibility and efficient water delivery.
In comparison to other methods, such as tee fittings or direct pipe taps, saddle valves offer a quicker, less invasive solution. They eliminate the need for soldering or cutting into the main water line, reducing the risk of errors. However, their long-term reliability depends on proper installation and occasional maintenance. Regularly inspect the valve for corrosion or wear, especially in areas with hard water, to ensure continued functionality.
To summarize, installing a saddle valve involves drilling a precise hole, attaching the valve securely, and verifying the connection’s integrity. While it’s a straightforward process, attention to detail is crucial for a leak-free setup. When done correctly, this method provides a dependable water source for your ice maker, blending convenience with efficiency. Always prioritize safety and compatibility with your plumbing system to maximize the valve’s performance and longevity.
Plastic Surgeon Salaries: Annual Earnings and Income Insights Revealed
You may want to see also
Explore related products
Cut & Connect Tubing: Measure, cut tubing, attach to valve and ice maker inlet
Connecting an ice maker with plastic tubing begins with precise measurement to ensure a snug fit and optimal water flow. Start by determining the distance from the water supply valve to the ice maker inlet, adding a few extra inches for flexibility. Use a tape measure and mark the tubing with a permanent marker or masking tape to avoid errors. Accuracy here prevents leaks and ensures the tubing isn’t too taut or slack, which could cause kinks or disconnections over time.
Once measured, cutting the tubing requires a clean, straight edge. A tubing cutter or sharp utility knife works best—avoid scissors or jagged tools that can create uneven ends. Hold the tubing firmly and cut along the marked line, ensuring the blade is perpendicular to the tubing’s surface. A smooth cut is critical for a secure connection, as rough edges can interfere with fittings or cause leaks at the joints.
Attaching the tubing to the water supply valve and ice maker inlet involves using compression fittings or push-to-connect fittings, depending on your setup. For compression fittings, slide a ferrule (the small metal sleeve) onto the tubing, followed by the nut. Insert the tubing into the valve or inlet until it bottoms out, then tighten the nut by hand before using a wrench to secure it firmly. Push-to-connect fittings are simpler: insert the tubing into the fitting until it clicks into place, ensuring it’s fully seated. Always check for leaks by turning on the water supply and inspecting the connections.
Practical tips can streamline this process. If the tubing is stiff, warm it in hot water for a few seconds to make it more pliable and easier to insert into fittings. Use Teflon tape on threaded connections for added leak protection, but avoid over-tightening, as this can damage plastic components. Finally, test the system by running water through the tubing before connecting it to the ice maker to flush out debris and ensure proper flow. This step prevents clogs and extends the life of your ice maker.
From Pellets to Sips: The Fascinating Process of Making Plastic Straws
You may want to see also
Explore related products
Test for Leaks: Turn on water, check connections, ensure no leaks before use
Once the plastic tubing is connected to your ice maker, the real test begins—literally. Before you let the system run unattended, it’s crucial to ensure there are no leaks. Start by slowly turning on the water supply to allow the tubing to fill without causing sudden pressure spikes. Observe the connection points where the tubing meets the ice maker and the water supply line. Even a small drip can escalate into a significant issue over time, leading to water damage or inefficient ice production.
A systematic approach is key here. Use a dry cloth or paper towel to wipe down all connection points before testing. This way, any moisture during the test will be unmistakable. Once the water is flowing, inspect the connections closely for 5–10 minutes. Pay attention to areas where the tubing bends or where clamps are applied, as these are common weak spots. If you notice any dampness, tighten the connections slightly and retest. Over-tightening can damage the plastic, so proceed with caution.
For a more thorough test, consider running the ice maker through a full cycle while monitoring for leaks. This not only checks the static connections but also tests the system under pressure and movement. If your ice maker has a built-in water filter, ensure it’s properly seated and not contributing to leaks. Filters can sometimes shift during installation, creating gaps that allow water to escape.
Finally, don’t underestimate the value of patience. Even if no leaks are immediately visible, let the system run for at least 30 minutes before leaving it unattended. This extended test period can reveal slow leaks that might otherwise go unnoticed. By taking the time to thoroughly test for leaks, you’ll save yourself from potential headaches and ensure your ice maker operates smoothly for years to come.
Medication Side Effects: Why Food Tastes Like Plastic Explained
You may want to see also
Frequently asked questions
Use 1/4-inch OD (outer diameter) plastic tubing, typically made of polyethylene or PEX, which is flexible, durable, and compatible with most ice maker installations.
Measure the distance from the water supply valve to the ice maker, add a few extra inches for flexibility, and use a tubing cutter or sharp utility knife to make a clean, straight cut.
You’ll need a compression fitting or a push-to-connect fitting, a wrench to tighten the connections, and possibly a tubing cutter or scissors to trim the tubing.
Ensure the tubing is cut cleanly and inserted fully into the fittings. Tighten compression fittings securely but avoid over-tightening, and use Teflon tape or thread sealant if needed.
It’s best to use new tubing to avoid potential leaks or contamination. Old tubing may be brittle, cracked, or damaged, compromising the connection.
