Maya Ellison

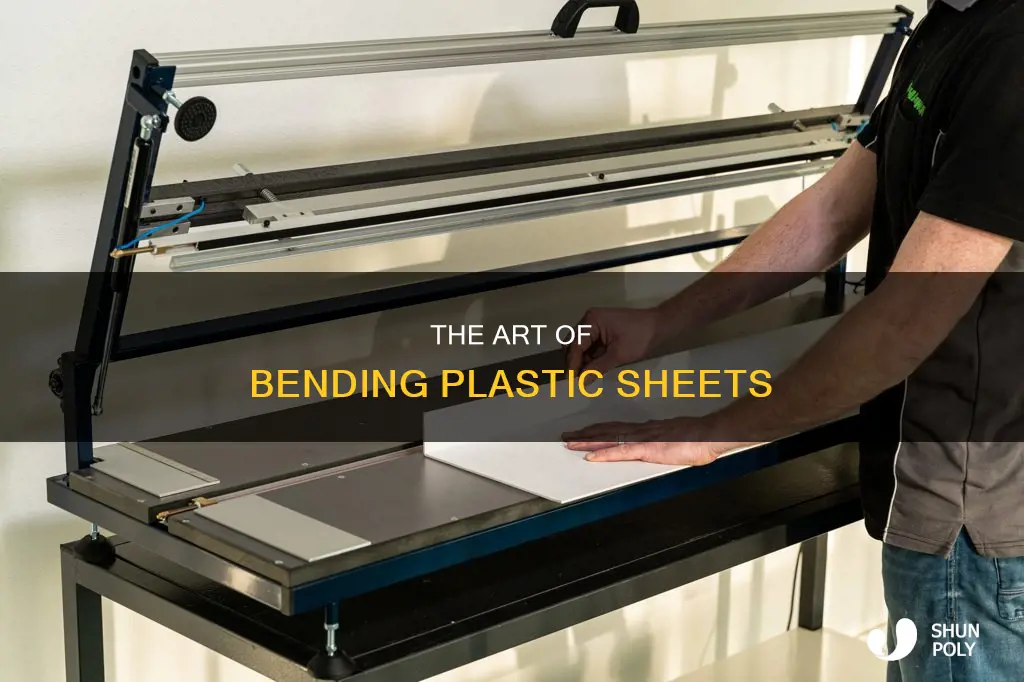

Bending plastic sheets is a common practice in many industries, such as outdoor signs, packaging, and glazing. The type of plastic and its thickness play a crucial role in determining its flexibility and the techniques required to bend it. For example, polycarbonate sheets are popular for their strength and flexibility, while acrylic sheets require careful temperature control during heat bending to avoid cracking. Thinner sheets, such as 2mm corrugated plastic, can be bent by hand, while thicker sheets may require tools like sheet benders or heat guns. Creases in plastic sheets can be introduced by scoring with a blunt tool and reinforcing the crease with hot glue.
| Characteristics | Values |
|---|---|
| Plastic type | Polycarbonate, Acrylic, ABS, Polypropylene |
| Plastic thickness | Thinner sheets are easier to bend |
| Heating method | Oven, heat gun, hair dryer, hot air gun, strip heater |
| Heating temperature | Depends on plastic type; ABS: 325-375°F (160-190°C), Acrylic: 140-160°C |
| Tools | Sheet bender, jig, mold, coat hanger |
| Technique | Apply heat, bend, hold in place until cool |
Explore related products
What You'll Learn
Use a hairdryer or hot air gun to heat the plastic
When bending a plastic sheet, it is important to consider the type of plastic you are working with. Polycarbonate sheets, for instance, are the most popular option for bending as they are strong, flexible, and unlikely to crack. On the other hand, plastics like acrylic, styrene, and PET/PETG should be avoided as they are weaker and more prone to breaking. Thinner sheets are also generally easier to bend.
If you are working with polypropylene, you can use a hairdryer or hot air gun to heat and bend the plastic. First, ensure that the plastic surface is clean and free of debris or grease. If there are any rough edges, trim them with a sharp blade.
When using a hairdryer, set it to its highest heat setting and hold it several inches away from the plastic. Move the hairdryer slowly and evenly over the area you want to heat, being careful not to stay in one spot for too long to avoid overheating or damaging the material.
Similarly, with a hot air gun, start with a lower temperature and gradually increase it until the plastic becomes pliable. Hold the gun about an inch away from the plastic and move it slowly and evenly to ensure consistent heating. Refer to the manufacturer's guidelines to determine the appropriate temperature for the specific type of plastic you are working with.
Once the plastic is sufficiently heated, you can bend it to the desired shape. For sharp creases, score the plastic with a blunt tool and then run a bead of hot glue down the groove. Allow the plastic to cool and solidify before handling it, and trim any excess material or rough edges with a blade or sandpaper.
How Does Flex Seal Work on Plastic?
You may want to see also
Explore related products
Score with a blunt tool and use hot glue to hold the shape
To bend a plastic sheet, you can score it with a blunt tool and use hot glue to hold the shape. This method is suitable for corrugated plastic sheets, specifically those made of polypropylene.
First, use a blunt-tipped knife to score the plastic sheet. Hold the knife at an angle so that the cut edges slide over each other. This will create a clean crease and preserve the surface of the plastic sheet.
Next, run a bead of hot glue down the groove created by the scoring. The hot glue will melt the polypropylene, allowing you to bend the sheet and hold the desired shape. Be careful, as the hot glue can also burn your skin.
It is important to note that different types of plastics require different adhesives. Polyethylene and polypropylene, for example, require specific adhesives designed for these materials. Additionally, some plastics may require solvent-based bonding, while others may need an epoxy-based adhesive. Therefore, it is essential to identify the type of plastic you are working with before selecting an appropriate glue.
When gluing polypropylene, you can use Infinity SuperTAC 500 Plastic Bonding Glue Sticks, which offer quality heat resistance and bonding abilities. Alternatively, you can use cyanoacrylate (super glue), epoxy, or acrylic cement. These adhesives will help secure the bent shape of the plastic sheet.
The Many Faces of Plastic: Understanding Different Types
You may want to see also
Explore related products
Use oven heating for full vacuum forming
To bend a plastic sheet, you must consider the type of plastic you are working with. Polycarbonate sheets are the most popular option as they are strong, flexible, and unlikely to crack. On the other hand, plastics like acrylic, styrene, or PET/PETG are weaker and more prone to breaking.
If you are using corrugated plastic sheets, you can bend them by hand if they are 2mm or 3mm thick. For other types of corrugated plastic, you can use a hairdryer or hot air gun to heat the inside of the sheet. You can also use a blunt-tip knife to cut the inner surface and hold it at an angle so the cut edges slide over each other.
For full vacuum forming, you can use oven heating. Here is a step-by-step guide:
First, prepare your plastic sheet. Cut the sheet to fit your wooden vacuum form frame, allowing 1-2 inches of play on all sides. STYRENE is recommended for beginners as it heats up more evenly than other plastics. ABS plastic requires a temperature range of 325-375°F (160-190°C) for optimal bending.
Next, prepare your heat box. The heat box is responsible for heating the plastic sheet evenly without burning it. You can use a basic space heater and build a wooden box for it to sit in, covering the inside with reflective tape or aluminum foil. Alternatively, you can use a toaster oven and harvest the heating elements to create a heat box.
Now, place the plastic sheet in the heat box or heat the plastic with a heat gun or strip heater. Ensure that the heat is evenly distributed across the sheet. You can also use a vacuumtable outside of the oven to press the heated sheets of plastic over a mold.
Finally, once the plastic is malleable, swiftly move it over a mold and use a vacuum to suck out the air, forcing the plastic to conform to the shape of the mold.
Remember to always take safety precautions when working with hot materials and heated tools.
Mold on Plastic Shutters: What You Need to Know
You may want to see also
Explore related products
Polycarbonate sheets are strong, flexible and won't crack
Polycarbonate sheets are a versatile material, used across a wide range of industries. They are strong, flexible, and won't crack when bent.
Polycarbonate is a thermoplastic resin that is around 200 times stronger than glass of the same thickness. This makes it ideal for use in projects that require transparency, durability, and strength. For example, solid polycarbonate is often used for bike shelters, bus shelters, and children's play areas, where glass would be too dangerous and liable to smash.
Polycarbonate is also flexible, making it perfect for bending and curving to achieve different shapes and designs. It can be bent around sharp corners or along shallow curves. When bending around sharp corners, heat and a press machine are needed to achieve the desired shape. Cold bending, on the other hand, is ideal for creating shallow curves, often used for roof glazing applications.
The thinner the polycarbonate sheet, the easier it is to bend. For example, 2mm corrugated plastic sheets can be bent by hand, while thicker sheets may require tools. Sharp creases can be made by scoring with a blunt tool and then running a bead of hot glue down the groove.
Polycarbonate sheets are also impact-resistant, chemically resistant, and scratch-resistant. They do not absorb moisture, making them easily sanitizable and suitable for food and medical applications. With these properties, it's no wonder that polycarbonate is a preferred choice for construction, manufacturing, signage, and glazing.
Knitting on a Plane: Plastic Needles Allowed?
You may want to see also
Explore related products
Heat and bend acrylic sheets without breaking
Bending acrylic sheets without causing damage requires careful consideration of material selection, heating techniques, and handling. It is important to select the right type of acrylic sheet designed for bending, as not all sheets are suitable. Acrylic sheets can be reshaped multiple times without losing strength, making them a popular choice for both heat bending and cold bending applications.
The optimal temperature range for bending acrylic is between 140°C and 160°C. At this temperature, the acrylic softens and becomes more pliable without damaging its structure. To achieve this, various heating methods can be employed, such as using a heat gun, oven, or strip heater. It is crucial to heat the sheet evenly and gradually to prevent overheating and potential damage. Specialized tools like strip heaters ensure even heat distribution, making them ideal for projects requiring precise angles and curves.
Before applying heat, it is recommended to practice the technique on thin test strips to understand how heat affects the material. When heating along the bend line, pass the heat source at an even, slow speed, and apply gentle and consistent pressure to achieve a smooth and uniform bend. Avoid excessive force to prevent cracking or distortion.
During the bending process, a jig is used to support the acrylic sheet and maintain the desired shape. The jig, typically made of wood, should have straight edges and be thick enough to prevent the acrylic sheet from coming into direct contact with the heat source. After bending, allow ample time for the acrylic to cool and harden while still clamped to the jig to prevent deformation.
By understanding the properties of acrylic sheets, selecting the appropriate tools, and carefully controlling the heating and bending process, you can successfully heat and bend acrylic sheets without breaking them.
Electrical Box Safety: Are Plastic Fire-Rated?
You may want to see also
Frequently asked questions
Polycarbonate sheets are the most popular option for bending as they are strong, flexible and won't crack. For precision, acrylic sheet benders or strip heaters are recommended. When it comes to DIY, a heat gun or plastic bending machine can be used.
For 2mm or 3mm corrugated plastic sheets, you can bend them by hand without the need for tools. For sharper creases, you can score the sheet with a blunt tool and then run a bead of hot glue down the groove.
Clear plastic sheets made from acrylic, styrene, PET or PETG are more liable to break or crack due to weaker plastic resins. It is also important to note that overheating or stretching ABS past its formable limits will result in weak spots.
