Burying plastic conduit at the right depth is crucial for safety, compliance, and long-term performance. The burial depth depends on various factors, including soil conditions, local regulations, and the type of conduit and wiring. For instance, in soft soil or complex environments, burial depth should be between 0.7 and 1 meter, while in roads or alleyways, conduits must be at least 6 inches below the surface. The type of wiring also matters, with GFCI-protected circuits requiring a minimum of 12 inches of burial depth. Additionally, it's essential to consider the vulnerability of the conduit material; PVC conduit, for example, typically requires deeper burial than metal conduit to protect against damage.

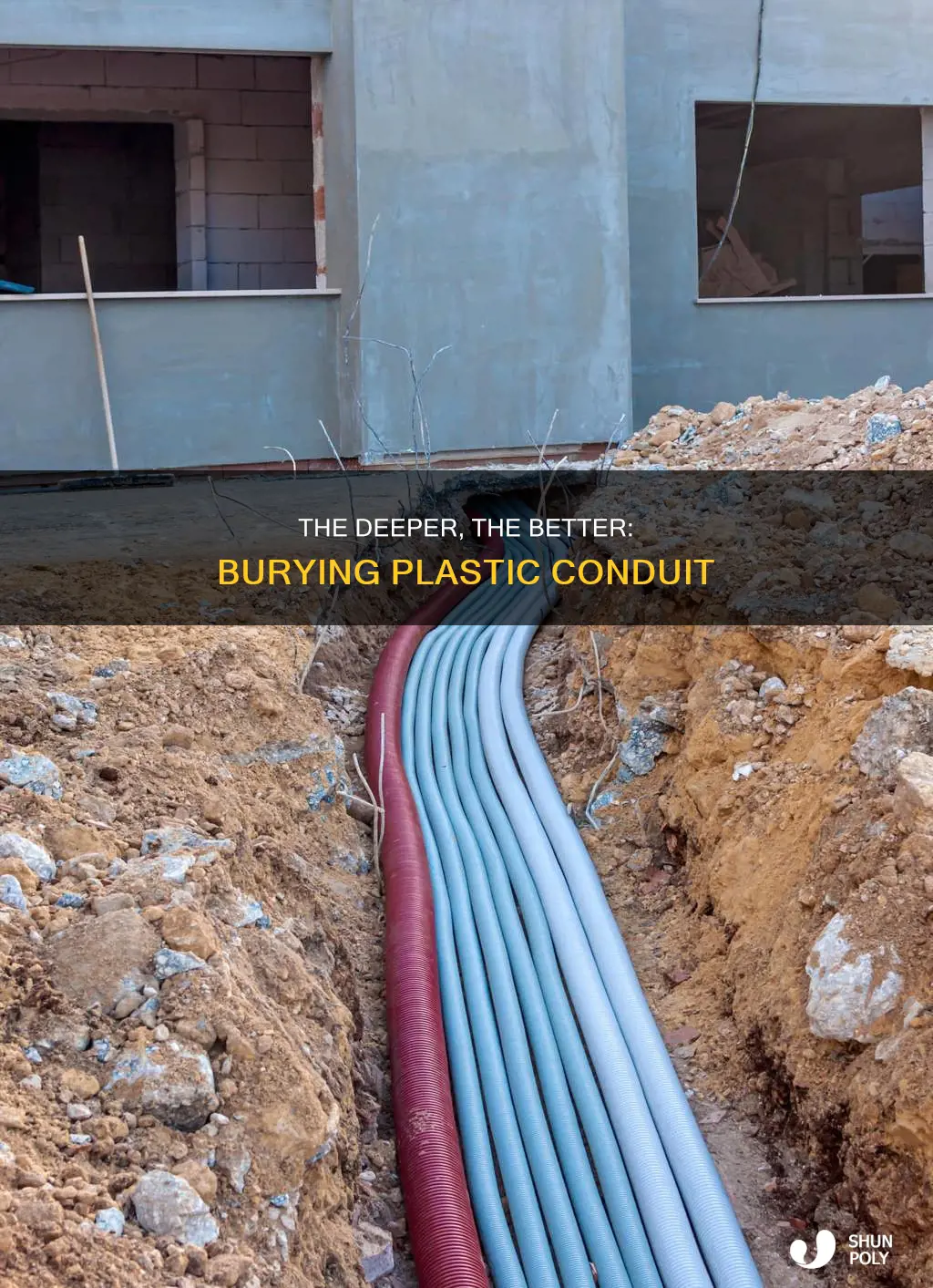

How deep to bury plastic conduit
| Characteristics | Values |
|---|---|
| Burial depth for outdoor cables | Minimum 0.7 meters |
| Burial depth for cables under buildings | Minimum 0.3 meters |
| Burial depth for cables in farmland, construction sites, or roads | 0.7–1 meter |
| Burial depth for roads or alleyways | Minimum 6 inches |
| Burial depth for houses | 4–6 inches under a concrete slab |
| Burial depth for GFCI-protected underground feeder cable | 12 inches |
| Burial depth for PVC conduit | 18–24 inches |
| Burial depth for individual conductors | 6 inches |
| Burial depth for rigid metal conduits carrying circuits rated 1,000 volts or less | Minimum 6 inches |
| Minimum burial depth for non-metallic conduit | 24 inches |
| Minimum burial depth for metal conduit | 6–12 inches |
| Minimum burial depth for industrial and commercial installations | 24–36 inches |
| Burial depth for steel wire conduits | Not suitable for burial in outdoor soil if the wall thickness is 2 mm or less |
| Burial depth for PVC conduit (including cover) | 20 inches |
Explore related products
$22
What You'll Learn
- Burial depth depends on usage environment and type of conduit
- Soil conditions and stability affect required depth
- Metal conduits provide excellent protection and impact resistance
- PVC conduits are vulnerable to damage and require deeper burial
- Local codes and environmental factors may require deeper burial
Burial depth depends on usage environment and type of conduit
The burial depth of electrical conduit depends on its usage environment and type. For directly buried cables, the burial depth needs to take into account soil conditions. Generally, the burial depth of cables under buildings is not less than 0.3 meters. In areas with softer soil or complex surroundings, such as farmland, construction sites, or roads, the burial depth should be between 0.7 and 1 meter. In rural areas, the burial depth of underground cables should not be less than 1 meter, especially in areas with agricultural planting, to prevent damage caused by agricultural activities.
For outdoor buried cable ducts, the burial depth should not be less than 0.7 meters. Steel wire conduits with a wall thickness of 2 mm or less are not suitable for burial in outdoor soil. The inner and outer walls of cable conduits buried in the soil should be treated with anti-corrosion to prevent corrosion.
The type of conduit also influences the burial depth. Non-metallic conduits, such as PVC, require a burial depth of at least 18 inches. Rigid metal conduits, on the other hand, can be placed at a shallower depth of about 6 inches unless located beneath a slab of concrete or in areas with vehicular traffic, where stricter guidelines may apply.
The voltage of the circuit and application and load conditions are additional factors to consider. Higher voltages may require more covering to protect the conduit from interference or damage. Conduits exposed to significant vehicular traffic and surface loads may need to be set deeper to safeguard them from external forces.
Lastly, environmental conditions, such as soil type, moisture content, and susceptibility to freezing, can alter the depth of placement. For example, sandy soil may allow for deeper excavation, while tough or clay-like soil may require minimizing digging. It is important to consult local and national standards to ensure compliance and safety.
Table Salt and Plastic: What's the Truth?
You may want to see also
Explore related products
Soil conditions and stability affect required depth
Soil conditions and stability play a crucial role in determining the required burial depth for plastic conduits. The type of soil and its characteristics can significantly impact the depth at which the conduit must be installed.
For instance, in areas with softer soil or complex surroundings, such as farmland, construction sites, or roads, a greater burial depth is necessary. In these cases, the recommended depth ranges from 0.7 meters to 1 meter. Conversely, if the soil is sandy, deeper excavation may be advantageous as it can save costs associated with conduit material. On the other hand, if the soil is tough or clay-like, minimizing excavation is generally preferred.
Rocky or unstable soil conditions may require deeper burial to ensure the stability and protection of the conduit. Proper burial depth is essential to shield sensitive circuits from electromagnetic interference (EMI) and prevent physical damage caused by shifting soil or other hazards. Additionally, regions with freezing temperatures may have specific depth requirements to safeguard the conduit from frost heave damage.
The National Electrical Code (NEC) provides guidelines for burial depths in Table 300.5, taking into account factors such as voltage, wiring method, and location. For example, in residential areas, direct-burial cables should generally be buried at a depth of 24 inches under ordinary soil to comply with NEC standards. However, local codes and regulations may impose additional requirements based on regional conditions, safety concerns, and soil nature.
It is important to note that improper compaction of the soil around the conduit can lead to shifting or damage. Therefore, thorough compaction during backfilling is essential to ensure the stability and longevity of the installation. Consulting with local code inspectors and complying with regulations is crucial to avoid fines and ensure a safe and compliant installation.
Are Plastic Septic Tanks Legal in Wisconsin?
You may want to see also
Explore related products
Metal conduits provide excellent protection and impact resistance
Metal conduits are made of materials such as steel or aluminium. They are known for their excellent physical protection, impact resistance, and mechanical strength. Metal conduits also serve as electrical ground paths to ensure system safety.
Metal conduits are available in three types: Rigid Metal Conduit (RMC), Intermediate Metal Conduit (IMC), and Flexible Metal Conduit (FMC). Each type has unique characteristics and meets different needs, from industrial environments to commercial buildings. For example, RMC is typically composed of heavyweight galvanised steel and is known for its strength and durability. However, it is more expensive in terms of materials and labour. Aluminium is another material used for RMC and may have additional coatings applied to better resist corrosion.
Galvanised Rigid Steel (GRC) is another type of metal conduit that is approved for both indoor and outdoor applications. GRC has been a longtime industry standard and offers impressive impact resistance, UV stability, and protection from EMI (electromagnetic interference). However, its heavy weight and poor field handling make it expensive to install and susceptible to corrosion.
The burial depth of electrical conduits depends on the usage environment and type. For outdoor buried cable ducts, the burial depth should not be less than 0.7 meters. Steel wire conduits with a wall thickness of 2 mm or less are not suitable for burial in outdoor soil. The inner and outer walls of cable conduits buried in the soil should be treated with anti-corrosion coatings to prevent corrosion.
When choosing between metallic and non-metallic conduits, it is essential to consider the specific needs of the application. Metal conduits offer superior impact resistance and protection compared to non-metallic conduits, but they are more expensive and may be more challenging to install due to the weight of the materials. Non-metallic conduits, such as PVC, are less expensive and more flexible, but they may not provide the same level of protection and durability as metal conduits.
Protect Your Couch: Covering It with Plastic
You may want to see also
Explore related products
PVC conduits are vulnerable to damage and require deeper burial
Electrical wiring is vulnerable to environmental factors such as wind, moisture, and extreme temperatures. Burying conduits offers protection from these elements and potential physical damage. The burial depth depends on the usage environment and type of conduit.
PVC conduits are lightweight, flexible, and inexpensive, making them a popular choice for outdoor and underground applications. However, they are more vulnerable to damage than metal conduits and generally require deeper burial. The National Electrical Code (NEC) recommends a minimum burial depth of 18 to 24 inches for Schedule 40 PVC conduits. Local electrical codes may require depths up to 30 inches or more depending on applications and exposures.
Deeper burial provides greater protection against various factors, including:
- Mechanized landscaping and digging tools
- Impacts from falling objects
- Crushing by heavy equipment over time
- Exposure to corrosive chemicals in some soils
- Roadways and driveways require greater depths to protect against impacts and vibrations from vehicles
- In regions with extreme cold, deeper burial is necessary to avoid frost reaching the cables
The type of soil also plays a role in determining burial depth. In sandy soil, deeper excavation may be more feasible, while in tough or clay-like soil, minimal digging is recommended. It is important to consult local code inspectors and comply with local and national standards when installing conduits.
Plastic Tubs: What Movers Allow and Why
You may want to see also
Explore related products
Local codes and environmental factors may require deeper burial
Local regulations and building codes often specify the minimum burial depth for different types of ducts and utilities. These codes may require deeper burial for plastic conduits to ensure safety and compliance with regulations. For example, the National Electrical Code (NEC) specifies that PVC conduit must be buried at least 18 inches deep, while galvanized metal electrical conduits must be buried at least 6 inches deep. Local codes may also be stricter than national codes, so it is important to confirm with a local inspector before beginning any project.
Environmental factors, such as frost depth, soil type, and ground conditions, can also affect the required burial depth for plastic conduits. In regions with freezing temperatures, for instance, ducts are typically buried below the frost line to prevent damage. Soil composition is another critical factor, as certain soils can be highly acidic or alkaline, leading to material degradation over time. Additionally, microbial activity in the soil can contribute to corrosion, particularly in metallic components. Therefore, deeper burial may be necessary to protect the conduit from these environmental factors.
The type of installation and specific project requirements can also impact the burial depth. For example, direct-burial underground feeder cables are typically buried 24 inches deep, while THWN-2 conductors inside PVC conduit are buried at 18 inches. GFCI-protected direct-burial feeder cable require a depth of 12 inches, and galvanized EMT (metal electrical conduit) can be buried as shallow as 6 inches. The burial depth should also provide adequate protection from external elements such as excavation and traffic, which may require deeper burial in some cases.
Furthermore, the presence of nearby water sources, such as pools or fountains, can influence the required burial depth. Temporary outdoor wiring and outlets near water must comply with additional safety requirements, such as using weather-resistant GFCIs with in-use covers. All outdoor low-voltage transformers and fixtures must be placed at least 5 feet away from any body of water, as per the NEC code. These additional considerations may necessitate deeper burial for plastic conduits to ensure compliance with local codes and safety standards.
Bending PVC Sheets: Techniques and Tips
You may want to see also
Frequently asked questions
The recommended depth for burying plastic conduit depends on various factors, including soil conditions, local regulations, and the specific application. Generally, plastic conduits should be buried at a minimum depth of 18 inches, but this may vary depending on local codes and environmental factors.
When choosing the depth for burying plastic conduit, consider the type of soil, the presence of tough or clay-like soil that may require less digging, and the need to comply with local and national standards. Additionally, consider the voltage of the system, as higher voltages typically require greater burial depths.
Yes, it is essential to obtain permission and consult with the local code inspector before beginning any work. Additionally, consider using warning tape in the top 6 inches of the trench to indicate the presence of buried electrical lines. Ensure that the conduit is glued to manage moisture, and treat the inner and outer walls with anti-corrosion coatings to prevent corrosion.
