Plastic contamination in food is a growing concern, with plastic being the leading cause of physical food contamination in the United States in 2018. The presence of plastic in food can be attributed to various sources, including packaging materials, processing equipment, and environmental factors. Detecting plastic in food is challenging due to the small size and low density of plastic particles, particularly microplastics. However, several methods can be employed to identify and mitigate plastic contamination. Visual inspection, chemical analysis, and food X-ray inspection systems are commonly used techniques for detecting plastic in food products. Additionally, emerging technologies such as vision-based recognition systems, density tests, filtering, and advanced laboratory testing contribute to more effective detection and prevention of plastic contamination in the food industry.
| Characteristics | Values |
|---|---|
| X-ray detectability | Depends on the density of the material |
| High-density plastics | Easier to detect |
| Low-density plastics | Difficult to detect |
| Metal detectors | Can detect plastic if it has been infused with metal |
| Optical detection | FDA-compliant blue pigments are used which are visible to production line optical scanning equipment |
| Vision-based equipment | DynaCQ (Dynamic Check of Quality) detects plastic in food products during the production process |
| Density tests | Can be used to detect microplastics |
| Filtering | Coffee filters or 0.1-micron filters can be used to detect microplastics in liquids |
| Chemical analysis | Can identify the types and amounts of plastics in food |
Explore related products
What You'll Learn
- Visual inspection: Use magnifying equipment to spot plastic residue or larger quantities
- Density tests: Use a coffee filter or 0.1-micron filter to detect microplastics in liquids
- X-ray inspection: X-ray systems can detect plastic in food, but it's challenging due to plastic's low density
- Metal detection: Plastic can be detected with metal detectors if it has been infused with metal
- Vision-recognition: Vision-based equipment like DynaCQ can detect plastic fragments during the production process
Visual inspection: Use magnifying equipment to spot plastic residue or larger quantities
Visual inspection is one of the easiest and least expensive ways to detect plastic in food. While most microplastics are too small to be detected by the naked eye, larger quantities or plastic residue can sometimes be spotted using magnifying equipment, depending on the product.
Magnifying equipment can help to identify plastic residue or larger pieces of plastic that may be present in food items. This method requires a thorough and careful inspection of the food item, which can be time-consuming. However, it is a useful way to detect plastic without the need for specialized equipment or techniques.
It is important to note that visual inspection has limitations and may not always be effective in detecting all types of plastic contamination. Microplastics, for example, are tiny plastic particles less than 5 millimetres in size, and they are often difficult to identify even with magnifying equipment. Additionally, some plastics may have similar colours or textures to the food they contaminate, making them harder to spot.
To enhance the effectiveness of visual inspection using magnifying equipment, it is recommended to combine it with other detection methods. For instance, a chemical analysis can not only confirm the presence of plastic but also identify the specific types of plastics and quantify their amount in the food. This information can be crucial for understanding the potential health risks associated with plastic contamination.
Furthermore, food manufacturers can employ preventative measures to minimize the risk of plastic contamination. This includes using higher-density plastics in food processing, as they are easier to detect compared to low-density plastics. Implementing colour-coding systems for detectable plastics can also help trace fragments that end up in the final product. By adopting such measures, manufacturers can reduce the likelihood of plastic contamination and improve food safety.
How to Act if Your Dog Ate Plastic?
You may want to see also
Explore related products
Density tests: Use a coffee filter or 0.1-micron filter to detect microplastics in liquids
Density tests are an effective way to detect microplastics in liquids. One method is to use a coffee filter or a 0.1-micron filter. Here's how you can perform this test:
Prepare the Sample
Collect the liquid sample you want to test for microplastics. This could be a beverage, water, or any other liquid suspected of containing microplastics. If you're testing a solid food item, you may need to blend or process it with a liquid to create a sample that can be filtered.
Choose the Right Filter
For this test, you'll need a filter with a small enough pore size to capture microplastics. Coffee filters are a readily available option and can be effective for this purpose. Alternatively, you can purchase membrane filters specifically designed for microplastics analysis, such as those with a pore size of 1 micron (μm) or smaller. These filters are typically made of materials like polycarbonate, polypropylene, quartz fiber, or glass fiber.
Filter the Sample
Pass the liquid sample through the chosen filter. This step may vary depending on the filter type. For example, with a coffee filter, you would pour the liquid through it, while with a membrane filter, you might use a filtration apparatus or a syringe to pass the liquid through the filter.
Inspect the Filter
Once the liquid has been filtered, carefully examine the filter for any particles that could be microplastics. You may need a microscope or magnifying equipment to see the particles clearly. Look for particles that stand out from the filter material in terms of colour, texture, or shape.
Compare with Known Microplastics
To confirm the presence of microplastics, compare the particles on the filter with known microplastic samples or images. Microplastics can vary in shape, but they often appear as small fibres, fragments, or spheres. They may also exhibit a fluorescent property when stained with certain dyes, such as Nile Red.
Limitations and Alternatives
While density tests using filters can be effective, they have limitations. Very small microplastics or nanoplastics (smaller than 0.1 micrometres) may pass through the filter. Additionally, the filter itself might be made of plastic, introducing the possibility of contamination. Alternative methods for detecting microplastics include X-ray inspection, chemical analysis, and visual inspection using magnifying equipment.
Curing Concrete: Plastic Sheeting for Best Results
You may want to see also
Explore related products
X-ray inspection: X-ray systems can detect plastic in food, but it's challenging due to plastic's low density

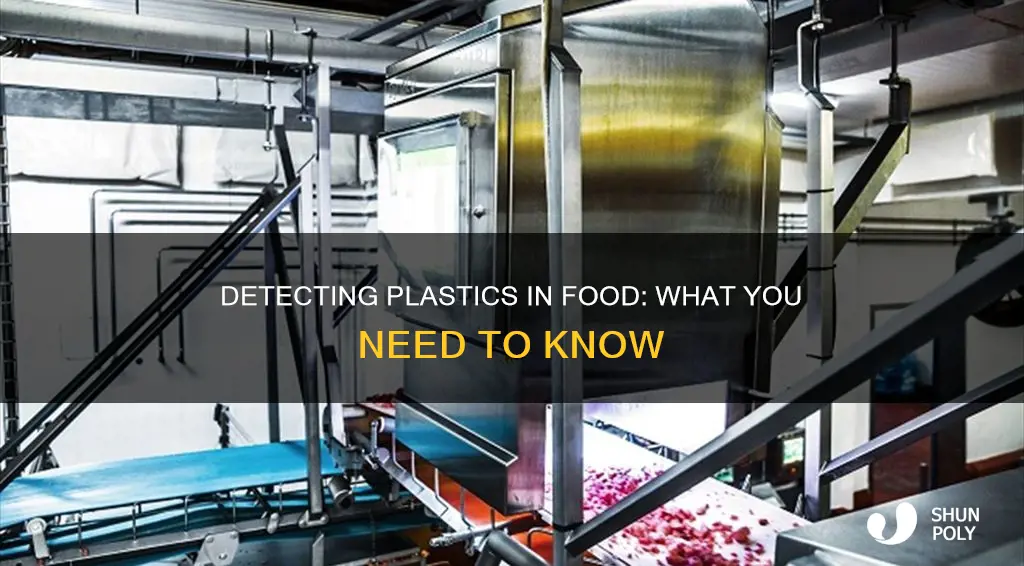

X-ray inspection systems are one of the most popular ways for manufacturers to check their food quality and detect contaminants. X-ray systems have proven to be one of the most reliable ways of detecting foreign objects like metal, glass, bones, stones and other dense materials present in food packaging. However, standard X-ray inspection systems cannot detect low-density plastics and rubber in most food-based products. This is because X-ray detectability depends on the density of a material, and plastics are generally less dense than the materials they are replacing.
The quality of an X-ray inspection system matters because some systems are able to detect materials that others cannot. Advanced X-ray systems can vastly improve the detectability of plastics. For example, triple beam architecture works by splitting the ray into three beams to eliminate blind spots. Other advanced systems, like MDX, reclassify X-ray imaging using atomic numbers instead of density. This technology, pioneered for use in the security sector, enables the detection of historically undetectable inorganic contaminants, including rubber and plastics.
To increase the odds of plastic detection, some manufacturers have turned to using materials that are more X-ray detectable than regular plastics. For example, a high-density additive such as barium sulfate is incorporated throughout the material to make it visible to X-ray detection. While more expensive, higher-density plastics carry some long-term benefits for food manufacturers. Choosing higher-density plastics will greatly improve your ability to detect any plastic contamination that occurs.
To increase the odds of detecting contaminants, there are some best practices that can be followed. For example, when inspecting a bulk product like nuts or dried fruit, consider integrating a vibratory table to more evenly distribute the contents, thereby increasing the contrast from a contaminant and increasing the odds of detection.
The Plastic Clamp: To Keep or Remove from Turkey
You may want to see also
Explore related products
Metal detection: Plastic can be detected with metal detectors if it has been infused with metal
Plastic is a common material in food production, used in processing equipment, tools, protective clothing, and packaging. While plastic helps food producers maintain high sanitation levels and achieve cost-effective production, it is also a significant source of contamination. Plastic contamination can lead to product recalls, with plastic being the top cause of physical food contamination in the United States in 2018.
Metal detection is a method used to identify and remove plastic contaminants from food products. Metal detectors can sense and eliminate ferrous, non-ferrous, and stainless metals in a process flow or packaged items. However, standard metal detectors may not detect plastic unless it has been infused with metal.
Metal-detectable plastics are specifically designed to be identified by metal detectors, preventing product contamination. These plastics contain metallic particles in their polymer matrix, allowing them to be recognised by standard metal detectors. Examples of metal-detectable polymers include UHMW, acetal, PBT, and PEEK. These polymers can be used in various parts of automation and conveying equipment, enabling traditional inspection systems to identify plastic contaminants in food products.
It is important to note that metal-detectable polymers may have lower detectability than bare metals, so detection equipment settings may need adjustments to ensure contaminated products are identified and rejected. Additionally, the density of the material affects its detectability by metal detectors. Higher density generally improves detection rates, so using high-density additives like barium sulfate can enhance the visibility of plastic contaminants.
Metal detection is a valuable tool in the food industry to address plastic contamination. By infusing plastic with metal, metal detectors can effectively identify and remove plastic contaminants, ensuring the safety and quality of food products.
Skittles: Plastic or Not? The Truth About These Candies
You may want to see also
Explore related products
Vision-recognition: Vision-based equipment like DynaCQ can detect plastic fragments during the production process
Plastic contamination in food is a significant concern for food manufacturers, and it can be challenging to detect. Traditional X-ray inspection systems often fail to identify plastic contaminants due to their low relative density compared to other materials. This has prompted the development of specialised X-ray systems that can detect plastics, but these systems are not universally employed.
Vision-based equipment, such as DynaCQ (Dynamic Check of Quality), offers an innovative solution to this problem. DynaCQ, developed at the Danish Technological Institute, employs vision recognition technology to detect plastic fragments during the production process. This system automates the detection process, alleviating the tedious and monotonous task of manual labour.
DynaCQ is capable of inspecting food products moving on a conveyor belt at impressive speeds of up to 70 metres per minute. Its precision is remarkable, capable of identifying plastic items as small as 2 x 2 mm, and often even smaller. When the system detects a contaminant, it signals the conveyor belt's control system, allowing for the contaminated product to be removed manually or automatically.
The versatility of DynaCQ is another key advantage. It can be customised for various food-quality inspection processes, demonstrating its adaptability across different industries. For instance, in the meat industry, DynaCQ has been "trained" to recognise different cuts of meat, reducing the need for manual verification and increasing accuracy. This technology has also been successfully tested on a diverse range of products, including sausages, protein powder, minced meat, bacon cubes, sweets, and pizzas, showcasing its broad applicability.
Vision-based equipment, like DynaCQ, represents a significant advancement in the detection of plastic fragments during food production. By utilising vision recognition technology, manufacturers can enhance the accuracy and efficiency of their contamination detection processes, ultimately improving food safety and quality.
The Easy Guide to Installing Plastic Rivets
You may want to see also
Frequently asked questions
Detecting plastic in food at home is challenging as microplastics are often tiny and hard to identify. However, you can try a few methods such as visual inspection, density tests, and filtering. For visual inspection, use magnifying equipment to spot larger quantities or residue. You can also check if the food looks different than usual. To test liquids for plastic contamination, pour the liquid through a coffee filter or a 0.1-micron filter and examine the residue for tiny particles that do not dissolve or look out of place. For salt or sugar, perform a simple shake test by shaking the container and pouring some onto a dark surface. While these home methods can provide some indication, they are not entirely reliable. For accurate detection, send food samples to a laboratory for advanced testing.
Food manufacturers can use various methods to detect plastic in food, including visual inspection, chemical analysis, and food X-ray inspection systems. X-ray inspection systems are one of the most popular ways to detect contaminants, but standard X-ray machines struggle to detect plastic due to its low relative density. However, some companies like FlexXray specialize in locating plastic contaminants using custom technology. Another method to improve X-ray detectability is to use high-density plastics or add a high-density additive like barium sulfate to the plastic during production. Additionally, detectable plastics with additives that make them visible to optical scanning equipment or metal detectors are available. Vision-based equipment like DynaCQ can automatically detect plastic fragments during the production process.
Detecting plastic in food is challenging due to the small size and low density of plastic particles, especially microplastics. Standard X-ray machines used in food inspection often fail to detect plastic because it has a similar ability to stop X-ray radiation as the food product. Metal detectors are also ineffective unless the plastic has been infused with metal or has sufficient metal contamination. These challenges have led to the development of specialized detection technologies and detectable plastics.
Detecting and minimizing plastic in food is crucial because plastic contamination can negatively impact human health and the environment. Plastic found in food can release harmful chemicals and additives into the ecosystem. The presence of plastic in food can also lead to consumer complaints, product recalls, and liability issues for manufacturers, damaging their reputation.
Plastic contamination in food can occur in various forms, such as fragments from packaging materials, gloves, aprons, or other equipment used during the manufacturing process. It is also common in chicken and bakery products, accounting for more than 60% of plastic contamination-related recalls in the United States. Plastic contamination can also affect a variety of food products, including Indian salt and sugar brands, packaged foods, and disposable cups. The average American consumes more than 50,000 microplastic particles annually, according to the National Library of Medicine.
