Locating buried plastic water pipes can be a challenging task, but there are several methods and tools available to assist in the process. The specific approach may depend on various factors, such as the type of pipe material, the presence of any markings, and the surrounding environment. Some common techniques include the use of metal detectors, tracer wires, acoustic methods, ground-penetrating radar (GPR), and specialized equipment operated by professionals. By employing these methods and understanding the underlying principles, individuals or professionals can effectively locate and map buried plastic water pipes, reducing the risks associated with extensive excavation projects.
| Characteristics | Values |
|---|---|
| Technology | Ground Penetrating Radar (GPR), Electromagnetic Conductivity (EM), Acoustic, Ferromagnetic, AML PVC Pipe Detector, Metal Detectors, PVC Pipe Locators, Tracer Wire, Utility Locators, Wire Tracers, Pipe Locator Metal Detectors, Acoustic PVC Detectors, Stud Finders, Tone Generators, Thumpers, Dowsing/Witching |
| How it works | GPR produces a 2D cross-section image of subsurface items, which can be converted to 3D. EM instruments can be used as wire or underground electrical locators. Acoustic methods are suitable for locating damaged or leaking pipelines. Ferromagnetic detection (FM) can be used for underground metal pipes. AML PVC Pipe Detector uses ultra-high radio frequencies. Metal detectors can help find disturbances in the soil that change the magnetic field. Tracer wires emit an electric signal that gets stronger when you get closer to the pipe. Utility locators and wire tracers are designed to locate underground wires and pipes. Pipe locator metal detectors, also called magnetic pipe locators, are used by plumbers and construction companies. Stud finders are used to locate studs in a wall, which indicate the layout of pipes. Tone generators are clamped to a wire above the ground and send a signal that a receiver picks up. Thumpers are used to find faults in cables. Dowsing/witching involves using a coat hanger wire or a chunk of copper. |
| Considerations | GPR does not work on all surfaces and is large and expensive. EM is also expensive and highly specialized. Acoustic methods are not suitable for finding undamaged pipes. Metal detectors are easier to operate and more commonly available than acoustic PVC detectors, but are relatively inaccurate. Locating utilities on your own is risky and often inaccurate. |
Explore related products
What You'll Learn
Use a metal detector
While metal detectors can help detect some types of underground pipes and wires, they are ineffective in locating plastic pipes or PVC pipes due to the lack of metal in these pipe systems. Metal detectors can only detect ferrous metals like iron and steel.
If you are looking for a way to locate plastic or PVC pipes, there are other methods you can try. One common method is to use a plastic pipe detector, which is especially useful for maintenance work or repairs. Another method is to use tracer wires, which are attached to existing lines such as sewer or water lines, and then walked along the property.
If you are trying to locate metal pipes, a metal detector can be useful. The key thing to look for is disturbances in the soil that change the magnetic field of the detector's needle. This means searching outside of the area where you plan to dig. Metal pipes can also be located using ferromagnetic detection (FM) or ground penetrating radar (GPR). GPR produces a two-dimensional cross-section image of subsurface items, which can then be converted into 3D images for analysis.
Before beginning any digging project, it is important to locate potential underground hazards to avoid any problems. Locating utilities on your own can be risky and inaccurate, so it is recommended to hire a professional utility locating service to ensure accuracy and safety.
Connecting Plastic Pipe to Copper: Easy and Effective Ways
You may want to see also
Explore related products
Employ tracer wire or locator wire
Employing tracer wire or locator wire is a common method for locating underground plastic pipes. Tracer wires are attached to existing lines, such as sewer or water lines, and then walked along the property. The wire emits an electric signal that strengthens when one gets closer to it, allowing for accurate pipe depth and location detection.
When installing plastic pipes, it is beneficial to include tracer wire in the trench to facilitate future location. This can be done by setting the wire on top of the pipe or to its side before backfilling the trench. For deeper pipes, it is advisable to backfill with several inches of material first, ensuring the wire remains closer to the surface. Tracer wire is a cost-effective solution, with 100 feet of wire costing less than $25.
In the absence of tracer wire, locating plastic pipes can be challenging and may require professional assistance. However, there are some DIY methods worth attempting. One approach is to use a metal detector to locate the tracer wire if it was installed with the pipe. If one end of the pipe is open, tracer wire can be fed into it, enabling detection with a metal detector.
Another method involves using a standard pipe and cable locator in conjunction with a locatable glass-fiber rod. The rod, with a copper core, is inserted into the water line, and the cable locator is attached to send a signal down the line. This technique simulates the functionality of a tracer wire system. Additionally, a sluice can be installed to feed the rod when the pipe is under water pressure, aiding in both leak and pipe detection.
Deforming Plastics: Using Heat for Creative Shapes
You may want to see also
Explore related products

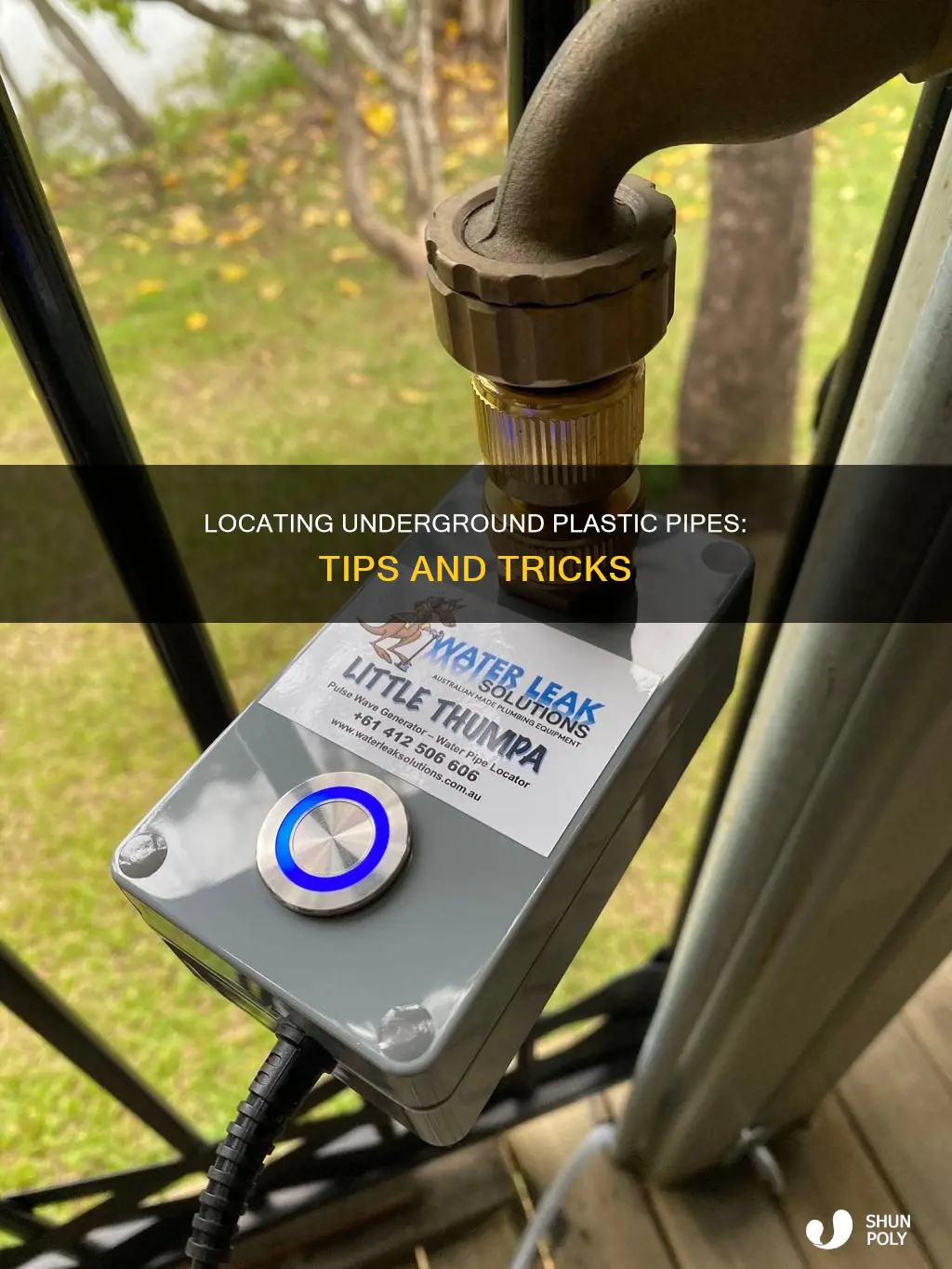

Acoustic pipe locating
The process of acoustic pipe locating hinges on identifying an acoustic impedance mismatch, which refers to a difference in acoustic properties between the pipes, their contents, and the surrounding soil or environment. By leveraging acoustic technology, operators can accurately pinpoint the location of pipes without causing any disruption to the area. This technique is particularly advantageous when it comes to saving time and resources, as well as minimising potential damage to existing structures and landscapes.
One example of an acoustic pipe locator is the CombiPhon, which generates an acoustic sound on plastic or AC water mains or tubing. This sound can then be detected using an acoustic leak locator, with the strongest sound indicating the pipe's location. Additionally, the Sewerin A200 Leak and Pipe Locator is optimised for this purpose.
To further enhance the accuracy of acoustic pipe locating, it can be combined with other methods such as ground-penetrating radar and electromagnetic locators. This comprehensive approach ensures detailed mapping of underground services across various soil types.
Before employing acoustic pipe locating, it is beneficial to gather as much information as possible about the pipe's potential location. This includes referencing maps, property boundaries, and building plans to narrow down the search area. With a basic understanding of the pipe's general location, acoustic PVC detectors can be effectively utilised to trace the pipe's path.
Do LEDs Emit Heat Strong Enough to Melt Plastic?
You may want to see also
Explore related products
Ground-penetrating radar (GPR)
GPR can detect pipes of all sizes, made of all kinds of materials, and used for utilities and other purposes. Metal pipes are the easiest for GPR to detect due to their strong interaction with the radio signal. However, GPR can also locate all varieties of PVC and plastic pipes. It can even locate pipes regardless of whether they are full of water or another substance.
GPR is especially useful for locating plastic pipes because it relies on detecting contrasts in the dielectric properties of different materials. Non-metallic pipes like PVC have a different dielectric constant than the surrounding soil or other materials. By emitting high-frequency electromagnetic waves into the ground, GPR measures the reflections of these waves when they encounter changes in dielectric properties. The contrasting dielectric constant of the PVC pipe compared to the surrounding soil allows GPR to detect and identify the presence of the pipe.
GPR is not without its limitations, however. GPR does not work well in soil with lots of clay or in places with rough terrain. It is also a time-consuming and expensive process. Despite these drawbacks, GPR is still a valuable tool for locating buried plastic water pipes.
India's Plastic Roads: Innovation or Environmental Risk?
You may want to see also
Explore related products
Hire a professional utility locator
Locating buried plastic water pipes can be a challenging task due to the thin and flexible nature of the pipes, and it is often best left to professionals. Hiring a professional utility locator is a reliable and safe option when trying to find buried plastic water pipes. These specialists use advanced equipment and their expertise to accurately detect and map underground utilities.
Professional utility locating services employ ground-penetrating radar (GPR) technology, which produces two-dimensional cross-section images of subsurface items, including pipes. GPR's effectiveness depends on factors such as pipe material, depth, and soil composition. Metal pipes are easily detectable, while plastic pipes may produce weaker signals, making professional assistance crucial for accurate detection.
Another method used by professionals is acoustic pipe locating, which involves creating a sound on metal pipes using tools like the LD-12 Water Leak Detector and then detecting the sound above ground. This method is suitable for detecting leaks or damage in pipes. Professionals also use electromagnetic conductivity (EM) devices to locate underground utilities.
Specialized companies like UtiliSource offer private locate services, providing accurate utility maps and comprehensive reports. They ensure that construction or excavation work proceeds without damaging buried infrastructure, saving time, money, and preventing potential issues.
When hiring a professional utility locator, consider factors such as their experience, the technology they use, and their ability to provide detailed reports and maps. It is essential to prioritize accuracy and safety when dealing with underground utilities to avoid costly mistakes and potential hazards.
Catherine Bell's Plastic Surgery: Fact or Fiction?
You may want to see also
Frequently asked questions
There are several methods to find buried plastic water pipes. Tracer wires are the most common way to find underground plastic pipes. They work by attaching a tracer wire to an existing line, such as a sewer or water line, and then walking along with a metal detector to pick up the electric signal emitted by the wire.
Metal detectors can be used to find metal pipes. You can also use acoustic methods, such as banging on a fire hydrant or water meter with a hammer, and then using a leak detector to listen for the sound of pipes.
Yes, private utility locators can help you find underground water lines. They use specialized equipment, such as ground-penetrating radar and electromagnetic conductivity devices. Underground utility mapping professionals can also help you find unmarked PVC pipes with 3D mapping.
You can use a pipe and cable locator, which works by attaching a transmitter to the buried wire and using a receiver to track the signal. Acoustic PVC detectors can also be used to trace the line once you have a basic idea of where the PVC pipe is located.
When burying PVC pipes, you can include some type of metallic target, such as metal tape or a tracer wire attached to the pipe, to make future location easier.
