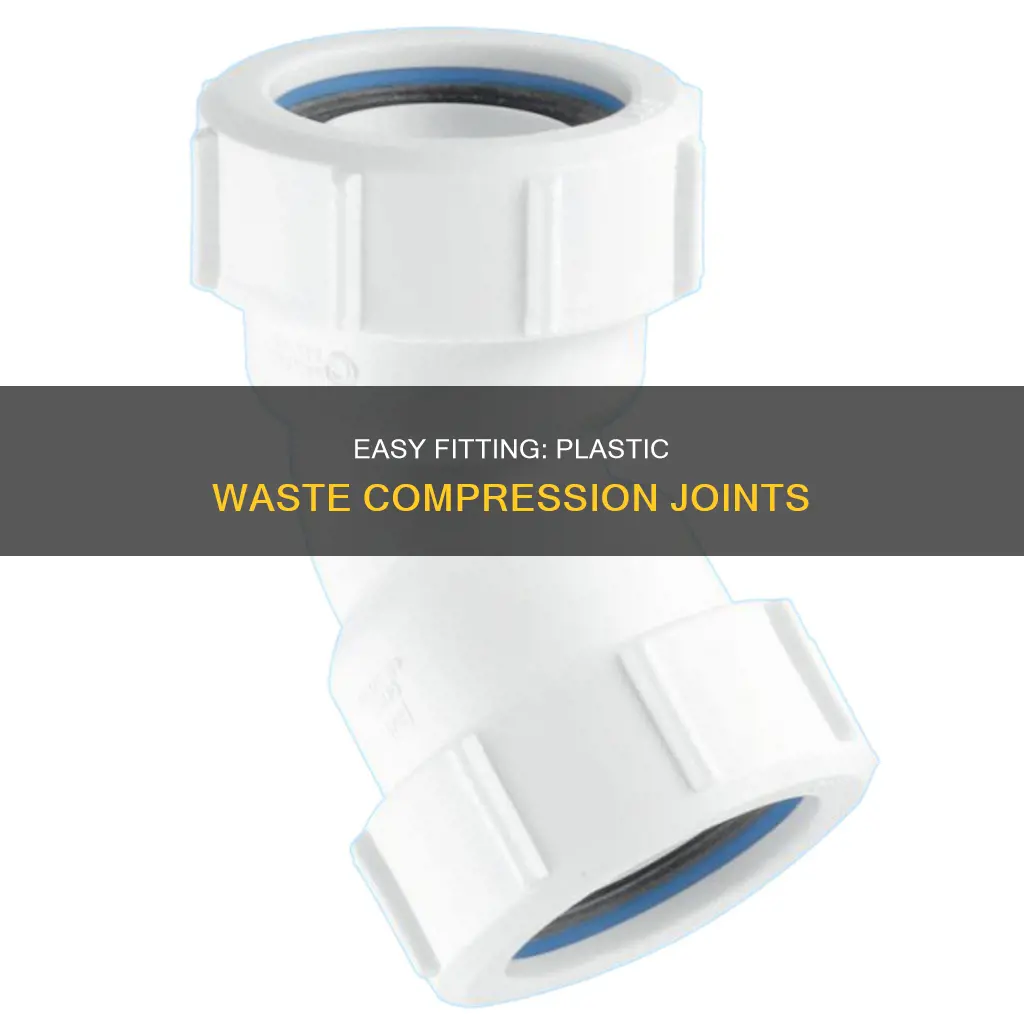

Plastic waste compression joints are a handy addition to any DIY plumbing kit, providing an easy way to join plastic pipes together. They are especially useful in situations where you need to join pipes of different sizes, such as when dealing with old imperial plumbing fittings and newer metric waste fittings. Compression joints come in a variety of shapes and sizes, including straight couplings, 90-degree bends, T-joints, and flexible fittings. They are typically used in kitchens and bathrooms, at any location with a sink or tubing that holds water, gas, or lubricant. While they are straightforward to install, plastic compression fittings are also prone to leakage, so it's important to take the necessary precautions during installation and to be aware of common issues that may arise.
Explore related products
What You'll Learn
- Compression joints are easy to install and suitable for DIYers of all skill levels
- They are useful for joining plastic pipes of different sizes and fittings
- The correct sequence of the compression joint is important to prevent leaks
- Use a waterproof lubricant to maintain the seal for longer
- Plastic compression fittings are found at locations with sinks or tubing
Compression joints are easy to install and suitable for DIYers of all skill levels
To install a compression joint, start by unscrewing all the various pieces of the compression fitting to understand how they work. You will see a plastic compression ring and a rubber sealing ring inside the nut. When fitting to a pipe, put the nut on first, followed by the compression ring, and finally the rubber sealing ring. The rubber sealing ring has a tapered edge that must be fitted with the narrow end facing the join. Push the fitting up so that the tapered edge squeezes onto the fitting.
It is important to put a waterproof lubricant on all parts of the compression fitting when you first install it to help maintain its seal for longer. Compression nuts should be tightened until you feel resistance, as overtightening can cause cracks in the plastic pipe and lead to leaks. Metal compression rings should be avoided as they can also cause cracks and leaks in plastic pipes.
When joining pipes, ensure that the pipe is inserted deeply enough into the fitting. Leave about 1/8 inch of the pipe showing beyond the compression ring, and then tighten to the correct tension. If you need to bend the pipe around an obstacle, keep the last 2 to 3 inches closest to the compression fitting attachment point straight, as compression fittings cannot form a tight seal on a bent pipe.
Plastic Prints: Preserving Impressions in Ancient Artifacts
You may want to see also
Explore related products
They are useful for joining plastic pipes of different sizes and fittings
Plastic waste compression joints are useful for joining plastic pipes of different sizes and fittings. They are commonly used to join old pipes to new pipes, including old lead wastes and odd-sized imperial waste plumbing pipework. Compression joints are ideal for this purpose as they are easy to fit and adjust, even for those new to plumbing. They are also useful for joining plastic pipes of different sizes, with a range of compression wastes available for joining pipes of various diameters.
Compression fittings are couplings used by plumbers to join tubes or smaller-flow diameter pipes. They are available in a variety of designs and sizes, making them versatile for different plumbing projects. Compression fittings are commonly made from brass, copper, plastic, or stainless steel. They are used to join PVC, nylon, plastic, or copper tubing.
The process of joining plastic pipes using compression joints involves tightening a threaded nut over a cone-shaped rubber washer. This compresses the washer stack, causing it to expand laterally and create a strong, airtight, and watertight connection. It is important to ensure that the fitting is tight enough to create a watertight seal while being careful not to exert too much pressure, as this could damage the fitting or thread.
To fit a plastic waste compression joint, the pipe should be cleaned and deburred to remove any dirt and residue. The various pieces of the compression fitting are then unscrewed and assembled in the correct sequence to ensure that it does not leak. This typically includes a plastic washer, a tapered rubber seal, and a screw cap that applies pressure to the washer, holding the seal in place and preventing leaks.
Overall, plastic waste compression joints are a useful and straightforward solution for joining plastic pipes of different sizes and fittings. They are easy to use and provide flexibility in joining pipes, making them a valuable tool for both professionals and DIY enthusiasts.
Plastic Thickness for 10ml Containers: How Thick?
You may want to see also
Explore related products
The correct sequence of the compression joint is important to prevent leaks
To prevent leaks, it is crucial to follow the correct installation sequence. Firstly, ensure that the pipes being joined are clean and straight-cut, using a pipe cutter to achieve a precise finish. Then, insert the compression seat, which is the main body of the compression joint, into the pipe. Next, place the nut onto the pipe, followed by the compression ring (also known as a ferrule) and the rubber sealing ring, ensuring the tapered edge of the ring faces toward the join. Finally, tighten the nut by hand and then with a tool until resistance is felt, turning no more than half a rotation beyond this point to avoid over-tightening.
Improper installation is a common cause of leaks in compression joints. It is important to ensure that the pipes are correctly aligned and that the compression fitting is pushed in completely, even if there is resistance. A mark can be made on the pipe at the halfway point to guide insertion. The correct depth is achieved when the mark reaches the edge of the fitting or aligns with a reference point.
Additionally, over-tightening a compression joint can damage the ferrule or deform the pipe, compromising the integrity of the seal. Under-tightening can also lead to insufficient compression of the ferrule, resulting in a weak seal. Therefore, achieving the correct level of tightness by following manufacturer guidelines is crucial to preventing leaks.
Compacting Plastic: On-Site Techniques for Efficient Waste Management
You may want to see also
Explore related products
Use a waterproof lubricant to maintain the seal for longer
When fitting plastic waste compression joints, it is important to use a waterproof lubricant to maintain the seal for longer. This is because lubricating plastic components has several benefits, including reducing friction and wear, lowering power consumption, and increasing the life of the part.
There are several types of lubricants that are compatible with plastic, including silicone-based lubricants, mineral oils, and synthetic hydrocarbons (SHC or PAO). When choosing a lubricant, it is important to consider the chemical structure and compatibility with the plastic material to avoid stress cracking, discolouration, and loss of dimensional stability or structural integrity.
Silicone-based lubricants, such as WD-40 Specialist Silicone, are a great choice for plastic waste compression joints as they are water-resistant and protect metal and non-metal surfaces such as rubber, plastic, and vinyl. They are effective in a wide temperature range and leave a clear, non-staining film that does not attract dirt, dust, or oil.
It is also important to consider the viscosity of the lubricant. High viscosity oils are less likely to penetrate, crack, or adversely affect plastic materials, while lighter loads require lower viscosity oils to prevent viscous drag. Greases with a consistency of NLGI 1 or 0 can also be used to reduce friction and grease-induced noise.
By choosing the right waterproof lubricant and applying it to all parts of the compression fitting during installation, you can help maintain the seal for longer and prevent leaks in your plastic waste compression joints.
Toilet Trauma: Why Plastic Seats Crack
You may want to see also
Explore related products
Plastic compression fittings are found at locations with sinks or tubing
Plastic compression fittings are a common feature in plumbing, especially in kitchens and bathrooms. They are used to join plastic pipes together and are known for their ease of use and versatility. They can be used to join pipes of different sizes and even to connect older imperial plumbing fittings to newer metric waste fittings.
Plastic compression fittings are ideal for use in locations with sinks or tubing as they offer a quick and straightforward installation process. They come in various shapes and sizes, including straight couplings, 90-degree bends, T-joints, elbows, and reducers. This variety ensures that there is a fitting suitable for any sink or tubing configuration.
The fittings are designed to be user-friendly, even for those with limited DIY experience. To install a plastic compression fitting, the various pieces of the fitting are unscrewed, revealing the internal components. The red plastic compression ring sits inside the nut, and a rubber sealing ring is also present to ensure a watertight connection. When fitting to a pipe, the order of assembly is crucial: the nut goes on first, followed by the compression ring, and finally the rubber sealing ring with its tapered edge facing the join.
Plastic compression fittings are a reliable choice for sinks and tubing as they create secure and leak-proof connections. The tapered rubber seal is a critical component, pushing against the main compression body and the pipe to hold them firmly in place and prevent leaks. Additionally, the plastic washer, when screwed up, applies pressure to the washer, which in turn presses down on the rubber seal, reinforcing the seal and ensuring its integrity.
While plastic compression fittings are widely used, it is worth noting that plumbers typically prefer solvent weld waste systems due to their expertise and familiarity with those systems. Nevertheless, plastic compression fittings remain a popular choice for DIY enthusiasts and quick fixes due to their ease of use and availability.
Plastic Clips: Safe for Copper Pipes?
You may want to see also
Frequently asked questions
Plastic waste compression joints are fittings used to join plastic pipework together. They are quick and easy to install and remove, making them a handy DIY plumbing tool.
There are several types of plastic waste compression joints available, including straight couplings, 90-degree bends, T-joints, and flexible fittings. These joints come in various sizes, such as 32mm and 40mm, and can join pipes of the same or different sizes.
First, ensure you have the correct size and type of compression joint for your pipes. Dry fit the joint to ensure a proper connection. Then, unscrew the various pieces of the compression fitting to understand their function. When fitting to a pipe, follow this sequence: place the nut, followed by the compression ring, and finally, the rubber sealing ring. The rubber sealing ring has a tapered edge that must be fitted with the narrow end facing the join. Push the fitting up so that the tapered edge seals onto the fitting.
Apply a waterproof lubricant to all parts of the compression fitting during installation to maintain its seal for longer. Do not overtighten compression nuts, as this can crack plastic pipes and cause leaks. Ensure that the pipe is seated deeply enough into the fitting, leaving only about 1/8 inch of the pipe beyond the compression ring before tightening.
Plastic waste compression joints are suitable for anyone, regardless of their DIY skill level. They are easy to install and remove, making them a convenient option for quick repairs or as a stop-gap fix. They are also useful for joining pipes of different sizes or connecting older imperial plumbing fittings to newer metric waste fittings.
