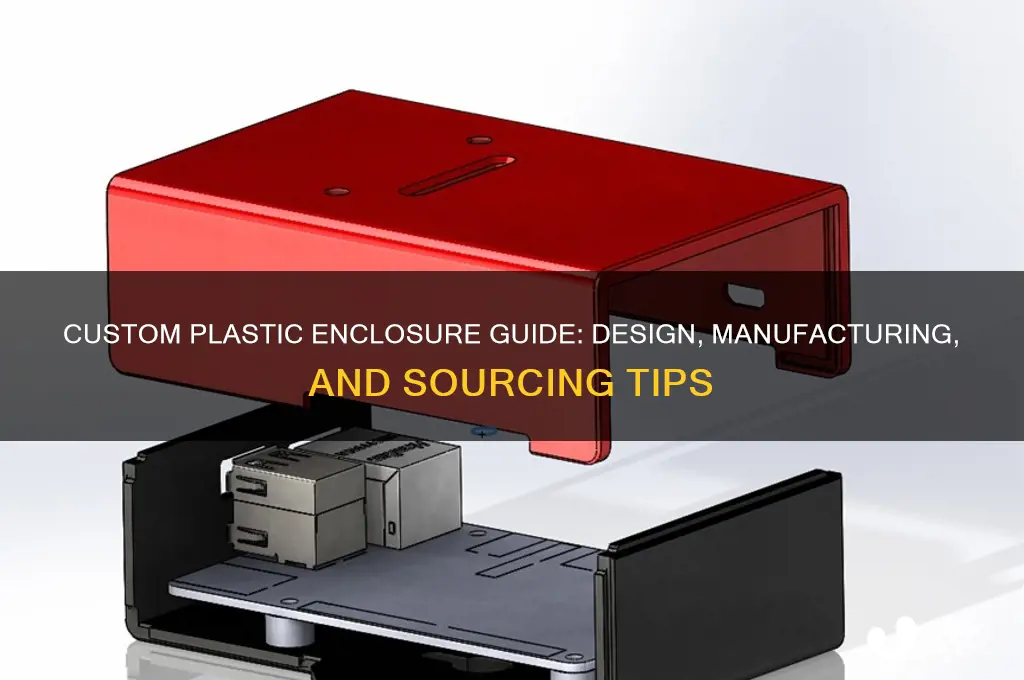

Creating a custom plastic enclosure involves several key steps, from conceptualizing the design to selecting the right materials and manufacturing process. It begins with defining the enclosure’s purpose, dimensions, and functional requirements, such as durability, weather resistance, or aesthetic appeal. Next, detailed 3D modeling and prototyping are essential to ensure the design meets specifications and fits the intended components. Once the design is finalized, choosing the appropriate plastic material—such as ABS, polycarbonate, or PVC—is crucial, as it impacts cost, strength, and production feasibility. Manufacturing options like injection molding, 3D printing, or CNC machining are then evaluated based on volume, complexity, and budget. Collaborating with a reputable manufacturer ensures precision, quality, and adherence to timelines, resulting in a tailored enclosure that meets your exact needs.
Explore related products
$9.99
What You'll Learn
- Design Requirements: Define size, material, and features needed for your custom plastic enclosure
- Prototyping Options: Choose between 3D printing, CNC machining, or mold prototyping
- Material Selection: Select ABS, polycarbonate, or other plastics based on durability and cost
- Manufacturing Process: Decide between injection molding, vacuum forming, or thermoforming
- Finishing & Assembly: Add painting, labeling, or assembly services for a polished final product
Design Requirements: Define size, material, and features needed for your custom plastic enclosure
Defining the size of your custom plastic enclosure is the cornerstone of the design process. Start by measuring the dimensions of the components it will house, including any necessary clearance for airflow, cables, or future expansions. For instance, if you’re designing an enclosure for a circuit board, add at least 5–10 mm on each side to accommodate wiring and thermal dissipation. Consider the environment where the enclosure will be used—a wall-mounted unit may require a compact, sleek design, while a portable device might need ergonomic features like rounded edges or a handle. Always balance functionality with practicality; oversized enclosures waste material and space, while undersized ones risk damaging internal components.
Material selection is equally critical, as it dictates durability, cost, and manufacturing feasibility. ABS plastic is lightweight and impact-resistant, ideal for consumer electronics, but it may warp under high temperatures. Polycarbonate offers superior strength and heat resistance, making it suitable for industrial applications, though it comes at a higher price point. For outdoor use, UV-stabilized plastics prevent discoloration and brittleness over time. If sustainability is a priority, explore biodegradable or recycled plastics, though these may have limitations in strength or availability. Consult with your manufacturer early to align material choice with your budget and performance requirements.
Features like mounting options, access points, and waterproofing can make or break the functionality of your enclosure. For example, a hinged lid with a gasket seal provides easy access while ensuring IP65-rated protection against dust and water. If the enclosure will be installed in a fixed location, consider adding mounting flanges or threaded inserts for secure attachment. For portable devices, incorporate features like latches, handles, or even integrated battery compartments. Always prototype these features to test usability—a poorly placed vent or awkwardly positioned button can render an otherwise well-designed enclosure impractical.
Finally, consider the manufacturing process when defining your design requirements. Injection molding is cost-effective for high-volume production but requires expensive tooling, making it less ideal for small runs. CNC machining or 3D printing offers flexibility for prototypes or low-volume orders but may limit material options or surface finish. Engage with your manufacturer to optimize the design for their capabilities, such as minimizing undercuts in injection molding or simplifying geometries for CNC machining. This collaboration ensures your design is not only functional but also manufacturable within your constraints.
How Long Does It Take to Receive Your Plastic Driver's License?
You may want to see also
Explore related products
Prototyping Options: Choose between 3D printing, CNC machining, or mold prototyping
Choosing the right prototyping method for a custom plastic enclosure hinges on balancing cost, speed, and precision. 3D printing excels in rapid iteration, allowing designers to test multiple versions within days. It’s ideal for early-stage prototypes where material properties are secondary to form and fit. However, 3D-printed parts often lack the strength and surface finish of production-grade plastics, limiting their use in functional testing under stress. For instance, FDM printing, while affordable, produces visible layer lines, whereas SLA offers smoother finishes but at a higher cost.
CNC machining steps in where 3D printing falls short in durability and precision. By carving enclosures from solid blocks of plastic, CNC delivers parts that closely mimic production materials in strength and texture. This method is perfect for functional prototypes requiring tight tolerances or specific material properties, such as ABS or polycarbonate. However, CNC is slower and more expensive than 3D printing, especially for complex geometries. A small enclosure might take 4–6 hours to machine, compared to 3D printing’s 2–3 hours, but the result is a part that can withstand real-world testing.
Mold prototyping, while the most expensive upfront, is the only option for simulating mass production. This method involves creating a mold—often from aluminum or steel—and injecting plastic to form the enclosure. It’s ideal for late-stage prototypes where the design is finalized, and material properties must match the final product. For example, a prototype molded in ABS will exhibit the same impact resistance and surface finish as a production unit. However, mold creation can take weeks and cost thousands of dollars, making it impractical for early-stage experimentation.
Each method has its trade-offs. 3D printing is fastest and cheapest but sacrifices strength. CNC machining offers precision and durability but at a higher cost and slower pace. Mold prototyping replicates production conditions but is costly and time-consuming. To decide, ask: *What stage is my design in?* Early concepts benefit from 3D printing’s speed. Functional testing demands CNC’s robustness. Final validation requires mold prototyping’s accuracy. Pairing these methods—starting with 3D printing, refining with CNC, and validating with molding—often yields the most efficient path to a production-ready enclosure.
Lea Michele's Transformation: Plastic Surgery Rumors Explored
You may want to see also
Explore related products
Material Selection: Select ABS, polycarbonate, or other plastics based on durability and cost
Choosing the right plastic for your custom enclosure is a critical decision that balances durability, cost, and application-specific needs. ABS (Acrylonitrile Butadiene Styrene) is a popular choice due to its affordability and ease of manufacturing. It’s lightweight, impact-resistant, and can be painted or glued easily, making it ideal for consumer electronics, toy housings, and low-stress applications. However, ABS is less heat-resistant and prone to warping under high temperatures, so it’s not suitable for environments exceeding 80°C (176°F). If your enclosure will be exposed to higher temperatures or harsh conditions, ABS may not be the best fit.
Polycarbonate, on the other hand, offers superior durability and heat resistance, withstanding temperatures up to 135°C (275°F). It’s also highly impact-resistant, making it a go-to material for industrial enclosures, medical devices, and outdoor applications. However, polycarbonate is more expensive than ABS and can be harder to machine or mold, driving up production costs. Its optical clarity is another advantage, but if transparency isn’t a requirement, this benefit may not justify the added expense. Consider polycarbonate when long-term durability and performance in demanding environments are non-negotiable.
For applications requiring chemical resistance or specific regulatory compliance, other plastics like PVC (Polyvinyl Chloride) or PBT (Polybutylene Terephthalate) may be more suitable. PVC is cost-effective and resistant to acids, bases, and oils, but it’s less impact-resistant and not ideal for high-stress applications. PBT offers excellent dimensional stability and electrical insulation properties, making it a favorite for automotive and electrical enclosures. However, it’s pricier than ABS and polycarbonate, so weigh its benefits against your budget constraints.
When selecting a material, start by defining your enclosure’s functional requirements: Will it be exposed to extreme temperatures, chemicals, or physical stress? What’s your budget for materials and production? For instance, if you’re designing a simple indoor enclosure for a hobby project, ABS might suffice. But if you’re creating a rugged outdoor housing for industrial equipment, polycarbonate or PBT could be worth the investment. Always request material samples or prototypes to test performance before committing to large-scale production.
Finally, don’t overlook the environmental impact of your material choice. ABS and polycarbonate are recyclable, but their production processes can be energy-intensive. If sustainability is a priority, explore bio-based plastics or recycled materials, though these may come with trade-offs in durability or cost. By carefully evaluating durability, cost, and application-specific needs, you can select a plastic that not only meets your requirements but also aligns with your long-term goals.
Demi Lovato's Transformation: Plastic Surgery Speculations and Facts
You may want to see also
Explore related products
Manufacturing Process: Decide between injection molding, vacuum forming, or thermoforming
Choosing the right manufacturing process for your custom plastic enclosure is pivotal, as it directly impacts cost, lead time, and design flexibility. Injection molding, vacuum forming, and thermoforming each offer distinct advantages and limitations, making them suitable for different applications. Understanding these processes will help you align your project requirements with the most effective method.
Injection Molding is ideal for high-volume production and complex designs. This process involves injecting molten plastic into a precision-machined mold, allowing for intricate details, tight tolerances, and consistent quality. It’s cost-effective for large runs due to high initial tooling costs, which are offset by low per-unit prices. For example, if you’re producing 10,000+ units of a custom enclosure with intricate features, injection molding is the go-to choice. However, lead times for tooling can range from 4 to 12 weeks, so plan accordingly.
Vacuum Forming excels in low-volume production and simpler designs. It works by heating a plastic sheet until pliable, then using a vacuum to mold it over a single-sided tool. This method is cost-effective for small runs (50–500 units) and offers design flexibility for larger, less detailed enclosures. For instance, a prototype or limited-edition product could benefit from vacuum forming’s quick turnaround and lower tooling costs. However, it’s less suitable for intricate shapes or high precision.
Thermoforming is a broader category that includes vacuum forming but can also involve pressure or mechanical assistance for more complex shapes. It’s often used for medium-volume projects (500–5,000 units) where the design requires more detail than vacuum forming can provide but doesn’t justify the expense of injection molding. For example, a custom enclosure for medical devices might use thermoforming to balance cost and complexity. Material thickness and uniformity are key considerations here, as thermoforming can sometimes result in thinner edges.
When deciding, consider your project’s scale, design complexity, and timeline. Injection molding is unmatched for high-volume, intricate designs but requires significant upfront investment. Vacuum forming is quick and affordable for simple, low-volume needs. Thermoforming bridges the gap, offering more detail than vacuum forming without the full commitment of injection molding. By matching your requirements to the strengths of each process, you’ll ensure a cost-effective and efficient production outcome.
Did The Weeknd's Look Change? Unraveling the Plastic Sugary Mystery
You may want to see also
Explore related products
Finishing & Assembly: Add painting, labeling, or assembly services for a polished final product
Painting, labeling, and assembly services transform a functional custom plastic enclosure into a professional, market-ready product. These finishing touches not only enhance aesthetics but also improve durability and user experience. Consider painting as the first layer of customization. UV-resistant coatings, for instance, protect enclosures exposed to sunlight, while textured finishes can improve grip and reduce fingerprints. Powder coating, a popular choice, offers a thicker, more durable finish compared to liquid paint, though it requires careful application to avoid drips or uneven coverage.
Labeling is another critical step, serving both functional and branding purposes. Screen printing directly onto the enclosure provides a clean, integrated look, but it’s less flexible for design changes. Vinyl decals, on the other hand, allow for easy updates but may wear over time, especially in harsh environments. For high-end products, laser engraving offers permanence and precision, though it’s limited to monochromatic designs. Ensure labels comply with industry standards, such as UL or CE markings, depending on your product’s application.
Assembly services streamline the production process, saving time and reducing errors. Snap-fit designs minimize the need for adhesives or fasteners, but they require precise tolerances during manufacturing. If your enclosure includes electronic components, consider outsourcing to a provider with experience in PCB integration and wire management. Pre-assembly testing, such as IP rating verification for water and dust resistance, ensures the final product meets specifications.
A common oversight is neglecting post-finishing inspection. Even minor defects, like paint bubbles or misaligned labels, can undermine product quality. Implement a quality control checklist that includes visual inspection, dimensional verification, and functional testing. For large orders, statistical process control (SPC) methods can identify trends and prevent recurring issues.
Finally, balance cost and quality by prioritizing finishing services based on your product’s end use. A medical device, for example, may require sterile labeling and biocompatible coatings, while a consumer gadget might focus on vibrant colors and branding. Collaborate closely with your manufacturer to align finishing options with your budget and timeline, ensuring a polished final product that meets both functional and aesthetic expectations.
Custom Plastic Creations: A Step-by-Step Guide to Manufacturing Unique Items
You may want to see also
Frequently asked questions
The first step is to define your project requirements, including the size, shape, material type, and any specific features like mounting holes, cutouts, or branding.
Common materials include ABS, polycarbonate, PVC, and polyethylene, each offering different properties like durability, impact resistance, and temperature tolerance.
The timeline varies depending on complexity, but typically ranges from 2-6 weeks, including design, prototyping, and production phases.
Minimum order quantities vary by manufacturer, but many offer low-volume options starting from as few as 10-50 units, depending on the process used (e.g., 3D printing, injection molding).
