The plasticity index (PI) is a crucial parameter in soil mechanics, used to classify fine-grained soils based on their plasticity characteristics. It is defined as the difference between the liquid limit (LL) and the plastic limit (PL) of a soil sample, expressed mathematically as PI = LL - PL. To determine the plasticity index, one must first conduct standardized laboratory tests, such as the Casagrande method, to measure both the liquid limit and plastic limit. The liquid limit test identifies the water content at which soil transitions from a plastic to a liquid state, while the plastic limit test determines the water content at which soil begins to crumble upon rolling. Accurate measurement of these limits is essential, as the plasticity index not only aids in soil classification but also provides insights into soil behavior, compaction characteristics, and suitability for engineering applications.
| Characteristics | Values |
|---|---|
| Definition | Plasticity Index (PI) is a measure of the plasticity of a soil, calculated as the difference between the liquid limit (LL) and the plastic limit (PL). |
| Formula | PI = LL - PL |
| Units | Percentage (%) |
| Liquid Limit (LL) | Water content at which soil transitions from a plastic to a liquid state. Determined using the Casagrande method or fall cone test. |
| Plastic Limit (PL) | Water content at which soil transitions from a plastic to a semi-solid state. Determined by rolling a soil thread until it crumbles. |
| Shrinkage Limit (SL) | Optional; water content below which further drying does not cause additional volume reduction. Not directly used in PI calculation. |
| Standard Test Methods | ASTM D4318 (Liquid Limit), ASTM D426 (Plastic Limit) |
| Typical Range for Soils | Clay: PI > 50%, Silt: 20% < PI < 50%, Sand: PI < 10% |
| Significance | Indicates soil's ability to undergo plastic deformation; crucial for classifying fine-grained soils (e.g., CH, CL, ML, MH in USCS). |
| Equipment Needed | Casagrande apparatus, fall cone apparatus, rolling device, oven, balance. |
| Sample Preparation | Soil must pass a 425 μm sieve; mix with water to desired consistency for testing. |
| Applications | Used in geotechnical engineering for foundation design, pavement construction, and soil classification. |
| Limitations | Not applicable for coarse-grained soils (gravel, sand); results depend on testing method and operator skill. |
Explore related products
What You'll Learn
- Soil Sample Preparation: Collect undisturbed soil, air-dry, crush, and pass through a 2mm sieve for testing
- Determining Liquid Limit: Use Casagrande’s method to find the liquid limit of the soil sample
- Determining Plastic Limit: Roll soil threads to measure the plastic limit accurately
- Calculating Plasticity Index: Subtract plastic limit from liquid limit to get the plasticity index
- Interpreting Results: Classify soil based on plasticity index values for engineering applications
Soil Sample Preparation: Collect undisturbed soil, air-dry, crush, and pass through a 2mm sieve for testing
Undisturbed soil samples are the cornerstone of accurate plasticity index testing. Collecting them requires careful technique to preserve the soil's natural structure. Use a thin-walled, sharp-edged sampler, driving it vertically into the ground to minimize compaction. For cohesive soils, a split-spoon sampler or Shelby tube works well, while sandy soils may require a drive-sampling method. Ensure the sample depth aligns with the project's requirements, typically ranging from 0.5 to 2 meters below the surface. Proper labeling with location, depth, and date is essential for traceability.
Air-drying is a critical step that balances moisture removal with structural preservation. Spread the soil sample thinly on a clean, non-absorbent surface in a well-ventilated area, avoiding direct sunlight or heat sources that could cause rapid drying and cracking. Aim for a temperature range of 20–25°C (68–77°F) to ensure gradual drying. The process typically takes 24–48 hours, depending on humidity and soil type. Over-drying can lead to particle disaggregation, while under-drying may skew moisture content results. Periodically check the sample’s progress by gently pressing a small portion—it should feel cool and crumbly when adequately dried.
Crushing the air-dried soil breaks down aggregates while maintaining particle integrity. Use a wooden mallet or pestle to gently fragment larger clods, avoiding metal tools that could introduce contaminants. Work systematically, starting with larger pieces and progressing to finer material. The goal is to achieve a uniform consistency without reducing particles to dust. For heavily compacted samples, a rubber-coated crusher can help minimize fragmentation. This step ensures the soil passes easily through the sieve while preserving the size distribution needed for accurate testing.
Sieving through a 2mm mesh is the final preparation step, ensuring uniformity and removing oversized particles that could interfere with plasticity tests. Place the crushed soil on the sieve and agitate it in a circular motion over a clean tray. For stubborn particles, use a soft brush to dislodge them without damaging the sieve. Collect the material that passes through for testing, discarding any retained debris. This standardized particle size ensures consistency across samples, allowing the Atterberg limits—and thus the plasticity index—to be determined reliably. Proper sieving is non-negotiable for precise results.
Quick Fixes: Removing Melted Plastic from Your Clothes Iron Easily
You may want to see also
Explore related products
Determining Liquid Limit: Use Casagrande’s method to find the liquid limit of the soil sample
The liquid limit of a soil sample is a critical parameter in soil classification and engineering, representing the water content at which soil transitions from a plastic to a liquid state. Casagrande's method, a cornerstone technique in geotechnical testing, offers a precise and standardized approach to determining this value. This method involves the use of a liquid limit device, a grooving tool, and a set of precise steps to ensure accuracy.
Steps to Determine Liquid Limit Using Casagrande's Method
Begin by preparing a soil sample passing through a 425-μm sieve and mixing it with distilled water to achieve a consistency suitable for testing. Place approximately 100 grams of this soil paste into the liquid limit device cup. Using the grooving tool, create a groove in the soil sample along the centerline of the cup. The tool should be held at a 45-degree angle, and the groove should be approximately 2 mm deep. Next, adjust the crank handle of the liquid limit device to achieve a drop height of 10 mm. Rotate the crank at a rate of 150 strokes per minute, counting the number of blows required to close the groove along its length. Record the water content of the soil sample and repeat the process at varying water contents, typically ranging from 20% to 50%.
Cautions and Precision Tips
Accuracy in Casagrande's method hinges on meticulous attention to detail. Ensure the soil sample is uniformly mixed and free from air bubbles, as inconsistencies can skew results. The grooving tool must maintain a consistent angle and depth to ensure reproducibility. Calibrate the liquid limit device regularly to verify the drop height and ensure smooth operation. When determining the number of blows, stop the test immediately when the groove closes along its entire length, avoiding over-testing. Minor variations in technique can lead to significant discrepancies, so adherence to standardized procedures is essential.
Analyzing Results and Practical Takeaways
Plot the relationship between water content and the number of blows on a semi-log graph, where the water content is plotted on the arithmetic scale and the number of blows on the logarithmic scale. The liquid limit corresponds to the water content at which the groove closes after 25 blows. This value is typically reported in percent. Understanding the liquid limit is pivotal in assessing soil behavior, particularly in construction and foundation design. For instance, soils with a high liquid limit tend to exhibit greater plasticity and swelling potential, requiring careful consideration in engineering applications.
Comparative Advantage of Casagrande's Method
Compared to alternative methods like the fall cone test, Casagrande's method remains widely preferred due to its simplicity, reliability, and alignment with international standards such as ASTM D4318. While the fall cone test offers advantages in certain fine-grained soils, Casagrande's method provides a robust framework for most routine soil testing scenarios. Its widespread adoption ensures consistency across laboratories and projects, making it an indispensable tool in geotechnical practice. By mastering this technique, engineers and technicians can confidently determine the liquid limit, a foundational step in calculating the plasticity index and characterizing soil properties.
Effective Tips to Remove Grease Stains from Plastic Containers Easily
You may want to see also
Explore related products
Determining Plastic Limit: Roll soil threads to measure the plastic limit accurately
The plastic limit of soil is a critical parameter in geotechnical engineering, defining the water content at which soil transitions from a plastic to a semi-solid state. Accurately determining this limit requires a hands-on approach: rolling soil threads until they reach a specific diameter. This method, standardized in ASTM D4318, is both precise and practical, offering insights into soil behavior under varying moisture conditions.
To begin, prepare a soil sample by mixing it with distilled water to achieve a water content slightly above its estimated plastic limit. Gradually add water while kneading the soil until it becomes homogeneous. Next, roll the soil into a thread on a flat, non-porous surface, applying consistent pressure with your palms. The goal is to reduce the thread’s diameter through repeated rolling, ensuring uniformity along its length. ASTM D4318 specifies that the thread should be rolled out to approximately 3 mm in diameter, but for initial trials, aim for a slightly larger diameter to account for potential variability.
As you roll the thread, observe its behavior. The soil will become more brittle as water content decreases, eventually cracking and breaking at the plastic limit. At this point, measure the water content of the soil using the oven-drying method (ASTM D2216). Weigh a representative sample of the soil, dry it in an oven at 105–110°C for 24 hours, and reweigh it to calculate the moisture loss. This value represents the plastic limit. Practical tip: roll multiple threads to ensure consistency, as slight variations in technique can affect results.
Caution must be exercised to avoid common errors. Overworking the soil can lead to compaction, artificially lowering the plastic limit. Conversely, insufficient rolling may result in an overestimation. Maintain a steady rhythm and pressure during rolling, and ensure the thread is free of air pockets or irregularities. For fine-grained soils, such as clays, this process may require more precision due to their higher plasticity. Coarser soils, like silts, may break more abruptly, demanding closer observation.
In conclusion, determining the plastic limit through thread rolling is a blend of art and science. It requires attention to detail, consistency in technique, and an understanding of soil behavior. By mastering this method, engineers and technicians can accurately assess soil plasticity, a cornerstone in classifying soils and predicting their performance in construction and environmental applications. This hands-on approach not only yields reliable data but also deepens one’s appreciation for the intricate relationship between soil and water.
Effective Ways to Remove Melted Plastic from Your Frying Pan
You may want to see also
Explore related products
Calculating Plasticity Index: Subtract plastic limit from liquid limit to get the plasticity index
The plasticity index (PI) is a critical parameter in soil mechanics, quantifying the range of water content over which a soil remains plastic. It is derived from two fundamental soil properties: the liquid limit (LL) and the plastic limit (PL). The calculation is straightforward: subtract the plastic limit from the liquid limit. This simple arithmetic yields a value that categorizes soils into different plasticity classes, from low to high, guiding engineers in foundation design, pavement construction, and other geotechnical applications.
To perform this calculation, first determine the liquid limit and plastic limit through standardized laboratory tests. The liquid limit is the water content at which soil transitions from a plastic to a liquid state, typically measured using the Casagrande cup method. The plastic limit, on the other hand, is the water content at which soil begins to crack under rolling, often determined by repeatedly rolling a soil thread until it fractures at a diameter of 3 mm. Once these values are obtained, the plasticity index is calculated as PI = LL – PL. For example, if a soil has a liquid limit of 45% and a plastic limit of 25%, the plasticity index would be 20, indicating a medium plasticity soil.
While the calculation itself is simple, accuracy depends on precise determination of the liquid and plastic limits. Errors in these tests can lead to incorrect plasticity index values, potentially misclassifying the soil and leading to poor engineering decisions. For instance, overestimating the liquid limit or underestimating the plastic limit will inflate the plasticity index, suggesting a higher plasticity than actually exists. Therefore, adherence to ASTM or ISO standards during testing is crucial. Practical tips include ensuring uniform soil mixing, maintaining consistent test conditions, and calibrating equipment regularly.
Comparatively, the plasticity index is often contrasted with other soil indices, such as the liquidity index or shrinkage limit, but its uniqueness lies in its direct relationship to soil workability and cohesion. A high plasticity index indicates a soil with significant clay content, which can be both a challenge (e.g., swelling and shrinkage) and an advantage (e.g., high shear strength when compacted). Understanding this balance is essential for applications like earthen dams or road subgrades. For example, soils with a plasticity index above 20 are typically avoided in road construction due to their propensity for volume change under varying moisture conditions.
In conclusion, calculating the plasticity index by subtracting the plastic limit from the liquid limit is a foundational step in soil classification and engineering. Its simplicity belies its importance, as it provides a quantitative measure of soil behavior that informs critical design decisions. By mastering this calculation and the underlying tests, engineers and geotechnicians can better predict soil performance, mitigate risks, and optimize construction practices. Whether for small-scale projects or large infrastructure, the plasticity index remains an indispensable tool in the soil mechanic’s toolkit.
Effective Methods to Remove Burned Plastic from Glass Stove Tops
You may want to see also
Explore related products
![[Upgraded] Soil Moisture Meter, 4-in-1 Soil pH Tester, Moisture/Light/Nutrients/pH Meter for Gardening, Lawn, Farming, Indoor & Outdoor Plants Use, No Batteries Required, Gifts for Plants Lover](https://m.media-amazon.com/images/I/61cKBVKSRCL._AC_UL320_.jpg)

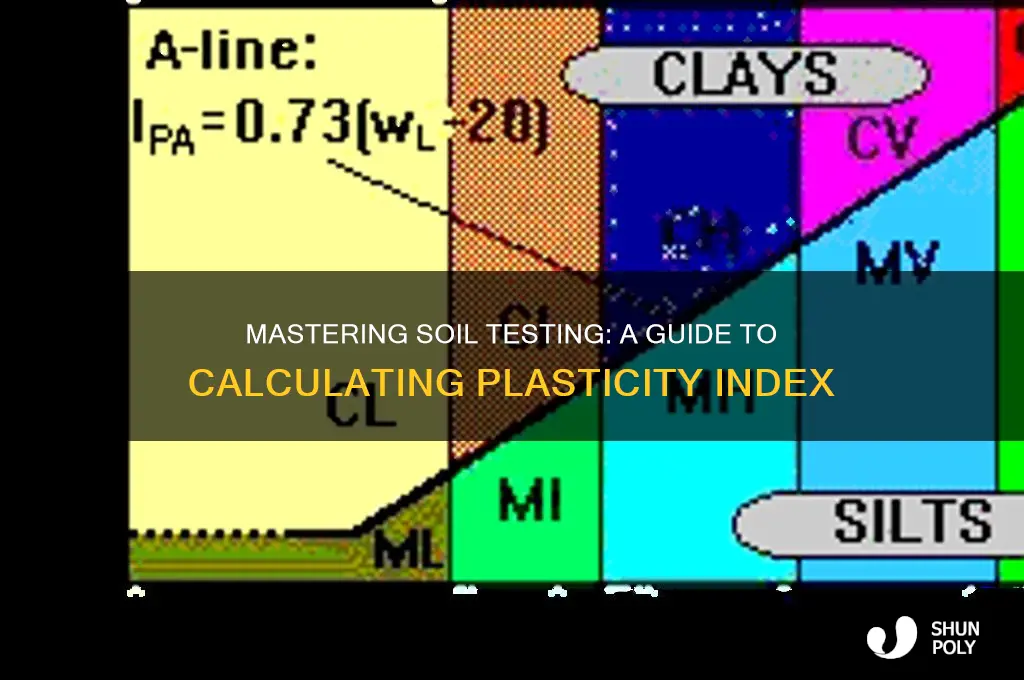

Interpreting Results: Classify soil based on plasticity index values for engineering applications
The plasticity index (PI) is a critical parameter in soil classification, offering insights into soil behavior and its suitability for engineering projects. Derived from the difference between the liquid limit (LL) and plastic limit (PL), the PI quantifies a soil’s plasticity—its ability to undergo deformation without cracking. For engineers, interpreting PI values is essential for predicting soil performance under load, moisture changes, and environmental stresses. A clear understanding of these values ensures informed decisions in foundation design, pavement construction, and slope stability assessments.
Classifying soil based on PI values follows standardized systems like the Unified Soil Classification System (USCS) or the AASHTO system. Soils with a PI of 0 to 4 are typically non-plastic and classified as sands or gravels, exhibiting minimal cohesion and high permeability. These soils are ideal for structural support but may require compaction to enhance stability. Soils with a PI of 7 to 17 fall into the low plasticity range, often categorized as silty sands or clayey sands. They balance strength and workability, making them suitable for road subgrades with proper drainage. Moderate plasticity soils, with a PI of 18 to 30, are classified as clays or silty clays. These soils can retain moisture, leading to swelling and shrinkage, which must be managed through proper compaction and drainage in engineering applications.
High plasticity soils, with a PI exceeding 30, are typically fat clays or organic clays. Their pronounced plasticity poses challenges, including significant volume changes and reduced shear strength when saturated. Engineers often mitigate these risks by modifying soil properties through stabilization techniques, such as lime or cement treatment, or by designing structures that accommodate soil movement. For instance, deep foundations or pile systems may be necessary to bypass weak, high-plasticity layers.
Practical interpretation of PI values requires context. For example, a soil with a PI of 20 might perform well in a lightly loaded embankment but fail under heavy structures without proper compaction. Similarly, a PI of 35 indicates a soil prone to landslides or foundation settlement, necessitating detailed geotechnical analysis. Field observations, such as soil color, texture, and response to moisture, complement PI values in refining classification. For instance, a dark, fine-grained soil with a PI of 40 likely contains organic matter, further complicating its engineering behavior.
In engineering applications, the plasticity index serves as a cornerstone for soil classification, guiding material selection, design parameters, and risk mitigation strategies. By systematically interpreting PI values, engineers can anticipate soil behavior, optimize construction practices, and ensure long-term structural integrity. Whether designing a highway, retaining wall, or building foundation, the PI remains an indispensable tool for transforming raw soil data into actionable engineering decisions.
Effective DIY Methods to Remove Dents from Plastic Car Panels
You may want to see also
Frequently asked questions
The Plasticity Index (PI) is a measure of the plasticity of a soil, calculated as the difference between the liquid limit (LL) and the plastic limit (PL). It is important because it helps classify soil types, assess soil behavior, and determine suitability for construction or agricultural purposes.
The Plasticity Index is calculated using the formula: PI = Liquid Limit (LL) - Plastic Limit (PL). Both LL and PL are determined through standardized laboratory tests, such as the Casagrande method for liquid limit and the rolling method for plastic limit.
To determine the Plasticity Index, you need equipment such as a liquid limit device (e.g., Casagrande apparatus), a porcelain evaporating dish, a balance, a soil spatula, and a drying oven. Additionally, a rolling device or glass plate is required for the plastic limit test.
