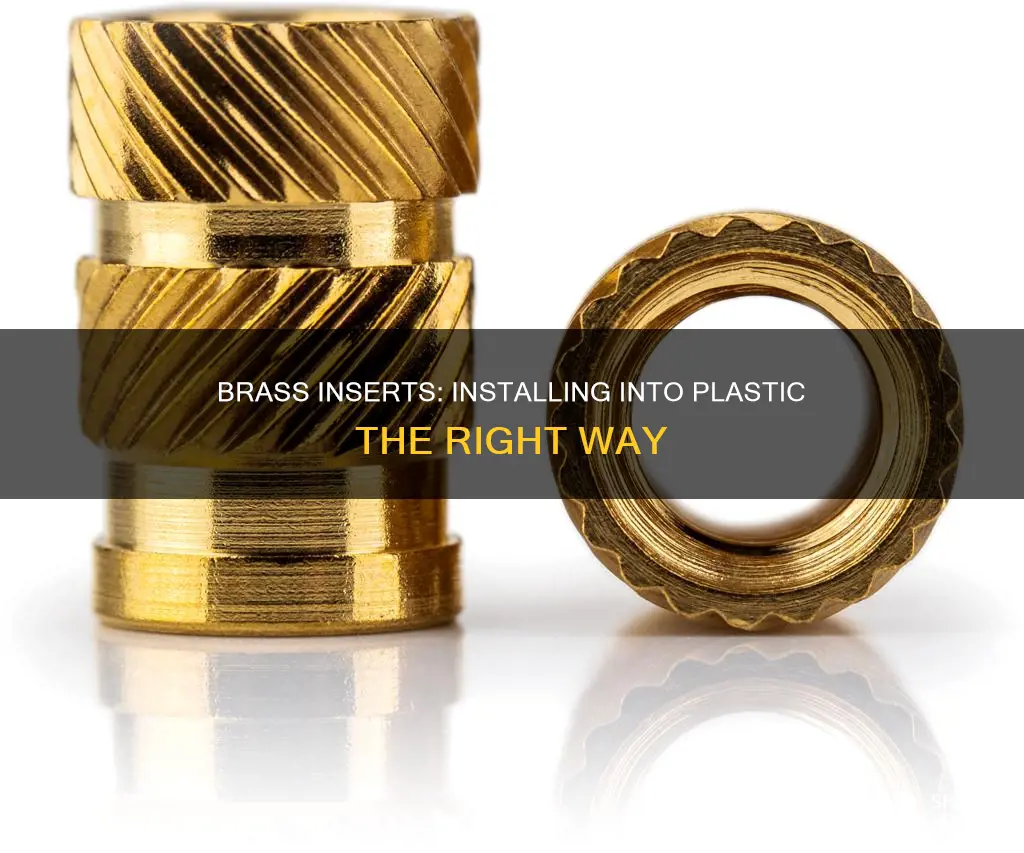

Brass threaded inserts are commonly used to create strong machine threads in plastic components. They are used in materials that are too thin to have threads machined into them, or to repair worn-out fastenings in corroded materials. The two most common methods of installing brass threaded inserts are thermal and ultrasonic. However, they can also be pressed in, moulded in, or screwed in via self-tapping threads. The thermal installation process requires heating the entire insert, so the insert material should have excellent thermal conductivity. Brass is a good choice for this, as it efficiently transfers heat to the plastic and cools down quickly after installation.
| Characteristics | Values |
|---|---|
| Materials | Brass, Aluminium, Stainless Steel, Plastic |
| Installation Methods | Thermal, Ultrasonic, Pressed, Molded, Screwed |
| Use Cases | 3D Printing, Marketing Displays, Automotive Parts, Electrical Parts |
| Benefits | Strong Machine Threads, Superior Holding Power, High Strength Threads, Resistance to Corrosion and Warping |
| Process Steps | Measure and Drill Pilot Hole, Place Insert, Heat and Push Insert, Polish Surface, Let Cool |
Explore related products
What You'll Learn
Choosing the right insert for your application
When choosing an insert, it is important to consider the material you are working with. Brass threaded inserts are suitable for use with thermoplastics, thermosets, and elastomers. They can be installed using the thermal installation process, which involves heating the entire insert and transferring heat to the plastic, or the ultrasonic installation method, which uses an ultrasonic horn to generate heat via friction.
For outdoor applications or projects requiring higher corrosion resistance, stainless steel threaded inserts may be a better choice. They are less prone to warping under mechanical stress and can withstand outdoor conditions without concern.
The size of the insert is another critical factor. Inserts require a tapered cavity of a specific size, so it is important to refer to the recommended cavity dimensions from your insert vendor. Additionally, the hole size for the insert should be considered, with pilot holes included in the design for all locations where an insert is desired.
By carefully considering the application requirements, material compatibility, installation method, and size, you can choose the right brass insert for your project.
Black Plastic Installation: A Step-by-Step Guide for Your Garden
You may want to see also
Explore related products
Drilling pilot holes
First, it is crucial to measure the outermost diameter of the brass insert. This measurement will guide the size of the pilot hole that needs to be drilled into the plastic material. The right drill size can be determined by referring to the specifications provided with the brass threaded insert. It is recommended to follow the manufacturer's guidelines to ensure the accuracy of the hole size.
After obtaining the necessary measurements, the next step is to select the appropriate drive tools for drilling. Choose tools that are suitable for the specific plastic material and the size of the pilot hole required. The drive tools will help you accurately drill the pilot hole in the desired location.
When you are ready to drill, maintain a steady hand and focus on creating a straight and centred hole. It is important that the hole is drilled precisely where the brass insert will be placed. Deviations from the intended location may affect the alignment and stability of the insert. Ensure that the hole is drilled to the specified depth, creating a cavity that aligns with the dimensions of the insert.
In the context of 3D printing applications, it is advisable to incorporate pilot holes in the initial design phase. By including these holes in the model, you can ensure they are precisely positioned and sized according to the specifications of the brass threaded inserts. This proactive approach enhances the overall accuracy and efficiency of the installation process.
Applying Plastic Nail Tips: A Step-by-Step Guide
You may want to see also
Explore related products
Inserting the brass insert
The process of installing brass inserts into plastic depends on the type of insert and the plastic being used. Brass threaded inserts are commonly used for 3D printing projects and are usually set after the part has been fabricated.
To install a brass insert, you will first need to measure the outermost diameter of the insert and use that measurement to drill a pilot hole in the plastic. The size of the hole will depend on the size of the insert, so refer to the specifications of the brass threaded insert. It is important to ensure that the plastic flows into the features of the insert, as this will dictate the fastener's torque and pull-out performance.
Once the hole has been drilled, place the brass threaded insert over it. If you are using a heat-set insert, you will need to heat the insert using a soldering iron or other heat source until it exceeds the plastic melt temperature. The insert will then start to descend into the hole. Keep the heat source on the insert until it is flush with the top of the plastic. Be careful to push the insert straight down into the hole and not at an angle.
For ultrasonic inserts, an ultrasonic horn is used to generate heat via friction with the threaded insert. The heat melts the plastic surrounding the insert, and it cools rapidly to create a firm seal. This method is typically used for thermoplastics.
After embedding the inserts, let them cool for a few minutes before use to allow the plastic to set completely. You can then softly polish the surface with a flat file tool to remove any excess melted plastic at the top of the surface where the inserts are installed.
The Truth About Pepper Balls: Plastic or Rubber?
You may want to see also
Explore related products
Finishing the surface
Firstly, it is crucial to ensure that the plastic has adequately flowed into the features of the insert. This is important because it dictates the fastener's torque and pull-out performance. A successful flow will result in the plastic conforming to the knurls on the insert. Insufficient flow will lead to reduced performance and fastener issues.
Once the brass insert is in place, you should softly polish the surface with a Flat File tool. This step helps to remove any excess melted plastic that may have accumulated around the insert during the installation process. It ensures a smooth and even finish to the surface.
For 3D printing projects, the design should include pilot holes in all the locations where you wish to insert the brass component. These pilot holes should be drilled with the appropriate drive tools, and the right drill size can be found in the brass threaded insert's specifications. This step ensures that the brass insert fits securely and accurately into the plastic material.
After embedding all the inserts, it is important to allow them to cool for a few minutes before use. This cooling period gives the plastic time to set and solidify, ensuring a strong and stable bond between the brass insert and the plastic component.
Finally, inspect the finished surface to ensure that the brass insert is flush with the top of the plastic part. This inspection step confirms that the insert is properly installed and secured in the correct position.
Plastic Inside Me: Is My Body Affected?
You may want to see also
Explore related products
Comparing installation methods
There are several methods for installing brass inserts into plastic, each with its own advantages and use cases. The most common methods are thermal and ultrasonic insertion, but brass inserts can also be pressed in, moulded in, or even screwed in via self-tapping threads.
Thermal installation involves heating the entire insert, which then melts the surrounding plastic and creates a secure bond as it cools and solidifies. This method is suitable for creating strong, pull-resistant connections in thermoplastic parts. Brass is a good choice for thermal insertion due to its high thermal conductivity, enabling efficient heat transfer to the plastic and rapid cooling post-installation.
Ultrasonic insertion uses an ultrasonic horn that vibrates at a high frequency, generating heat through friction with the threaded insert. This heat melts the surrounding plastic, and the insert is then rapidly cooled to create a firm seal. Ultrasonic insertion is typically faster than thermal insertion for installing single inserts, but thermal insertion may be quicker when installing multiple inserts simultaneously or when using preheated inserts.
Press-in or heat-set inserts are another option, commonly used for 3D printing applications. These inserts are placed into a tapered cavity and heated, causing the surrounding plastic to melt and reflow around the insert, creating a strong bond.
For each method, it is important to ensure that the plastic flows into the features of the insert, as this dictates the fastener's torque and pull-out performance.
Building a Plastic Display Case: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Brass threaded inserts are fasteners used to easily assemble and disassemble materials like wood, plastic, aluminium, and rubber. They are commonly used for 3D printing projects.
The two most common methods of installing brass inserts into plastic are thermal and ultrasonic. The thermal installation process involves heating the entire insert and transferring the heat to the plastic. The ultrasonic installation uses an ultrasonic horn that vibrates at a high frequency, generating heat through friction with the threaded insert. Other methods include press-in, moulding, and self-tapping.
First, measure the outermost diameter of the insert and use that measurement to drill a pilot hole in the plastic material. Then, place the brass threaded insert over the hole. Next, push the heated insert into the hole with a soldering iron until the top part of the insert is flush with the surface of the plastic. Finally, let the insert cool for a few minutes before use.
Brass inserts provide a strong fastening method for plastic parts. They resist pull-out and torque-out loads and provide a secure bond between the metal insert and the thermoplastic. This results in a stronger pull-out and torque-out rating compared to other types of inserts.
