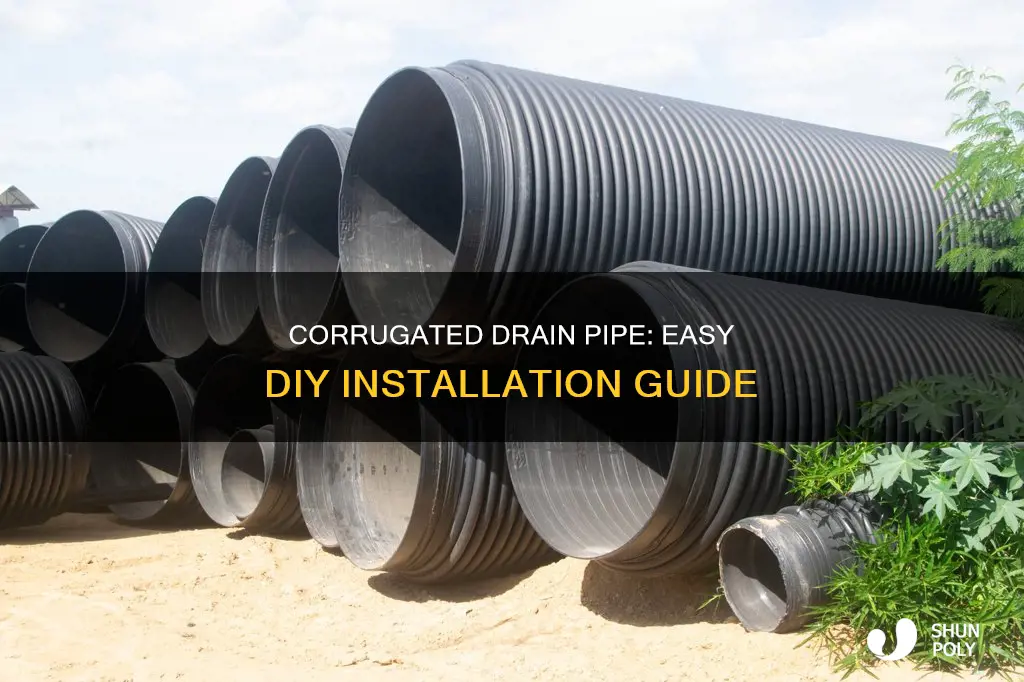

Installing a corrugated plastic drain pipe is a simple process that can help prevent flooding in your basement or on your lawn. The process involves digging a trench, laying the pipe, and filling the trench back in. The trench should be around six inches wide and 24 inches deep, with the pipe laid on a layer of gravel at the bottom. The pipe should be cut to the length of the trench, with its holes facing downwards, and the trench should then be filled back in with gravel and, if desired, covered with soil or sod. This guide will take you through the process step-by-step, offering advice on preparing your trench, assembling your pipe, and choosing the right backfill materials to ensure reliable performance for years to come.
Explore related products
What You'll Learn
Planning the pipe's path
Planning the path of your corrugated plastic drain pipe is a crucial step in ensuring effective drainage and avoiding potential issues. Here are some detailed guidelines to help you plan the pipe's path:
Firstly, decide on the starting point and endpoint of the pipe. Choose an area with a downward slope to facilitate water flow away from structures or sensitive areas, such as the house's foundation. If there is no natural slope, orient the pipe away from buildings or other features you want to protect. You can create a slope by digging a trench at a slight angle, directing water away from these areas.
Next, mark out the path of the pipe. Use spray paint or other suitable methods to indicate the route on the ground. If you need to drain a large area, consider marking off multiple trenches. These trenches do not need to connect, as corrugated pipes are flexible and can be oriented independently.
Now, it's time to start digging the trench. The trench should be wide enough to accommodate the pipe and provide space for backfill materials on either side. A typical trench is around six inches wide and about 24 inches deep, but refer to the manufacturer's guidelines or a pocket installation guide for specific measurements. Ensure the trench bottom can provide long-term support and create a uniform surface.
Additionally, remove any rock outcroppings, loose rocks, or debris that could damage the pipe. It is also essential to prevent groundwater and stormwater from entering the trench during installation, as this can affect the integrity of the installation.
Once the trench is prepared, pound the dirt at the bottom with a 4-by-4 post to compact the soil and create a stable base. This step helps prevent soil from entering the pipe and ensures the trench doesn't settle into a different slope.
Finally, before laying the pipe, decide whether you want to use a sump pump to aid in drainage. If so, purchase and connect the sump pump to your pipe system.
Casting Plastic Miniatures: Making Molds Easy
You may want to see also
Explore related products
Trench preparation
Once the path is marked, it's time to start digging the trench. The depth and width of the trench are important factors to consider. The trench should be deep enough to accommodate the pipe and provide adequate drainage, typically around 24 inches deep. The width of the trench should allow for the placement and compaction of backfill materials on either side of the pipe. Refer to the manufacturer's guidelines or a pocket installation guide to determine the specific trench width required for your pipe.
After digging the trench, it's essential to compact the soil at the bottom to provide a stable base for the pipe. This can be done by pounding the dirt with a 4-by-4 post, driving it downward with force to compact the soil and reduce the chance of dirt entering the pipe. Additionally, ensure that any rock outcroppings, loose rocks, or debris that could damage the pipe are removed from the trench.
Before placing the pipe, prepare the trench by adding a layer of bedding material. Four to six inches of bedding material is recommended, and once placed, the outer two-thirds of the bedding can be compacted. This provides a uniform surface and long-term support for the pipe and the backfill material.
Guatemala's Plastic Revolution: A Country Transformed
You may want to see also
Explore related products
Laying the pipe
Next, start digging the trench, which should be around six inches wide and 24 inches deep. Pound the dirt at the trench bottom with a 4x4 post to compact the soil and prevent it from entering the pipe. Shovel in a 2-inch layer of 1-inch diameter washed gravel along the trench length. Cut the corrugated drain pipe to the trench length, ensuring the pipe's holes are facing downward. Lay the pipe on the gravel layer.
Now, shovel in more gravel until you reach about an inch from the ground surface. This will create an easy path for water to travel through. At this point, you can decide whether to cover the trench with soil or leave it exposed for better drainage. If you choose to hide the trench, lay a filter fabric over the gravel before covering it with sod or soil.
Finally, decide whether to use gravity alone or a sump pump to drain the water. If you opt for a sump pump, purchase one and connect it to your drain pipe.
Plastic Trombones: Good Choice for Beginner Musicians?
You may want to see also
Explore related products
Backfilling
Once you've dug your trench, laid the pipe, and added gravel, it's time to backfill.
The trench should be wide enough to accommodate the pipe and allow for the placement and compaction of the backfill materials on either side. The backfill material should be compacted on the outer two-thirds of the bedding, leaving the inner third untouched. Knife the backfill material underneath the pipe to prevent voids and ensure even placement. This also helps to prevent the pipe from shifting during backfilling.
Use a backfill material that is appropriate for your needs. Native soils that are not listed as a class 1, 2, or 3 material are generally not recommended. The initial backfill should cover the pipe crown by at least six inches, and then you can add a final backfill of native soil or another material on top.
By properly installing your drain pipe and taking the time to backfill correctly, you'll ensure that your pipe functions effectively and provides years of reliable service.
When to Swap Out Your Cat's Plastic Litter Box
You may want to see also
Explore related products
Finishing the installation
Once you've prepared the trench and laid the pipe, you're in the final stages of installing your corrugated plastic drain pipe. Here's a guide to help you finish the installation:
Start by checking the pipe alignment and grade. Ensure the pipe is positioned correctly and maintains the desired slope. Use a level to check the grade and make any necessary adjustments. Secure the pipe in place by backfilling the trench. Start by covering the pipe with a layer of soil or gravel. Use a shovel or your hands to gently fill in the trench, being careful not to disturb the pipe's positioning. Compact the backfill material using a tamping tool or your feet. This helps to remove air pockets and ensure the pipe is securely held in place.
Refill the trench gradually, being careful not to damage the pipe. Use the soil or gravel you removed earlier, and fill in layers, compacting as you go. Ensure the backfill is firm and stable, providing adequate support for the pipe. Restore the ground above the pipe to its original state. If you dug through a lawn, replace the turf and water it to encourage regrowth. If you dug through a flower bed or garden, replant any displaced flowers or shrubs.
Finally, test your drain pipe system by running water through it. You can use a garden hose for this. Observe the flow of water and ensure it drains effectively. Check for any leaks or blockages, and make sure the water exits the pipe at the desired outlet. Your corrugated plastic drain pipe is now installed and ready to direct water away from your home or property. This guide has provided a comprehensive, step-by-step process to ensure a successful installation.
Remember to always exercise caution when undertaking such projects, and if you're unsure about any aspect, it's best to consult a professional.
McDonald's Plastic Utensils: The Environmental Impact
You may want to see also
Frequently asked questions
Corrugated plastic drainage pipes, also known as "French drains" or "weeping tiles", are perforated with small holes on one side that allow water to enter the pipe from the surrounding soil.
First, decide where you want to place the drain pipe. Choose an area with a downward slope so that water can flow away from your house's foundation. Next, start digging a trench. Ideally, it should be six inches wide and around 24 inches deep. Then, use a 4x4 post to pound the ground in the trench to make the soil compact and reduce the chance of dirt entering your pipe. Now, cut your drain pipe to the length of the trench and lay it on top, ensuring the holes are facing downwards. Shovel gravel into the trench until there is only around one inch between the surface and the gravel layer. Finally, decide whether to cover the trench with soil or leave it exposed for better drainage.
Corrugated plastic drain pipes are used to keep groundwater and surface water away from the foundation of homes, preventing basement flooding and protecting houses from water damage. They are also used to drain rainwater from lawns and fields.
