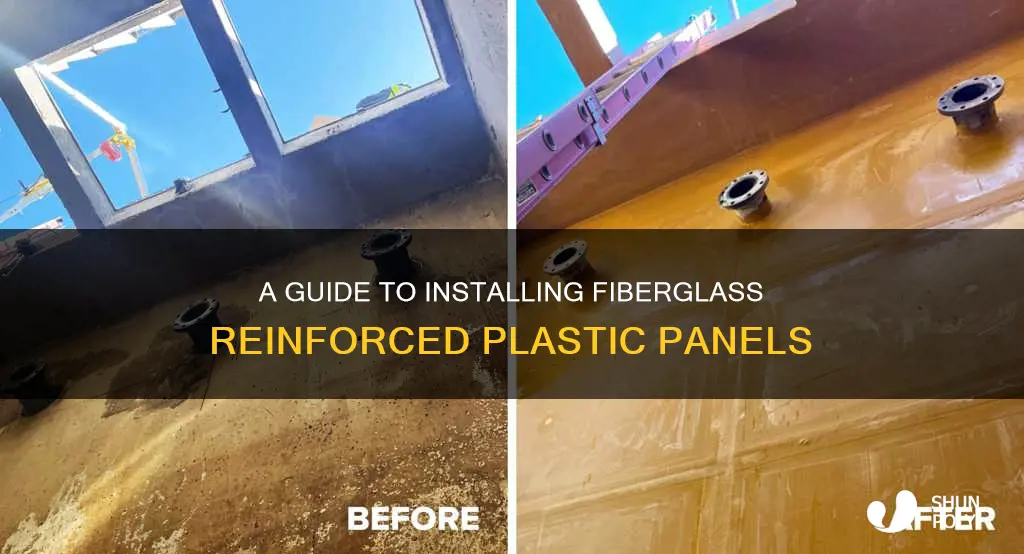

Installing fiberglass-reinforced plastic panels can be a great way to enhance the durability and look of a space. These panels are made of thin, flexible sheets of plastic resin with fiberglass strands, providing strength, style, and sustainability. Before beginning the installation process, it is important to carefully measure the wall and determine the number of panels required. The panels should be cut and pre-fit before gluing, ensuring that all measurements and openings for light switches or plumbing are correct. The glue should be spread on the wall rather than the panel, and a laminate floor roller can be used to smooth the panel and remove air bubbles. It is also crucial to use the correct type of glue and trim for FRP panels, as regular plastic trim will not work due to the thinner nature of FRP.
Explore related products
What You'll Learn
Measure and cut panels
Before you start cutting your fiberglass-reinforced plastic panels, it is important to carefully measure the installation area to determine the exact size of the panels required. Measure the height and width of the installation area using a tape measure for accuracy. Note down these measurements.
Calculate the area in inches by multiplying the wall's length by its width. Divide the wall's area by the total width of your fiberglass-reinforced plastic panel, including any inside dividers, corner dividers, and the top cap. Most panels are 48 inches by 96 inches, but always refer to the manufacturer's instruction sheet for specific measurements.
When measuring and cutting the panels, remember to allow for a quarter-inch gap around the perimeter of each panel to accommodate any expansion due to temperature changes. If you need to cut a hole in the panel for a light switch, plumbing pipe, or other opening, simply draw the opening on the panel, mark the center with an "X", drill a hole, and use a swivel-head shear blade to cut out the opening.
Always cut and pre-fit each panel before gluing. Use fine-toothed saw blades in your circular saw to cut the panels, and trim them to fit the width of the wall. It is recommended to saw into the finished side of the panels to avoid damaging them.
Transforming Plastic Pots: Antiquing for a Vintage Look
You may want to see also
Explore related products
Prepare the surface
Preparing the surface for the installation of fiberglass reinforced plastic panels is a crucial step to ensure a proper and lasting bond. Here are the steps you should take to prepare the surface:
Firstly, ensure you have the correct tools for the job. A blunt saw or unevenly notched trowel can cause issues and even damage the panels, resulting in wasted materials. A well-prepared start is key to a successful installation. Make sure your workspace is clean and dry to prevent any problems when you begin the adhesion process.
Next, carefully measure the installation area to determine the number and size of panels required. Measure the height and width of the wall and divide the total area by the width of the panels. Don't forget to account for any light switches, plumbing pipes, or other openings that will require holes to be cut in the panels. Mark these on the panel with a pencil before drilling.
Before you begin gluing, cut and pre-fit each panel. It is important to ensure that the wall is flat and smooth for a high-quality finish. The entire wall must be covered with glue to avoid air pockets, but be sure to follow the manufacturer's instructions for specific directions.
Finally, when installing trim mouldings, decide which panel you want to affix the trim to first. Cut the trim to size and use masking tape to hold it in place before gluing. This will prevent the trim from moving during installation.
Plastic vs Metal: Which Frames are Lighter?
You may want to see also
Explore related products
Apply adhesive
When applying adhesive, it is important to follow the manufacturer's instructions for specific directions. Before applying the adhesive, ensure that the wall is flat and smooth for a high-quality finish. Different wall substrates/assemblies require different adhesives, so make sure you are using the right glue for the surface. It is also important to check that the glue will not show through the panel, especially if it is dark in colour.
Apply the adhesive to the wall, not the panel. Spread the glue evenly across the wall, ensuring that the entire wall is covered. Bare spots will result in air pockets. If you are using thicker adhesive, use a trowel to spread it—a 1/4-inch notched trowel is recommended. Allow the adhesive to sit for a bit before proceeding.
If you are installing trim mouldings, such as corners or dividers, apply the adhesive to the back of the trim and hold it in place on the panel with masking tape. Once the trim is pressed into the glue, it will be very hard to move, so taping beforehand will ensure it doesn't move during installation.
Once you have applied the adhesive, you are ready to install the panel. Place the panel against the wall and push it firmly into place.
Royal Carting's Plastic Policy: All Plastics Accepted?
You may want to see also
Explore related products
Install panels
Installing fiberglass-reinforced plastic panels can be a simple way to change the look of a room, but it is important to prepare well and follow the manufacturer's instructions. FRP panels are durable, water-resistant, and easy to clean, making them ideal for rooms such as bathrooms and laundry rooms.
Before starting the installation, measure the wall carefully to determine the number of panels required. Calculate the area of the wall by multiplying its length by its width, then divide this number by the width of the panels. Most FRP panels are 48 inches by 96 inches, but always refer to the manufacturer's instructions for specific measurements.
Once you have determined the number of panels, cut them to fit the width of your wall using a circular saw with a carbide-tipped blade. Cut into the finished side of the panels to avoid damage. If you need to make any openings for light switches or plumbing pipes, mark the center of the panel with an "X", drill a hole, and use a swivel-head shear blade to cut out the opening.
After cutting the panels to size, apply a 1/4-inch thick layer of FRP adhesive to the back of each panel and let it sit for a bit. Then, spread glue on the wall, ensuring that the entire wall is covered to prevent air pockets. Place the panel against the wall and push it firmly into place. Use a ""J" roller to alleviate air pockets and firmly press the panel in place. You can also use a 2x4 wrapped in carpet to apply pressure without scratching the panel.
When installing trim mouldings such as corners or dividers, cut the trim to size and tape it in place on the "good" face side of the panel. This will prevent the trim from moving when gluing it to the wall. Finally, butt the adjoining panel up against the trim and lock it into place.
Plastic's Resistance to Sulfuric Acid: What You Need to Know
You may want to see also
Explore related products
Seal and finish
Sealing and finishing are crucial steps in the installation process of fiberglass reinforced plastic panels (FRP). Here are some detailed instructions for this stage of the process:
Before you begin the sealing process, ensure that you have carefully measured and trimmed the FRP panels to fit the width of your wall. It is recommended to use a circular saw with a carbide-tipped blade for trimming. Remember to cut into the finished side of the panels to avoid any damage. Also, make sure to cut holes for light switches, plumbing pipes, or other necessary openings.
When sealing, it is important to follow the manufacturer's instructions for their specific product. Start by applying a 1/4-inch thick layer of FRP adhesive to the back of each panel. You can use a trowel for this step. Pay attention to the size of the trowel; a 1/4" x 3/4" V trowel might be too big, and a dark glue may show through the panel. It is recommended to test a small area first.
After applying the adhesive, carefully place the panel against the wall, pushing it firmly into place. Use a ""J" roller to roll the panel and remove any air pockets. You can also use a 2x4 wrapped in carpet to apply more pressure and firmly press the FRP in place. Work from the center of the panel outwards.
For trim mouldings such as corners or dividers, install the trim on one panel first, then butt and lock the adjoining panel into it. Use masking tape to hold the trim in place before gluing to avoid any unwanted movement.
Finally, clean up any excess glue seepage with mineral spirits, especially if the glue is solvent-based. Remember to leave a 1/4-inch gap at floors and ceilings and an 1/8-inch gap between panels to allow for normal expansion.
Plastic Foot Lockers: Unbreakable Storage Solutions
You may want to see also
Frequently asked questions
You will need a tape measure, a saw, a trowel, and a roller. If installing the panels on an RV, you may also need a laminate floor roller.
Ensure that the installation area is clean and dry. Measure the height and width of the installation area, and calculate the number of panels required.
Cut the panels to fit the width of the wall, and trim pieces to size. Cut a rectangular hole in any panel that needs a light switch, plumbing pipe, or other opening.
Spread glue on the wall, not the panel. After spreading the glue, install the panel to the wall. Use a roller to alleviate air pockets and press the panel in place.
Regularly clean the panels with mild detergents and a soft cloth or sponge. Address tough stains with specialized FRP cleaners. Periodically inspect the panels for any signs of wear or damage.
