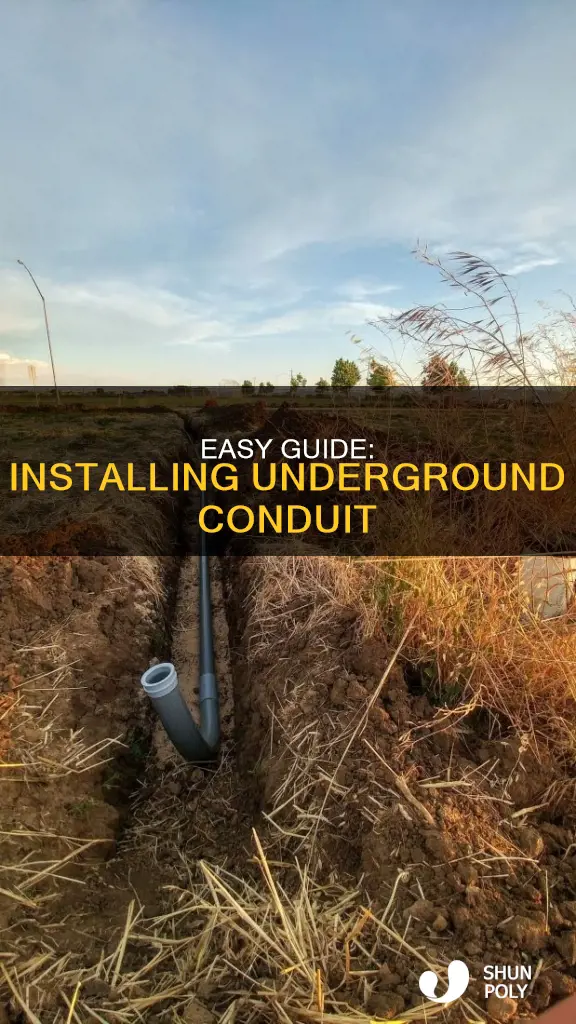

Underground electrical conduits are essential for protecting electrical wiring and cables from moisture, physical damage, and environmental factors. They are designed to prevent electrical hazards and enhance safety. When installing plastic underground conduits, it is crucial to consider factors such as durability, cost, ease of installation, and environmental conditions. PVC conduits, for instance, are resistant to moisture, chemicals, and corrosion but may become brittle in cold temperatures or soften in high heat. Proper installation involves meticulous attention to detail, ensuring compliance with electrical codes and regulations for spacing, support, grounding, and wiring methods. Before installation, it is important to plan for accessibility, identify obstacles, and select appropriate conduit fittings and accessories. The process of installing plastic underground conduits involves attaching a conduit outlet body, feeding the cable through, securing the cable, and finally testing the system with a licensed electrician.
| Characteristics | Values |
|---|---|
| Purpose | Underground electrical conduits act as a protective tube to shield electrical wiring from moisture, physical damage, and environmental factors. |
| Materials | PVC, HDPE, Fiberglass, Metal, RMC (galvanized steel), EMT (galvanized steel or aluminum), Fiberglass conduit (reinforced plastic conduit) |
| Material Considerations | Durability, cost, ease of installation, temperature sensitivity, resistance to moisture/chemicals/corrosion, mechanical strength, flexibility, thermal resistance, environmental conditions |
| Installation Process | Site survey, planning conduit routes, selecting fittings and accessories, cutting and cementing conduit, attaching conduit to electrical panel, testing |
| Safety | Compliance with electrical codes and regulations, burial depths, accessibility, obstacles, environmental considerations, wire capacity, bend radius |
Explore related products
What You'll Learn
Planning: Identify obstacles and environmental considerations
Planning is a crucial aspect of installing plastic underground conduits, and identifying obstacles and environmental considerations is an essential part of this process. Here are some detailed instructions to help you navigate this complex task:
Firstly, conduct a thorough site survey to identify potential obstacles and determine the best path for the conduit. This includes taking into account any existing infrastructure or structural elements that may hinder the installation. For example, consider if there are any underground pipes or cables already in place that you need to work around. Identify if there are any trees or large roots that could pose a problem. Additionally, be mindful of the soil type and any potential challenges it may present, such as rocky or heavy clay soil, which can make digging difficult.
Secondly, consider the environmental conditions that the conduit will be subjected to. This includes evaluating temperature variations, moisture levels, and the presence of corrosive substances or chemical vapours. For instance, PVC, a common material for conduits, can become brittle in extremely cold temperatures and may soften in high heat, so it may not be suitable for certain climates. Alternatively, HDPE (High-Density Polyethylene) conduits are known for their flexibility and chemical resistance, making them suitable for industrial environments.
Thirdly, be mindful of any local building codes and regulations that may impact your installation. These regulations can vary based on factors such as soil type and climate conditions, so it's important to consult them before starting your project. For instance, some areas may require professional installation, while others may specify the types of materials that can be used. Understanding and adhering to these regulations will ensure that your installation meets safety standards and complies with any necessary rules.
Lastly, consider the number and size of wires the conduit needs to accommodate, taking into account future expansion needs. This will impact the size and type of conduit you select. For example, Schedule 40 PVC conduit has a larger inside diameter, making it easier to pull cables through, while Schedule 80 has a smaller inside diameter and is typically used in high-traffic areas or where there is a risk of damage.
By carefully identifying and addressing these obstacles and environmental considerations, you can ensure a safe, efficient, and compliant installation of your plastic underground conduit.
Plastic Pollution: The Dark Side of Burying Plastics
You may want to see also
Explore related products
Compatibility: Choose the right material for your environment
Compatibility is a crucial consideration when choosing the right underground conduit material. Different materials offer distinct advantages and disadvantages, catering to various applications. Understanding the specific needs of your project, including environmental conditions, budget, and installation requirements, will help you make an informed decision.
PVC (polyvinyl chloride) conduits are a popular choice for underground installations due to their resistance to moisture, chemicals, and corrosion. They are also non-conductive, adding an extra safety layer. However, PVC's temperature sensitivity should be considered; it can become brittle in extremely cold temperatures and soften in high heat, limiting its application in certain climates. PVC is generally affordable and offers good longevity, making it a cost-effective option for both residential and commercial projects.
HDPE (High-Density Polyethylene) conduits are known for their flexibility and chemical resistance. They are lightweight and easy to install, making them versatile for various underground applications. HDPE conduits can withstand significant temperature variations without degrading and are more durable than PVC. However, they are also more expensive.
Metal conduits, such as Rigid Metal Conduit (RMC) or galvanized steel, offer robust mechanical protection against physical damage and impact. RMC is highly resistant to fire, sunlight, and corrosion, making it ideal for harsh environments. Metal conduits provide excellent strength and protection, but they may require careful planning and precise bending when navigating corners or bends due to their rigidity.
Fiberglass conduits, also known as reinforced plastic conduits (RTRC), offer unique benefits that cater to specific needs. Understanding the strengths and limitations of each material will help ensure the longevity and reliability of your underground conduit system.
Additionally, consider the fittings and accessories used with your chosen conduit material. Ensure they are compatible, match the conduit size, and are made from corrosion-resistant and durable materials suitable for your environment.
Boosting Plastic Solar Panels: Strategies for Enhanced Performance
You may want to see also
Explore related products
Bending: Avoid sharp bends and tight turns
When installing underground plastic conduit, it is important to avoid sharp bends and tight turns. This is crucial for several reasons. Firstly, sharp bends can cause wire damage. Friction is created when wires are pulled through conduits with gradual curves, and this friction can lead to wire damage. By using straight runs and bends of specific angles, such as 30°, 45°, and 90°, wire pulling becomes easier and friction is minimised.
Secondly, avoiding sharp bends and tight turns facilitates smooth cable pulling during installation. This is especially important when installing multiple cables together, as the cables located outside the group will be able to dissipate heat more effectively than those in the centre. By reducing the number of bends, you can also reduce the amount of assembled support required, resulting in a neater installation and potential material savings.
To achieve smooth bends without kinking, it is recommended to use a heat gun for PVC conduits. Apply heat to the desired section of the conduit, ensuring that you keep the heat gun moving to avoid overheating. Once the PVC becomes flexible, you can proceed with the bending process. It is important to bend slightly beyond your desired angle to account for "spring back" when the PVC cools down.
Additionally, the use of fittings, such as elbows, adapters, and couplings, is essential for managing sharp turns and maintaining cable integrity. These fittings act as connectors between conduit sections, allowing you to change directions or join multiple pieces of conduit. When selecting fittings, ensure they are compatible with the type and size of your conduit, made from durable and corrosion-resistant materials, and have the appropriate thread type for a secure connection.
By following these guidelines and techniques, you can effectively avoid sharp bends and tight turns when installing underground plastic conduit, ensuring a safe, efficient, and long-lasting electrical system.
Aging Plastic Guitar Knobs: DIY Vintage Style
You may want to see also
Explore related products
Connections: Attach the conduit to the electrical panel
When connecting a plastic underground conduit to an electrical panel, there are several crucial steps to follow. Firstly, it is essential to ensure that the conduit is securely attached to the electrical panel outlet body. This typically involves using the appropriate fittings and connectors that are compatible with the conduit size and type. For example, you might need elbows, couplings, or connectors that match the conduit's dimensions. The fittings should also be made from durable and corrosion-resistant materials to ensure a long-lasting connection.
Next, you will need to feed the UF cable through the conduit and into the electrical panel. This cable must be securely fastened using joist hangers or cable staples if necessary. It is important to note that multiple cables installed together will generate heat, so proper spacing is crucial to prevent overheating. Additionally, the number and size of wires within the conduit should be considered to avoid overcrowding and ensure smooth cable pulling during installation.
Before making the final connections, it is recommended to test the system to ensure it is functioning correctly. A licensed electrician should be engaged to perform this testing and make the final connections at the main electrical panel. This step is vital to guarantee the safety and efficiency of the underground conduit installation.
Furthermore, when attaching the conduit to the electrical panel, it is essential to comply with electrical codes and regulations. These standards provide guidelines for spacing, support, grounding, and wiring methods. By adhering to these regulations, you can ensure the safety of your electrical system and avoid potential code violations. It is also important to consider the environment and choose conduit materials suitable for factors such as temperature, moisture, and corrosive substances.
Lastly, when connecting the plastic underground conduit to the electrical panel, it is crucial to use the appropriate tools and materials. For example, if you are cementing the conduit into place, you must first smoothen the cut edge of the pipe with a sanding block or a deburring tool. Then, test fit the conduit and connector before applying cement to both surfaces and joining them securely. This process ensures a proper fit and a long-lasting connection between the conduit and the electrical panel.
Plastic Retainers: How Should They Fit?
You may want to see also
Explore related products
Testing: Have an electrician test the system
Testing an underground conduit system is a critical step in ensuring its safety and functionality. After laying and connecting the cables, it is essential to have a licensed electrician make the final connections at the main electrical panel. This electrician will then perform a thorough test to ensure everything is working correctly.
There are several methods that electricians can use to test and validate conduit infrastructure. One common method is to use electromagnetic underground object detectors, which employ an electromagnetic inductive coil or directional antenna to locate metallic objects underground. However, this method is challenging when trying to detect non-metallic objects, such as plastic ducts or PVC conduits.
Another method is to use ultrasonic conduit detectors, which work similarly to radar or sonar by generating high-frequency sound waves and interpreting the echoes that are received back. This technique can be effective in detecting objects made of various materials, including plastic.
Additionally, electrical current-based tracers and detectors can be used to validate conduit infrastructure. This method involves sending a signal through the conduit and tracing it to identify any issues. This approach is particularly useful when working with live cables, as it does not require direct contact with the conduit openings.
Other methods include using a fish tape, a pulling string, a vacuum machine and air blower, or even something as simple as shouting toward a conduit opening or knocking on a conduit with a hard object.
By employing these testing techniques, electricians can ensure that the underground conduit system is installed correctly and safely.
Plastic Pollution: Environmental Impact and Solutions
You may want to see also
Frequently asked questions
Underground electrical conduits are systems of pipes, tubes, or channels designed to house and protect electrical wiring and cables beneath the ground. They shield the wiring from physical damage, moisture, and environmental factors, thereby reducing the risk of electrical hazards.
Plastic conduits, specifically PVC conduits, are resistant to moisture, chemicals, and corrosion. They are also non-conductive, adding an extra layer of safety. PVC conduits are generally affordable and offer good performance for their price. They are also long-lasting and require low maintenance.
First, conduct a thorough survey of the installation site to identify potential obstacles and the best path for the conduit. Next, choose the right type of conduit for your needs, considering factors such as durability, cost, ease of installation, and environmental conditions. Ensure that you comply with local building codes and regulations. Then, cut the conduit to the required size and smoothen the cut edge. Test fit the conduit and connector, and then cement the conduit to the connector. Finally, attach a plastic underground electrical conduit outlet body to the end of the conduit and push the UF cable into the conduit, feeding it through to the electrical panel. Secure the cable using joist hangers and cable staples if needed.
Ensure that the conduit routes are easily accessible for installation, maintenance, and future modifications. Identify and work around any existing infrastructure that may hinder the installation. Minimise sharp bends and tight turns in the conduit route to facilitate smooth cable pulling during installation. Choose fittings that are compatible with the conduit and select the appropriate thread type and conduit joint type.
