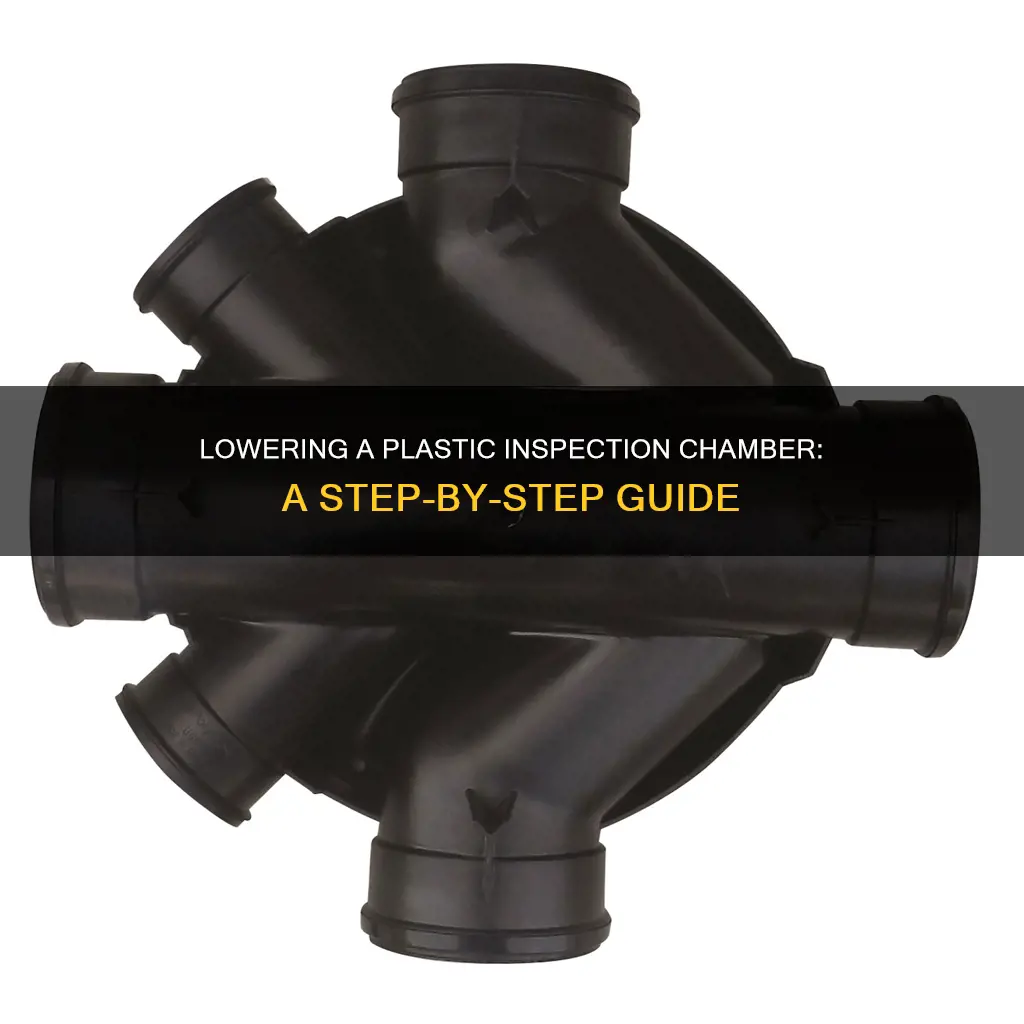

Inspection chambers are an essential part of drainage systems, providing access for cleaning, inspection, and maintenance. They are designed to adapt to various drainage configurations and offer a modern, environmentally friendly, and cost-effective solution. Plastic inspection chambers, in particular, are lightweight, durable, and easy to install, making them a popular choice for many. When installing a plastic inspection chamber, it is important to consider the proper placement and pipe connections, following manufacturer guidelines. The base of the chamber should also be prepared with a bed of brick or concrete and abundant backfilling to ensure stability and avoid deformation. While plastic chambers are a compelling alternative to traditional concrete chambers, regular maintenance and periodic cleaning are necessary to ensure optimal performance and extend the lifespan of the drainage system.
| Characteristics | Values |
|---|---|
| Purpose | Inspect and clear clogs in superficial drainage systems |
| Installation | Install if piping has a straight run that goes over 22 meters, if there's a change in pipe size, if there's a change in direction by more than 30 degrees horizontally, or if a branch pipe joins the main drainage run |
| Base | Brick or concrete bed with abundant backfilling for stability |
| Depth | Depends on the size of the model; rarely installed beyond 2 meters |
| Advantages | 100% sealing, environmentally friendly, compatible with different piping systems, lightweight, easy to handle, cost-effective, long-lasting, recyclable, reusable, durable, chemically and mechanically robust, efficient, customizable frames, mechanical resistance |
| Maintenance | Periodic cleaning, connection inspections, removing accumulated debris to prevent blockages |
Explore related products
What You'll Learn
Installation
Step 1: Planning and Preparation
Before beginning the installation, it is crucial to determine the proper location for the inspection chamber. Identify the drainage system and assess the pipe layout. Inspection chambers are typically installed when there is a straight run of pipes over 22 meters, a change in pipe size, a significant change in direction, or the presence of a branch pipe. Choose a location that provides easy access for maintenance and ensure the ground conditions are suitable for excavation.
Step 2: Excavation
Dig a hole at the chosen location, ensuring it is large enough to accommodate the inspection chamber. The depth of the hole will depend on the size of the chamber and the required depth for maintenance access. Remember that plastic inspection chambers are rarely installed beyond a depth of 2 meters. Ensure the hole has a stable base, such as a bed of brick or concrete, to provide a solid foundation for the chamber.
Step 3: Pipe Preparation
Before installing the inspection chamber, prepare the pipes that will connect to it. Cut and remove any unwanted sections of the existing pipe carefully. Use a sharp hammer blow to puncture and collapse clayware pipes, and make full-depth cuts for plastic pipes. Ensure that you do not damage the pipework beyond the desired cut section. Clean the pipe stubs and ensure they are clear of any debris.
Step 4: Connecting the Pipes
Use appropriate adaptor couplings to connect the new inspection chamber base to the existing pipes. As plastic inspection chambers have pre-cut openings, ensure these align with the pipes for a secure connection. For clayware pipes, you may need adjustable BandSeal couplings due to the difference in Outside Diameter (OD) between clayware and plasticware. For plastic pipes, non-adjustable adaptor couplings can be used with uPVC pipes. Ensure a watertight seal is achieved by tightening the jubilee clips on the couplings.
Step 5: Installing the Inspection Chamber
Lower the plastic inspection chamber into the prepared hole, ensuring it is level and securely connected to the pipes. Follow the manufacturer's guidelines for proper placement and pipe connections, as each brand may have specific instructions. Ensure the chamber is stable and backfill the area around it with soil or other suitable material to hold it in place.
Step 6: Final Checks
Once the inspection chamber is installed, conduct final checks to ensure proper functionality. Inspect the connections for any leaks and ensure the pipes are securely attached. Verify that the manhole cover fits properly and provides adequate protection for the system and civilians.
By following these steps, you can successfully install a plastic inspection chamber, providing easy access for maintenance and ensuring the proper functioning of your drainage system.
Thickest Plastic Sheeting: How Thick Can It Get?
You may want to see also
Explore related products
Preparing the base
Firstly, it is important to identify the appropriate location for the inspection chamber. Inspection chambers should be installed if the piping has a straight run that exceeds 22 meters, there is a change in pipe size or direction, or if a branch pipe joins the main drainage run. This ensures easy access for maintenance and inspection of the drainage system.
Once the location is determined, the next step is to prepare the space for the chamber. The base of an inspection chamber should be made of a sturdy material such as brick or concrete to ensure stability and prevent deformation. It is important to follow manufacturer guidelines for proper placement and pipe connections. The base should be level and well-compacted to provide a solid foundation for the chamber.
When installing an inspection chamber in an area with heavy-duty traffic, it is recommended to concrete the chamber to protect its integrity from the heavy load. Additionally, a clearance of more than 300mm should be reserved between the pressure ring and the wellbore to avoid direct force on the inspection chamber due to the settlement of the pressure ring.
The pipes connected to the inspection chamber should be securely attached and free from any debris or blockages. It is important to prevent the flow of effluent or stormwater during the installation process to ensure that the connections are watertight and secure. This can be achieved by instructing the property owner not to use water-dependent fixtures or, if necessary, by placing a stopper in the drain at an accessible point upstream.
The choice between concrete and plastic inspection chambers depends on various factors. Plastic chambers offer advantages such as lightweight construction, ease of installation, durability, and environmental sustainability. They are also compatible with plastic covers and grates, making them safer and easier to handle compared to heavy concrete alternatives. However, concrete chambers are traditionally preferred for their robustness and may be more suitable in certain situations.
The Speed of Germs on Plastic: How Fast Do They Travel?
You may want to see also
Explore related products
Maintenance
Periodic Cleaning
It is important to periodically clean the chamber by removing accumulated debris to prevent blockages. This ensures the chamber remains functional and free-flowing.
Connection Inspections
Regularly inspect the connections between pipes to ensure they are securely attached and there are no leaks. This can help prevent potential issues and extend the lifespan of the drainage system.
Material Considerations
Plastic inspection chambers require less intervention compared to concrete chambers due to their chemical and mechanical resistance. However, it is still important to follow manufacturer guidelines for proper placement and pipe connections to ensure the longevity of the chamber.
Environmental Impact
Plastic inspection chambers are environmentally friendly, recyclable, and reusable, aligning with eco-friendly construction practices. Their lightweight nature also reduces the need for heavy equipment during installation and maintenance, making them a more sustainable option.
Compatibility and Safety
The compatibility of plastic chambers with plastic covers and grates enhances safety and usability. Plastic covers are easier to handle than heavy concrete alternatives, making maintenance activities safer and more efficient.
By following these maintenance practices and guidelines, plastic inspection chambers can remain functional and effective, providing easy access to underground drainage systems for inspection, cleaning, and maintenance.
The Magic of Turning Petroleum into Plastic
You may want to see also
Explore related products
$143.31
Compatibility
Plastic inspection chambers are compatible with different piping systems due to their flexible structure. They are also compatible with plastic covers and grates, enhancing safety and usability. These components are easier to handle than heavy concrete alternatives.
Plastic inspection chambers are also compatible with 110 mm gasketed pipes. This compatibility is achieved through dedicated additional fittings, such as end caps or bulkheads. This adaptability allows for a perfect fit with the inlet or outlet holes of the chamber.
The height of an inspection chamber is customizable based on the user's needs. This adjustability ensures compatibility with various pipe configurations and drainage requirements. Inspection chambers can be installed at different depths, with plastic inspection chambers rarely installed beyond a depth of 2 meters.
When installing a plastic inspection chamber, it is important to ensure compatibility with the surrounding infrastructure. This includes reserving a clearance of more than 300 mm between the pressure ring and the wellbore to avoid direct force on the inspection well. Additionally, the proper depth for each chamber depends on the size of the model, with larger chambers requiring a deeper installation.
The compatibility of plastic inspection chambers with other systems and components makes them a versatile and practical choice for modern construction projects, especially when considering sustainability and ease of installation.
Metal vs Plastic Weights: Heavier Option?
You may want to see also
Explore related products
Cost
Plastic inspection chambers are a cost-effective solution for drainage systems. They are cheaper to produce and reduce overall project expenses due to their ease of installation and maintenance. The lightweight nature of plastic chambers simplifies transportation and installation, reducing labour costs and time. The modular design of plastic inspection chambers allows for easy customisation, further reducing costs.
The cost of installing an inspection chamber includes labour costs, which average £450 per day, and the chamber cover, which ranges from £50 to £80. The total labour cost for a local drainage repair specialist can be around £680. The average cost to repair an inspection chamber is £160 per manhole.
The price of manufacturing plastic chambers is influenced by the fluctuating prices of raw materials, particularly the volatility of oil prices. This can affect the pricing and market demand for plastic inspection chambers.
In some cases, it may be necessary to shift the inspection chamber or divert the pipes when constructing a building extension, such as a conservatory, which can incur additional costs.
Gripping SCH 80 Plastic: The Best Techniques
You may want to see also
Frequently asked questions
An inspection chamber is part of a drainage system that provides access to the underground drainage network for inspection, cleaning, and maintenance.
The depth of a plastic inspection chamber depends on the size of the model. Plastic inspection chambers are rarely installed at a depth beyond 2 meters.
Before lowering a plastic inspection chamber, you must prepare the proper space to install the chamber. The chamber should have a bed of brick or concrete as well as abundant backfilling for stability and to avoid deformation.
