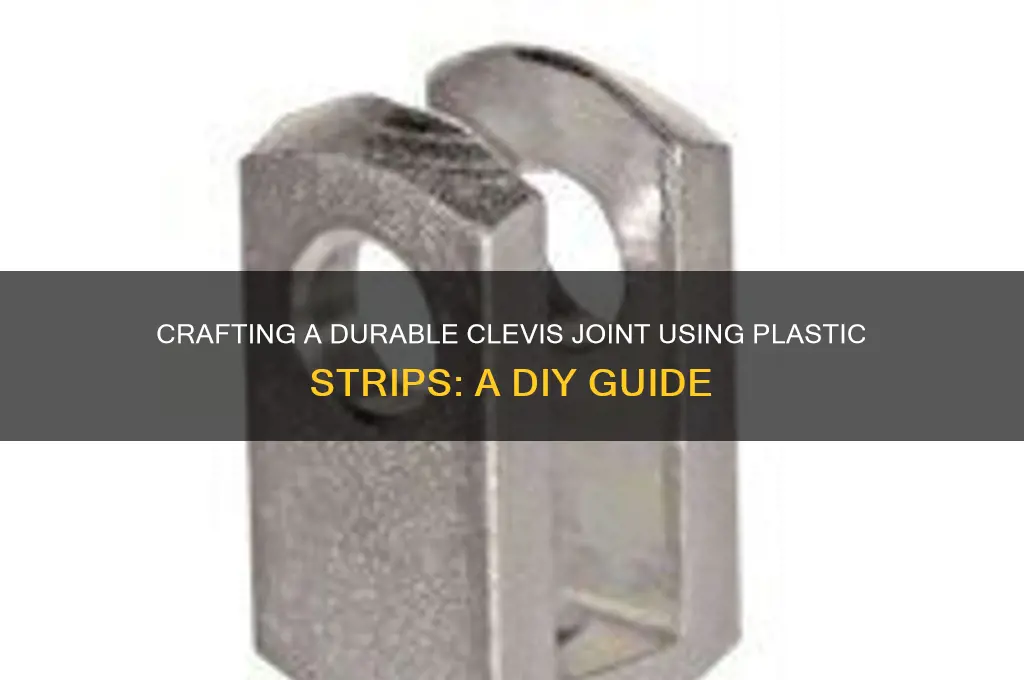

Creating a clevis joint out of plastic strips is a practical and cost-effective solution for applications requiring flexibility and lightweight components. This process involves carefully shaping and joining plastic strips to form a functional clevis joint, which is commonly used in mechanisms like linkages or hinges. By selecting durable plastic materials and employing techniques such as heat bending, gluing, or mechanical fastening, you can achieve a sturdy yet adaptable joint. This method is ideal for DIY projects, prototyping, or educational purposes, offering a simple yet effective way to replicate the functionality of traditional metal clevis joints with readily available materials.
| Characteristics | Values |
|---|---|
| Materials Needed | Plastic strips (flexible yet sturdy), Hot glue gun & glue sticks, Scissors or craft knife, Ruler or measuring tape, Optional: Sandpaper for smoothing |
| Plastic Strip Width | 1-2 cm (adjust based on desired joint strength) |
| Plastic Strip Length | Depends on project size, typically 10-20 cm per strip |
| Joint Type | Clevis joint (pin and hole connection) |
| Assembly Method | 1. Cut strips to size. 2. Layer strips to form clevis "U" shape. 3. Secure layers with hot glue. 4. Create pin by rolling a strip tightly and securing with glue. 5. Insert pin through aligned holes in clevis. |
| Strength | Moderate (suitable for lightweight applications) |
| Flexibility | Depends on plastic strip material |
| Durability | Limited (prone to wear and tear over time) |
| Applications | Model building, DIY projects, lightweight mechanisms |
| Advantages | Inexpensive, easy to assemble, customizable |
| Disadvantages | Lower strength compared to metal joints, less durable |
Explore related products
What You'll Learn
- Material Selection: Choose durable, flexible plastic strips suitable for clevis joint construction
- Strip Preparation: Cut and smooth plastic strips to desired length and shape
- Joint Design: Plan clevis pin and hole placement for secure, movable connection
- Assembly Steps: Layer and fasten strips to form the clevis joint structure
- Reinforcement Techniques: Add supports or adhesives to enhance joint strength and durability
Material Selection: Choose durable, flexible plastic strips suitable for clevis joint construction
Selecting the right plastic strips is crucial for a clevis joint that balances strength and flexibility. High-density polyethylene (HDPE) is an excellent choice due to its durability and ability to withstand bending without cracking. Its low friction coefficient also ensures smooth movement at the joint, reducing wear over time. For applications requiring more rigidity, consider polypropylene (PP), which offers higher tensile strength but slightly less flexibility. Avoid brittle plastics like polystyrene (PS), as they are prone to fracture under stress.
When sourcing plastic strips, prioritize thickness and width based on your joint’s load requirements. A strip thickness of 2–3 mm strikes a balance between flexibility and structural integrity for most small-scale projects. Wider strips (15–20 mm) provide greater surface area for fastening, enhancing the joint’s stability. Always test a sample strip by bending it repeatedly to ensure it doesn’t weaken or deform under the intended stress.
Color and UV resistance are often overlooked but essential for outdoor applications. Choose UV-stabilized plastics like HDPE or PP to prevent degradation from sunlight. Dark-colored strips may absorb heat, causing expansion or warping, so opt for lighter shades if temperature fluctuations are a concern. For aesthetic projects, translucent or tinted strips can add visual appeal without compromising functionality.
Cost and availability should factor into your decision, especially for larger projects. HDPE and PP are widely available and affordable, making them practical choices for DIY enthusiasts. Recycled plastics, such as post-consumer HDPE, offer an eco-friendly alternative but may vary in consistency, so inspect them carefully. For specialized applications, consider investing in engineering-grade plastics like nylon or acetal, which provide superior performance but at a higher price point.
Finally, consider the environmental impact of your material choice. Biodegradable plastics like polylactic acid (PLA) are gaining popularity but may lack the durability needed for long-term clevis joint use. If sustainability is a priority, opt for recyclable materials and ensure proper disposal or reuse at the end of the joint’s lifecycle. By thoughtfully evaluating these factors, you can select plastic strips that meet both functional and ethical standards.
