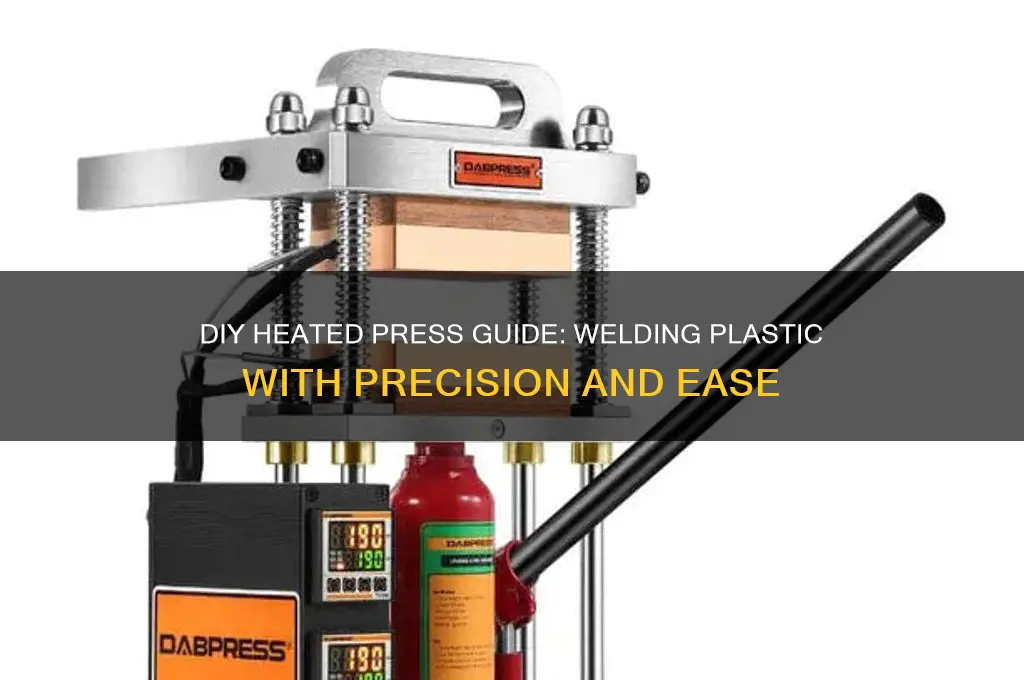

Creating a heated press for welding plastic is a practical and cost-effective solution for joining plastic components with precision and strength. This DIY project involves designing a sturdy frame, integrating a heating element to achieve the necessary temperature for plastic welding, and incorporating a mechanism to apply even pressure. By using materials like aluminum or steel for the press plates, insulation to retain heat, and a temperature controller for accuracy, you can build a reliable tool suitable for various plastic welding applications. Whether for hobbyist projects or small-scale manufacturing, a homemade heated press offers versatility and control, ensuring clean, durable welds without the need for expensive commercial equipment.
| Characteristics | Values |
|---|---|
| Heat Source | Electric heating elements (Nichrome wire, silicone heaters), heat guns, or hot air tools |
| Temperature Control | Thermocouples, PID controllers, or simple thermostats for precise temperature regulation (typically 300-500°F for most plastics) |
| Pressure Application | Mechanical presses (screw-driven, hydraulic), pneumatic cylinders, or weighted systems (e.g., heavy plates) |
| Platen Material | Aluminum or steel plates (for even heat distribution), coated with non-stick surfaces (Teflon, PTFE) |
| Frame Construction | Sturdy metal frame (steel or aluminum) to withstand heat and pressure |
| Safety Features | Insulation (high-temperature insulation boards), heat shields, emergency stop buttons, and heat-resistant gloves |
| Size and Portability | Customizable based on project needs; can be benchtop or larger industrial-sized presses |
| Power Source | Standard electrical outlets (110V/220V) for heating elements and control systems |
| Cost | DIY builds range from $100 to $500, depending on materials and complexity |
| Applications | Welding plastic sheets, repairing plastic parts, creating custom plastic components |
| Additional Tools | Clamps, sandpaper (for surface preparation), and plastic welding rods (if needed) |
| Time to Build | 1-3 days, depending on skill level and available materials |
| Maintenance | Regular cleaning of platens, checking electrical connections, and replacing worn components |
Explore related products
What You'll Learn
- Materials Needed: Essential tools, heating elements, frame components, and insulation materials for constructing the press
- Design Considerations: Size, pressure mechanism, temperature control, and safety features for optimal functionality
- Heating System Setup: Installing heating elements, thermostats, and wiring for consistent and controlled heat distribution
- Assembly Steps: Building the frame, attaching heating components, and integrating pressure mechanisms step-by-step
- Testing and Calibration: Ensuring even heat, proper pressure, and safety checks before use
Materials Needed: Essential tools, heating elements, frame components, and insulation materials for constructing the press
Constructing a heated press for welding plastic requires a careful selection of materials to ensure durability, efficiency, and safety. The foundation of your press lies in its frame components, which must withstand both heat and pressure. Aluminum or steel are ideal choices due to their strength and heat resistance. Aluminum is lighter and easier to work with, while steel offers superior durability but adds weight. For smaller presses, consider using aluminum extrusions or angle irons, which provide modularity and ease of assembly. Larger projects may necessitate steel tubing or plates to handle increased stress. Always ensure the frame is rigid enough to maintain even pressure across the welding surface.
The heating elements are the heart of your press, dictating its effectiveness in melting and bonding plastic. Silicone heating pads or flexible heating elements are popular choices due to their even heat distribution and adaptability to various shapes. For more precise control, consider using cartridge heaters embedded in aluminum plates, which allow for targeted heating. Thermocouples or temperature controllers are essential to monitor and regulate heat, ensuring it remains within the optimal range for the plastic type (typically 300°F to 500°F for common plastics like ABS or PVC). Avoid using household heating elements like hairdryers or heat guns, as they lack consistency and control.
Insulation materials play a critical role in retaining heat and protecting the operator. High-temperature insulation boards, such as ceramic fiber or mineral wool, are excellent for lining the press interior. These materials can withstand temperatures up to 2000°F, minimizing heat loss and ensuring efficient energy use. For the exterior, use heat-resistant fabrics like silicone-coated fiberglass or Kevlar to create a safe, touchable surface. Insulation also prevents warping of the frame components, extending the press’s lifespan. Be cautious of gaps or thin spots in insulation, as they can lead to hot spots or uneven heating.
Beyond the core components, essential tools are indispensable for assembly and operation. A drill press or hand drill with metal bits is necessary for securing frame components. A rivet gun or welding machine may be required for joining metal parts, depending on your design. For wiring heating elements, a soldering iron and heat-shrink tubing ensure safe electrical connections. Additionally, a hydraulic or mechanical press mechanism, such as a lever or screw system, is crucial for applying consistent pressure. Always prioritize tools that offer precision and repeatability, as they directly impact the quality of your welds.
Finally, consider the practical tips that streamline construction and enhance performance. Pre-drill holes in metal components to prevent cracking, and use stainless steel fasteners to avoid corrosion. Test your heating elements and temperature controller before final assembly to identify any malfunctions. If using a hydraulic system, ensure it’s rated for the pressure required by your press. For added safety, incorporate a kill switch or emergency stop button. By thoughtfully selecting and integrating these materials, you’ll create a heated press that’s not only functional but also reliable and safe for welding plastic.
The Hidden Carbon Cost of Plastic Production: A Deep Dive
You may want to see also
Explore related products
Design Considerations: Size, pressure mechanism, temperature control, and safety features for optimal functionality
The size of your heated press dictates its versatility and practicality. For hobbyists working on small-scale projects like model kits or phone cases, a compact 8"x8" platen suffices, while industrial applications demand larger formats, often exceeding 24"x24", to accommodate bulky components like automotive panels or signage. Material thickness is equally critical: a press designed for thin sheets (0.5-2mm) requires less vertical clearance than one handling structural beams (10-20mm). Always add 2-3 inches of workspace around the material to ensure even pressure distribution without platen edge interference.
Pressure mechanisms fall into three main categories: manual, pneumatic, and hydraulic. Manual systems, using screw clamps or lever arms, offer affordability but lack precision, making them unsuitable for heat-sensitive plastics like ABS or polypropylene that require consistent force. Pneumatic systems, driven by compressed air, provide adjustable pressure (typically 50-150 PSI) ideal for medium-volume production, though they necessitate an air compressor. Hydraulic presses, while costlier, deliver superior force control (up to 10,000 PSI) and stability, critical for high-strength plastics like nylon or PEEK.
Temperature control is non-negotiable for successful welds. Most thermoplastics require specific heat ranges: PVC softens at 160°F, while polycarbonate needs 320°F. Use PID controllers with solid-state relays to maintain temperatures within ±5°F, preventing material degradation. Incorporate thermocouples at multiple platen points to detect hotspots, and insulate the heating elements with ceramic pads to minimize energy loss. For safety, ensure the system automatically cuts power if the temperature exceeds the material’s melting point by 20%.
Safety features are paramount to prevent burns, electrical hazards, and material damage. Equip the press with insulated handles and a hinged guard that locks when activated, preventing access to hot surfaces. Install an emergency stop button that immediately cuts power and releases pressure. For electrical safety, use ground fault circuit interrupters (GFCIs) and ensure all wiring is rated for high-temperature environments. Finally, incorporate a timer with an audible alarm to alert operators when the welding cycle is complete, reducing the risk of overheating.
Crafting ABS Plastic: A Step-by-Step Guide to Manufacturing Process
You may want to see also
Explore related products
Heating System Setup: Installing heating elements, thermostats, and wiring for consistent and controlled heat distribution
The heart of any heated press for welding plastic lies in its heating system. This setup demands precision: consistent heat distribution ensures even welds, while controlled temperature prevents material degradation. Achieving this balance requires careful selection and installation of heating elements, thermostats, and wiring.
Silicone heating pads, for instance, offer flexibility and even heat spread, making them ideal for irregular surfaces. Alternatively, Mica insulated band heaters provide concentrated heat for cylindrical components.
Selecting the right heating element is only the first step. Thermistors, known for their accuracy, are excellent for temperature sensing, while thermocouples excel in high-temperature applications. Wiring these components demands attention to gauge and insulation. 18-gauge stranded wire is a common choice, offering flexibility and sufficient current capacity for most setups. Always prioritize high-temperature insulation like Teflon or silicone rubber to prevent melting or short circuits.
Relays, acting as switches, are crucial for controlling power to the heating elements based on thermostat readings.
Imagine a scenario: you’ve chosen silicone heating pads and a thermistor. Secure the pads evenly across the press platen, ensuring full contact with the welding surface. Connect the thermistor to the center of the platen for accurate temperature feedback. Route the wires neatly, avoiding areas prone to heat or mechanical stress. Finally, integrate the relay into the circuit, allowing the thermostat to activate and deactivate the heating elements as needed.
Caution: Always double-check connections for tightness and insulation integrity before powering on.
The key to success lies in understanding the interplay between these components. A well-designed heating system isn’t just about heat; it’s about control. By carefully selecting and installing heating elements, thermostats, and wiring, you create a press capable of delivering consistent, precise heat – the foundation for strong, reliable plastic welds.
Plastic Bottles to Fleece: The Surprising Sweater Recycling Journey
You may want to see also
Explore related products
Assembly Steps: Building the frame, attaching heating components, and integrating pressure mechanisms step-by-step
Building the frame is the foundational step in creating a heated press for welding plastic, and it demands precision and durability. Start by selecting a rigid material like aluminum or steel for the frame, ensuring it can withstand both heat and pressure. Cut the base and uprights to size, typically using a table saw or metal cutter, and assemble them with bolts or welds for maximum stability. Incorporate a hinge mechanism on one side to allow the press to open and close smoothly. For added strength, reinforce corners with brackets or additional plates. This framework will house the heating and pressure components, so measure twice and cut once to ensure alignment and functionality.
Attaching the heating components requires careful planning to achieve uniform heat distribution. Begin by selecting heating elements such as silicone heating pads, nichrome wire, or infrared panels, ensuring they match the size of your press plates. Secure the heating elements to the press plates using thermal adhesive or clamps, ensuring direct contact for efficient heat transfer. Install a thermostat and temperature controller to regulate the heat, aiming for a range of 300°F to 500°F, depending on the plastic type. Insulate the frame around the heating components with high-temperature materials like ceramic wool to prevent heat loss and protect surrounding components. Test the system before final assembly to verify even heating and responsiveness.
Integrating pressure mechanisms is the final step, transforming the frame into a functional welding tool. Choose a pressure system such as a hydraulic jack, pneumatic cylinder, or manual screw mechanism based on your desired force and precision. For hydraulic or pneumatic systems, mount the cylinder to the frame and connect it to the press plate using a sturdy bracket. If using a manual screw, install a threaded rod and handle for controlled pressure application. Ensure the pressure mechanism aligns with the heating plates to distribute force evenly. Add a pressure gauge or limit switch to monitor and control the force, typically ranging from 50 to 500 psi depending on the plastic thickness. Test the press with scrap material to fine-tune pressure and heat settings before use.
Throughout assembly, prioritize safety and functionality. Use heat-resistant gloves and safety goggles when working with heating elements and high temperatures. Ensure all electrical connections are insulated and grounded to prevent short circuits. Label controls clearly for ease of use and include an emergency stop mechanism for quick shutdowns. Regularly inspect the press for wear and tear, particularly on moving parts and heating elements, to maintain performance and longevity. With careful construction and attention to detail, your heated press will become a reliable tool for welding plastic efficiently and effectively.
Does Mattel Produce Plastic Army Men? Uncovering the Toy Giant's Role
You may want to see also
Explore related products
Testing and Calibration: Ensuring even heat, proper pressure, and safety checks before use
Uneven heat distribution is the silent saboteur of plastic welding. Before trusting your press with delicate materials, map its thermal landscape. Use an infrared thermometer to scan the platen surface, noting hotspots and cold zones. Aim for a variance of no more than ±5°C across the entire area. If discrepancies exceed this, adjust heating element placement or add insulation to balance the temperature. Remember, plastics warp and weaken under uneven heat, so precision here is non-negotiable.
Pressure calibration demands both finesse and rigor. Start by testing with sacrificial plastic sheets, gradually increasing pressure until you achieve consistent bonding without material distortion. For thin sheets (0.5–1mm), aim for 2–4 bar; thicker pieces (2–3mm) may require 5–7 bar. Use a pressure gauge to monitor readings, ensuring uniformity across the platen. Over-pressurization risks material damage, while under-pressurization leads to weak welds. Think of it as finding the Goldilocks zone for your specific plastic type and thickness.
Safety checks are the unsung heroes of heated press operation. Begin with a visual inspection: verify wiring integrity, secure all fasteners, and confirm emergency stop functionality. Test the thermal cutoff switch by simulating an overheating scenario (e.g., blocking ventilation). Ensure the press is grounded to prevent electrical hazards. For added precaution, wear heat-resistant gloves and safety goggles during initial runs. Treat these checks as a ritual—skipping them invites disaster.
Calibration isn’t a one-time event; it’s an ongoing dialogue with your machine. Environmental factors like ambient temperature and humidity can alter performance, so retest heat and pressure settings monthly. Keep a log of adjustments for reference. Think of your press as a precision instrument—regular tuning ensures it performs reliably, project after project. In plastic welding, consistency isn’t just desirable; it’s the foundation of success.
Crafting a Plastic Storm Castle: Creative DIY Siege Guide
You may want to see also
Frequently asked questions
You will need a sturdy frame (wood or metal), heating elements (such as silicone heating pads or nichrome wire), insulation (like ceramic fiber or high-temperature foam), a temperature controller, a power source, and a pressure mechanism (e.g., hinges, clamps, or weights).
Use a temperature controller (PID controller) connected to a thermocouple to monitor and adjust the heat. Ensure the heating elements are evenly distributed and insulated to maintain consistent temperature across the press surface.
Always wear heat-resistant gloves and safety goggles. Ensure proper ventilation to avoid fumes. Use a grounded power source and install a thermal cutoff switch to prevent overheating. Test the press on scrap material before use to ensure it functions safely and effectively.
