Creating a homemade plastic injection machine is an innovative and cost-effective way to produce custom plastic parts for personal or small-scale projects. This DIY approach involves assembling a machine that melts and injects plastic into a mold, allowing for the creation of intricate designs with relative precision. By using readily available materials such as metal tubing, heaters, and hydraulic systems, enthusiasts can build a functional machine without the need for expensive industrial equipment. While the process requires careful planning, attention to safety, and basic engineering knowledge, the end result empowers individuals to experiment with plastic molding, fostering creativity and self-sufficiency in prototyping and manufacturing.
| Characteristics | Values |
|---|---|
| Cost | $100 - $500 (depending on materials and design complexity) |
| Materials Needed | Steel or aluminum for frame, heating element, hydraulic or mechanical system, mold, nozzle, pressure gauge |
| Power Source | Electricity (110V/220V) for heating and mechanical operation |
| Heating Method | Resistive heating element or cartridge heater |
| Injection Pressure | 500 - 2000 PSI (pounds per square inch) |
| Mold Material | Aluminum, steel, or machinable plastic (e.g., Delrin) |
| Machine Size | Compact (desktop-sized) or larger depending on design |
| Plastic Types | Thermoplastics like ABS, PLA, PETG, or polyethylene |
| Cycle Time | 1-5 minutes per injection (varies based on material and design) |
| Safety Features | Insulated heating chamber, emergency stop, pressure relief valve |
| Complexity | Moderate to high (requires basic machining and electrical skills) |
| Applications | Small-scale prototyping, custom parts, DIY projects |
| Maintenance | Regular cleaning of nozzle and mold, lubrication of moving parts |
| Design Resources | Open-source plans available (e.g., RepRap, Precious Plastic) |
| Environmental Impact | Reuses plastic waste if recycled materials are used |
| Scalability | Limited to small parts; not suitable for industrial production |
| Legal Considerations | Ensure compliance with local safety and electrical codes |
Explore related products
What You'll Learn
- Gather Materials and Tools: Essential components like motors, heaters, and molds for machine assembly
- Design the Mold System: Create precise molds for shaping plastic parts effectively
- Build the Injection Mechanism: Construct a system to melt and inject plastic under pressure
- Assemble Heating and Control: Integrate heaters and controllers for temperature regulation
- Test and Optimize Performance: Run trials, adjust settings, and refine machine efficiency
Gather Materials and Tools: Essential components like motors, heaters, and molds for machine assembly
Building a homemade plastic injection machine requires a careful selection of materials and tools to ensure functionality, safety, and durability. Start by sourcing a robust motor, ideally a high-torque DC motor or a stepper motor, capable of generating the force needed to inject molten plastic into molds. A motor rated between 1/2 to 1 horsepower is sufficient for small-scale projects, but ensure it has variable speed control for precision. Pair the motor with a gearbox to amplify torque, as plastic injection demands significant pressure. Avoid using motors from household appliances, as they often lack the necessary power and durability.
Next, focus on the heating element, which is critical for melting plastic pellets or scraps. A resistive heater, such as a cartridge heater or band heater, is ideal for this purpose. Aim for a heater with a wattage of 500 to 1000 watts, depending on the size of your machine. Insulate the heating chamber with high-temperature materials like ceramic fiber blankets to retain heat efficiently. Always include a thermocouple and a temperature controller to monitor and regulate the melting process, ensuring the plastic reaches its optimal processing temperature (typically 180°C to 260°C for common plastics like ABS or PLA).
The mold is the heart of the machine, determining the final shape of the injected plastic. For beginners, aluminum molds are a practical choice due to their machinability and thermal conductivity. Design molds using CAD software and machine them with a CNC router or manually with precision tools. Ensure the mold has a smooth finish to prevent defects in the final product. Consider using mold release agents to ease part removal. If budget is a constraint, repurpose existing metal parts or 3D-print sacrificial molds for prototyping.
Additional tools and components include a hydraulic or mechanical system to apply pressure, which can be built using pistons, cylinders, or screw mechanisms. A control panel with switches, relays, and a digital display will help manage the machine’s operations. Gather safety equipment like heat-resistant gloves, safety goggles, and a fire extinguisher, as working with molten plastic and high temperatures poses risks. Finally, stock up on raw materials—plastic pellets or scraps—and lubricants for moving parts.
Before assembly, test each component individually to ensure compatibility and functionality. For instance, run the motor under load to verify its torque, and calibrate the temperature controller with a known heat source. This step-by-step approach not only streamlines the build process but also minimizes the risk of failure during operation. With the right materials and tools, your homemade plastic injection machine can become a versatile tool for prototyping, small-scale production, or creative experimentation.
Creative Upcycling Ideas: Transforming Plastic Light Bulbs into Functional Art
You may want to see also
Explore related products

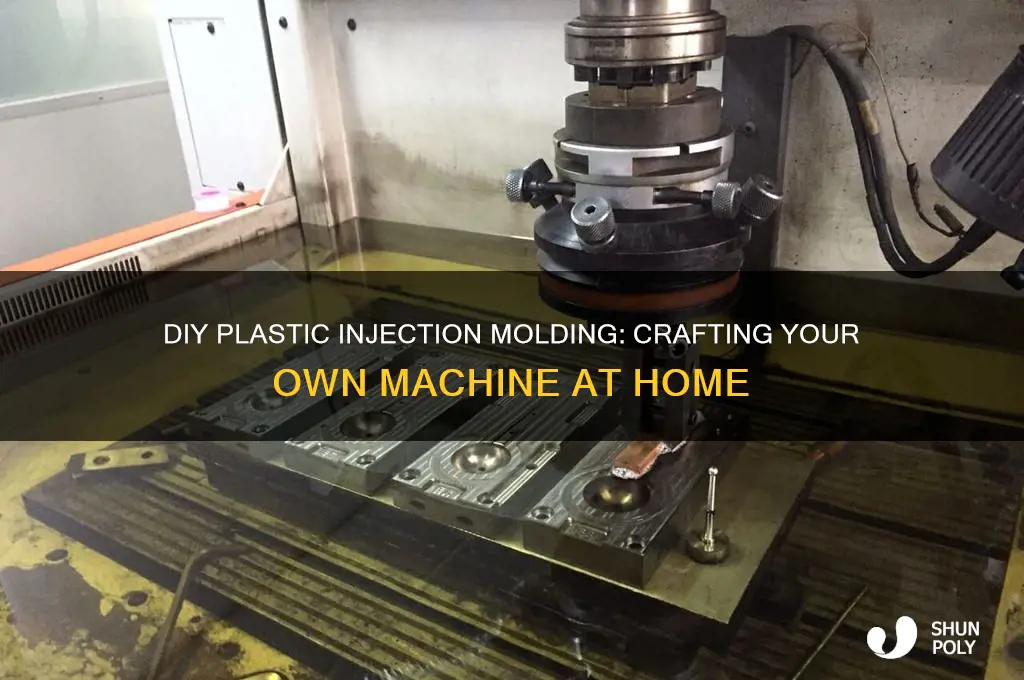

Design the Mold System: Create precise molds for shaping plastic parts effectively
The mold system is the heart of any plastic injection machine, homemade or otherwise. It’s where raw plastic transforms into a functional part, so precision is non-negotiable. Even minor imperfections in the mold translate to flaws in the final product. Achieving this precision requires careful material selection, design considerations, and manufacturing techniques.
For a homemade setup, aluminum is often the material of choice for molds. It’s machinable with basic tools, conducts heat well for cooling, and is relatively affordable. Steel, while more durable, requires specialized equipment for shaping and is cost-prohibitive for most DIY projects. Consider the complexity of your desired part when choosing a mold material. Simple geometries can be achieved with softer aluminum alloys, while intricate details may necessitate harder grades or even 3D-printed molds with sacrificial cores.
Designing the mold involves more than just mirroring the part’s shape. Draft angles, typically 1-3 degrees, are crucial for easy part ejection. Neglecting this will result in parts sticking to the mold, damaging both the part and the mold itself. Incorporate cooling channels into the mold design to expedite the solidification process. These channels, often drilled or milled, allow coolant (water or oil) to circulate, reducing cycle times and minimizing warping.
Simpler molds can be created using CNC machining or even manual milling. For more complex geometries, 3D printing offers a viable alternative, though post-processing like sanding and coating may be necessary to achieve the required surface finish. Remember, the mold’s surface finish directly translates to the part’s surface finish. A polished mold yields a smooth part, while a rough mold produces a textured one.
Safety is paramount when working with molds and molten plastic. Always wear protective gear, including heat-resistant gloves and safety goggles. Ensure proper ventilation when working with plastics, as they can release fumes during melting. Regularly inspect your mold for wear and tear, as cracks or deformations can lead to catastrophic failures during injection.
Create Mini Masterpieces: A Beginner’s Guide to Making Shrink Art Plastic
You may want to see also
Explore related products
Build the Injection Mechanism: Construct a system to melt and inject plastic under pressure
The heart of any injection molding machine is its ability to melt and forcefully inject plastic into a mold. This requires a system that can generate both heat and pressure reliably and safely.
Here's a breakdown of the key components and considerations for building your own injection mechanism.
Heating Element: The first challenge is achieving the high temperatures needed to melt plastic, typically ranging from 150°C to 300°C depending on the plastic type. Common solutions include electric resistance heaters, propane burners, or even repurposed toaster ovens. Safety is paramount; ensure your heating element is well-insulated and incorporates temperature control mechanisms like thermocouples and PID controllers to prevent overheating and potential fires.
Barrel and Piston: The molten plastic needs a chamber to reside in before injection. A sturdy metal barrel, often made from steel or aluminum, serves this purpose. Inside the barrel, a piston, driven by a powerful mechanism, will force the melted plastic through the nozzle and into the mold. Consider using a hydraulic cylinder or a modified car jack for the piston drive, ensuring it can generate sufficient force to overcome the resistance of the molten plastic.
Nozzle and Mold Interface: The nozzle acts as the gateway between the barrel and the mold. It needs to be precisely machined to ensure a tight seal and prevent leaks. The mold itself should be designed with channels and cavities corresponding to your desired part shape. Material choice for the mold is crucial; aluminum is a good starting point for beginners due to its machinability and heat conductivity, while steel offers greater durability for high-volume production.
Safety and Control: Working with molten plastic and high pressures demands utmost caution. Incorporate safety features like pressure relief valves, emergency stop buttons, and protective shielding around moving parts. A control system, even a simple one using relays and switches, is essential for regulating temperature, controlling piston movement, and ensuring a consistent injection process.
Building a homemade injection mechanism is a challenging but rewarding endeavor. By carefully selecting components, prioritizing safety, and implementing precise control, you can create a functional system capable of transforming plastic pellets into custom-molded parts. Remember, this is a complex project requiring mechanical aptitude, electrical knowledge, and a healthy respect for safety precautions. Start small, experiment cautiously, and don't hesitate to seek guidance from online communities and experienced makers.
DIY Plastic Making: Simple Home Methods for Crafting Plastic
You may want to see also
Explore related products
Assemble Heating and Control: Integrate heaters and controllers for temperature regulation
Temperature control is the linchpin of successful plastic injection molding. Without precise heat regulation, your homemade machine will produce warped, brittle, or incomplete parts. This section dissects the integration of heaters and controllers, transforming raw heat into a finely tuned tool for melting and shaping plastic.
Integrating heating elements and controllers into your homemade plastic injection machine requires careful planning and execution. The first step is to choose the right type of heater for your machine. Band heaters, cartridge heaters, and silicone rubber heaters are popular choices due to their efficiency and ease of installation. Band heaters, for instance, are ideal for cylindrical surfaces like the injection barrel, providing even heat distribution. When selecting a heater, consider the wattage required to reach the desired temperature, typically between 150°C and 300°C for most plastics. A general rule of thumb is to use a heater with a watt density of 2 to 4 watts per square inch of heated surface area.
The control system is the brain of your heating setup, ensuring the temperature remains within a precise range. A PID (Proportional-Integral-Derivative) controller is highly recommended for its accuracy and responsiveness. These controllers continuously monitor the temperature and adjust the heater's output to maintain the setpoint. For a homemade machine, a simple digital PID controller with an SSR (Solid State Relay) can be sourced online for around $50-$100. Connect the controller to a thermocouple or RTD (Resistance Temperature Detector) sensor placed near the heating element to provide real-time temperature feedback.
Safety is paramount when dealing with high temperatures. Insulate the heated areas with high-temperature insulation materials like ceramic fiber blankets or calcium silicate boards to prevent heat loss and protect nearby components. Ensure all electrical connections are secure and use heat-resistant wiring. Implement a safety cutoff switch that activates if the temperature exceeds a predefined limit, typically 10-20°C above the maximum operating temperature.
Practical Tip: Calibrate your temperature sensor before use. Submerge it in a mixture of ice and water (0°C) and then in boiling water (100°C) to ensure accurate readings. Adjust the controller settings accordingly.
By meticulously assembling and integrating heaters and controllers, you’ll achieve the precise temperature regulation essential for consistent and high-quality plastic injection molding. This step transforms your homemade machine from a rudimentary device into a reliable tool capable of producing professional-grade parts.
DIY Plastic Wood Filler: Easy Steps to Repair and Restore Wood
You may want to see also
Explore related products
Test and Optimize Performance: Run trials, adjust settings, and refine machine efficiency
Once your homemade plastic injection machine is assembled, the real work begins: testing and optimization. This phase is critical to ensure your machine operates efficiently, produces quality parts, and minimizes material waste. Start by running small-scale trials with scrap plastic to observe how the machine handles different pressures, temperatures, and cycle times. Document each trial’s settings and outcomes, noting issues like incomplete filling, warping, or excessive flash. For example, if the plastic isn’t fully filling the mold, incrementally increase the injection pressure in 5-bar increments until the issue resolves, but avoid exceeding the machine’s rated capacity to prevent damage.
Analyzing the results of these trials requires a systematic approach. Compare the settings that produced the best results across multiple runs to identify patterns. For instance, if a cycle time of 20 seconds consistently yields better parts than 15 seconds, consider this your baseline. However, be cautious of over-optimizing for one parameter at the expense of others. Increasing temperature to improve flow might reduce cycle time but could degrade the plastic’s mechanical properties. Use a spreadsheet to track variables like temperature, pressure, cooling time, and part quality, allowing you to visualize correlations and make data-driven adjustments.
Refining efficiency isn’t just about tweaking settings—it’s also about addressing mechanical limitations. For example, if the machine struggles to maintain consistent pressure, inspect the hydraulic system for leaks or the injection screw for wear. Upgrading components like seals or adding a temperature controller can significantly improve performance. Similarly, if cooling times are too long, consider adding cooling channels to the mold or using a more conductive material. These modifications may require additional investment but can pay off in reduced cycle times and higher output quality.
Persuasive arguments for thorough testing often focus on long-term benefits. While it’s tempting to rush into full-scale production, skipping optimization can lead to costly mistakes. For instance, a poorly calibrated machine might produce parts that fail quality checks, wasting material and time. By investing in trials and adjustments upfront, you not only improve part consistency but also extend the machine’s lifespan. Think of this phase as fine-tuning an instrument—the effort ensures your machine performs harmoniously, delivering reliable results every time.
Finally, consider the comparative advantages of different optimization strategies. For example, adjusting injection speed might yield faster results than modifying the mold, but the latter could provide more significant long-term gains. If you’re working with a specific plastic type, consult material data sheets for recommended processing conditions to narrow your testing range. For instance, ABS typically requires a nozzle temperature of 200–240°C, while PET demands 250–290°C. By combining empirical testing with theoretical knowledge, you can streamline the optimization process and achieve peak performance faster.
Crafting a Traditional Cradleboard Using Plastic Canvas: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You'll need a sturdy frame (steel or aluminum), a heating element (like a resistor coil or cartridge heater), a hydraulic or mechanical system for injection, a mold (aluminum or steel), a temperature controller, and basic tools like a drill, welder, and measuring equipment.
Use a thermocouple to monitor the temperature and a PID (Proportional-Integral-Derivative) controller to regulate the heating element. Ensure the system is insulated to maintain consistent heat.
Yes, but common plastics like ABS, PLA, and polyethylene are easier to work with. Avoid high-temperature plastics unless your machine is specifically designed for them.
Wear heat-resistant gloves, safety goggles, and ensure proper ventilation. Secure all moving parts to prevent accidents, and use a grounded electrical system to avoid shocks.
Design molds using CAD software and machine them from aluminum or steel. Ensure the mold has proper gating and venting, and apply a release agent to prevent sticking. Test the mold with low-cost materials before final use.
