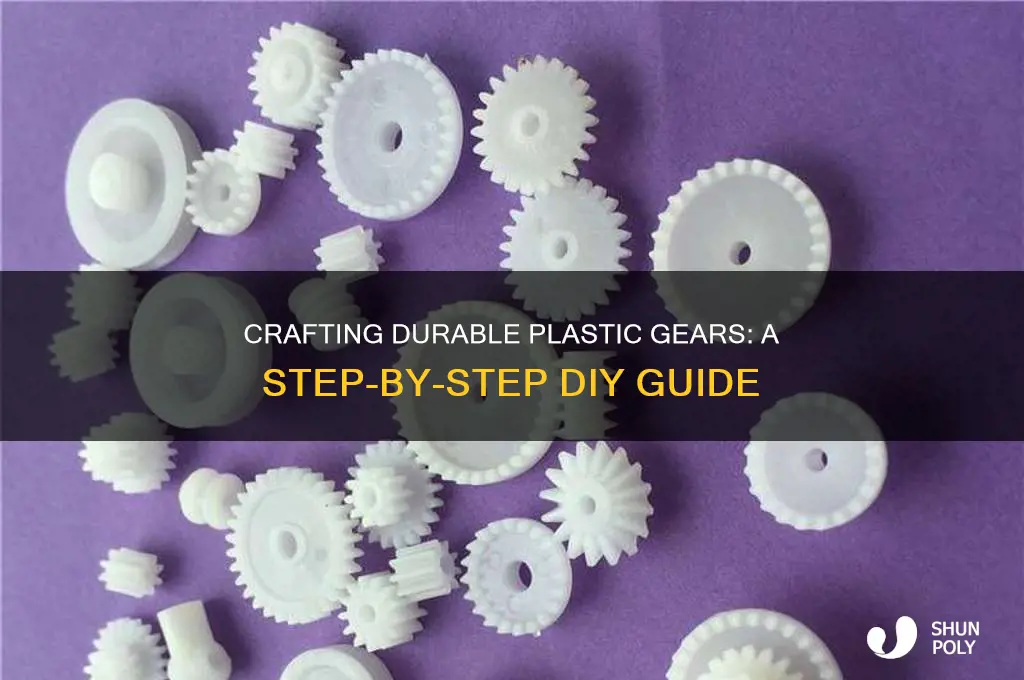

Crafting Durable Plastic Gears: A Step-By-Step Diy Guide

how to make a plastic gear

Creating a plastic gear involves a series of precise steps, starting with designing the gear using CAD software to ensure accurate dimensions and tooth profiles. Once the design is finalized, it is exported to a 3D printer or CNC machine for fabrication, with materials like ABS, nylon, or polycarbonate commonly used for their durability and machinability. Post-processing steps, such as deburring and surface finishing, are essential to ensure smooth operation and reduce wear. Additionally, testing the gear for proper fit, alignment, and load capacity is crucial to guarantee its functionality in the intended application. This process combines modern manufacturing techniques with careful planning to produce high-quality plastic gears for various mechanical systems.

Characteristics Values
Material Selection Engineering-grade plastics like POM (Acetal), Nylon, PET, or PEEK. Choose based on strength, stiffness, temperature resistance, and cost.
Design Considerations Involute tooth profile, pressure angle (20° standard), module (tooth size), number of teeth, pitch diameter, addendum, dedendum, backlash.
Manufacturing Methods Injection molding (most common), 3D printing (prototyping/low volume), CNC machining (small batches/custom gears), gear hobbing (high precision).
Mold Design Requires precise tooling with core and cavity for gear teeth, cooling channels, and ejection system.
Injection Molding Parameters Melt temperature, injection pressure, cooling time, mold temperature - optimized for material and gear geometry.
Post-Processing Deburring, surface finishing (polishing, sanding), heat treatment (for some materials), quality control (dimensional inspection, tooth profile analysis).
Lubrication May require lubricants compatible with plastic to reduce wear and friction.
Advantages Lightweight, corrosion resistant, quieter operation, cost-effective for high volumes.
Disadvantages Lower strength than metal, susceptible to wear under heavy loads, dimensional changes with temperature.

shunpoly

Material Selection: Choose durable, moldable plastics like POM, Nylon, or PETG for gear manufacturing

The choice of material is critical in plastic gear manufacturing, as it directly impacts performance, durability, and cost. Among the myriad options, POM (Polyoxymethylene), Nylon, and PETG (Polyethylene Terephthalate Glycol-modified) stand out for their unique properties. POM, for instance, offers exceptional dimensional stability and low friction, making it ideal for high-precision gears in applications like automotive components or office machinery. Nylon, on the other hand, excels in toughness and wear resistance, often used in heavy-duty gears for industrial equipment. PETG, while less common in gears, provides a balance of strength and ease of manufacturing, suitable for prototyping or low-stress applications. Understanding these material strengths ensures the gear meets its intended function without premature failure.

When selecting a material, consider the operating environment and mechanical demands. For example, gears exposed to moisture or chemicals benefit from POM’s inherent resistance to water absorption and corrosion. Nylon, however, may absorb moisture, affecting its dimensional stability unless stabilized grades like Nylon 6/6 are chosen. PETG, while less chemically resistant, offers excellent impact resistance at low temperatures, making it a viable option for outdoor or cold-storage applications. Always cross-reference material datasheets to ensure compatibility with the gear’s working conditions, as even minor environmental factors can degrade performance over time.

Manufacturability is another key factor in material selection. POM and Nylon are both thermoplastics, easily molded using injection molding or 3D printing, but their processing temperatures differ. POM requires higher molding temperatures (180–220°C) and may release formaldehyde during processing, necessitating proper ventilation. Nylon, with a lower melting point (220–260°C), is more forgiving but prone to warping if cooling rates are not controlled. PETG, with its lower processing temperature (225–235°C) and minimal warping, is a favorite for 3D printing enthusiasts and small-batch production. Selecting a material that aligns with your manufacturing capabilities reduces defects and production costs.

Cost-effectiveness should not be overlooked. POM and Nylon are widely available and competitively priced, making them economical choices for large-scale production. PETG, while slightly more expensive, offers advantages in prototyping due to its ease of use and post-processing. For custom or low-volume gears, consider the trade-off between material cost and production efficiency. For instance, using PETG for rapid prototyping can save time and resources, even if it’s not the final production material. Always weigh the long-term benefits against upfront costs to optimize your investment.

Finally, sustainability is an emerging consideration in material selection. PETG, being recyclable and derived from partially renewable resources, aligns with eco-friendly manufacturing goals. Nylon, while durable, is less environmentally friendly due to its petroleum-based origins. POM, though recyclable, poses challenges in end-of-life disposal due to its chemical composition. Choosing materials with lower environmental impact not only reduces your carbon footprint but also positions your product favorably in a market increasingly driven by sustainability. By balancing performance, manufacturability, cost, and environmental impact, you can select the ideal plastic for your gear application.

shunpoly

Design Considerations: Optimize tooth profile, pitch, and pressure angle for smooth operation

The tooth profile of a plastic gear is its backbone, dictating how it meshes with its counterpart. A well-designed profile minimizes friction, reduces wear, and ensures smooth power transmission. Involute profiles are the industry standard due to their ability to maintain a constant velocity ratio during meshing. However, for plastic gears, slight modifications to the involute curve can be beneficial. A slightly rounded tooth tip, for instance, can prevent stress concentration and reduce the risk of chipping, a common issue with brittle plastics.

Example: In a high-load application like a power tool gearbox, a modified involute profile with a 0.25mm radius fillet on the tooth tip can significantly improve gear life.

Pitch, the distance between corresponding points on adjacent teeth, is a critical factor in gear sizing and compatibility. A finer pitch (more teeth per unit length) increases contact ratio, leading to smoother operation and reduced noise. However, finer pitches also mean smaller teeth, which can be more susceptible to bending and wear in plastic gears. Finding the optimal pitch involves balancing these factors, considering the torque requirements, operating speed, and material properties of the chosen plastic.

Analysis: For a small plastic gear driving a toy car, a pitch of 0.5mm might be suitable, offering a good balance between strength and smoothness. A larger gear in a conveyor system, handling higher loads, might require a coarser pitch of 1.0mm for increased tooth strength.

The pressure angle, the angle between the line of action and the tangent to the pitch circle, plays a pivotal role in load distribution and efficiency. A higher pressure angle (20° is common) provides greater tooth strength but can lead to increased sliding friction and noise. A lower pressure angle (14.5° is another standard) reduces friction but sacrifices some tooth strength. For plastic gears, where material properties are inherently different from metals, a pressure angle of 14.5° is often preferred to minimize wear and noise, especially in applications with moderate to high speeds.

Takeaway: Choosing the right pressure angle is a trade-off between strength and efficiency. For most plastic gear applications, a 14.5° pressure angle strikes a good balance, prioritizing smooth, quiet operation over maximum load capacity.

shunpoly

Molding Techniques: Use injection or 3D printing for precise, cost-effective gear production

Injection molding and 3D printing are two dominant techniques for producing plastic gears, each with distinct advantages depending on the application. Injection molding excels in high-volume production, where precision and consistency are critical. The process involves injecting molten plastic into a custom-designed mold under high pressure, resulting in gears with tight tolerances and smooth finishes. For instance, a typical injection molding cycle for a small plastic gear might take 20–30 seconds, allowing for rapid production rates. This method is ideal for industries like automotive or consumer electronics, where thousands of identical gears are needed. However, the upfront cost of creating the mold can be substantial, often ranging from $5,000 to $50,000, making it less feasible for low-volume projects.

3D printing, on the other hand, offers unparalleled flexibility and cost-effectiveness for prototyping or small-batch production. Techniques like Fused Deposition Modeling (FDM) or Selective Laser Sintering (SLS) allow designers to iterate quickly, producing gears with complex geometries that would be challenging or impossible with traditional molding. For example, a 3D-printed gear can incorporate internal features like lightweighting holes or custom tooth profiles without additional tooling costs. While 3D printing may sacrifice some dimensional accuracy compared to injection molding—tolerances typically range from ±0.1 to ±0.5 mm—it’s often sufficient for functional prototypes or specialized applications. The cost per part is also lower for small quantities, with prices starting at around $5–$20 per gear, depending on material and complexity.

When deciding between the two, consider the trade-offs in material properties. Injection molding supports a wide range of engineering-grade plastics, such as Nylon, POM (Delrin), or PBT, which offer excellent mechanical strength and wear resistance. 3D printing materials, while improving, often have lower tensile strength or heat resistance, though advancements in composites and polymers are narrowing this gap. For instance, SLS-printed Nylon 12 can achieve mechanical properties comparable to injection-molded parts, making it a viable option for functional gears in less demanding applications.

To optimize gear production, start by defining your requirements: volume, precision, material, and budget. For high-volume runs exceeding 10,000 units, injection molding is typically more cost-effective despite the initial mold investment. For smaller quantities or custom designs, 3D printing provides a faster, more flexible solution. Always test prototypes to ensure the chosen method meets performance criteria, such as load capacity, backlash, and durability. Practical tips include designing gears with draft angles (1–2 degrees) for injection molding to ease part ejection, or using support structures in 3D printing to prevent warping during production. By aligning the technique with your specific needs, you can achieve precise, cost-effective plastic gears tailored to your application.

shunpoly

Post-Processing: Deburr edges, polish surfaces, and inspect for defects to ensure quality

Sharp edges and rough surfaces on plastic gears aren't just unsightly; they're functional liabilities. Burrs, those tiny raised edges left by machining, increase friction, accelerate wear, and can even cause catastrophic failure under load. Similarly, unpolished surfaces trap dirt and debris, leading to premature degradation. Post-processing steps like deburring, polishing, and inspection aren't optional luxuries – they're essential for ensuring your gear performs reliably and lasts.

Deburring requires a delicate touch. For small gears, a fine-grit sandpaper (800-1200 grit) or a deburring tool with a carbide blade can carefully remove burrs without altering the gear's critical dimensions. Larger gears might benefit from tumbling with abrasive media, though this method requires careful monitoring to avoid over-processing. Remember, the goal is to remove the burr, not reshape the tooth profile.

Polishing goes beyond aesthetics. A smooth surface reduces friction, minimizes noise, and enhances the gear's resistance to wear. For most plastics, a multi-stage polishing process is ideal. Start with a coarse compound (e.g., 600-grit diamond paste) to remove any remaining imperfections, followed by progressively finer compounds (1200, 2000 grit, etc.) until a mirror-like finish is achieved. A soft cloth or felt wheel is recommended to avoid scratching the plastic.

Polishing goes beyond aesthetics. A smooth surface reduces friction, minimizes noise, and enhances the gear's resistance to wear. For most plastics, a multi-stage polishing process is ideal. Start with a coarse compound (e.g., 600-grit diamond paste) to remove any remaining imperfections, followed by progressively finer compounds (1200, 2000 grit, etc.) until a mirror-like finish is achieved. A soft cloth or felt wheel is recommended to avoid scratching the plastic.

Inspection is the final, crucial step. Visually examine the gear for any remaining burrs, scratches, or surface defects. Use a magnifying glass or microscope for a closer look. For critical applications, consider dimensional inspection using calipers or a coordinate measuring machine (CMM) to ensure the gear meets the required tolerances. Remember, a thorough inspection now prevents costly failures later.

shunpoly

Assembly Tips: Align gears properly, ensure tight fit, and lubricate for efficient performance

Precision in gear alignment is non-negotiable for optimal performance. Misaligned gears introduce unnecessary friction, accelerate wear, and reduce efficiency. To achieve perfect alignment, use a dial indicator to measure runout, ensuring it stays within 0.002 inches for small gears (under 2 inches in diameter) and 0.005 inches for larger ones. Mark the gear’s centerline with a sharp tool and align it with the mating gear’s axis, verifying parallelism with a straightedge. Even a slight deviation can lead to binding or uneven tooth engagement, so take your time to adjust incrementally.

A tight fit is equally critical, but it’s a delicate balance. Too loose, and the gear will slip or wobble; too tight, and you’ll risk cracking the plastic under stress. For press-fit applications, calculate the interference fit by subtracting the shaft diameter from the gear’s bore diameter—aim for 0.001 to 0.003 inches of interference for standard gears. Heat the gear slightly (120°F to 150°F) using a heat gun or warm water to expand the bore, then press it onto the shaft with steady, even force. Allow it to cool completely before testing to ensure the fit stabilizes.

Lubrication transforms a functional gear into a high-performance component. Plastic gears require lubricants that reduce friction without degrading the material. Silicone-based or PTFE lubricants are ideal; avoid petroleum-based oils, which can cause swelling or cracking. Apply a thin, even coat to the teeth and bore using a brush or spray, ensuring coverage without excess buildup. Reapply every 500 hours of operation or when noise increases, as plastic’s low thermal conductivity makes it prone to heat-induced failure without proper lubrication.

Consider the operational environment when assembling plastic gears. In high-humidity or outdoor settings, use UV-stabilized lubricants to prevent degradation. For food-grade applications, opt for NSF H1-certified lubricants. If the gear operates under load, incorporate a backlash of 0.002 to 0.005 inches between mating gears to account for thermal expansion. Regularly inspect for wear patterns—plastic gears show signs of fatigue through tooth chipping or powdering, indicating the need for replacement or re-lubrication.

Finally, test the assembly under simulated load conditions before deployment. Run the gears at 75% of their rated speed for 30 minutes, monitoring for noise, heat, or misalignment. If vibrations occur, recheck the fit and alignment; if temperatures exceed 140°F, improve ventilation or reduce the load. Proper assembly isn’t just about following steps—it’s about anticipating how the gear will perform in real-world conditions and adjusting accordingly. A well-assembled plastic gear should operate silently, efficiently, and reliably, proving that plastic can rival metal when handled with precision.

Frequently asked questions

To make a plastic gear, you will need plastic material (such as ABS, nylon, or acetal), a gear design or template, a cutting tool (like a laser cutter, CNC machine, or 3D printer), and optionally, a mold if using injection molding.

Yes, you can 3D print a plastic gear at home using a 3D printer and suitable filament (e.g., PLA, PETG, or nylon). Ensure the design is optimized for 3D printing, with proper tolerances and supports if needed.

Use CAD software (e.g., Fusion 360, SolidWorks) to create a gear design with the correct tooth profile, pitch, and diameter. Follow gear design standards (e.g., involute profile) and consider material properties for durability.

The best plastic for gears depends on the application. Acetal (Delrin) is popular for its low friction and wear resistance, while nylon offers strength and flexibility. ABS is cost-effective but less durable for heavy-duty use.
