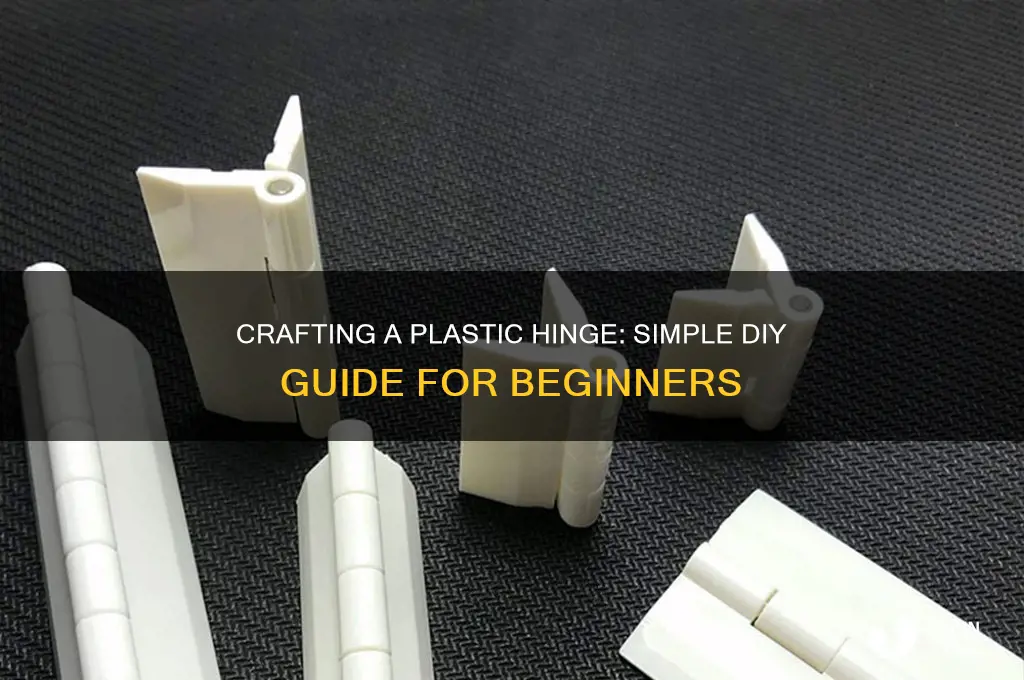

Creating a plastic hinge is a practical and cost-effective solution for adding flexibility to various projects, such as model building, DIY crafts, or even simple mechanical assemblies. A plastic hinge allows two parts to rotate relative to each other while maintaining a secure connection. To make one, you typically start by selecting a suitable plastic material, such as polystyrene or acrylic, which can be easily cut and shaped. The process involves cutting a thin, flexible strip from the plastic sheet, ensuring it is narrow enough to bend but strong enough to hold its form. This strip is then attached to the surfaces needing articulation, often using adhesive or heat bonding. Properly designed, a plastic hinge can provide smooth movement and durability, making it an ideal choice for lightweight applications where metal hinges might be overkill.
Explore related products
What You'll Learn
- Material Selection: Choose suitable plastic type for hinge flexibility, strength, and durability
- Design Considerations: Determine hinge size, thickness, and shape for desired movement
- Molding Techniques: Use injection or 3D printing for precise hinge creation
- Post-Processing: Smooth edges, add reinforcements, or apply finishes for functionality
- Testing & Adjustment: Evaluate hinge flexibility, stress tolerance, and refine design as needed
Material Selection: Choose suitable plastic type for hinge flexibility, strength, and durability
Selecting the right plastic for a hinge is a balancing act between flexibility, strength, and durability. Polypropylene (PP) and Polyethylene (PE) are popular choices due to their inherent flexibility, making them ideal for living hinges that require repeated bending without fatigue. However, these materials may lack the strength needed for heavy-duty applications. For hinges under constant stress, consider Polyamide (Nylon), which offers superior strength and durability, though it may require reinforcement with glass fibers to enhance stiffness. The key is to match the material’s properties to the hinge’s functional demands.
When prioritizing durability, especially in outdoor or high-temperature environments, Polyoxymethylene (POM) and Polyether Ether Ketone (PEEK) emerge as top contenders. POM, also known as Acetal, resists wear and maintains its shape under load, making it suitable for precision hinges. PEEK, while more expensive, excels in extreme conditions, tolerating temperatures up to 250°C and resisting chemicals. Both materials, however, are stiffer than PP or PE, so their use should be justified by the hinge’s operational requirements. Always weigh the trade-offs between cost, performance, and environmental exposure.
Flexibility isn’t just about the material—it’s also about design. Thinner hinge sections increase flexibility, but reduce strength, so material selection must compensate. Thermoplastic Elastomers (TPEs) and Thermoplastic Polyurethanes (TPUs) offer exceptional flexibility and resilience, making them ideal for soft-close or shock-absorbing hinges. However, their lower tensile strength limits their use in load-bearing applications. Pairing these materials with a rigid core in a co-extrusion process can combine flexibility with structural integrity, though this adds complexity to manufacturing.
For prototyping or low-volume production, ABS (Acrylonitrile Butadiene Styrene) is a versatile choice, offering a balance of strength and flexibility. It’s easy to machine and 3D print, allowing for rapid iteration of hinge designs. However, ABS lacks the long-term durability of POM or PEEK, particularly in outdoor settings where UV exposure can cause brittleness. If using ABS, consider adding UV stabilizers or protective coatings to extend its lifespan. Always test prototypes under real-world conditions to validate material performance.
Finally, sustainability is increasingly influencing material selection. Bio-based plastics like Polylactic Acid (PLA) offer a renewable alternative, but their lower heat resistance and moisture sensitivity limit their use in hinges. Recycled Polypropylene (rPP) is a more practical option, retaining much of the flexibility and strength of virgin PP while reducing environmental impact. When choosing materials, consider not just their mechanical properties, but also their lifecycle—from production to disposal—to align with broader sustainability goals.
Best Places to Create Custom Plastic Photo ID Badges Easily
You may want to see also
Explore related products
Design Considerations: Determine hinge size, thickness, and shape for desired movement
The hinge's size directly impacts its strength and flexibility. Larger hinges distribute stress over a greater area, reducing the risk of failure but requiring more material. Smaller hinges save space and material but may concentrate stress, leading to cracking or breakage. For example, a living hinge on a compact electronic case might measure 0.5mm wide by 1mm thick, while a heavy-duty storage box hinge could be 5mm wide by 3mm thick.
Thickness is critical for balancing durability and flexibility. Thinner plastic allows for tighter bends and smoother movement but sacrifices strength. Thicker plastic provides rigidity and load-bearing capacity but limits the hinge's range of motion. A general rule of thumb is to keep the thickness between 10% and 30% of the hinge's width. For instance, a 2mm-wide hinge should be 0.2mm to 0.6mm thick for optimal performance in most applications.
Shape influences both aesthetics and functionality. A rounded hinge profile reduces stress concentration points, making it less prone to cracking. A rectangular shape offers more surface area for adhesion or integration into larger parts. Tapered hinges can provide a gradual transition, easing movement and reducing the risk of abrupt failure. Consider the application: a rounded hinge might be ideal for a foldable phone case, while a tapered design could suit a collapsible water bottle.
Material selection interacts with design considerations. Polypropylene (PP) and polyethylene (PE) are flexible and ideal for thin, living hinges, but they lack the strength of ABS or nylon. For thicker, load-bearing hinges, ABS or nylon provides better durability, though at the cost of reduced flexibility. Always test prototypes to ensure the chosen material and design meet the desired movement and stress requirements.
Practical tips: Use a fillet radius at the hinge’s bend point to minimize stress concentration. Incorporate reinforcement ribs or grooves if the hinge must support significant weight. For precision, design hinges with a slight preload to eliminate play while ensuring smooth movement. Remember, the goal is to create a hinge that moves effortlessly without compromising structural integrity.
Effective Methods to Make Plastic Surfaces Anti-Static: A Comprehensive Guide
You may want to see also
Explore related products
Molding Techniques: Use injection or 3D printing for precise hinge creation
Creating a plastic hinge with precision demands careful consideration of molding techniques, and two standout methods are injection molding and 3D printing. Injection molding excels in producing high volumes of hinges with tight tolerances, making it ideal for mass production. The process involves injecting molten plastic into a custom-designed mold under high pressure, ensuring consistent dimensions and structural integrity. For instance, a typical injection molding cycle for a small plastic hinge might take 20-30 seconds, allowing for rapid production rates. However, the initial cost of creating the mold can be substantial, often ranging from $5,000 to $20,000, depending on complexity. This method is best suited for projects requiring thousands of identical hinges, such as in consumer electronics or automotive applications.
In contrast, 3D printing offers unparalleled flexibility for prototyping and small-batch production. Techniques like Fused Deposition Modeling (FDM) or Stereolithography (SLA) allow designers to iterate quickly, testing hinge designs without the need for expensive tooling. For example, an FDM printer can produce a functional hinge prototype in 2-4 hours, using materials like ABS or PLA. While 3D printing may lack the surface finish and strength of injection molding, it’s perfect for custom or low-volume applications. A practical tip: use a 0.4mm nozzle and 0.2mm layer height for FDM to balance speed and detail when printing hinges. This method is particularly useful for hobbyists, educators, or startups experimenting with hinge designs.
When deciding between the two, consider the trade-offs in cost, time, and scalability. Injection molding’s high upfront costs are offset by its efficiency in large-scale production, while 3D printing’s accessibility and speed make it ideal for early-stage development. For instance, a company producing 10,000 hinges might save significantly by choosing injection molding, whereas a designer creating a one-off custom hinge would benefit more from 3D printing. Analyzing these factors ensures the chosen technique aligns with project goals and resource constraints.
A comparative analysis reveals that both methods have unique strengths. Injection molding delivers superior strength and consistency, critical for load-bearing hinges in industrial applications. 3D printing, however, shines in its ability to produce complex geometries, such as living hinges, which are difficult to achieve with traditional molding. For example, a living hinge designed with a 0.5mm thickness can be 3D printed with precision, offering flexibility and durability in a single piece. Ultimately, the choice depends on the specific requirements of the hinge, whether it’s mass production efficiency or design innovation.
To maximize success, follow these practical steps: For injection molding, ensure the mold design includes draft angles (1-2 degrees) to facilitate easy part ejection. For 3D printing, orient the hinge’s pivot point along the Z-axis to minimize support material and improve strength. Post-processing, such as sanding or chemical smoothing, can enhance the finish of 3D-printed hinges. By understanding these techniques and their nuances, creators can produce plastic hinges that meet both functional and aesthetic demands, whether for large-scale manufacturing or bespoke projects.
Creative Snowman Craft: Transforming Plastic Pumpkins into Winter Wonders
You may want to see also
Explore related products
Post-Processing: Smooth edges, add reinforcements, or apply finishes for functionality
Post-processing is where a plastic hinge transforms from a functional prototype to a durable, refined component. Rough edges, a common byproduct of manufacturing processes like 3D printing or injection molding, can compromise both aesthetics and performance. Sanding with progressively finer grits (starting at 120 and finishing at 600) removes burrs and sharp points, reducing friction and preventing stress concentrations that could lead to premature failure. For intricate geometries, a rotary tool with a sanding drum attachment offers precision, while a simple sanding block suffices for larger, flatter surfaces.
Reinforcements are often necessary to address inherent weaknesses in plastic hinges, particularly in applications requiring repeated use or high torque. Fiberglass strands, embedded along the hinge axis during molding or adhered post-production with epoxy, significantly increase tensile strength. Alternatively, metal inserts, such as brass or stainless steel pins, can be press-fit into pre-drilled holes to distribute loads more effectively. For 3D-printed hinges, increasing infill density to 80-100% in the hinge region during printing provides a cost-effective, albeit less elegant, solution.
Finishes not only enhance appearance but also improve functionality. A thin coat of polytetrafluoroethylene (PTFE) spray, applied in two light passes with a 10-minute drying interval, reduces friction coefficients by up to 40%, ideal for high-cycle applications. For outdoor use, ultraviolet (UV) stabilizers mixed into a clear acrylic spray protect against degradation, extending lifespan by 2-3 years. In food-contact scenarios, FDA-approved silicone coatings provide a non-toxic, chemically inert barrier. Always test finishes on a small area first to ensure compatibility with the base plastic.
The choice of post-processing techniques depends on the hinge's intended use. For example, a living hinge on a disposable packaging lid might require only minimal sanding and a matte finish, while a heavy-duty door hinge demands fiberglass reinforcement and a PTFE coating. Balancing cost, time, and performance is key. A well-executed post-processing regimen can elevate a plastic hinge from a fragile prototype to a robust, long-lasting component, bridging the gap between concept and real-world application.
Crafting Dashboard Plastic Jesus: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Testing & Adjustment: Evaluate hinge flexibility, stress tolerance, and refine design as needed
Flexibility is the first critical parameter to assess in your plastic hinge prototype. Begin by manually bending the hinge through its intended range of motion, noting any stiffness or resistance. For a living hinge, aim for a bending radius that allows smooth movement without permanent deformation. Use a simple setup with a weighted arm to simulate repeated opening and closing, observing if the hinge returns to its original shape or shows signs of fatigue after 1,000 cycles. Compare the results against industry standards, such as a minimum of 10,000 cycles for light-duty applications, to gauge performance.
Stress tolerance testing reveals how much force your hinge can withstand before failure. Employ a tensile testing machine to apply incremental loads, recording the point at which the hinge cracks or breaks. For a household storage box hinge, target a failure load of at least 5 kg, as this aligns with typical usage demands. Analyze the fracture surface under a magnifying glass to identify failure modes—brittle fractures suggest material issues, while ductile failures indicate excessive thinning in the hinge design.
Refinement is an iterative process, guided by test data and practical observations. If flexibility is lacking, consider increasing the hinge thickness by 0.5 mm or adding fillets to reduce stress concentrations. Conversely, if the hinge is too flexible, reduce the length or introduce reinforcing ribs. Material selection also plays a role; switching from ABS to polypropylene can improve fatigue resistance but may require adjusting wall thickness to maintain structural integrity.
Incorporate real-world conditions into your testing to ensure robustness. Expose the hinge to temperature extremes (-20°C to 60°C) for 24 hours, then assess flexibility and strength changes. Simulate chemical exposure by submerging the hinge in common household cleaners for 1 hour, checking for swelling or embrittlement. These environmental tests highlight potential weaknesses, allowing you to tweak the design or material choice before final production.
Documentation is key during the testing and adjustment phase. Maintain a detailed log of each iteration, noting changes made, test results, and observations. This not only tracks progress but also provides a reference for future projects. For instance, if a hinge design with a 1.2 mm thickness and 5 mm width fails after 5,000 cycles, document this as a baseline to avoid repeating mistakes. By systematically evaluating and refining, you transform a rudimentary plastic hinge into a durable, functional component tailored to its intended use.
DIY Plastic Crafting: Create Homemade Plastic Using Milk and Vinegar
You may want to see also
Frequently asked questions
To make a plastic hinge, you will need a sheet of flexible plastic (such as polyethylene or PVC), a cutting tool (like a knife or scissors), a ruler, and a heat source (like a hairdryer or heat gun) for shaping.
To create the hinge joint, score a thin line along the plastic where you want the hinge to bend. Use a sharp tool to make multiple light passes, avoiding cutting all the way through. Then, gently fold the plastic along the scored line to form the hinge.
Yes, a plastic hinge can be strengthened by adding layers of plastic or reinforcing it with adhesive-backed fabric or fiberglass tape. Alternatively, you can use thicker plastic material for increased durability.
Applying heat is optional but recommended for smoother bends and to prevent cracking. Use a heat gun or hairdryer to warm the scored line, then carefully fold the plastic while it’s pliable. Allow it to cool in the bent position for better retention.
