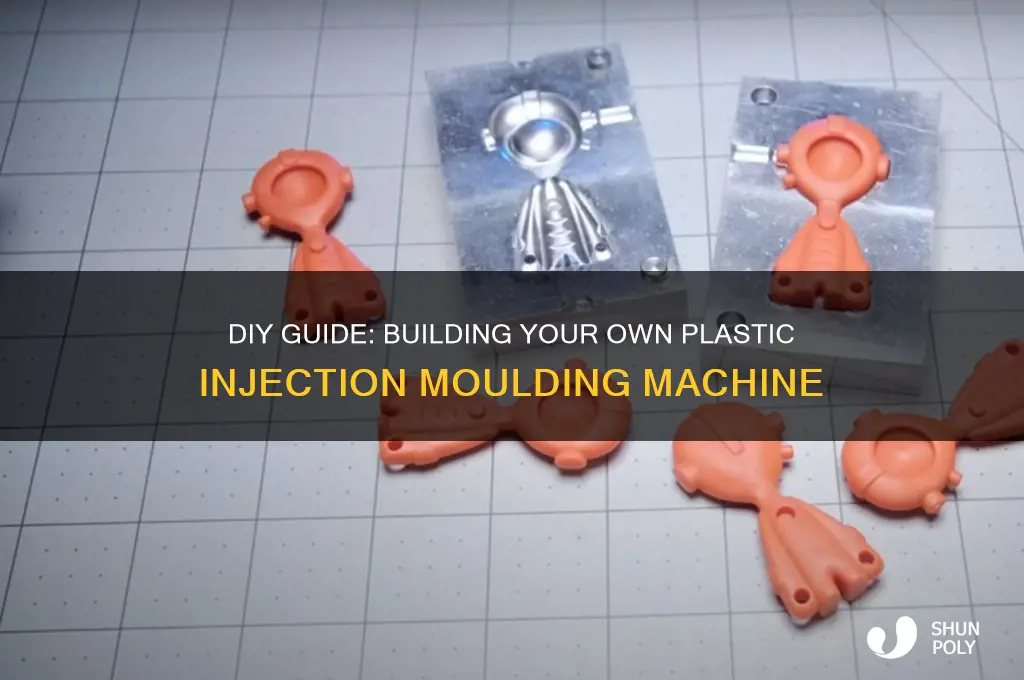

Creating a plastic injection molding machine involves a combination of mechanical engineering, precision machining, and an understanding of polymer processing. The process begins with designing the machine’s core components, such as the injection unit, mold clamping system, and heating mechanism, using CAD software to ensure accuracy and functionality. Next, sourcing high-quality materials like steel and aluminum is crucial for durability and performance. The injection unit, responsible for melting and injecting plastic into the mold, requires a robust heating system and a precision screw or plunger. The mold clamping system must provide sufficient force to hold the mold closed during injection, while the heating mechanism ensures the plastic reaches the optimal temperature for molding. Assembly involves careful alignment and calibration of all components, followed by testing to ensure smooth operation and consistent output. Building such a machine demands technical expertise, access to specialized tools, and adherence to safety standards, making it a challenging yet rewarding project for those with a background in engineering and manufacturing.
Explore related products
What You'll Learn
- Designing the Mould: Focus on material selection, cavity design, and cooling system integration for optimal performance
- Building the Injection Unit: Assemble the barrel, screw, and hydraulic system for precise material melting and injection
- Constructing the Clamping Unit: Create a robust platen, tie bars, and hydraulic clamps to hold the mould securely
- Adding Control Systems: Install sensors, PLCs, and temperature controllers for automated and accurate machine operation
- Safety and Testing: Implement guards, emergency stops, and conduct trial runs to ensure safe and reliable functionality
Designing the Mould: Focus on material selection, cavity design, and cooling system integration for optimal performance
Material selection for the mould is a critical decision that directly impacts the quality, durability, and cost of the final product. High-strength tool steels like P20 or H13 are commonly used due to their wear resistance and ability to withstand high pressures. For applications requiring corrosion resistance, stainless steels such as 420 or 440 are ideal. Aluminum alloys, while less durable, offer a cost-effective solution for low-volume production or prototyping, as they are easier to machine and have better thermal conductivity. The choice should align with the expected production volume, material being molded, and budget constraints. For instance, a mould for producing 10,000 units of a complex part might justify the higher cost of H13 steel, while aluminum could suffice for a 100-unit run.
Cavity design is where precision meets functionality. The geometry of the cavity must mirror the final product’s specifications, accounting for shrinkage rates of the plastic material. Draft angles, typically 1-3 degrees, are essential to ensure easy ejection of the part. Core and cavity alignment is critical; misalignment as small as 0.01 mm can lead to defects. Incorporating vents, usually 0.025–0.05 mm wide, prevents air traps and ensures complete filling. For multi-cavity moulds, balancing the flow of material across all cavities is crucial to maintain consistency. Simulation tools like Moldflow can predict potential issues, such as warping or short shots, allowing for adjustments before fabrication.
Cooling system integration is the unsung hero of mould design, directly influencing cycle time and part quality. Efficient cooling reduces cycle times by up to 50%, increasing productivity. Channels should be placed as close to the cavity surface as possible, with a recommended distance of 3–5 mm for optimal heat transfer. Baffles and bubblers can enhance coolant flow, ensuring uniform cooling. For high-volume production, consider using beryllium copper alloys or conformal cooling channels, which offer superior thermal conductivity. However, improper design can lead to hot spots, causing warping or residual stresses in the part. A well-designed cooling system not only speeds up production but also extends the mould’s lifespan by minimizing thermal fatigue.
Balancing these three elements—material selection, cavity design, and cooling system integration—requires a holistic approach. For example, choosing aluminum for its thermal conductivity can simplify cooling design but may limit the mould’s lifespan. Conversely, high-strength steels demand more intricate cooling solutions due to their lower thermal conductivity. Practical tips include using modular designs for easier maintenance and incorporating sensors to monitor temperature and pressure in real time. By prioritizing these aspects, designers can create moulds that deliver consistent quality, reduce downtime, and maximize return on investment.
Are Plastic Diapers Still Being Made? Exploring Current Trends
You may want to see also
Explore related products
Building the Injection Unit: Assemble the barrel, screw, and hydraulic system for precise material melting and injection
The injection unit is the heart of any plastic injection moulding machine, responsible for melting and injecting plastic material into the mould with precision. Its core components—the barrel, screw, and hydraulic system—must work in harmony to ensure consistent material flow, temperature control, and injection force. Begin by selecting a barrel made of high-strength, heat-resistant steel, such as AISI 420 or 316 stainless steel, to withstand the high temperatures (up to 400°C) and pressures involved. The barrel’s inner diameter should match the screw’s root diameter, typically ranging from 20mm to 100mm, depending on the machine’s size and intended application.
Next, the screw, often referred to as the "engine" of the injection unit, plays a critical role in plasticizing the material. A general-purpose screw design features a length-to-diameter ratio of 20:1, with three distinct zones: feed, compression, and metering. The feed zone conveys the plastic pellets, the compression zone reduces their volume while melting, and the metering zone homogenizes the melt. For optimal performance, ensure the screw’s flight depth decreases gradually from the feed to the metering zone, promoting efficient melting and mixing. Use a nitrided or bimetallic screw coating to enhance wear resistance, especially when processing abrasive materials like glass-filled nylon.
Integrating the hydraulic system is where precision meets power. A hydraulic cylinder, typically rated between 10 to 150 tons, drives the screw forward during injection. Pair this with a proportional valve to control injection speed and pressure, ensuring the material fills the mould cavity without causing flash or short shots. For temperature control, install band heaters along the barrel and a thermocouple to monitor melt temperature within ±2°C. A closed-loop control system, using a PID controller, is essential for maintaining consistent heating and cooling cycles, critical for material properties like tensile strength and impact resistance.
Assembling these components requires meticulous alignment and sealing. The barrel and screw must be concentric to prevent material leakage and uneven wear. Use high-temperature seals, such as PTFE or graphite, at the screw tip and check ring to contain the molten plastic. When connecting the hydraulic system, ensure all fittings are rated for the system’s maximum pressure (e.g., 200 bar for small machines, 1000 bar for larger ones) and use stainless steel tubing to avoid corrosion. Test the system under load by injecting a low-cost material like polyethylene to verify pressure, temperature, and cycle time before moving to production runs.
Finally, consider scalability and safety in your design. If building a DIY machine, start with a smaller barrel diameter (e.g., 30mm) and a 5-ton hydraulic cylinder to minimize costs and complexity. Incorporate safety features like emergency stop buttons, pressure relief valves, and insulated barrel covers to protect operators. Regular maintenance, including cleaning the screw and barrel to prevent material buildup and checking hydraulic fluid levels, will extend the unit’s lifespan. By mastering the injection unit’s assembly, you lay the foundation for a reliable, efficient plastic injection moulding machine capable of producing high-quality parts.
DIY Plastic Notebook Covers: Easy Steps for Durable Customization
You may want to see also
Explore related products
$1403.19
Constructing the Clamping Unit: Create a robust platen, tie bars, and hydraulic clamps to hold the mould securely
The clamping unit is the backbone of any plastic injection moulding machine, bearing the brunt of the force required to keep the mould closed during injection. Its strength and precision directly impact the quality of the final product. To construct a robust clamping unit, focus on three critical components: the platen, tie bars, and hydraulic clamps. Each must be engineered to withstand immense pressure while maintaining alignment for consistent moulding results.
Skimping on material quality or design here will lead to warped parts, flash, or even catastrophic machine failure.
Begin with the platen, the foundation of the clamping unit. Fabricate it from high-strength steel, such as AISI 4140 or equivalent, to ensure it can handle the clamping force without deformation. The platen should be machined flat to within 0.02 mm to guarantee even pressure distribution across the mould. Consider adding cooling channels if your machine is designed for high-volume production, as heat buildup can cause thermal expansion and misalignment. For smaller-scale machines, a solid platen without cooling may suffice, but always prioritize rigidity over weight reduction.
Tie bars are the structural beams that connect the stationary and moving platens, providing stability and guiding the movement of the clamping unit. Use hardened steel tie bars with a diameter proportional to the machine’s clamping force—a good rule of thumb is 1 mm of diameter for every 10 tons of force. Ensure the tie bars are aligned with precision, as any misalignment will result in uneven clamping pressure and mould damage. Install linear bearings or bushings to guide the moving platen smoothly along the tie bars, reducing friction and wear.
Hydraulic clamps are the muscles of the clamping unit, generating the force needed to hold the mould shut. Select a hydraulic cylinder with a bore size that matches your machine’s required clamping force, typically calculated as 3 to 5 tons per square inch of projected mould area. Use high-pressure hydraulic hoses and fittings rated for at least 3000 psi to ensure safety and reliability. Incorporate a pressure relief valve to prevent overloading the system, and add a position sensor to monitor the platen’s movement for precise control.
When assembling the clamping unit, prioritize alignment and rigidity. Use precision shims to ensure the platens are parallel, and torque all fasteners to manufacturer specifications. Test the unit under load before installing the mould to verify its strength and stability. Remember, a well-constructed clamping unit not only ensures product quality but also extends the lifespan of your machine by minimizing wear and tear on critical components.
Easy Guide to Making Plastic Dana at Home: Step-by-Step Process
You may want to see also
Explore related products
Adding Control Systems: Install sensors, PLCs, and temperature controllers for automated and accurate machine operation
Sensors are the eyes and ears of your plastic injection molding machine, providing critical data for precise control. Install temperature sensors near the barrel and mold to monitor heating and cooling cycles, ensuring material consistency. Pressure sensors at the nozzle and mold cavity detect anomalies like short shots or flash, while position sensors track the movement of the injection screw and mold halves for accurate cycle timing. Choose industrial-grade sensors with IP67 ratings to withstand the harsh environment of molten plastic and hydraulic fluids.
Integrate these sensors with a Programmable Logic Controller (PLC), the brain of your automated system. Opt for a PLC with at least 8 input/output modules to accommodate sensor signals and actuator controls. Ladder logic programming allows you to create custom sequences for heating, injecting, cooling, and ejecting, minimizing human error and maximizing efficiency. For instance, set the PLC to initiate cooling only when the mold temperature reaches 120°C, preventing warping in thin-walled parts.
Temperature controllers are essential for maintaining the thermal profile required for different plastics. PID controllers offer precise regulation within ±1°C, crucial for materials like ABS or polycarbonate that degrade at elevated temperatures. Calibrate the controller to account for heat loss in the barrel and mold, using a Type K thermocouple for fast response times. Incorporate a cooling system with proportional valves controlled by the PLC to achieve rapid temperature changes during the cycle.
When designing the control system, prioritize scalability and safety. Include emergency stop buttons connected directly to the PLC’s safety circuit, bypassing standard logic to halt operations instantly. Implement a Human-Machine Interface (HMI) with a touchscreen display to monitor real-time data and adjust parameters without accessing the PLC. For advanced applications, consider integrating IoT capabilities to remotely monitor machine performance and predict maintenance needs based on sensor data trends.
Testing and validation are critical before full-scale production. Simulate worst-case scenarios, such as sensor failure or temperature spikes, to ensure the PLC’s fault-handling routines activate correctly. Run trial cycles with scrap material to fine-tune the temperature and pressure profiles, reducing cycle time by up to 15%. Document all settings and sensor placements for future reference, as these details are often overlooked but vital for consistent operation. With a well-designed control system, your injection molding machine will deliver repeatable quality, reduce material waste, and lower labor costs, making it a cornerstone of efficient manufacturing.
Crafting Snake Pattern Friendship Bracelets Using Plastic Lace: A DIY Guide
You may want to see also
Explore related products
Safety and Testing: Implement guards, emergency stops, and conduct trial runs to ensure safe and reliable functionality
Safety in plastic injection moulding machine construction is non-negotiable. High pressures, molten plastic, and moving parts create inherent risks that demand proactive measures. Begin by integrating physical guards around all critical areas—injection units, mould clamping mechanisms, and ejection systems. These barriers, constructed from durable materials like steel or polycarbonate, must be securely fastened and interlocked to halt machine operation if tampered with. Ensure guards are transparent where visibility is essential but maintain structural integrity to withstand accidental impacts.
Emergency stops (e-stops) are your second line of defense. Position e-stops within arm’s reach of every operator station and high-risk zone. Use standardized, palm-activated buttons in bright colors (typically red) to ensure immediate recognition. Wire e-stops to cut power to all hazardous functions simultaneously, prioritizing hydraulic and heating systems. Test e-stop functionality monthly and replace components showing wear or delayed response. Train operators to treat e-stops as a last resort, not a routine control, to prevent unnecessary downtime.
Before full-scale production, conduct trial runs under controlled conditions. Start with low-pressure, non-critical materials to identify mechanical weaknesses or misalignments. Gradually increase pressure and temperature in 10% increments, monitoring for leaks, abnormal noises, or uneven mould filling. Use pressure sensors and thermal imaging to detect hotspots or stress points in the system. Document each trial’s parameters and outcomes to establish a baseline for future performance comparisons.
Human error remains a significant risk factor. Implement a lockout/tagout (LOTO) procedure for maintenance or cleaning, ensuring all energy sources are isolated and tagged before work begins. Provide operators with heat-resistant gloves and face shields when handling moulds or molten plastic. Regularly audit safety protocols through unannounced drills, simulating emergencies like material jams or hydraulic failures. Reward compliance and address violations with retraining, not punishment, to foster a safety-first culture.
Finally, leverage technology to enhance safety. Install pressure relief valves calibrated to activate at 110% of maximum operating pressure, preventing catastrophic failures. Add automated cooling systems with fail-safes to shut down heating elements if temperatures exceed safe thresholds. Incorporate predictive maintenance tools, such as vibration sensors, to detect wear before components fail. While these measures increase initial costs, they reduce long-term risks and liabilities, making safety an investment, not an expense.
Creative DIY Ideas: Transforming Plastic Milk Cartons into Useful Crafts
You may want to see also
Frequently asked questions
The essential components include a heated barrel and screw for melting plastic, a mould clamping unit, an injection unit to force molten plastic into the mould, a hydraulic or electric system for power, and a control system to manage the process.
For a DIY machine, aluminium is commonly used for moulds due to its machinability and thermal conductivity. Steel can also be used for more durable moulds but requires advanced machining tools.
Temperature control can be achieved using heating bands or cartridges wrapped around the barrel, paired with a thermocouple and a PID controller to maintain precise temperatures for melting plastic.
Ensure proper insulation of heated components, use safety guards for moving parts, wear protective gear (gloves, goggles), and install emergency stop mechanisms. Always operate the machine in a well-ventilated area to avoid fumes.
