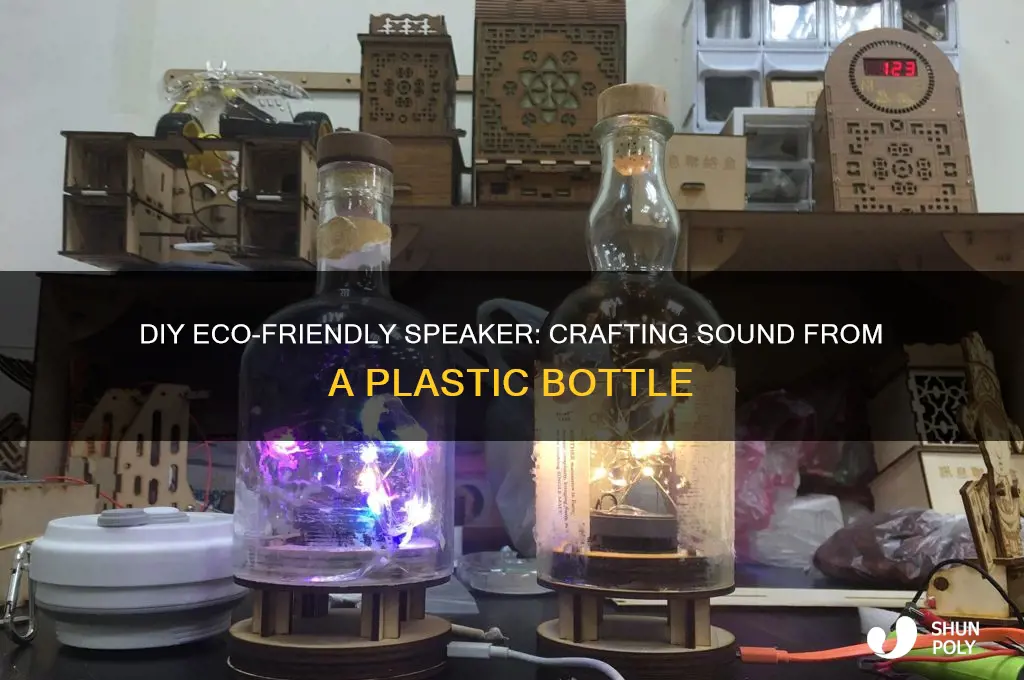

Creating a speaker out of a plastic bottle is a fun and eco-friendly DIY project that combines creativity with basic principles of sound amplification. By repurposing everyday materials, you can transform a simple plastic bottle into a functional speaker that enhances the audio output of your device. This project requires minimal tools and materials, such as a plastic bottle, a small speaker or transducer, a knife or scissors, and some basic crafting skills. The process involves cutting the bottle to create a resonant chamber, attaching the speaker component, and optimizing the design for clear sound projection. Not only is this a great way to reduce waste, but it also provides a hands-on understanding of how sound travels and is amplified, making it an educational and rewarding activity for all ages.
| Characteristics | Values |
|---|---|
| Materials Needed | Plastic bottle (preferably 2-liter), small speaker or headphone driver, utility knife or scissors, hot glue gun, glue sticks, drill (optional), marker, ruler |
| Tools Required | Utility knife/scissors, hot glue gun, drill (if not using knife for holes), ruler, marker |
| Time Required | 30 minutes to 1 hour |
| Difficulty Level | Easy to Moderate |
| Cost | Low (mostly uses household items) |
| Sound Quality | Basic, suitable for DIY projects; not comparable to commercial speakers |
| Portability | Yes, lightweight and easy to carry |
| Durability | Moderate, depends on the quality of materials and construction |
| Customizability | High, can be decorated or modified for personal preference |
| Environmental Impact | Eco-friendly, repurposes plastic waste |
| Key Steps | 1. Cut the bottle to desired shape, 2. Attach the speaker driver, 3. Secure with hot glue, 4. Test and adjust |
| Common Variations | Using multiple bottles for stereo effect, adding a wooden base for stability |
| Safety Precautions | Use caution with sharp tools, avoid overheating glue, ensure proper ventilation |
| Applications | DIY projects, educational activities, emergency speakers |
| Limitations | Limited bass response, lower volume compared to commercial speakers |
| Maintenance | Minimal, occasional cleaning and glue reinforcement if needed |
Explore related products
What You'll Learn
- Gather Materials: Plastic bottle, magnet, coil wire, battery, tape, scissors, and a audio device
- Prepare the Bottle: Cut the bottle, create a base, and smooth edges for assembly
- Make the Coil: Wrap copper wire around a pencil to create a tight, even coil
- Assemble Components: Attach magnet, coil, and battery inside the bottle for functionality
- Connect to Audio: Link the coil to an audio source to produce sound vibrations
Gather Materials: Plastic bottle, magnet, coil wire, battery, tape, scissors, and a audio device
The foundation of your plastic bottle speaker lies in its core components: a magnet, coil wire, and battery. These elements form the electromagnetic driver, the heart of any speaker. The magnet provides a static magnetic field, while the coil wire, when electrified by the battery, creates a fluctuating magnetic field. This interaction generates the vibrations that produce sound. Choose a strong, permanent magnet like a neodymium magnet for optimal performance. For the coil wire, opt for insulated copper wire with a gauge between 22 and 28 AWG – thin enough for flexibility, yet thick enough to handle the current. A 9-volt battery is a common choice, providing sufficient power without being overly bulky.
The plastic bottle serves as the speaker's enclosure, amplifying and directing the sound waves. Opt for a sturdy bottle, preferably with a wide mouth for easier assembly. Clear bottles allow you to see the internal components, adding a touch of visual appeal. Consider the bottle's size: larger bottles can produce deeper bass, while smaller ones may offer better portability. Remember, the bottle's shape and material will influence the sound quality, so experiment to find the sweet spot between aesthetics and acoustics.
Connecting the components requires precision and care. Start by stripping the ends of your coil wire, exposing the conductive copper. Attach one end to the battery's positive terminal and the other to the negative terminal, ensuring a secure connection. Use tape to insulate any exposed wire, preventing short circuits. The magnet should be positioned close to the coil, but not touching, to allow for free movement. A small gap of 1-2 millimeters is ideal. Secure the magnet and coil assembly inside the bottle, ensuring it's centered and stable.
As you gather your materials, consider the audio device you'll be using. Smartphones, MP3 players, or computers are common choices. Ensure your device has a standard 3.5mm audio jack or a compatible output. If using a smartphone, you might need an adapter for newer models without headphone jacks. Test your audio device's output volume and adjust the speaker's components accordingly – a higher volume may require a stronger magnet or more coil wire turns. With these materials and considerations in mind, you're ready to embark on the exciting journey of building your own plastic bottle speaker.
Eco-Friendly Tips: Insulating Plastic Bottles for Everyday Use
You may want to see also
Explore related products
Prepare the Bottle: Cut the bottle, create a base, and smooth edges for assembly
The first step in transforming a plastic bottle into a speaker is to cut it to the desired size. Using a sharp utility knife or scissors, carefully slice the bottle in half horizontally, approximately 2-3 inches from the bottom. This will create a cylindrical shape that serves as the main body of your speaker. For precision, consider marking the cutting line with a permanent marker beforehand. Ensure a straight cut by applying even pressure and moving the blade steadily around the bottle’s circumference. Safety is paramount; work on a stable surface and keep your fingers clear of the cutting path.
Once the bottle is cut, creating a stable base is essential for functionality and aesthetics. The bottom portion of the bottle, which you separated earlier, can be repurposed as the base. To attach it securely, drill a small hole through the center of the base and the bottom of the main body. Insert a screw or a short bolt through these holes, tightening it with a nut on the inside to hold the pieces together. Alternatively, use a strong adhesive like epoxy or hot glue for a simpler, tool-free approach. A sturdy base ensures the speaker remains upright and reduces unwanted vibrations that could distort sound quality.
Smoothing the edges of the bottle is a critical yet often overlooked step. Rough edges can be sharp and pose a safety hazard, while also hindering the assembly of additional components. Use sandpaper (120-grit for initial smoothing, followed by 220-grit for finer finishing) to gently file down the cut edges. For hard-to-reach areas, wrap the sandpaper around a small wooden dowel or use a sanding sponge. If you have access to a heat gun or hairdryer, lightly heat the edges and smooth them with a flat tool, but be cautious to avoid melting the plastic unevenly. Smooth edges not only improve safety but also create a professional look and ensure seamless integration with other speaker parts.
Incorporating these steps—cutting the bottle, creating a base, and smoothing edges—lays the foundation for a functional and visually appealing DIY speaker. Each stage requires attention to detail and the right tools, but the results are well worth the effort. By repurposing a plastic bottle, you not only craft a unique audio device but also contribute to reducing waste. This preparation phase sets the stage for the next steps, where the bottle will be transformed into a fully operational speaker, blending creativity with practicality.
DIY Haunted House Lamp: Upcycle Plastic Bottles for Spooky Decor
You may want to see also
Explore related products
Make the Coil: Wrap copper wire around a pencil to create a tight, even coil
Creating a tight, even coil from copper wire is a critical step in building a functional speaker from a plastic bottle. The coil acts as the voice coil, which interacts with the magnet to produce sound waves. To begin, select a pencil with a diameter that matches the desired coil size—typically around 5 to 7 millimeters for this project. The pencil serves as a mandrel, providing a uniform shape for the coil. Ensure the wire is enamel-coated copper, as this type is readily available and ideal for DIY speakers. Strip a small section of the wire’s coating at both ends to allow for electrical connections later.
Start wrapping the wire tightly around the pencil, maintaining consistent tension to avoid gaps or overlaps. Aim for 20 to 30 turns of wire, as this range strikes a balance between coil length and efficiency. Too few turns reduce the coil’s magnetic interaction, while too many can increase resistance and hinder performance. Work slowly and methodically, using your fingers or a small tool to guide the wire if needed. The goal is a coil that slides off the pencil easily but retains its shape, ensuring it fits snugly within the speaker’s assembly.
Comparing this process to professional speaker manufacturing highlights its simplicity. Commercial speakers use precision machinery to wind coils, but the pencil method achieves similar results with household tools. The key difference lies in consistency: handmade coils may have slight variations, but for a DIY project, these imperfections are negligible. In fact, the hands-on approach offers a deeper understanding of how speakers function, making it an educational and rewarding experience.
A practical tip to enhance coil quality is to secure the wire’s starting point with a small piece of tape before wrapping. This prevents slippage and ensures the coil remains centered on the pencil. Once complete, gently slide the coil off the pencil and inspect it for uniformity. If the coil is uneven, carefully adjust the turns without unwinding the entire piece. Finally, attach the stripped ends of the wire to the speaker’s terminals, ensuring a secure connection for optimal sound output. This step, though simple, is foundational to transforming a plastic bottle into a working speaker.
DIY Birdhouse: Upcycle a Plastic Bottle for Feathered Friends
You may want to see also
Explore related products
Assemble Components: Attach magnet, coil, and battery inside the bottle for functionality
The heart of any speaker lies in its ability to convert electrical signals into sound waves, and this is where the magnet, coil, and battery come into play. These components, when assembled correctly inside a plastic bottle, form the core of your DIY speaker. The magnet provides a stable magnetic field, the coil (or voice coil) moves in response to the electrical current, and the battery powers the entire setup. Understanding their roles is crucial before you begin assembling them.
Step-by-Step Assembly:
- Prepare the Coil: Start by wrapping insulated copper wire (22-24 gauge) around a cylindrical object (like a pen) to create a coil. Aim for 50-100 turns, ensuring the wire is tightly wound. Strip the ends of the wire to expose the copper for connections.
- Secure the Magnet: Place a small neodymium magnet (10-15mm in diameter) at the base of the bottle. Use hot glue or epoxy to fix it in place, ensuring it doesn’t shift during operation.
- Position the Coil: Attach the coil above the magnet, allowing it to move freely. Suspend it using thin wires or threads tied to the bottle’s neck, ensuring it’s centered over the magnet.
- Connect the Battery: Use a 1.5V AA or AAA battery to power the coil. Connect one end of the coil to the battery’s positive terminal and the other to the negative terminal, completing the circuit. Add an audio jack or small amplifier for better sound quality.
Cautions and Tips: Avoid using magnets larger than 15mm, as they can overpower the coil and reduce sound clarity. Ensure the coil doesn’t touch the magnet or bottle walls to prevent friction and distortion. Test the setup with low-volume audio initially to avoid damaging the coil.
Why This Works: When an audio signal passes through the coil, it creates a fluctuating magnetic field that interacts with the permanent magnet, causing the coil to vibrate. These vibrations are transferred to the bottle, amplifying the sound. The bottle acts as a resonating chamber, enhancing the audio output.
By carefully assembling the magnet, coil, and battery, you transform a simple plastic bottle into a functional speaker. This hands-on project not only demonstrates the principles of electromagnetism but also offers a satisfying way to repurpose everyday materials.
DIY Plastic Spray Bottle: Simple Homemade Crafting Guide
You may want to see also
Explore related products
Connect to Audio: Link the coil to an audio source to produce sound vibrations
The coil, when connected to an audio source, acts as the speaker's voice coil, converting electrical signals into mechanical vibrations. This is the heart of your plastic bottle speaker's functionality. To achieve this, you'll need a few key components: a 3.5mm audio jack, some insulated copper wire (22-26 AWG is ideal), and a magnet. The audio jack will allow you to connect your speaker to devices like smartphones or laptops. Strip about 1 cm of insulation from each end of the wire and attach one end to the audio jack's tip (the positive terminal) and the other to the sleeve (the negative terminal). Ensure a secure connection using solder or strong adhesive.
Now, let's delve into the science behind this connection. When an audio signal travels through the wire, it creates a fluctuating magnetic field around the coil. This field interacts with the permanent magnet, causing the coil to move back and forth rapidly. The coil is attached to the plastic bottle's diaphragm (usually the cut-out bottom), which vibrates in response, producing sound waves. The frequency and amplitude of these vibrations correspond to the audio signal, resulting in the reproduction of sound.
Connecting the coil to an audio source requires some precision. Start by identifying the polarity of your audio jack; the tip is typically the positive terminal, and the sleeve is negative. Match these to the corresponding ends of your coil wire. A small mistake here can lead to a phase inversion, causing the speaker to produce sound that is out of sync with the original audio. If you're unsure, test the connection by playing a simple tone and adjusting the wire connections until the sound is clear and accurate.
For optimal performance, consider the following tips: Use a strong magnet, such as a neodymium magnet, to ensure a powerful magnetic field. Keep the coil as lightweight as possible to allow for faster and more responsive vibrations. Experiment with different bottle sizes and shapes to find the one that produces the best sound quality for your preferences. Remember, the goal is to create a balanced system where the coil's movement is directly proportional to the audio signal, resulting in clear and accurate sound reproduction.
In practice, this step is where your plastic bottle speaker comes to life. By carefully linking the coil to an audio source, you're transforming a simple DIY project into a functional device. This connection is the bridge between the digital audio world and the physical vibrations that create sound. With patience and attention to detail, you can achieve impressive results, proving that even a humble plastic bottle can be a canvas for creativity and scientific exploration.
Enhance Your Plastic Water Bottle: Creative Upgrades for Sustainability and Style
You may want to see also
Frequently asked questions
You’ll need a plastic bottle, a small speaker or audio driver, a utility knife or scissors, glue or tape, and optionally a smartphone or audio device for testing.
Cut the bottom of the bottle to create a base. Then, carefully cut a hole in the side or top of the bottle just large enough to fit your speaker or audio driver snugly.
Yes, most plastic bottles work, but larger bottles (like 2-liter soda bottles) tend to produce better sound due to their size and resonance.
Use glue, tape, or a rubber gasket to hold the speaker in place. Ensure it’s tightly sealed to maximize sound projection.
If you’re using a small speaker or audio driver, it may require power from a device like a smartphone or battery pack. The bottle simply amplifies the sound.
