Omar Khalid

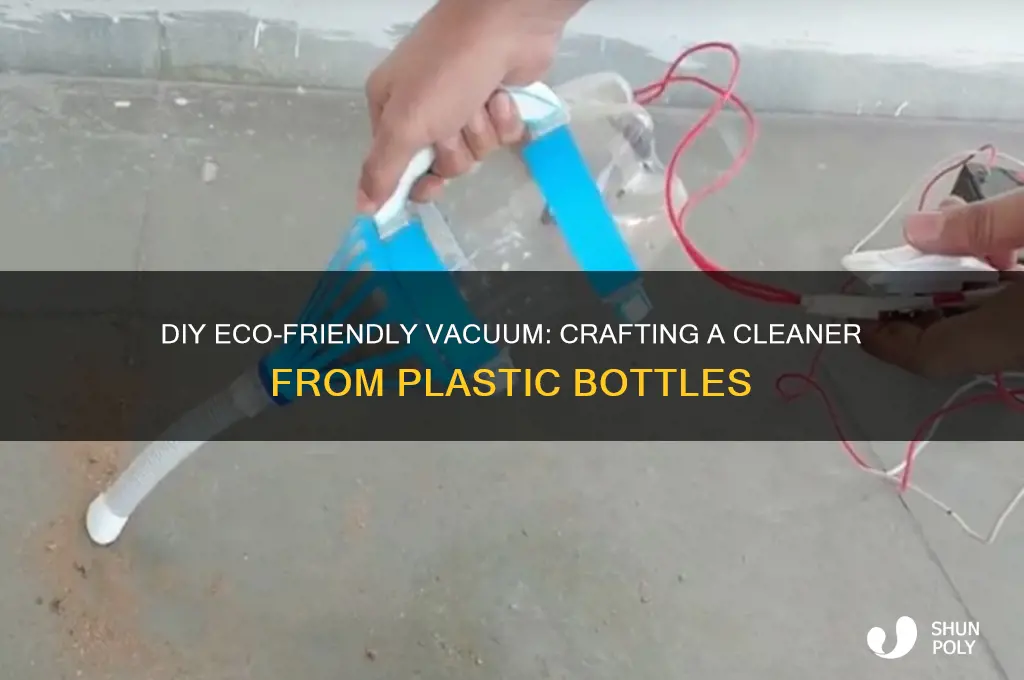

Creating a vacuum cleaner from a plastic bottle is an innovative and eco-friendly DIY project that repurposes everyday materials into a functional tool. By using a plastic bottle, a small electric motor, and a few basic supplies, you can assemble a simple yet effective vacuum cleaner for small cleaning tasks. This project not only reduces waste but also provides a hands-on learning experience about mechanics and sustainability. With step-by-step instructions, anyone can transform a discarded bottle into a handy cleaning device, proving that creativity and resourcefulness can solve everyday problems while minimizing environmental impact.
| Characteristics | Values |
|---|---|
| Materials Needed | Plastic bottle, DC motor, battery, switch, glue, scissors, hose/pipe |
| Bottle Size | 1.5-2 liter plastic bottle (standard soda bottle) |
| Power Source | Rechargeable battery (e.g., 9V or 12V) |
| Motor Type | Small DC motor (e.g., from an old toy or CD-ROM drive) |
| Suction Power | Limited, suitable for small debris like dust or crumbs |
| Cost | Low-cost (mostly uses recycled materials) |
| Portability | Lightweight and handheld |
| Durability | Temporary, not as durable as commercial vacuum cleaners |
| Noise Level | Moderate, depending on the motor used |
| Filtration | Basic (can add a cloth or mesh filter inside the bottle) |
| Ease of Construction | Simple, DIY-friendly |
| Environmental Impact | Eco-friendly (reuses plastic bottle and recycled parts) |
| Applications | Small cleaning tasks, car interiors, tight spaces |
| Maintenance | Requires frequent emptying of the bottle and cleaning of the filter |
| Safety Precautions | Ensure proper wiring to avoid short circuits; use insulated components |
| Customization | Can modify size, motor, or battery for better performance |
Explore related products
What You'll Learn
- Gather Materials: Plastic bottle, motor, battery, switch, glue, scissors, drill, filter, nozzle, and tape
- Prepare the Bottle: Cut the bottle, smooth edges, and create openings for airflow and components
- Assemble the Motor: Attach the motor to the bottle, connect the battery, and add a switch
- Create the Nozzle: Design and attach a nozzle for suction, ensuring a tight seal for efficiency
- Add Filters: Install filters to trap dust, using foam, cloth, or mesh for effective cleaning
Gather Materials: Plastic bottle, motor, battery, switch, glue, scissors, drill, filter, nozzle, and tape
The foundation of your DIY vacuum cleaner is a sturdy plastic bottle, preferably a 2-liter soda bottle for optimal capacity and durability. This serves as the dust collection chamber, so ensure it’s clean and dry before starting. Pair it with a small DC motor (12V is ideal) capable of generating sufficient suction—think computer cooling fans or salvaged toy motors. A rechargeable battery pack (like a 12V lithium-ion) provides portability, but always match voltage to the motor’s requirements to avoid burnout. A simple inline switch acts as the power control, while glue, scissors, and tape secure components and seal gaps. A drill is essential for creating precise holes for the motor and nozzle, and a fine mesh filter (coffee filter or cheesecloth) traps dust without clogging airflow. Finally, a narrow nozzle (cut from another bottle or PVC pipe) directs suction effectively. Each material plays a critical role, so choose quality components for a functional, long-lasting device.
Analyzing the material list reveals a balance between accessibility and functionality. The plastic bottle, scissors, and tape are household staples, making this project budget-friendly. However, the motor, battery, and switch may require sourcing from electronics stores or online retailers. For safety, opt for low-voltage components (12V or less) to minimize risk, especially if this is a family or educational project. The drill demands caution—adult supervision is advised for younger makers. The filter, often overlooked, is crucial for preventing dust from damaging the motor or escaping back into the air. A comparative look at store-bought vacuums highlights the trade-off: while this DIY version lacks commercial power, it’s customizable, eco-friendly, and a great learning tool for understanding basic mechanics and circuitry.
Persuasively, gathering these materials isn’t just about assembling parts—it’s about fostering creativity and sustainability. By repurposing a plastic bottle, you’re reducing waste and proving that innovation doesn’t require expensive tools. The motor and battery teach the principles of energy conversion, while the switch introduces basic electrical control. This project is particularly engaging for teens and adults, though younger children can participate with guidance. Practical tips include testing the motor’s suction power before assembly and using hot glue for stronger bonds. For a professional finish, sand rough edges and label the switch clearly. With these materials in hand, you’re not just building a vacuum—you’re crafting a solution that’s as educational as it is functional.
Descriptively, imagine laying out all the components on a workbench: the sleek plastic bottle gleaming under the light, the motor humming softly during a test run, and the battery pack promising hours of cordless operation. The switch clicks satisfyingly, while the drill stands ready to pierce precise openings. Glue, scissors, and tape wait patiently for their moment to unite the parts. The filter, delicate yet essential, ensures clean airflow, and the nozzle, angled just right, promises targeted cleaning. Each item tells a story of transformation—from everyday objects to a cohesive machine. This visual setup isn’t just a collection of materials; it’s a blueprint for ingenuity, ready to come alive with a few careful steps.
Instructively, start by verifying compatibility between the motor and battery, ensuring voltage alignment to prevent damage. Use the drill to create a hole in the bottle cap for the motor shaft, securing it with glue for an airtight fit. Attach the battery and switch in series, using tape or zip ties to keep wires tidy. Cut the nozzle to your desired length and angle, then insert it into a second hole in the bottle’s side. Position the filter inside the bottle’s neck to trap debris without obstructing airflow. Test the setup by powering the motor—if suction is weak, check for leaks or blockages. Once functional, reinforce all connections with additional glue or tape. This step-by-step approach ensures a vacuum that’s not only effective but also safe and reliable for small cleaning tasks.
DIY Urinal: Crafting a Portable Solution with Plastic Bottles
You may want to see also
Explore related products
Prepare the Bottle: Cut the bottle, smooth edges, and create openings for airflow and components
The foundation of your DIY vacuum cleaner lies in a simple plastic bottle, but its transformation requires precision. Begin by selecting a bottle with a sturdy structure, ideally a 2-liter soda bottle, as its size and durability make it an excellent candidate for this project. Using a sharp utility knife or a pair of heavy-duty scissors, carefully cut the bottle in half, approximately 2-3 inches from the bottom. This lower portion will serve as the dust collection chamber, so ensure the cut is straight and clean for optimal functionality.
Edge smoothing is a critical step often overlooked in DIY projects, but it's essential for both safety and performance. Rough edges can cause injuries during handling and may hinder the vacuum's efficiency by disrupting airflow. To smooth the cut edges, employ a fine-grit sandpaper (220-grit or higher) and gently rub the edges in a circular motion. Alternatively, a heat source like a lighter or a hot air gun can be used to slightly melt and smooth the edges, but this method requires caution to avoid warping the plastic.
Creating openings for airflow and components is an art that demands careful planning. The bottle's cap will house the vacuum's motor, so start by drilling a hole in the center of the cap, just large enough to accommodate the motor's shaft. For the airflow, cut a small rectangular opening (approximately 1 inch by 2 inches) on the side of the bottle, about halfway up from the bottom. This opening will allow air to enter the bottle, carrying dust and debris into the collection chamber. Ensure the edges of this opening are also smoothed to maintain optimal airflow.
As you prepare the bottle, consider the placement of additional components, such as the on/off switch and the power cord entry point. A small hole (around 1/4 inch in diameter) can be drilled near the motor housing to accommodate the power cord, while a slightly larger hole (approximately 1/2 inch) can be made for the switch. These openings should be strategically positioned to ensure easy access and a neat overall appearance. Remember, the goal is to create a functional and user-friendly vacuum cleaner, so attention to detail during this preparation stage is crucial.
In the context of DIY projects, especially those involving repurposed materials, the preparation phase is often the most critical. By meticulously cutting, smoothing, and creating openings in the plastic bottle, you're laying the groundwork for a successful vacuum cleaner build. This stage requires patience, precision, and a keen eye for detail, but the end result – a functional cleaning tool crafted from everyday materials – is well worth the effort. As you move forward with the project, keep in mind that the quality of your preparation will directly impact the vacuum's performance, making this step an essential investment in your DIY endeavor.
DIY Birdbath: Upcycle a Plastic Bottle for Feathered Friends
You may want to see also
Explore related products
$52.95
Assemble the Motor: Attach the motor to the bottle, connect the battery, and add a switch
Attaching the motor to the plastic bottle is a pivotal step in transforming your DIY vacuum cleaner from concept to functional tool. Begin by selecting a small DC motor, ideally one with a fan blade attachment, which can be sourced from old electronics like CD drives or computer fans. Position the motor near the bottle’s opening, ensuring it’s centered to maintain airflow efficiency. Secure it using a combination of hot glue and zip ties for stability, as vibrations during operation can loosen weaker attachments. Test the motor’s alignment by spinning it manually; it should rotate freely without touching the bottle’s edges.
Connecting the battery requires precision to avoid short circuits or power loss. Use a 9V battery for compact projects or a rechargeable 12V battery for longer runtime, depending on the motor’s specifications. Attach the battery leads to the motor terminals with soldering for a reliable connection, or use alligator clips for a non-permanent setup. Insulate exposed wires with electrical tape to prevent accidental contact with the bottle or other components. If using a switch, place it inline between the battery and motor to control power flow, ensuring it’s accessible for easy operation.
Adding a switch not only enhances usability but also improves safety by allowing you to turn the vacuum on and off without disconnecting the battery. Choose a slide or toggle switch rated for the motor’s current to avoid overheating. Mount the switch on the bottle’s exterior using a small piece of plastic or cardboard as a base, secured with glue or screws. Ensure the switch is positioned ergonomically, ideally near the handle, for convenient access during use. Double-check all connections before testing to prevent malfunctions or damage.
Practical tips can streamline this process: pre-drill holes in the bottle if using screws to avoid cracking the plastic, and use a multimeter to verify the circuit’s continuity before powering on. For added durability, reinforce the motor’s attachment point with a small wooden or plastic base inside the bottle. If the motor overheats during testing, reduce runtime or add a small heatsink to dissipate excess heat. By carefully assembling the motor, battery, and switch, you’ll create a compact, efficient vacuum cleaner that rivals store-bought models in functionality.
Crafting Heritage Dolls: Upcycling Plastic Bottles into Cultural Treasures
You may want to see also
Explore related products
Create the Nozzle: Design and attach a nozzle for suction, ensuring a tight seal for efficiency
The nozzle is the business end of your DIY vacuum cleaner, where suction meets surface. A poorly designed or attached nozzle will render your creation ineffective, no matter how powerful your vacuum source. Think of it as the straw through which your vacuum "drinks" dirt and debris.
Material Matters: Opt for rigid plastic tubing (like PVC or ABS) for durability. Avoid flexible materials that might collapse under suction. A 1.5- to 2-inch diameter is ideal for balancing airflow and debris pickup. For a tighter seal, consider a slightly tapered design, wider at the bottle connection and narrowing towards the opening.
Attachment Techniques: The key to a tight seal is eliminating air leaks. Hot glue is a popular choice for its quick drying time and strong bond, but be mindful of excessive glue that could obstruct airflow. For a more removable option, use a coupling connector designed for the diameter of your tubing, secured with silicone sealant.
Shape and Function: A straight nozzle is simple and effective for general cleaning. For tighter spaces, consider a curved or angled design. Experiment with adding bristles or a rubber edge to your nozzle for improved dirt pickup on carpets or hard floors.
Remember, the goal is to create a smooth, uninterrupted pathway for airflow. Any gaps or rough edges will diminish suction power. Test your nozzle thoroughly before committing to a permanent attachment method. A little experimentation will ensure your DIY vacuum cleaner performs as efficiently as possible.
DIY Shuttlecock: Crafting with Recycled Plastic Bottles at Home
You may want to see also
Explore related products
Add Filters: Install filters to trap dust, using foam, cloth, or mesh for effective cleaning
Filters are the unsung heroes of any vacuum cleaner, and your DIY plastic bottle version is no exception. Without them, you're just blowing dust around. The key to effective filtration lies in layering materials with varying densities. Start with a coarse layer, like mesh or window screen, to catch larger debris. This prevents clogging and extends the life of your finer filters. Next, add a medium layer, such as foam or a coffee filter, to trap smaller particles. For the final layer, use a fine material like cheesecloth or an old T-shirt to capture microscopic dust. This multi-stage approach ensures that even the tiniest particles are trapped, leaving your air cleaner.
When selecting materials, consider their durability and breathability. Foam is excellent for its flexibility and ability to conform to the bottle's shape, but it can degrade over time. Cloth, on the other hand, is reusable and washable, making it a sustainable choice. Mesh is ideal for the first layer due to its rigidity and large pores, but it’s ineffective on its own. Experiment with combinations—for instance, a mesh and cloth duo works well for quick cleanups, while a foam and cheesecloth pairing is better for thorough dust removal. Remember, the goal is to balance airflow with filtration efficiency.
Installation is straightforward but requires precision. Cut the bottle’s cap to create a snug opening for your filter layers. Secure the mesh first, using a rubber band or hot glue to hold it in place. Add the foam or cloth layer next, ensuring it covers the mesh completely. Finally, tuck in the fine filter, leaving no gaps where dust can escape. Test the setup by running your vacuum; if suction is weak, trim excess material or reduce layers. Conversely, if dust passes through, reinforce the filters or tighten their fit.
One practical tip is to pre-treat cloth filters with a light coating of water or fabric softener to enhance their dust-trapping ability. Avoid over-saturating, as this can restrict airflow. For foam filters, rinse them weekly under running water and squeeze out excess moisture before reinserting. Mesh filters can be cleaned with a brush or compressed air to remove buildup. Regular maintenance ensures your vacuum remains efficient and hygienic.
In comparison to store-bought vacuums, DIY filters offer customization and cost-effectiveness. While commercial models use HEPA filters for superior performance, your layered approach can achieve similar results with household materials. The trade-off is longevity—DIY filters may need more frequent replacement. However, the ability to adapt and experiment makes this method ideal for those who enjoy tinkering. By mastering filtration, you transform a simple plastic bottle into a functional cleaning tool tailored to your needs.
Creative DIY: Crafting a Miniature Car from Plastic Bottles
You may want to see also
Frequently asked questions
You will need a large plastic bottle, a small electric motor (like one from a broken fan or toy), a battery, wires, a switch, a drill, scissors, and a piece of flexible tubing or hose.
Cut a hole in the bottle cap or side of the bottle, just large enough for the motor’s fan blades to fit. Secure the motor in place using glue, tape, or a tight-fitting mount, ensuring the blades are inside the bottle.
Yes, a rechargeable battery (like a 9V or 12V battery) works well. Connect the battery to the motor using wires and a switch to control the power. Ensure the connections are secure and insulated to avoid short circuits.
A DIY plastic bottle vacuum cleaner is less powerful than a commercial one but can handle light tasks like cleaning small areas, dust, or crumbs. It’s a fun, eco-friendly project but not a replacement for a full-sized vacuum.
