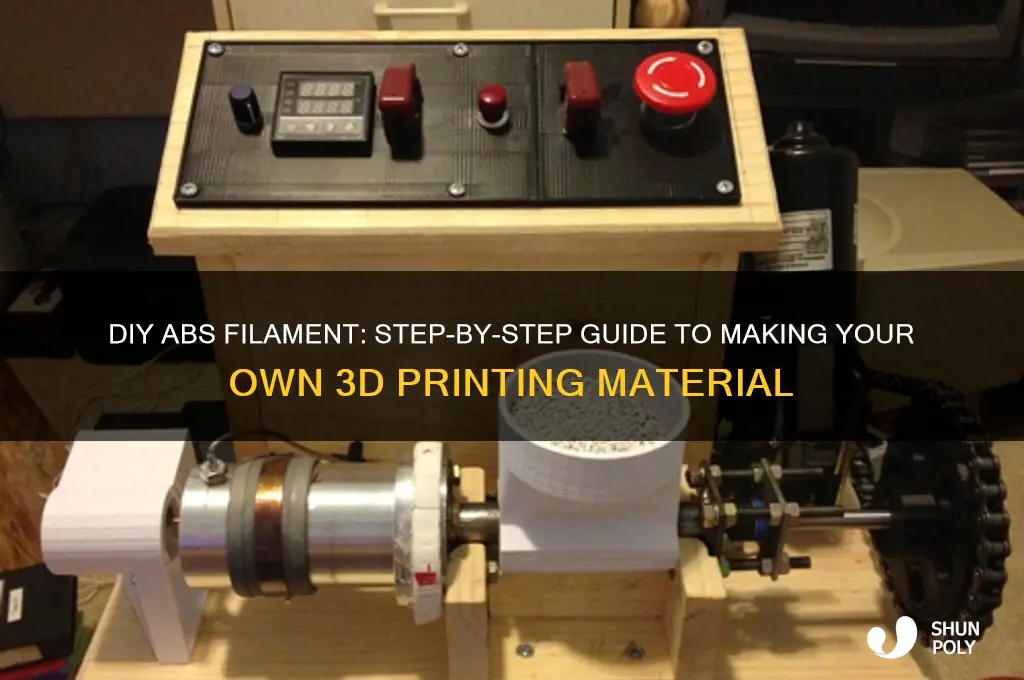

Creating ABS (Acrylonitrile Butadiene Styrene) plastic filament for 3D printing involves a precise process that begins with sourcing high-quality ABS pellets. These pellets are first dried to remove any moisture, as humidity can cause defects during extrusion. The dried pellets are then fed into a filament extruder, where they are heated to their melting point, typically around 200-240°C, and forced through a nozzle to form a consistent diameter, usually 1.75mm or 3mm. The extruded filament is cooled rapidly using a water bath or air cooling system to maintain its shape and prevent warping. Once cooled, the filament is wound onto a spool, ensuring even tension to avoid tangling. Post-processing steps, such as diameter measurement and quality checks, are essential to ensure the filament meets the required specifications for reliable 3D printing. This method allows for the production of custom ABS filament tailored to specific printing needs.
Explore related products
What You'll Learn
- Material Selection: Choose ABS pellets or recycled ABS for filament production, ensuring quality and consistency
- Extrusion Process: Use a filament extruder to melt and shape ABS into 1.75mm or 3mm diameter
- Temperature Control: Maintain optimal extrusion temperature (210-250°C) to prevent jamming or degradation
- Cooling Mechanism: Implement air or water cooling systems to solidify the filament quickly and evenly
- Diameter Consistency: Use a laser diameter gauge to ensure uniform thickness for reliable 3D printing
Material Selection: Choose ABS pellets or recycled ABS for filament production, ensuring quality and consistency
The foundation of high-quality ABS filament lies in the raw material. ABS pellets, typically virgin or prime grade, offer unparalleled consistency in molecular weight, additives, and color. These pellets are specifically engineered for extrusion, ensuring predictable melting behavior and minimal defects. For instance, pellets with a melt flow index (MFI) of 10-15 g/10 min at 220°C are ideal for filament production, as they balance flowability and strength. However, sourcing virgin pellets can be costly, often ranging from $2 to $4 per kilogram, making them a premium choice for small-scale manufacturers.
Recycled ABS presents an eco-friendly and cost-effective alternative, but its variability demands scrutiny. Post-consumer or post-industrial ABS waste often contains contaminants, degraded polymers, or inconsistent additives, which can lead to filament brittleness or clogging. To mitigate this, pre-processing steps such as shredding, washing, and drying are essential. For example, shredded ABS should be dried at 80°C for 4-6 hours to remove moisture, which causes bubbling during extrusion. Additionally, blending recycled ABS with 10-20% virgin pellets can improve consistency, though this requires careful testing to ensure compatibility.
A comparative analysis reveals trade-offs between cost, quality, and sustainability. Virgin ABS pellets guarantee uniformity but strain budgets, while recycled ABS reduces waste but requires rigorous quality control. For hobbyists, recycled ABS is a viable option if sourced from known origins, such as unused 3D prints or industrial scraps. Commercial producers, however, may prioritize virgin pellets to meet stringent standards for dimensional accuracy and mechanical properties. A hybrid approach, combining recycled material with virgin additives, can strike a balance, though it necessitates investment in testing equipment like differential scanning calorimeters (DSC) to verify material integrity.
Practical tips for material selection include conducting small-batch trials to assess extrusion performance and mechanical properties. For recycled ABS, sieve shredded material to remove particles larger than 5 mm, which can jam extruders. When using virgin pellets, verify supplier certifications (e.g., ISO 9001) to ensure purity. Regardless of the source, maintain a consistent extrusion temperature of 210-230°C and monitor filament diameter with a laser gauge to detect deviations. By prioritizing material quality and adopting adaptive strategies, producers can achieve filament that meets both functional and economic criteria.
Transform Your Backyard: DIY Fish Pond Using a Plastic Pool
You may want to see also
Explore related products
Extrusion Process: Use a filament extruder to melt and shape ABS into 1.75mm or 3mm diameter
The extrusion process is the heart of transforming ABS pellets into usable 3D printing filament. This method involves heating the plastic to its melting point and then precisely shaping it into a consistent diameter, typically 1.75mm or 3mm, suitable for most desktop 3D printers. A filament extruder, often a specialized machine designed for this purpose, is essential for achieving the required uniformity and quality. The process begins by feeding ABS pellets into the extruder’s hopper, where they are gradually melted as they pass through a heated barrel. A drive gear or screw mechanism then forces the molten plastic through a nozzle, which determines the filament’s final diameter. Temperature control is critical here; ABS typically melts between 210°C and 240°C, but slight variations can affect the filament’s strength and flexibility.
One of the key challenges in extrusion is maintaining consistency in diameter and roundness, as even minor deviations can lead to printing failures. To address this, filament extruders often include a spooling mechanism that winds the filament while simultaneously measuring its diameter using a laser or mechanical gauge. If the filament deviates from the target diameter, the extruder adjusts the pull rate or temperature to correct the issue in real time. Additionally, cooling the filament immediately after extrusion is crucial to prevent warping or deformation. This is typically achieved using a water bath or air cooling system, depending on the extruder’s design.
For DIY enthusiasts, building or modifying a filament extruder can be a cost-effective alternative to purchasing a commercial unit. However, this approach requires careful calibration and experimentation to achieve reliable results. Pre-made extruders, while more expensive, offer plug-and-play convenience and often include advanced features like automated diameter control and remote monitoring. Regardless of the setup, regular maintenance is essential to ensure longevity and performance. This includes cleaning the nozzle to prevent clogs, lubricating moving parts, and periodically replacing wear components like drive gears.
A practical tip for optimizing the extrusion process is to use a drying agent or desiccant to remove moisture from the ABS pellets before extrusion. ABS is hygroscopic, meaning it absorbs moisture from the air, which can lead to bubbling or inconsistencies in the filament. Pre-drying the pellets in an oven at 80°C for 4–6 hours can significantly improve the final product’s quality. Another useful technique is to experiment with different extrusion speeds to find the optimal balance between throughput and precision. Slower speeds generally yield more consistent results but increase production time, while faster speeds can introduce variability but reduce overall processing time.
In conclusion, the extrusion process is both an art and a science, requiring attention to detail and a willingness to experiment. Whether using a commercial extruder or a DIY setup, understanding the interplay between temperature, speed, and cooling is crucial for producing high-quality ABS filament. By mastering these variables and incorporating practical tips like pre-drying pellets and optimizing extrusion speed, makers can achieve filament that rivals commercially available options in both performance and reliability.
Crafting Lifelike Plastic Flowers: A Detailed Step-by-Step Guide
You may want to see also
Explore related products
Temperature Control: Maintain optimal extrusion temperature (210-250°C) to prevent jamming or degradation
Extruding ABS plastic filament requires precision, and temperature control is the linchpin. The optimal extrusion range of 210-250°C isn’t arbitrary—it’s the sweet spot where ABS melts smoothly without degrading. Below 210°C, the material doesn’t flow evenly, leading to inconsistent diameter and potential nozzle jams. Above 250°C, ABS begins to break down, releasing noxious fumes and weakening the filament’s structural integrity. This narrow window demands vigilant monitoring, especially when transitioning from one material to another, as residual heat can skew initial readings.
Achieving consistent temperature control starts with calibration. Most extruders rely on PID (Proportional-Integral-Derivative) controllers, which adjust heating elements based on real-time feedback. Before production, run a test extrusion to fine-tune the PID settings. Gradually increase the temperature in 5°C increments, observing the filament’s flow. If it’s stringy or uneven, the temperature is too high; if it’s clumpy or resists extrusion, it’s too low. Once calibrated, maintain a steady temperature by avoiding rapid fluctuations, which can stress the heating element and compromise accuracy.
Ambient conditions also play a role in temperature stability. Extruding in a cold environment can cause heat loss, forcing the extruder to work harder to maintain the set temperature. Conversely, high humidity can lead to moisture absorption in ABS, causing bubbling or popping during extrusion. To mitigate these issues, operate in a controlled environment—ideally at room temperature (20-25°C) with low humidity. Pre-drying ABS pellets or granules in an oven at 80°C for 4-6 hours eliminates moisture, ensuring smoother extrusion and reducing the risk of temperature-related defects.
Despite careful calibration, temperature-related issues can still arise. Jamming often occurs when the filament cools prematurely in the nozzle, a problem exacerbated by low extrusion speeds or inadequate insulation. To prevent this, use a silicone sock or high-temperature tape to maintain heat around the nozzle. Degradation, on the other hand, is irreversible but preventable. If you notice a sharp, acrid smell or discoloration in the filament, immediately reduce the temperature and inspect the material. Prolonged exposure to high heat not only ruins the batch but also shortens the lifespan of your extruder components.
Mastering temperature control is both an art and a science. It requires attention to detail, from initial calibration to environmental adjustments. By staying within the 210-250°C range and addressing variables like moisture and insulation, you can produce high-quality ABS filament consistently. Remember, temperature isn’t just a setting—it’s the foundation of successful extrusion.
Crafting Custom Plastic Pistol Grips: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Cooling Mechanism: Implement air or water cooling systems to solidify the filament quickly and evenly
Rapid and uniform cooling is critical when extruding ABS plastic filament to prevent warping, ensure dimensional accuracy, and maintain material properties. Air cooling systems, while simpler and more cost-effective, rely on ambient airflow directed around the filament as it exits the nozzle. A well-designed air cooling system uses a series of fans or blowers positioned at a 45-degree angle to the filament path, ensuring even exposure without causing turbulence that could disrupt the extrusion. For optimal results, maintain a nozzle-to-cooling zone distance of 2–3 cm and adjust fan speeds to achieve a cooling rate of 10–15°C per second, sufficient for ABS’s glass transition temperature of ~105°C.
Water cooling systems offer superior heat dissipation for high-throughput production or precision applications. These systems typically employ a water bath or misting nozzles positioned immediately below the extrusion die. A water bath should maintain a temperature of 20–25°C, with the filament submerged for 1–2 seconds to achieve rapid solidification. Misting systems, while less common, use a fine spray of water droplets at 50–100 psi to cool the filament without direct contact, reducing the risk of moisture absorption. Both methods require filtration and temperature control to prevent contamination or thermal shock.
The choice between air and water cooling depends on production scale, filament diameter, and desired surface finish. Air cooling is ideal for hobbyist setups or filaments larger than 2.85 mm, where slower cooling rates are tolerable. Water cooling, however, is essential for diameters below 1.75 mm or when producing high-gloss finishes, as it minimizes surface imperfections caused by uneven cooling. For hybrid systems, combining a preliminary air blast with a water bath can optimize both cooling speed and surface quality, though this adds complexity and cost.
Implementing either system requires careful calibration. Monitor filament temperature post-cooling using infrared thermometers, aiming for a consistent drop to below 60°C within 5 seconds of extrusion. Adjust cooling intensity based on extrusion speed—faster rates demand more aggressive cooling. Additionally, insulate the cooling zone to prevent heat loss from the extruder, which can disrupt material flow. Regularly inspect nozzles and cooling components for clogs or wear, as even minor obstructions can lead to inconsistent filament diameter or surface defects.
In conclusion, a well-engineered cooling mechanism is not just an accessory but a cornerstone of ABS filament production. Whether opting for air, water, or a hybrid approach, precision in design and execution ensures filament that meets both mechanical and aesthetic standards. By balancing cooling rate, method, and environmental control, manufacturers can produce ABS filament that rivals commercially available options in quality and reliability.
DIY Composting: Create a Plastic Container Bin at Home Easily
You may want to see also
Explore related products
Diameter Consistency: Use a laser diameter gauge to ensure uniform thickness for reliable 3D printing
Achieving consistent filament diameter is critical for successful 3D printing, as variations can lead to uneven extrusion, jamming, or poor layer adhesion. A laser diameter gauge emerges as a precision tool to address this challenge, offering real-time measurements with micron-level accuracy. Unlike mechanical calipers or micrometers, which can deform soft ABS during measurement, laser gauges provide non-contact assessment, preserving the filament’s integrity while ensuring uniformity.
To implement this method, begin by calibrating the laser gauge according to the manufacturer’s instructions, typically setting it to measure within a range of 1.75 mm ± 0.02 mm or 2.85 mm ± 0.02 mm, depending on your filament standard. Pass the freshly extruded ABS filament through the gauge at a controlled speed, ensuring the laser beam captures the diameter at multiple points along its length. Record deviations and adjust the extruder’s temperature, screw speed, or die dimensions accordingly to correct inconsistencies.
One practical tip is to integrate the laser gauge into your filament production line as a feedback mechanism. For instance, if the gauge detects a diameter exceeding 1.77 mm, reduce the extruder temperature by 5–10°C to decrease material expansion. Conversely, if the diameter falls below 1.73 mm, slightly increase the feed rate or screw speed to add more material. This iterative process ensures the final filament meets the required specifications for seamless 3D printing.
While laser gauges offer unparalleled precision, they require careful handling. Avoid exposing the device to direct sunlight or ambient light interference, which can skew readings. Additionally, maintain a clean lens to prevent dust or debris from obstructing the laser beam. By incorporating this technology into your workflow, you not only enhance filament quality but also reduce material waste and printer downtime, making it an indispensable tool for ABS filament production.
Understanding the Cost of Producing Biodegradable Plastic: A Comprehensive Guide
You may want to see also
Frequently asked questions
ABS (Acrylonitrile Butadiene Styrene) is a common thermoplastic used in 3D printing for its strength, durability, and heat resistance. Making it yourself allows you to customize colors, save costs, and experiment with additives like carbon fiber or glow-in-the-dark pigments.
You’ll need ABS pellets or recycled ABS plastic, a filament extruder (or DIY setup), a nozzle die, a spool, and a temperature-controlled heating system. Optional tools include a grinder for recycling and a spool winder for consistency.
ABS melts between 210°C and 240°C (410°F to 464°F). Maintain a consistent temperature to ensure smooth extrusion and avoid clogging or uneven filament diameter.
Use a calibrated nozzle die, maintain a steady extrusion speed, and monitor the temperature closely. Pulling the filament at a consistent rate and using a spool winder helps achieve uniform thickness.
