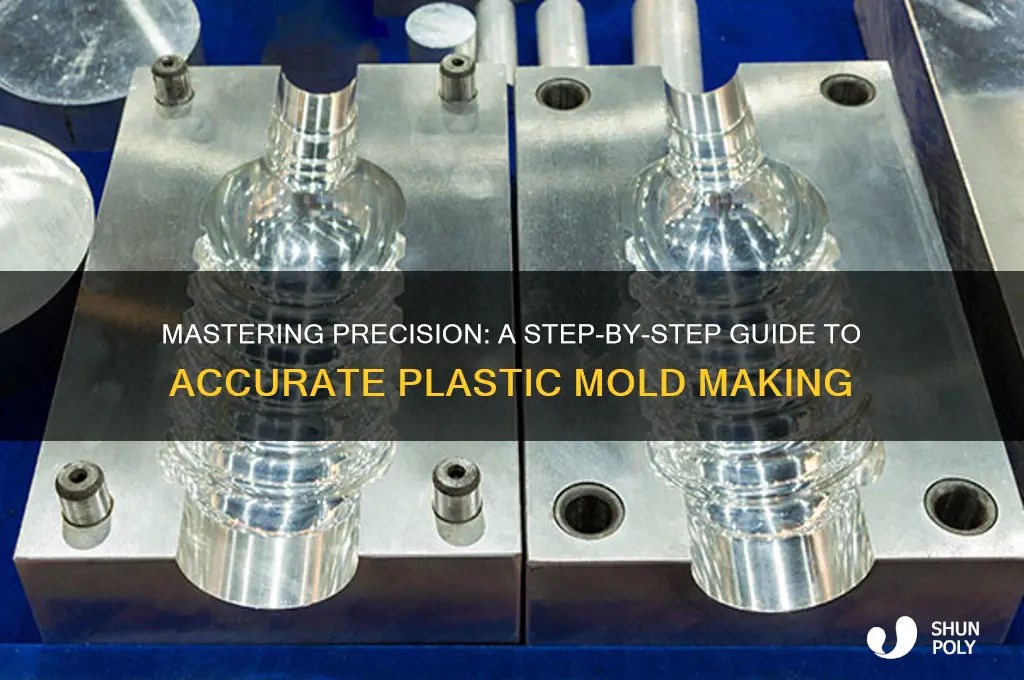

Creating an accurate plastic mold is a precise process that requires careful planning, attention to detail, and the right materials and tools. It begins with designing the mold using CAD software to ensure the dimensions and specifications are exact, followed by selecting a suitable mold material such as aluminum, steel, or epoxy resin based on the application and production volume. The next step involves machining or 3D printing the mold to achieve the desired shape, ensuring smooth surfaces and tight tolerances to minimize defects. Proper surface finishing, such as polishing or applying release agents, is crucial to prevent sticking and ensure easy part removal. Finally, testing the mold with sample materials helps identify and correct any imperfections before full-scale production, guaranteeing consistent and high-quality results.
Explore related products
What You'll Learn
- Material Selection: Choose high-quality, mold-specific plastics for durability and precision in the final product
- Design Precision: Use CAD software to create detailed, error-free 3D models for molding
- Prototyping Techniques: Test molds with rapid prototyping to identify and fix defects early
- Machining Processes: Employ CNC milling or EDM for precise mold cavity and core creation
- Surface Finishing: Polish mold surfaces to ensure smooth, defect-free parts during production
Material Selection: Choose high-quality, mold-specific plastics for durability and precision in the final product
The foundation of any accurate plastic mold lies in the material itself. Choosing the wrong plastic can lead to warping, shrinkage, or surface imperfections, compromising the final product's quality. High-quality, mold-specific plastics are engineered to withstand the pressures and temperatures of molding while maintaining dimensional stability. For instance, polypropylene (PP) and acrylonitrile butadiene styrene (ABS) are popular choices due to their balance of flexibility, strength, and heat resistance. However, for applications requiring extreme precision, polycarbonate (PC) or liquid silicone rubber (LSR) may be more suitable, as they offer superior detail retention and durability.
Selecting the right plastic involves more than just picking a name from a list. Consider the molding process itself. Injection molding, for example, demands materials with low viscosity to flow evenly into intricate cavities, while blow molding requires plastics with excellent melt strength. Additives also play a critical role. UV stabilizers, for instance, are essential for outdoor products, while glass fiber reinforcements enhance rigidity in structural components. A practical tip: consult material data sheets to ensure the plastic’s shrinkage rate aligns with your mold design, as even a 0.1% mismatch can lead to dimensional inaccuracies.
From a cost-effectiveness standpoint, investing in premium mold-specific plastics often pays dividends in the long run. Cheaper, generic plastics may save money upfront but can lead to higher scrap rates, increased downtime, and frequent mold repairs. For example, using high-density polyethylene (HDPE) in a mold designed for polyethylene terephthalate (PET) can result in poor surface finish and reduced part lifespan. Conversely, thermoplastic elastomers (TPEs) offer a unique blend of rubber-like flexibility and thermoplastic processability, making them ideal for molds requiring both precision and resilience.
Finally, sustainability is becoming a key factor in material selection. Biodegradable plastics like polylactic acid (PLA) are gaining traction, though they may not suit all applications due to their lower heat resistance. For eco-conscious projects, recycled PET (rPET) offers a viable alternative, combining durability with reduced environmental impact. Always test prototypes with your chosen material to ensure it meets both performance and sustainability goals. In the end, the right plastic isn’t just about the mold—it’s about the product’s entire lifecycle.
Creative DIY: Crafting Durable Plastic Garden Decor Step-by-Step
You may want to see also
Explore related products
Design Precision: Use CAD software to create detailed, error-free 3D models for molding
Achieving precision in plastic mold design begins with leveraging Computer-Aided Design (CAD) software to create detailed, error-free 3D models. CAD tools like SolidWorks, Autodesk Fusion 360, or Rhino allow designers to define every dimension, curve, and feature with micron-level accuracy. These models serve as the blueprint for the mold, ensuring that the final product aligns perfectly with the intended design. Without this level of detail, even minor discrepancies can lead to costly rework or defective parts.
Consider the process of designing a complex component, such as a medical device housing. Using CAD, designers can incorporate draft angles, fillets, and wall thicknesses tailored to the material’s properties, ensuring optimal moldability. For instance, a wall thickness of 1.5–3 mm is ideal for most thermoplastics, balancing strength and ease of molding. CAD software also enables simulation of the molding process, identifying potential issues like air traps or sink marks before physical production begins. This proactive approach saves time and resources by minimizing trial-and-error iterations.
One of the most compelling advantages of CAD is its ability to facilitate collaboration between designers, engineers, and manufacturers. Cloud-based platforms like Onshape allow real-time updates and feedback, ensuring all stakeholders work from the same precise model. This eliminates miscommunication and reduces the risk of errors introduced during manual translation of designs. For example, a designer can specify a tolerance of ±0.02 mm for critical dimensions, and the manufacturer can verify this directly in the CAD file, ensuring alignment with production capabilities.
However, precision in CAD modeling requires adherence to best practices. Designers must avoid overcomplicating models with unnecessary features, as this can increase computation time and file size without adding value. Instead, focus on creating parametric models that allow for easy adjustments. For instance, if a part’s height needs to change from 50 mm to 55 mm, a parametric model can update all related dimensions automatically, maintaining consistency. Additionally, regular validation against industry standards, such as ISO 1101 for geometric tolerancing, ensures the model meets manufacturing requirements.
In conclusion, CAD software is indispensable for achieving design precision in plastic mold making. By creating detailed, error-free 3D models, designers can anticipate and address potential issues early, collaborate effectively, and ensure the final mold meets exact specifications. Whether designing simple enclosures or intricate components, mastering CAD tools and adhering to best practices is the cornerstone of successful mold production.
DIY Toy MP5: Transforming Plastic Magazines into Fun Creations
You may want to see also
Explore related products
Prototyping Techniques: Test molds with rapid prototyping to identify and fix defects early
Rapid prototyping serves as a critical bridge between mold design and final production, allowing defects to be identified and corrected before costly tooling investments are made. By creating test molds using technologies like 3D printing, stereolithography (SLA), or selective laser sintering (SLS), manufacturers can simulate the molding process with materials that mimic the properties of production-grade plastics. For instance, a prototype mold for a complex automotive component might reveal issues such as uneven wall thickness or insufficient draft angles, which could lead to warping or ejection problems in mass production. This early-stage testing not only saves time but also reduces material waste and rework expenses.
The process begins with designing a digital model of the mold, which is then translated into a physical prototype using rapid prototyping equipment. For example, SLA can produce high-resolution parts with smooth surfaces, ideal for testing intricate geometries, while SLS offers durability suitable for functional testing under stress. Once the prototype mold is created, it undergoes a series of trials using low-cost materials like ABS or PLA to simulate injection molding conditions. Engineers can then analyze the molded parts for defects such as air bubbles, sink marks, or dimensional inaccuracies, which often stem from flaws in the mold design or material flow dynamics.
A key advantage of this approach is its iterative nature. After identifying defects, adjustments can be made to the digital model, and a revised prototype can be produced within hours or days, depending on the complexity. For example, if a test reveals that a sharp corner is causing material to accumulate unevenly, the design can be modified to include a fillet or radius, and the updated mold can be tested immediately. This cycle of testing and refinement continues until the prototype consistently produces defect-free parts, ensuring that the final production mold will perform as expected.
However, rapid prototyping is not without its limitations. Prototype molds may not fully replicate the thermal and mechanical properties of production tooling, which can lead to discrepancies in part quality. For instance, 3D-printed molds may have lower heat resistance, affecting material flow and cooling times. To mitigate this, engineers should focus on testing design principles rather than material behavior, using the prototype as a tool to validate geometry, gating systems, and cooling channels. Additionally, combining rapid prototyping with simulation software can provide a more comprehensive understanding of potential issues before physical testing begins.
In conclusion, integrating rapid prototyping into the mold development process is a strategic investment that pays dividends in accuracy and efficiency. By treating prototypes as experimental platforms for defect detection, manufacturers can fine-tune their designs with minimal risk and expense. Whether for small-batch production or large-scale manufacturing, this technique ensures that the final mold meets stringent quality standards, reducing the likelihood of costly errors in the later stages of production. With advancements in prototyping technologies, this method is becoming increasingly accessible, making it an indispensable tool for modern mold-making.
Crafting Custom Plastic Models: A Beginner's Guide to DIY Creations
You may want to see also
Explore related products
Machining Processes: Employ CNC milling or EDM for precise mold cavity and core creation
CNC milling and Electrical Discharge Machining (EDM) are indispensable for achieving the precision required in mold cavity and core creation. These processes excel where traditional methods fall short, particularly in handling complex geometries and tight tolerances. CNC milling, for instance, uses computer-controlled rotary cutters to remove material from a workpiece, allowing for intricate designs with tolerances as tight as ±0.001 inches. EDM, on the other hand, employs electrical sparks to erode material, making it ideal for hard-to-machine materials like hardened steel. Together, they ensure molds meet the exacting demands of modern plastic manufacturing.
To leverage CNC milling effectively, start by selecting the right tooling and materials. High-speed steel or carbide end mills are recommended for their durability and precision. Program the CNC machine using CAD/CAM software to define toolpaths, ensuring optimal material removal rates and surface finishes. For example, a 4-flute carbide end mill at 12,000 RPM with a feed rate of 100 inches per minute can achieve a mirror-like finish on aluminum molds. Always perform test cuts on scrap material to fine-tune settings before machining the final mold.
EDM shines in scenarios where CNC milling reaches its limits, such as creating sharp corners or deep cavities. Wire EDM, a subset of this process, uses a thin wire to cut intricate shapes with tolerances as low as ±0.0001 inches. For mold cores, sinker EDM is preferred, as it allows for the creation of 3D cavities by eroding material with a shaped electrode. A key tip is to use deionized water as the dielectric fluid to prevent contamination and ensure consistent results. Pairing EDM with CNC milling often yields the best outcomes, as the former can refine areas the latter cannot access.
Despite their advantages, both processes require careful planning to avoid common pitfalls. Overheating during CNC milling can lead to tool wear or material warping, so use coolant liberally and monitor spindle speeds. In EDM, improper electrode material selection can result in subpar finishes or prolonged machining times. For instance, graphite electrodes are ideal for complex shapes, while copper electrodes offer faster material removal for simpler designs. Regularly inspect the mold during machining to catch deviations early, ensuring the final product aligns with design specifications.
In conclusion, CNC milling and EDM are not just tools but strategic partners in moldmaking. By understanding their strengths and limitations, manufacturers can optimize their use to achieve unparalleled precision. Whether crafting a simple cavity or a complex core, these processes provide the reliability and accuracy needed to meet the stringent requirements of plastic molding. Mastery of these techniques is not just beneficial—it’s essential for staying competitive in today’s manufacturing landscape.
Straightening Your Plastic Wig: A Simple Step-by-Step Styling Guide
You may want to see also
Explore related products
$37.95
Surface Finishing: Polish mold surfaces to ensure smooth, defect-free parts during production
A polished mold surface is the unsung hero of defect-free plastic parts. Microscopic scratches, tool marks, or imperfections act as stress concentrators, leading to cracks, warping, or surface blemishes in the final product. Even seemingly minor surface roughness can disrupt material flow during injection, resulting in flow lines, sink marks, or incomplete filling.
Achieving a mirror-like finish isn't just about aesthetics. It's about functionality. A smooth surface minimizes friction, allowing molten plastic to flow evenly and predictably. This reduces cycle times, improves part consistency, and extends mold life. Think of it as the difference between a well-oiled machine and one grinding to a halt – the smoother the operation, the better the results.
For optimal results, aim for a surface roughness (Ra) of 0.4 micrometers or less. This can be achieved through a multi-step polishing process. Start with coarse grits (80-120) to remove machining marks, progressing to finer grits (400-1200) for a smoother finish. Diamond paste or buffing compounds can be used for the final polish, achieving a near-mirror finish. Remember, consistency is key – use consistent pressure and circular motions to avoid creating new scratches.
While hand polishing is possible, CNC machines with polishing attachments offer greater precision and repeatability, especially for complex mold geometries. Consider factors like material hardness (softer materials require gentler polishing), part complexity, and desired surface finish when choosing your polishing method.
Enhance Your Garden: Creative Ways to Beautify Plastic Plant Pots
You may want to see also
Frequently asked questions
High-quality silicone, epoxy, or polyurethane resins are ideal for making accurate plastic molds due to their flexibility, durability, and ability to capture fine details.
Clean the master model thoroughly, apply a release agent to prevent sticking, and ensure all undercuts are minimized or accounted for with mold design.
A mold box provides a containment structure for the molding material, ensures proper alignment of mold halves, and helps maintain the shape during curing.
Use a slow-pouring technique, degas the molding material to remove air bubbles, and apply light pressure or use a vacuum chamber for optimal detail capture.
Allow the plastic to cure fully, use a flexible mold material for easy release, and gently pry or flex the mold apart to avoid stressing the part.
