Sofia Martinez

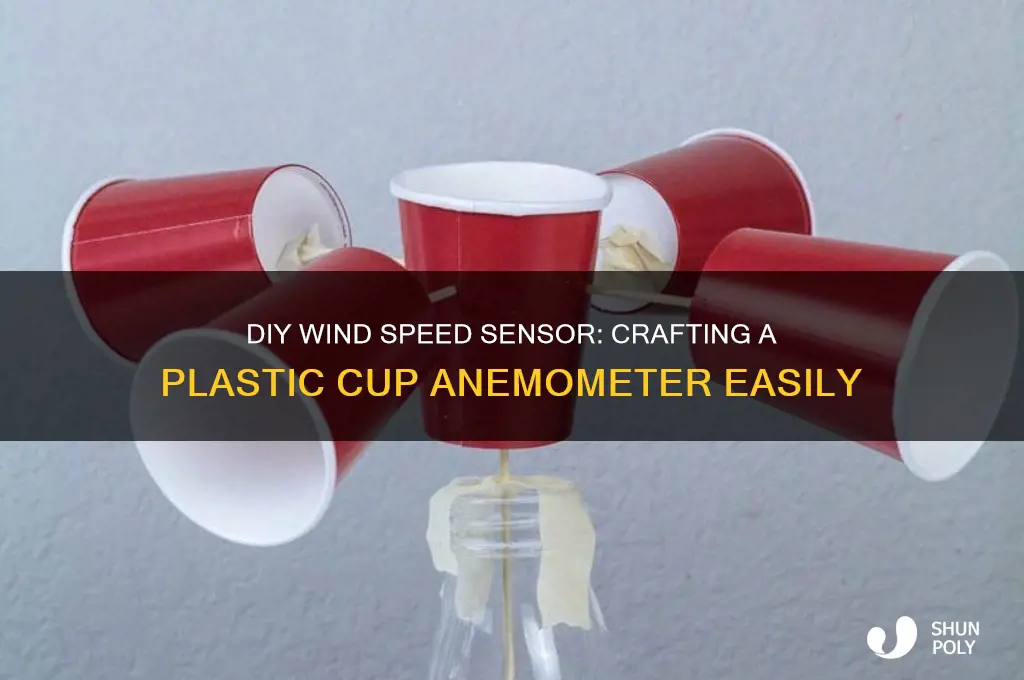

Creating an anemometer with plastic cups is a fun and educational DIY project that allows you to measure wind speed. This simple device, often used in meteorology, consists of rotating cups that catch the wind, with their speed of rotation indicating wind velocity. To build one, you’ll need basic materials like plastic cups, a central axis (such as a dowel or straw), and a few fasteners like paper clips or pins. By attaching the cups to the axis in a balanced manner, you can create a functional anemometer that spins in response to wind, providing a hands-on way to learn about weather and physics.
| Characteristics | Values |
|---|---|
| Materials Needed | 4 plastic cups, straw or wooden dowel, pencil with eraser, paper fasteners (x4), ruler, scissors, tape, drill or sharp object for hole-making |
| Cup Preparation | Clean and dry cups, mark centers, cut slits (about 1 inch) from rim towards center, fold tabs inward to create cup "blades" |
| Hub Assembly | Drill or poke a hole through the center of each cup, stack cups with tabs alternating, secure with paper fasteners through holes, attach straw or dowel through center as axis |
| Base Construction | Attach pencil (eraser side up) to straw/dowel, ensure free rotation, use tape or additional fasteners for stability |
| Calibration | Test rotation in windy conditions, adjust cup angles or balance if needed, count rotations per minute for speed estimation |
| Accuracy | Suitable for basic wind speed measurement (not professional-grade), affected by friction and cup design |
| Cost | Low-cost, under $5 (depending on available materials) |
| Time Required | 30-60 minutes for assembly and testing |
| Educational Use | Ideal for STEM projects, demonstrating wind energy principles, and basic meteorology |
| Durability | Limited outdoor lifespan due to plastic cup material, best for short-term or indoor use |
| Safety | Adult supervision recommended for drilling/cutting steps, ensure no sharp edges remain |
Explore related products
What You'll Learn
- Materials Needed: Gather plastic cups, straws, pins, a cork, and a marker for assembly
- Cup Preparation: Cut and attach cups to straws evenly, ensuring balance for accurate spinning
- Central Axis Setup: Insert straws through a cork to create a stable rotating axis
- Base Assembly: Attach the cork to a stick or stand for a sturdy anemometer base
- Calibration Tips: Test and adjust cup angles to measure wind speed effectively
Materials Needed: Gather plastic cups, straws, pins, a cork, and a marker for assembly
Plastic cups serve as the anemometer’s blades, catching wind to measure speed. Opt for lightweight, disposable cups—four to six ounces work best—as their thin material minimizes resistance while maximizing rotation. Avoid paper or foam alternatives, which warp or tear under stress. Ensure cups are clean and dry to prevent imbalance during assembly. Pro tip: Use a marker to label each cup’s position for consistent alignment, reducing calibration errors later.
Straws act as both connectors and supports, linking cups to the central axis. Choose flexible plastic straws for durability, but avoid overly thick ones that add unnecessary weight. Cut four straws into equal lengths (about 6 inches each) to maintain symmetry. Insert a pin through the center of each straw to attach the cups, ensuring the pin pierces both the cup’s rim and the straw’s side. Caution: Pre-poke holes in the cups to prevent cracking, especially if working with children aged 8–12.
Pins are the unsung heroes of this project, securing components without adding bulk. Standard straight pins suffice, but safety pins can be used for younger builders. Insert pins at a slight downward angle to keep cups from slipping during rotation. Test each connection by gently tugging before proceeding. For added stability, apply a small drop of glue at the pin’s base, but avoid overdoing it—excess glue increases friction, hindering movement.
A cork forms the anemometer’s base, providing stability while allowing free rotation. Select a wine cork for its size and density, trimming it to fit snugly inside a straw. Push the cork onto a wooden skewer or dowel (not listed in materials but essential for structure) to create the central axis. If corks are unavailable, a small foam block or plastic bottle cap can substitute, though these may require additional balancing adjustments.
The marker isn’t just for labeling—it’s a calibration tool. Use it to mark rotation increments on the cork or base, helping track revolutions per minute. For precision, pair this with a stopwatch or smartphone timer. Alternatively, mark cups with contrasting colors to visually track speed. This simple addition transforms the anemometer from a craft into a functional instrument, ideal for science fairs or weather experiments.
Understanding Kevlar: The Role of Plastics in Its Composition Explained
You may want to see also
Explore related products
Cup Preparation: Cut and attach cups to straws evenly, ensuring balance for accurate spinning
The foundation of a precise anemometer lies in the meticulous preparation of its cups. Four to six plastic cups, preferably lightweight and uniform in size, are ideal for this project. Begin by marking each cup approximately one inch from its rim. This measurement ensures sufficient surface area to catch the wind while maintaining structural integrity. Using sharp scissors or a craft knife, carefully cut along the marked line, creating an open-top design. Precision in cutting is crucial; uneven edges can disrupt airflow and compromise the instrument’s accuracy.
Attaching the cups to straws requires both symmetry and stability. Insert a flexible plastic straw through the bottom of each cup, ensuring it protrudes evenly on both sides. Secure the straw in place with hot glue or strong adhesive tape, taking care not to obstruct the cup’s opening. Repeat this process for all cups, maintaining consistency in alignment. A helpful tip is to use a ruler to measure the distance from the cup’s edge to the straw’s center, ensuring each cup is attached at the same point. This uniformity is vital for balanced rotation.
Balance is the linchpin of an anemometer’s functionality. Once all cups are attached, test their equilibrium by placing the straws across a pencil or dowel rod, which will serve as the central axis. Observe whether the cups remain level or tilt to one side. If imbalance occurs, adjust the cup positions by sliding them slightly along the straws until equilibrium is achieved. This step may require patience, but it is indispensable for accurate wind speed measurements.
For added durability, consider reinforcing the cup-straw connection with a small piece of cardboard or plastic beneath the cup’s base. This not only strengthens the attachment but also distributes stress more evenly during high-speed rotations. Additionally, labeling each cup with its position (e.g., north, south, east, west) can aid in aligning the anemometer with wind direction for more precise readings. These small enhancements elevate the instrument from a simple DIY project to a reliable scientific tool.
In conclusion, the preparation of cups for an anemometer is a blend of art and science. By cutting cups uniformly, attaching them symmetrically, and ensuring perfect balance, you create a device capable of accurately measuring wind speed. Attention to detail in this phase not only enhances performance but also extends the anemometer’s lifespan, making it a worthwhile investment of time and effort.
DIY Plastic Box Clutch: Crafting a Chic Accessory Step-by-Step
You may want to see also
Explore related products
Central Axis Setup: Insert straws through a cork to create a stable rotating axis
A stable central axis is the backbone of any functional anemometer. Without it, your plastic cups will wobble, spin unevenly, or fail to rotate at all. The straw-and-cork method is a simple yet effective solution, leveraging readily available materials to create a smooth, friction-minimized pivot point. This setup ensures your anemometer responds accurately to wind speed, transforming it from a craft project into a legitimate scientific instrument.
Assembly begins with material selection. Choose sturdy plastic straws—the kind used for smoothies or bubble tea work best due to their wider diameter and thicker walls. Avoid flimsy drinking straws, which can bend or collapse under the torque generated by spinning cups. For the cork, opt for a wine cork or a craft cork at least 1.5 inches long. Its density should be firm but not brittle; a cork that crumbles easily will compromise the axis’s stability.
Construction requires precision. Insert the straws through the cork at a 90-degree angle, ensuring they pass cleanly through the center. Use a sharp pencil or skewer to pre-poke holes, reducing the risk of splitting the cork. Aim for a snug fit—tight enough to hold the straws in place without glue, but loose enough to allow free rotation. If the straws feel too tight, gently sand their ends or lubricate them with a thin coat of petroleum jelly. Over-tightening or forcing the straws can warp the cork, introducing friction that defeats the purpose of this design.
Testing is critical. Before attaching the cups, verify the axis’s stability by manually spinning the straws. They should rotate smoothly, with minimal resistance or wobble. If the straws tilt or bind, re-examine the cork’s alignment and hole size. A misaligned axis will skew wind speed readings, rendering your anemometer unreliable. For added durability, consider reinforcing the cork with a small wooden dowel or inserting a metal paperclip through the straws to act as a stop, preventing them from sliding out during use.
Practical tips elevate this design. To enhance weather resistance, coat the cork and straws with clear nail polish or waterproof glue. This prevents swelling or warping in humid conditions. If using the anemometer outdoors, attach the cups to the straws with lightweight string or fishing line instead of tape, which can degrade in sunlight. Position the axis atop a tall, stable base—a PVC pipe or wooden post works well—to elevate the cups into the wind stream, maximizing their exposure and rotational efficiency. With careful construction, this central axis setup transforms humble materials into a robust, functional core for your plastic cup anemometer.
Crafting a Festive Plastic Easter Egg Garland: Easy DIY Guide
You may want to see also
Explore related products
Base Assembly: Attach the cork to a stick or stand for a sturdy anemometer base
A stable base is crucial for an anemometer’s accuracy, as it ensures the device remains upright and responsive to wind without wobbling or tipping. The cork, acting as the central hub for the plastic cups, must be securely anchored to a stick or stand to achieve this stability. This assembly forms the backbone of your anemometer, translating wind energy into measurable rotations. Without a sturdy base, even the most meticulously crafted cups will fail to provide reliable readings.
To begin, select a stick or stand that is both lightweight and rigid. A wooden dowel, bamboo skewer, or even a repurposed pencil works well, provided it’s at least 12 inches long to elevate the anemometer above ground-level turbulence. Insert the stick into the cork, ensuring it fits snugly—a tight fit minimizes movement and ensures the cups rotate freely around the axis. If the cork is too loose, wrap the stick’s tip with tape or use a small amount of wood glue for added stability. Avoid over-tightening, as this can restrict rotation.
For added durability, consider reinforcing the base with a wider foundation. Attach the stick to a flat, heavy object like a wooden board or a plastic container filled with sand or pebbles. This prevents the anemometer from toppling in strong winds while keeping the design portable. If using a board, drill a small hole to fit the stick, ensuring it stands vertically. For younger builders (ages 8–12), adult supervision is recommended during this step to handle tools safely.
One common mistake is neglecting to test the base’s stability before attaching the cups. After assembling the cork and stick, gently push or tilt the structure to ensure it remains upright. If it wobbles excessively, adjust the cork’s position or add more weight to the base. This simple check saves time and frustration later, as a wobbly base will skew wind speed measurements.
In conclusion, the base assembly is a deceptively simple yet critical step in building an anemometer with plastic cups. By prioritizing stability through a secure cork-to-stick connection and a reinforced foundation, you create a reliable tool for measuring wind speed. This foundation not only ensures accurate data but also extends the life of your anemometer, making it a worthwhile investment of time and effort.
DIY Dog Toys: Transforming Plastic Eggs into Canine Playtime Fun
You may want to see also
Explore related products
Calibration Tips: Test and adjust cup angles to measure wind speed effectively
The angle of your plastic cups is critical to anemometer accuracy. Too shallow, and they’ll spin wildly without correlating to wind speed. Too steep, and they’ll barely move at all. Think of it as finding the Goldilocks zone where cup angle translates wind force into measurable rotations. This calibration process is where your anemometer transforms from a craft project into a functional scientific instrument.
Step-by-Step Calibration:
- Baseline Test: Start with a common cup angle, around 45 degrees from vertical. Secure the cups firmly, ensuring they’re evenly spaced and balanced. Test in a consistent wind source (e.g., a fan on medium speed) and record the rotations per minute (RPM) using a stopwatch and tally counter.
- Adjust and Re-Test: If RPMs are too high, increase the cup angle by 5-degree increments. If too low, decrease the angle. Re-test after each adjustment, noting how RPMs change. Aim for a linear relationship between wind speed and RPM, which you can verify by testing at multiple fan speeds.
- Fine-Tuning: Once you’re close, make smaller adjustments (1-2 degrees) to refine the calibration. Use a protractor to measure angles precisely. For example, if 45 degrees yields 120 RPM in a moderate breeze but 50 degrees drops it to 90 RPM, you’ve overshot—try 47 degrees.
Cautions and Considerations: Avoid over-tightening the central axis, as friction can skew results. Ensure cups are identical in size and shape to maintain balance. If using a fan for testing, maintain a consistent distance (e.g., 1 meter) to control wind speed variables.
Comparative Insight: Unlike store-bought anemometers with calibrated cups, DIY versions require this hands-on approach. However, the process is rewarding, offering a deeper understanding of how wind energy is measured. For instance, professional anemometers use cup angles around 30-40 degrees, but plastic cups may require steeper angles due to their lighter weight and higher drag.
Practical Takeaway: Calibration isn’t a one-time task—recheck your anemometer periodically, especially after exposure to outdoor conditions. Wind tunnels or consistent natural breezes are ideal for testing, but a household fan works in a pinch. With patience and precision, your plastic cup anemometer can become a reliable tool for measuring wind speed, bridging the gap between craft and science.
Crafting a Durable Plastic Knife: DIY Guide for Beginners
You may want to see also
Frequently asked questions
You will need 4 plastic cups, a sharp pencil or dowel, a push pin, a cork or small wooden block, tape or glue, and a ruler or protractor for alignment.
Poke a small hole near the rim of each cup. Insert the push pin through the holes and into the pencil or dowel, spacing the cups evenly at 90-degree angles to create a balanced spinning mechanism.
Make sure the cups are evenly spaced and balanced. Secure the pencil or dowel upright in the cork or wooden block, and place the anemometer in an open area where it can catch the wind freely.
