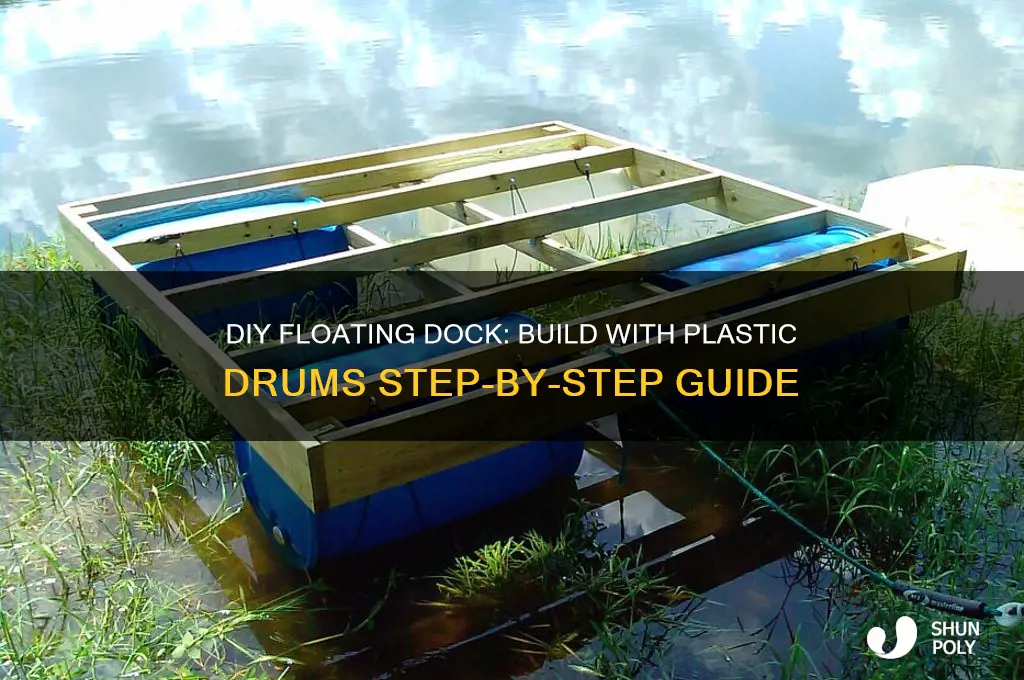

Creating a floating dock using plastic drums is a cost-effective and eco-friendly solution for waterfront access. This DIY project involves repurposing sturdy plastic drums, typically 55-gallon capacity, to serve as buoyant supports for a wooden or composite deck. The process begins with selecting high-quality, food-grade drums to ensure durability and safety. After cleaning and preparing the drums, they are securely connected to a frame made of pressure-treated lumber or PVC piping, ensuring stability and even weight distribution. The deck is then attached to the frame, providing a stable and functional platform. Proper anchoring and additional features like railings or ladders can be added for enhanced safety and usability. This method not only offers a practical solution for water access but also reduces waste by repurposing materials, making it an ideal choice for environmentally conscious builders.
| Characteristics | Values |
|---|---|
| Materials Needed | Plastic drums (55-gallon), lumber (2x6 or 2x8), decking material, bolts, nuts, washers, marine-grade sealant, rope or chains |
| Drum Preparation | Clean drums thoroughly, inspect for leaks, and seal any openings except the bung holes |
| Buoyancy Calculation | Each 55-gallon drum provides ~440 lbs of buoyancy; calculate the number of drums based on the desired load capacity |
| Frame Construction | Build a wooden frame using 2x6 or 2x8 lumber, ensuring it fits the number of drums used |
| Drum Attachment | Secure drums to the frame using bolts, nuts, and washers, ensuring a watertight seal with marine-grade sealant |
| Decking Installation | Attach decking material (e.g., plywood, composite boards) to the frame for a stable walking surface |
| Mooring System | Use ropes or chains to anchor the dock to the shore or pilings, ensuring stability in water |
| Safety Features | Add handrails, non-slip surfaces, and reflective markers for visibility and safety |
| Maintenance | Regularly inspect for leaks, rust, or damage; clean and reseal as needed |
| Environmental Impact | Use recycled drums and eco-friendly materials to minimize environmental impact |
| Cost Estimate | $200-$500 depending on materials and size (as of latest data) |
| Time to Build | 1-2 days for a basic dock, depending on skill level and complexity |
| Load Capacity | Typically 500-1000 lbs per drum, depending on drum size and construction quality |
| Water Depth Compatibility | Suitable for shallow to moderate water depths (adjust mooring for deeper waters) |
| Portability | Can be designed for easy disassembly and relocation if needed |
Explore related products
What You'll Learn
- Materials Needed: List essential supplies like drums, lumber, hardware, and tools for construction
- Drum Preparation: Clean, inspect, and modify plastic drums for buoyancy and stability
- Frame Assembly: Build a sturdy wooden frame to connect and support the drums
- Anchoring System: Design and install secure anchors to keep the dock in place
- Finishing Touches: Add decking, safety features, and waterproofing for durability and functionality
Materials Needed: List essential supplies like drums, lumber, hardware, and tools for construction
The foundation of any floating dock made from plastic drums lies in the drums themselves. Opt for 55-gallon food-grade plastic drums, as they are durable, readily available, and often come with a smooth interior, reducing the risk of snagging ropes or damaging the dock. Ensure each drum is clean, dry, and free from cracks or punctures. For a standard 8x8 foot dock, you’ll need at least 8 drums, but larger projects may require up to 16, depending on the desired buoyancy and weight capacity. Always calculate the total weight your dock will support and choose the number of drums accordingly.
Lumber serves as the skeletal framework of your dock, providing stability and a walking surface. Pressure-treated 2x6 or 2x8 boards are ideal for the frame and decking due to their resistance to rot and decay in water. For an 8x8 foot dock, plan on using approximately 120 feet of lumber for the frame and another 64 square feet for the decking. Ensure all cuts are precise, as misaligned boards can compromise the dock’s integrity. Additionally, consider using marine-grade plywood for added durability if your budget allows.
Hardware and fasteners are the unsung heroes of dock construction, holding everything together securely. Galvanized or stainless steel screws, bolts, and washers are essential to prevent rust and corrosion in a wet environment. You’ll need approximately 200 screws for decking and framing, along with 16 U-bolts (sized to fit your drums) to secure the drums to the frame. Don’t skimp on quality here—cheap hardware can fail, leading to costly repairs or accidents. A tube of marine-grade sealant is also recommended to waterproof any joints or connections.
Tools are the final piece of the puzzle, transforming raw materials into a functional dock. Essential tools include a circular saw or miter saw for cutting lumber, a drill with various bits for driving screws and bolts, and a wrench set for tightening U-bolts. A measuring tape, square, and level ensure accuracy during assembly. For marking and layout, a pencil and straight edge are indispensable. If you’re sealing joints, a caulking gun will be necessary. Renting or borrowing specialized tools like a drill press or table saw can streamline the process, but most construction can be accomplished with basic hand and power tools.
Unveiling the Manufacturing Process of Plastic License Cards
You may want to see also
Explore related products
Drum Preparation: Clean, inspect, and modify plastic drums for buoyancy and stability
Plastic drums, often discarded as industrial waste, can be repurposed into the backbone of a floating dock, but their transformation begins with meticulous preparation. Start by cleaning the drums thoroughly to remove contaminants like oil, chemicals, or debris that could compromise their integrity or harm the aquatic environment. Use a mixture of mild detergent and water, scrubbing both the interior and exterior with a stiff brush. For stubborn residues, a pressure washer can be effective, but avoid harsh chemicals that might degrade the plastic. Rinse the drums completely and allow them to dry fully before proceeding, as moisture trapped inside can lead to mold or corrosion of any metal components.
Inspection is the next critical step, as not all drums are created equal. Examine each drum for cracks, punctures, or signs of structural weakness, particularly around the seams and lid closures. Even small defects can expand under the stress of water pressure, rendering the drum unusable. Test the drums for watertightness by filling them partially with water and observing for leaks. Drums that fail this test should be discarded or relegated to non-buoyant structural roles. Additionally, assess the thickness and overall condition of the plastic; older drums may have become brittle and are less reliable for long-term use.
Modification is where the drums transition from containers to flotation devices. To enhance buoyancy, seal the drum lids permanently using a high-strength adhesive or by welding the plastic, ensuring an airtight seal. For added stability, consider filling the drums with closed-cell foam, which provides both buoyancy and structural rigidity without absorbing water. Alternatively, attach external stabilizers, such as PVC pipes or wooden struts, to the sides of the drums to prevent tipping. If using multiple drums, connect them securely with metal or plastic brackets, ensuring they distribute weight evenly and maintain alignment under load.
A practical tip for maximizing drum performance is to calculate the required buoyancy based on the intended dock weight. As a rule of thumb, each drum should displace enough water to support at least 10% more than its expected load. For example, a 55-gallon drum with a displacement capacity of approximately 440 pounds should be used for loads up to 400 pounds to account for safety margins. This ensures the dock remains stable and afloat even under heavy use. By combining thorough cleaning, rigorous inspection, and strategic modification, plastic drums can be transformed into reliable, cost-effective flotation units for a durable floating dock.
Crafting Unique Custom Knobs: A Guide to Casting Plastic
You may want to see also
Explore related products
Frame Assembly: Build a sturdy wooden frame to connect and support the drums
A sturdy wooden frame is the backbone of your floating dock, ensuring the plastic drums remain connected and stable under varying loads and water conditions. Begin by selecting pressure-treated lumber, which resists rot and decay in aquatic environments. For a standard 8-foot by 8-foot dock, plan to use 4x4 posts for vertical support and 2x6 or 2x8 boards for the frame’s perimeter and cross-bracing. Measure and cut the lumber to size, ensuring precision to avoid misalignment during assembly. Pre-drilling holes for screws or bolts prevents wood splitting and ensures a tighter fit.
Assembly starts with laying out the perimeter frame on a flat surface. Secure the corners with galvanized metal brackets and 3-inch screws to withstand water pressure and movement. Add cross-braces diagonally or in an "X" pattern to distribute weight evenly and reinforce the structure. For added strength, attach a center beam running parallel to the longest side of the frame. This beam will bear the brunt of the load and should be securely fastened with carriage bolts and washers.
Attaching the drums requires careful planning. Drill holes in the frame’s cross-members to align with the drum’s mounting points, typically near the top and bottom. Use stainless steel or galvanized hardware to secure the drums, ensuring they are level and evenly spaced. A common arrangement is to place drums in pairs along the frame’s length, with each pair separated by 2 to 3 feet for stability. Test the frame’s rigidity by applying weight before adding decking or launching the dock.
One critical consideration is buoyancy calculation. Each 55-gallon drum can support approximately 450 pounds of water displacement, so plan the frame’s size and drum quantity accordingly. For example, a 4-drum dock (2x2 arrangement) can safely hold up to 1,800 pounds, including the frame and decking. Overloading risks sinking or instability, so always factor in a safety margin of at least 20%.
Finally, inspect the frame for weak points or sharp edges that could damage the drums or pose safety hazards. Sand rough spots and apply a marine-grade sealant to exposed wood ends to prolong the frame’s life. With a well-built frame, your floating dock will provide years of reliable service, turning plastic drums into a functional and cost-effective waterfront solution.
DIY Plastic Sheet Molds: Simple Steps for Custom Creations
You may want to see also
Explore related products
Anchoring System: Design and install secure anchors to keep the dock in place
A floating dock's stability hinges on its anchoring system, which must counteract wind, waves, and currents. Plastic drums, while buoyant, require strategic anchoring to prevent drifting or damage. The first step is assessing your water body's conditions: depth, bottom composition, and typical weather patterns. For shallow, sandy bottoms, screw anchors offer a secure grip with minimal environmental impact. In deeper or rocky areas, concrete block anchors, weighted and tethered to the dock, provide reliable stability. Always consider the dock's size and weight when selecting anchor types and quantities—a rule of thumb is one anchor per drum, but larger docks may require additional support.
Designing the anchoring system involves more than just choosing anchors. The connection between the dock and anchors is critical. Use galvanized or stainless steel chains or ropes to prevent corrosion and ensure longevity. Attach these to the dock’s frame at multiple points, distributing tension evenly to avoid stress on any single drum. For plastic drums, reinforce attachment points with metal brackets or plates to prevent the plastic from cracking under strain. Regularly inspect these connections, especially after storms, to ensure they remain secure. A well-designed system not only holds the dock in place but also allows for some movement, reducing the risk of structural damage.
Installation requires precision and planning. Begin by positioning the dock where you want it, then lower anchors into place, ensuring they’re firmly seated in the substrate. Use a boat or kayak to reach deeper areas, and consider marking anchor locations with buoys for future reference. For screw anchors, use a power drill or auger to drive them into the bottom, ensuring they’re vertical and fully embedded. Concrete blocks should be lowered slowly to avoid shifting or sinking unevenly. Once anchors are set, attach the lines to the dock, adjusting tension to keep it level and stable. Test the system by applying force (e.g., pushing the dock) to ensure it holds firm.
Environmental considerations are key when installing anchors. Avoid placing them near sensitive habitats like seagrass beds or coral reefs. If using concrete blocks, ensure they’re heavy enough to stay put but not so large that they disrupt the ecosystem. For temporary docks, removable anchors like screw anchors are ideal, as they leave minimal traces when removed. Always check local regulations regarding waterfront structures and anchoring to avoid fines or environmental harm. A thoughtfully installed anchoring system not only secures your dock but also respects the natural environment it occupies.
Plastic Spoons: Do They Enhance or Alter Your Food's Flavor?
You may want to see also
Explore related products
Finishing Touches: Add decking, safety features, and waterproofing for durability and functionality
Decking transforms your floating dock from a utilitarian platform into a welcoming, functional space. Choose pressure-treated lumber or composite decking for longevity, as both resist rot and warping in aquatic environments. Secure planks with stainless steel screws to prevent rust, and leave a ¼-inch gap between boards for water drainage. For added stability, attach the decking directly to a framework of 2x6 or 2x8 wooden beams, ensuring the structure distributes weight evenly across the drums. A well-installed deck not only enhances aesthetics but also provides a safe, splinter-free surface for barefoot use.
Safety features are non-negotiable for any floating dock. Install handrails along the perimeter, especially if the dock is used by children or elderly individuals. Use 1.5-inch galvanized pipe for durability, and ensure railings are at least 36 inches high to meet most safety standards. Add non-slip tape or rubber mats to high-traffic areas to prevent slips, and consider mounting solar-powered LED lights along the edges for nighttime visibility. For added security, attach heavy-duty cleats or tie-off rings to the dock’s sides, allowing boats to moor safely without damaging the structure.
Waterproofing is the unsung hero of dock durability. Before installing decking, apply a marine-grade sealant to all exposed surfaces of the plastic drums and wooden framework. For extra protection, coat the underside of the decking with a waterproof membrane, such as EPDM rubber or liquid rubber sealant. Inspect and reapply sealant annually, particularly after harsh winters or prolonged sun exposure. Proper waterproofing not only extends the dock’s lifespan but also prevents waterlogged wood and drum corrosion, saving time and money on repairs.
Functionality meets creativity in the final touches. Incorporate built-in seating or storage compartments into the decking design, using hinged lids to keep cushions or gear dry. Add a ladder or swim platform for easy water access, ensuring it’s securely anchored to the dock’s frame. For a personalized touch, paint or stain the decking in a color that complements its surroundings, but avoid dark hues that absorb heat and make the surface uncomfortable underfoot. These thoughtful additions elevate the dock from a mere structure to a versatile, enjoyable space.
Unveiling the Inventor: Who Pioneered the Creation of Plastic?
You may want to see also
Frequently asked questions
You will need plastic drums (55-gallon or similar), wooden planks or decking material, galvanized bolts and nuts, washers, marine-grade sealant, ropes or chains for anchoring, and basic tools like a drill, saw, and wrench.
The number of drums depends on the dock's size and weight-bearing needs. As a general rule, one 55-gallon drum can support about 400-500 pounds of buoyancy. Plan for at least 2-3 drums per 4x8 feet of dock surface.
Drill holes through the wooden planks and into the top of the drums. Use galvanized bolts, washers, and nuts to fasten the planks securely. Apply marine-grade sealant around the bolts to prevent water leakage.
Use ropes or chains attached to the dock frame and secured to anchors (e.g., concrete blocks, screw anchors, or augers) on the lake or riverbed. Ensure the anchors are heavy enough to withstand currents and wind.
Yes, but use UV-resistant and saltwater-resistant materials for the drums and hardware. Galvanized or stainless steel bolts and marine-grade sealant are essential to prevent corrosion and ensure longevity. Regular maintenance is also recommended.
