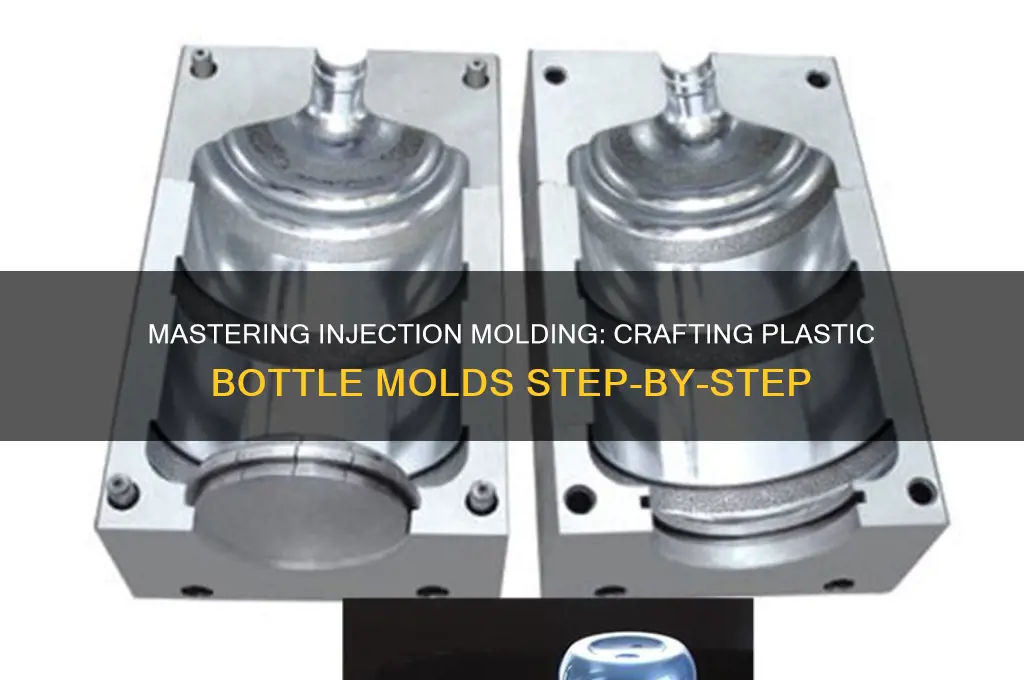

Creating an injection mold for a plastic bottle involves a precise and multi-step process that combines engineering, design, and manufacturing expertise. It begins with designing the bottle and mold using CAD software to ensure accurate dimensions and structural integrity. The mold is typically made from high-strength materials like steel or aluminum, which are machined to form the bottle’s shape. The process includes core and cavity creation, cooling channels for efficient heat dissipation, and ejection systems to remove the molded bottle. Precision is critical, as even minor imperfections can affect the final product’s quality. Once the mold is fabricated, it is tested and refined to optimize cycle times and minimize defects. This intricate process requires advanced tooling techniques and a deep understanding of material behavior to produce durable, high-quality plastic bottles at scale.
Explore related products
What You'll Learn
- Design Considerations: Focus on bottle shape, material, and wall thickness for optimal mold functionality
- Material Selection: Choose steel or aluminum based on production volume and durability needs
- Mold Manufacturing: Use CNC machining or EDM for precise cavity and core creation
- Cooling System Design: Incorporate channels to ensure uniform cooling and reduce cycle time
- Ejection Mechanism: Implement pins, sleeves, or air blasts for smooth bottle removal
Design Considerations: Focus on bottle shape, material, and wall thickness for optimal mold functionality
The bottle's shape is the mold's destiny. A complex, curved design demands a multi-piece mold with sliding cores or side actions to allow for undercuts and intricate details. Simplify the geometry whenever possible. Straight walls with slight drafts (1-2 degrees) are ideal for easy ejection and minimize the risk of defects like sink marks or warping. Think of it as a trade-off: every curve you add increases tooling complexity and cost.
Material selection is a balancing act. High-Density Polyethylene (HDPE) is a popular choice for its strength, impact resistance, and ease of processing, making it suitable for most bottle applications. For clarity and a premium look, consider Polyethylene Terephthalate (PET), though it requires higher molding temperatures and may necessitate a nitrogen purge to prevent oxidation. Remember, the material's shrink rate directly impacts wall thickness and dimensional accuracy. Always consult material datasheets for specific shrinkage values, typically ranging from 0.5% to 2%.
HDPE, for instance, shrinks approximately 1.5-2%, while PET shrinks around 0.5-0.8%.
Wall thickness is a critical factor in both mold design and bottle performance. Uneven wall thickness leads to uneven cooling, causing warping and internal stresses. Aim for a uniform thickness throughout the bottle, ideally between 0.020" and 0.060" (0.5mm to 1.5mm) for most applications. Thicker walls provide greater strength but increase material usage and cycle time. Thinner walls reduce weight and material costs but may compromise durability. Consider the bottle's intended use: a water bottle can be thinner than a heavy-duty detergent container.
Draft angles are your friends. Incorporate a minimum 1-degree draft angle on all walls to facilitate easy ejection. This simple design element prevents the bottle from sticking to the mold core, reducing cycle time and minimizing the risk of damage during ejection. Think of it as a gentle slope that allows the bottle to slide out effortlessly.
Cooling channels are the mold's circulatory system. Strategically placed channels within the mold ensure even and efficient cooling, preventing warping and reducing cycle times. The size and placement of these channels depend on the bottle's size, wall thickness, and material. Proper cooling channel design is crucial for achieving consistent part quality and maximizing production efficiency.
Eco-Friendly Crafting: Transforming Plastic Bottles into Functional Pots
You may want to see also
Explore related products
Material Selection: Choose steel or aluminum based on production volume and durability needs
Steel molds reign supreme for high-volume plastic bottle production. Their hardness, typically measured on the Rockwell C scale (HRC 48-52), withstands the immense pressures (up to 20,000 psi) and countless cycles required for mass manufacturing. While initial costs are higher than aluminum, steel's longevity justifies the investment. A well-maintained steel mold can produce millions of bottles, amortizing its cost over a long production lifespan.
For lower volumes or prototypes, aluminum molds offer a compelling alternative. Their lower melting point (around 660°C compared to steel's 1370°C) allows for faster machining and modifications, crucial for iterating designs. However, aluminum's lower hardness (HRC 60-70 in its hardened state) limits its lifespan to tens of thousands of cycles, making it unsuitable for long-term, high-volume production.
The choice between steel and aluminum hinges on a critical calculation: production volume multiplied by expected lifespan. For runs exceeding 500,000 bottles, steel's durability becomes economically advantageous. Below this threshold, aluminum's lower initial cost and faster production time make it a more practical choice.
Beyond volume, consider the bottle's complexity. Intricate designs with tight tolerances favor steel's precision and dimensional stability. Aluminum, while machinable, may warp under high pressures, compromising detail.
Ultimately, material selection is a strategic decision. Balancing production needs, budget constraints, and design requirements ensures the chosen material delivers both quality bottles and a sustainable manufacturing process.
DIY Spaceship Craft: Transform a Plastic Bottle into a Galactic Adventure
You may want to see also
Explore related products
Mold Manufacturing: Use CNC machining or EDM for precise cavity and core creation
CNC machining and EDM (Electrical Discharge Machining) are indispensable for achieving the precision required in mold manufacturing for plastic bottles. These technologies excel in creating intricate cavity and core geometries, ensuring dimensional accuracy within tolerances as tight as ±0.002 mm. CNC machining, with its multi-axis capabilities, handles complex 3D shapes efficiently, while EDM excels in producing sharp corners, deep ribs, and fine details that traditional machining struggles with. For instance, a 500ml PET bottle mold requires a core with a 22mm diameter and a cavity depth of 180mm, both achievable with these methods.
When selecting between CNC machining and EDM, consider the material and feature requirements. CNC machining is ideal for softer materials like aluminum or P20 tool steel, offering faster production times for less intricate designs. EDM, on the other hand, is superior for hardened steels (HRC 50-62) and micro-details, such as cooling channels with diameters as small as 0.5mm. A typical workflow might involve CNC roughing the mold base, followed by EDM for finishing critical surfaces. This hybrid approach balances speed and precision, reducing lead times by up to 30%.
To optimize mold longevity, post-processing steps like heat treatment and surface coating are essential. After CNC or EDM operations, molds should undergo nitriding or PVD coating to enhance wear resistance and reduce friction during injection molding. For example, a nitrided H13 steel mold can withstand up to 500,000 cycles, compared to 300,000 for untreated molds. Additionally, polishing the cavity to a mirror finish (Ra < 0.1 μm) minimizes defects like flow lines in the final bottle.
Cost considerations play a significant role in mold manufacturing decisions. CNC machining is generally more cost-effective for simpler designs, with hourly rates ranging from $75 to $150. EDM, while slower (up to 10 times slower than CNC), is necessary for high-precision features, costing $150 to $300 per hour. For a 2-liter bottle mold, combining CNC for roughing and EDM for detailing can reduce overall costs by 20% compared to relying solely on EDM.
In conclusion, CNC machining and EDM are complementary technologies that address the unique demands of plastic bottle mold manufacturing. By leveraging CNC for speed and EDM for precision, manufacturers can produce molds that meet stringent quality standards while optimizing time and budget. Practical tips include selecting the right material for the mold, using a hybrid machining approach, and investing in post-processing treatments to maximize durability and performance.
Creative DIY: Crafting a Plastic Bottle Aeroplane Step-by-Step
You may want to see also
Explore related products
Cooling System Design: Incorporate channels to ensure uniform cooling and reduce cycle time
Efficient cooling is critical in injection molding for plastic bottles, as it directly impacts cycle time, part quality, and overall productivity. A well-designed cooling system incorporates channels strategically placed within the mold to ensure uniform heat dissipation. These channels, typically integrated into the mold core and cavity, circulate coolant (usually water or oil) to extract heat from the molten plastic. The key lies in optimizing channel placement and flow rate to achieve consistent cooling across the entire mold surface, preventing warping, shrinkage, and other defects.
Consider the bottle’s geometry when designing cooling channels. Thicker sections, such as the base or neck, retain more heat and require denser channel networks or higher coolant flow rates. Conversely, thinner walls may only need minimal cooling to avoid over-cooling, which can lead to brittleness. Simulation software like Moldflow or SolidWorks can predict temperature gradients, helping engineers refine channel layouts before fabrication. For instance, a 2-liter bottle mold might feature spiral channels in the base and linear channels along the sidewalls, tailored to the material’s thermal conductivity and the desired cycle time.
Material selection for the cooling channels is equally important. Copper or beryllium-copper alloys are preferred for their high thermal conductivity, ensuring rapid heat transfer. However, these materials are costly and may require additional maintenance to prevent corrosion. Aluminum, while less conductive, is lighter and more affordable, making it suitable for less demanding applications. The coolant itself should be treated with biocides and corrosion inhibitors to maintain system efficiency and longevity.
A common mistake in cooling system design is neglecting pressure drop calculations. Channels that are too narrow or long can restrict coolant flow, reducing effectiveness. As a rule of thumb, maintain a channel diameter of 6–12 mm and limit the length-to-diameter ratio to 100:1 for optimal flow. Pressure drop software or empirical formulas can aid in sizing channels appropriately. Additionally, incorporate baffles or turbulators within the channels to enhance heat transfer by promoting turbulent flow, which increases the coolant’s contact with the mold surface.
Finally, monitor and control coolant temperature and flow rate in real time to adapt to production conditions. Inline sensors and proportional valves can adjust coolant parameters based on mold temperature feedback, ensuring consistent cooling even as ambient conditions fluctuate. For example, a closed-loop system might maintain coolant at 20°C ± 1°C, with flow rates adjusted dynamically to compensate for variations in injection speed or material viscosity. This level of control not only reduces cycle time but also improves part consistency, making it a cornerstone of modern injection mold design.
Eco-Friendly Gardening: Crafting a Greenhouse from Plastic Bottles
You may want to see also
Explore related products
Ejection Mechanism: Implement pins, sleeves, or air blasts for smooth bottle removal
Ejecting a freshly molded plastic bottle without damage requires precision and force. The ejection mechanism is a critical component of the mold design, ensuring the bottle releases smoothly and consistently. Three primary methods dominate this process: pins, sleeves, and air blasts. Each has its advantages and considerations, depending on the bottle's design, material, and production volume.
Pins are the most common ejection method, offering a cost-effective and reliable solution. Strategically placed within the mold, these hardened steel rods push against specific points on the bottle's interior or exterior. For optimal performance, pins should be positioned to avoid stress concentration points, typically requiring a minimum of three pins per bottle. The force applied must be carefully calibrated: too little, and the bottle sticks; too much, and it deforms or sustains surface damage. Regular maintenance is crucial, as worn or misaligned pins can lead to ejection failures or mold damage.
Sleeves, on the other hand, provide a more uniform ejection force, making them ideal for thin-walled or complex bottle designs. This method involves a cylindrical sleeve that surrounds the bottle, moving axially to release it. Sleeves are particularly effective for bottles with wide mouths or intricate neck geometries, where pins might interfere with the design. However, sleeves require more space within the mold and can increase cycle times due to their larger travel distance. Lubrication is essential to minimize friction, and the sleeve's surface finish must be meticulously maintained to prevent scratching the bottle's exterior.
Air blasts offer a non-contact ejection solution, using compressed air to gently push the bottle out of the mold. This method is especially useful for lightweight bottles or those with delicate features that could be damaged by mechanical ejection systems. The air pressure typically ranges from 60 to 100 psi, depending on the bottle's size and material. Proper venting is critical to ensure the air is directed evenly, preventing the bottle from tilting or becoming trapped. While air blasts reduce wear on the mold, they require additional infrastructure for air supply and regulation, making them more expensive to implement.
Choosing the right ejection mechanism involves balancing cost, efficiency, and bottle integrity. Pins are straightforward and economical but demand precise placement and maintenance. Sleeves excel in uniformity but add complexity and cost. Air blasts provide a gentle touch but necessitate additional equipment and careful calibration. For high-volume production, combining methods—such as using pins for initial release followed by an air blast for final ejection—can optimize both speed and quality. Regardless of the method, regular testing and adjustments are essential to ensure consistent performance and minimize defects.
Crafting a Majestic Dragon from Recycled Plastic Bottles: DIY Guide
You may want to see also
Frequently asked questions
You will need mold steel (such as P20, H13, or NAK80) for the mold base, cooling components (like copper or aluminum), ejector pins, guide pins, and a CNC machine or EDM for precision machining.
The process includes 3D modeling of the bottle, designing the mold cavity and core, adding cooling channels, ejector systems, and runners, followed by simulation to ensure proper filling and cooling.
Critical. Proper cooling ensures uniform solidification of the plastic, reduces cycle time, and prevents warping or defects. Cooling channels should be strategically placed around the mold cavity.
The lifespan depends on the material, design, and usage frequency. High-quality molds can last for hundreds of thousands of cycles, often ranging from 100,000 to 500,000 shots.
While 3D printing can be used for prototyping or low-volume molds, it is not ideal for production due to limited material strength and heat resistance. Traditional CNC machining is recommended for durable molds.
