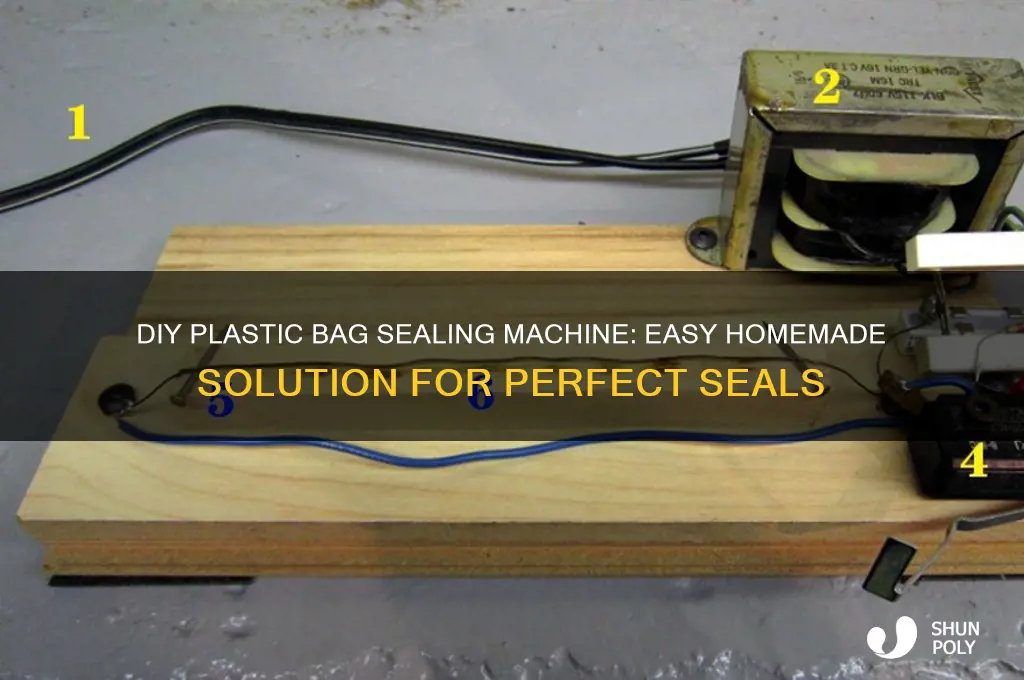

Creating a plastic bag sealing machine at home is a practical and cost-effective DIY project that can help you efficiently seal bags for storage, packaging, or organization. By using readily available materials such as a soldering iron, wooden or metal frame, and basic electrical components like a transformer and switch, you can build a simple yet functional machine. This homemade device works by heating a wire or metal strip to melt and fuse the edges of plastic bags, ensuring an airtight seal. With step-by-step instructions and careful attention to safety, anyone with basic crafting skills can assemble this handy tool, reducing reliance on commercial sealers and promoting sustainability.
Explore related products
What You'll Learn
- Gather Materials: List essential tools and components needed for building the sealing machine
- Design Blueprint: Create a simple, step-by-step diagram for the machine's structure
- Assemble Frame: Instructions for constructing the machine's base and support structure
- Install Heating Element: Guide to adding the sealing mechanism safely and effectively
- Test and Adjust: Steps to ensure the machine functions properly and troubleshoot issues
Gather Materials: List essential tools and components needed for building the sealing machine
To begin building your homemade plastic bag sealing machine, you'll need to gather a variety of essential tools and components. The core of the machine will be a heating element that can melt the plastic together, so start by sourcing a nichrome wire, which is commonly used in DIY sealing machines due to its high resistance and ability to generate heat efficiently. You’ll need approximately 10-12 inches of 24-gauge nichrome wire, available at hardware stores or online. Additionally, you’ll require a power source, such as a 9V battery or a small transformer, to supply electricity to the wire. Ensure you have a battery snap connector or alligator clips to safely connect the wire to the power source.
Next, focus on the structural components. A wooden or plastic base will serve as the foundation of your machine. A piece of plywood or acrylic sheet measuring around 8x6 inches should suffice. You’ll also need a metal or wooden frame to hold the nichrome wire in place. This can be constructed using small metal strips or wooden dowels. For the moving parts, gather a hinge to allow the sealing arm to press down on the bag, and a spring to provide tension and ensure consistent pressure. These can be sourced from old devices or purchased inexpensively.
Electrical components are critical for controlling the heat and ensuring safety. A switch (toggle or button type) will allow you to turn the machine on and off. You’ll also need insulated wires to connect the nichrome wire, power source, and switch. Heat-resistant materials, such as ceramic beads or mica sheets, are essential to insulate the nichrome wire and prevent accidental burns or fires. These can often be found in electronics or crafting stores.
For the sealing mechanism, you’ll require a metal plate or aluminum foil to act as a heat sink and distribute the heat evenly across the bag. A small piece of rubber or foam padding can be added to the sealing arm to protect the plastic bag from excessive pressure. Finally, basic tools like a soldering iron, wire strippers, and a drill (for making holes in the base and frame) are necessary for assembly.
Lastly, don’t forget safety gear. Heat-resistant gloves and safety goggles are crucial to protect yourself during operation. A multimeter is also recommended to test the electrical connections and ensure everything is functioning correctly before use. With these materials gathered, you’ll be well-prepared to move on to the construction phase of your homemade plastic bag sealing machine.
Washington State's Plastic Bag Warning: What You Need to Know
You may want to see also
Explore related products
Design Blueprint: Create a simple, step-by-step diagram for the machine's structure
Design Blueprint: Create a Simple, Step-by-Step Diagram for the Machine’s Structure
Step 1: Base and Frame Construction
Begin by constructing the base and frame of the sealing machine. Use a sturdy wooden or metal board (approximately 30 cm x 20 cm) as the base. Attach two vertical supports (20 cm tall) at the rear end of the base using screws or glue. These supports will hold the heating element assembly. Next, fix a horizontal bar across the top of the vertical supports to create a stable frame. Ensure the frame is aligned and level to allow smooth operation of the sealing mechanism.
Step 2: Heating Element Assembly
Mount a nichrome wire (or a flat iron strip) horizontally between the vertical supports, approximately 5 cm from the top. This will serve as the heating element. Connect the wire to a temperature-controlled power source (e.g., a transformer with a switch) using insulated copper wires. Place a small metal plate beneath the heating element to act as a heat sink and ensure even sealing. Secure the assembly firmly to avoid movement during operation.
Step 3: Bag Guide and Pressure Mechanism
Install a bag guide made of a thin metal or plastic strip (10 cm wide) directly below the heating element. This guide will help align the plastic bag for sealing. Above the heating element, attach a hinged pressure arm with a heat-resistant handle. The arm should be able to press the bag against the heating element when closed. Use a spring mechanism to ensure consistent pressure and easy release after sealing.
Step 4: Safety and Control Features
Add a safety cover made of heat-resistant material (e.g., mica sheet) around the heating element to prevent accidental burns. Install an on/off switch and a timer near the base for easy access. The timer will control the duration of heat application, typically 1-3 seconds for most plastic bags. Ensure all electrical connections are insulated and secured to avoid short circuits.
Step 5: Final Assembly and Testing
Assemble all components and double-check the alignment of the heating element, bag guide, and pressure arm. Test the machine by sealing a plastic bag, adjusting the timer and pressure as needed. Ensure the sealed area is consistent and strong. Once satisfied, secure any loose parts and apply non-slip pads to the base for stability.
This blueprint provides a clear, step-by-step guide to building a functional plastic bag sealing machine at home, focusing on simplicity, safety, and effectiveness.
Can MRSA Survive on Plastic Bags? Uncovering the Truth
You may want to see also
Explore related products
Assemble Frame: Instructions for constructing the machine's base and support structure
To begin assembling the frame of your homemade plastic bag sealing machine, gather the necessary materials: a sturdy wooden board (approximately 12 inches by 18 inches) for the base, four wooden planks (2 inches by 4 inches and 16 inches long) for the vertical supports, and two wooden planks (2 inches by 4 inches and 12 inches long) for the horizontal braces. Ensure all wooden pieces are smooth and free from splinters to facilitate easy assembly. Start by laying the base board flat on your work surface. This will serve as the foundation for your machine, providing stability and a solid platform for the sealing mechanism.
Next, take the four vertical support planks and position them at each corner of the base board. Ensure they are aligned vertically and perpendicular to the base. Secure each support to the base using wood screws (approximately 2 inches long). Pre-drill holes to prevent the wood from splitting. The vertical supports should stand firmly, creating a rectangular frame that will hold the sealing components. Double-check that each support is plumb using a level to guarantee the structure is straight and stable.
Once the vertical supports are securely attached, attach the horizontal braces. Place one 12-inch horizontal plank across the top of the front two vertical supports, ensuring it is level and flush with the top edges. Secure it with wood screws, pre-drilling holes as before. Repeat this process for the rear vertical supports, creating a sturdy top frame. These horizontal braces will provide additional rigidity and a mounting point for the sealing mechanism. Ensure all connections are tight and the frame does not wobble.
Reinforce the frame by adding diagonal braces for added stability. Cut two wooden planks (2 inches by 4 inches and approximately 17 inches long) at a 45-degree angle to fit diagonally between the bottom of one vertical support and the top of the opposite support. Attach these diagonal braces on both the front and rear sides of the frame using wood screws. This step is crucial to prevent the frame from racking or twisting under the weight and pressure of the sealing operation.
Finally, inspect the entire frame to ensure all components are securely fastened and the structure is stable. Sand any rough edges or protruding screws to create a smooth finish. The completed frame should be robust and capable of supporting the sealing mechanism and withstanding the forces applied during operation. With the frame assembled, you are now ready to proceed with mounting the sealing components, such as the heating element and pressure arm, to complete your homemade plastic bag sealing machine.
Mumbai's Plastic Bag Ban: What's Allowed, What's Not?
You may want to see also
Explore related products
Install Heating Element: Guide to adding the sealing mechanism safely and effectively
To begin installing the heating element for your homemade plastic bag sealing machine, select a suitable heating component such as a nichrome wire or a flat heating strip. Nichrome wire is commonly used due to its high resistance and durability, making it ideal for generating heat when an electric current passes through it. Ensure the wire gauge is appropriate for your power source—typically 24 to 30 gauge works well for low-voltage applications. If using a flat heating strip, choose one designed for sealing machines or similar applications. Always verify the power rating to match your intended voltage and current to avoid overheating or damage.
Next, prepare the mounting area for the heating element. Create a groove or channel in the machine’s sealing bar where the element will sit. This can be done using a metal or wooden base, depending on your design. Secure the heating element in place using heat-resistant adhesive or small clamps, ensuring it is firmly attached but not overly tightened to prevent damage. If using nichrome wire, stretch it taut across the sealing area, maintaining even spacing to ensure consistent heat distribution. Insulate any exposed wires or connections with high-temperature tape or shrink tubing to prevent short circuits and ensure safety.
Wiring the heating element requires careful attention to safety. Connect the element to a low-voltage power source, such as a 5V to 12V DC supply, using a transformer or battery pack. Incorporate a switch and a timer circuit to control the heating duration, as prolonged exposure to heat can damage the plastic or the machine itself. Use heat-resistant wires for connections and ensure all terminals are securely fastened. Test the circuit with a multimeter to confirm proper connectivity and avoid any loose ends that could cause sparks or malfunctions.
Once the heating element is installed and wired, insulate the surrounding area to protect the user and enhance efficiency. Wrap the sealing bar and adjacent components with high-temperature insulation material, such as ceramic fiber or heat-resistant foam. This prevents heat loss and reduces the risk of accidental burns during operation. Ensure the insulation does not interfere with the sealing process or come into direct contact with the heating element, as this could cause melting or fire hazards.
Finally, test the sealing mechanism thoroughly before regular use. Place a plastic bag between the heating element and the opposing pressure bar, activate the machine, and observe the sealing process. Adjust the timer or pressure as needed to achieve a consistent, airtight seal. Inspect the heating element for any signs of wear or damage after each test and replace it if necessary. With proper installation and safety measures, your homemade plastic bag sealing machine will function effectively and reliably for various packaging needs.
Plastic Bag Policies: Who Charges and Who Doesn't?
You may want to see also
Explore related products
Test and Adjust: Steps to ensure the machine functions properly and troubleshoot issues
Once your homemade plastic bag sealing machine is assembled, it’s crucial to test and adjust it to ensure it functions properly. Start by plugging in the machine and allowing the heating element to reach its operating temperature. Most DIY sealing machines use a soldering iron or a custom-made heating wire, so monitor the temperature carefully. Use a thermometer or test the heat by sealing a scrap plastic bag. If the seal is too weak, the temperature may be too low; if the plastic melts excessively, it’s too high. Adjust the heat source or the distance between the heating element and the bag to achieve a consistent, strong seal.
Next, test the machine’s pressure mechanism. Place a plastic bag between the heating element and the pressure pad, then activate the machine. Ensure the pressure is evenly distributed across the bag’s opening. If the seal is uneven or incomplete, check if the pressure pad is aligned properly or if the mechanism is applying enough force. Adjust the springs or levers in your design to increase or decrease pressure as needed. Repeat the test with bags of different thicknesses to ensure versatility.
After confirming the heat and pressure settings, test the machine’s speed and timing. If your design includes a manual sliding mechanism, practice moving the bag through the machine at a consistent pace. For automated designs, adjust the timer or motor speed to ensure the bag spends the right amount of time under the heating element. Too little time may result in weak seals, while too much can cause excessive melting. Use a stopwatch to measure and fine-tune the timing until you achieve optimal results.
Troubleshooting is an essential part of the testing process. If the machine fails to seal bags consistently, inspect the heating element for damage or uneven wear. Replace or reposition it if necessary. If the machine leaves burn marks on the bags, reduce the temperature or shorten the sealing time. For mechanical issues, such as the pressure pad not lowering properly, check for obstructions or misalignments in the mechanism. Lubricate moving parts if they appear stiff or resistant.
Finally, conduct a durability test by sealing multiple bags in succession. This will help identify overheating issues or mechanical fatigue. If the machine’s performance degrades over time, allow it to cool down between uses or reinforce weak points in the design. Once all adjustments are made, perform a final test with a variety of bag sizes and thicknesses to ensure the machine is reliable and ready for regular use. Document your settings and adjustments for future reference.
Brining a Turkey: Plastic Bag Safe?
You may want to see also
Frequently asked questions
You’ll need a small piece of wood or plastic for the base, a soldering iron or heated wire (e.g., a thin nichrome wire), a power source (like a battery or transformer), a switch, and basic wiring components. Optional materials include a handle for ease of use and insulation for safety.
Use a thin nichrome wire (commonly found in hair dryers or toasters) and stretch it tightly between two insulated supports. Connect the wire to a power source via a switch. When the switch is turned on, the wire heats up, allowing you to seal plastic bags by pressing it against the bag.
Safety is crucial. Ensure the heating element is properly insulated to avoid burns. Use low voltage (e.g., 5-12V) to minimize risk. Always unplug the device when not in use and avoid touching the heated wire. Work in a well-ventilated area to prevent inhaling fumes from melting plastic.
Yes, you can control the temperature by adjusting the voltage or the thickness of the nichrome wire. Thicker wire heats up slower but retains heat longer, while thinner wire heats up faster. Experiment with different settings to find the optimal temperature for the type of plastic bag you’re sealing.
