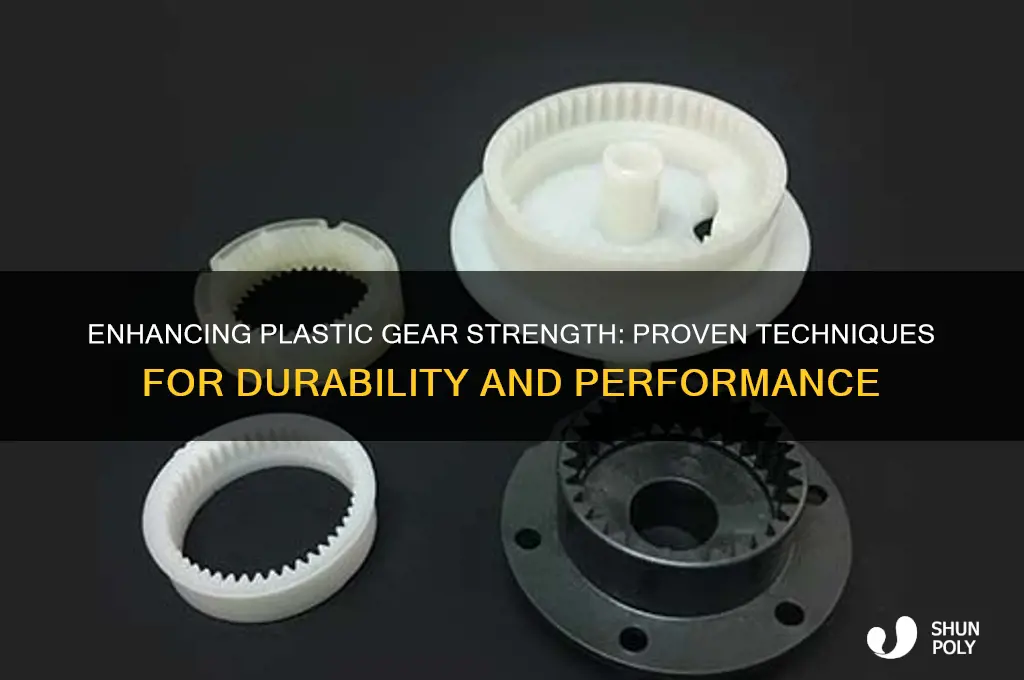

Strengthening plastic gears is essential for enhancing their durability, load capacity, and lifespan in various applications, from consumer electronics to industrial machinery. Key strategies include selecting high-performance materials like nylon, acetal, or PEEK, which offer superior mechanical properties and resistance to wear. Reinforcing plastic with additives such as glass fibers or carbon fibers can significantly improve stiffness and strength. Optimizing gear design by adjusting tooth profiles, reducing stress concentrations, and ensuring proper lubrication also plays a critical role. Additionally, post-processing techniques like heat treatment or surface coatings can enhance hardness and wear resistance. By combining material selection, design optimization, and advanced manufacturing processes, plastic gears can achieve robustness comparable to metal counterparts while maintaining their lightweight and cost-effective advantages.
| Characteristics | Values |
|---|---|
| Material Selection | Use high-performance plastics like PEEK, PPS, or reinforced nylons (e.g., Nylon 6/6 with glass or carbon fiber). These materials offer higher strength, stiffness, and heat resistance compared to standard plastics. |
| Fiber Reinforcement | Incorporate glass fibers (30-50% by weight) or carbon fibers (10-30% by weight) to significantly increase tensile strength, stiffness, and dimensional stability. |
| Filler Additives | Add mineral fillers like talc, calcium carbonate, or barium sulfate to enhance stiffness and reduce thermal expansion, improving gear performance under load. |
| Lubrication | Use internal lubricants (e.g., PTFE, silicone, or molybdenum disulfide) or external lubricants (grease, oil) to reduce friction, wear, and heat buildup. |
| Design Optimization | Increase the number of teeth (higher diametral pitch), use thicker gear walls, and add fillets to reduce stress concentrations. Avoid sharp corners and ensure proper tooth profile. |
| Heat Treatment | Anneal or heat-stabilize the plastic to relieve internal stresses and improve dimensional stability, especially for high-temperature applications. |
| Surface Hardening | Apply coatings like electroless nickel, hard anodizing, or plasma treatments to increase surface hardness and wear resistance. |
| Manufacturing Precision | Use high-precision molding techniques (e.g., injection molding with tight tolerances) to ensure accurate tooth geometry and minimize backlash. |
| Environmental Considerations | Avoid exposure to harsh chemicals, UV radiation, or extreme temperatures that can degrade plastic properties over time. |
| Load and Speed Management | Design gears to operate within safe load and speed limits to prevent excessive wear, deformation, or failure. |
| Post-Processing | Perform secondary operations like machining, grinding, or polishing to achieve tighter tolerances and smoother surfaces. |
| Testing and Validation | Conduct fatigue testing, wear testing, and torque testing to validate gear performance and ensure reliability in real-world conditions. |
Explore related products
What You'll Learn
- Material Selection: Choose high-strength polymers like PEEK or nylon for enhanced durability
- Design Optimization: Use thicker teeth and proper fillets to reduce stress concentration
- Manufacturing Precision: Ensure tight tolerances and smooth finishes to minimize wear
- Reinforcement Techniques: Add fibers (glass, carbon) or fillers to boost mechanical properties
- Surface Treatments: Apply coatings or hardening processes to increase wear resistance
Material Selection: Choose high-strength polymers like PEEK or nylon for enhanced durability
High-strength polymers such as PEEK (Polyether Ether Ketone) and nylon are not just materials—they are the backbone of durable plastic gears. PEEK, with its exceptional resistance to heat, chemicals, and wear, is ideal for gears operating in demanding environments like aerospace or automotive systems. Nylon, on the other hand, offers a balance of strength, flexibility, and cost-effectiveness, making it a go-to choice for applications requiring toughness without breaking the budget. Selecting these materials is the first step in ensuring your gears can withstand the rigors of their intended use.
When considering material selection, it’s crucial to match the polymer’s properties to the gear’s operational demands. For instance, PEEK’s glass transition temperature of 143°C (289°F) allows it to maintain its structural integrity in high-temperature settings, while nylon’s ability to absorb moisture can be both a strength and a weakness, depending on the environment. To mitigate nylon’s moisture sensitivity, consider using nylon 6/6, which has a lower moisture absorption rate compared to nylon 6. Always evaluate the specific grade of the polymer to ensure it aligns with your gear’s performance requirements.
The manufacturing process plays a pivotal role in maximizing the strength of these polymers. For PEEK, injection molding requires precise control of temperature and pressure to avoid defects like warping or voids. Nylon gears benefit from post-processing techniques like annealing, which reduces internal stresses and improves dimensional stability. Incorporating additives like glass fibers or carbon fillers can further enhance mechanical properties, but be cautious—overloading with fillers may compromise the material’s inherent flexibility.
A comparative analysis reveals that while PEEK outperforms nylon in terms of thermal stability and chemical resistance, nylon’s lower cost and ease of processing make it a more practical choice for less extreme applications. For example, in consumer electronics, nylon gears can provide sufficient durability at a fraction of the cost of PEEK. However, in high-stakes applications like medical devices or industrial machinery, PEEK’s superior performance justifies its higher price tag. The key is to weigh the trade-offs between cost, performance, and environmental factors.
In conclusion, choosing high-strength polymers like PEEK or nylon is a strategic decision that directly impacts the durability of plastic gears. By understanding the unique properties of these materials, tailoring the manufacturing process, and balancing cost with performance, you can create gears that not only meet but exceed expectations. Whether you’re designing for a high-temperature engine or a cost-sensitive gadget, the right material selection is your foundation for success.
Effective Tips to Prevent Plastic Surfaces from Becoming Sticky
You may want to see also
Explore related products
Design Optimization: Use thicker teeth and proper fillets to reduce stress concentration
Plastic gears often fail at the tooth root due to stress concentration, a common issue exacerbated by thin teeth and sharp internal corners. To combat this, increasing tooth thickness redistributes the load more evenly across the gear’s cross-section. For instance, a 15% increase in tooth thickness can reduce bending stress by up to 20%, depending on the material and load conditions. This simple modification shifts the stress distribution from a localized peak to a broader area, minimizing the risk of crack initiation. However, thicker teeth must be balanced with the gear’s overall size and weight constraints, as excessive material can lead to unnecessary bulk.
Fillets, or rounded internal corners, play a critical role in stress reduction by eliminating sharp edges where cracks typically originate. A fillet radius of 0.5mm to 1.5mm, depending on the gear size and material, can significantly lower stress concentration factors. For example, a gear with a 1mm fillet radius may exhibit 30% less stress at the tooth root compared to a gear with sharp corners. Proper fillet design requires careful consideration of the manufacturing process, as too large a radius can weaken the tooth, while too small a radius negates its benefits. Simulation tools like finite element analysis (FEA) can help optimize fillet dimensions for specific applications.
Implementing these design changes involves a systematic approach. Start by evaluating the gear’s operating conditions, including torque, speed, and material properties. Use industry standards like ISO 6336 for gear design calculations to determine the optimal tooth thickness. Next, incorporate fillets using CAD software, ensuring the radius aligns with manufacturing capabilities. Prototype testing is essential to validate the design, as theoretical calculations may not account for real-world variables like material inconsistencies or environmental factors. Iterative refinement based on test data ensures the final design meets strength and durability requirements.
While thicker teeth and proper fillets are effective, they are not standalone solutions. Material selection, surface finish, and manufacturing precision also influence gear strength. For instance, glass-filled nylon offers higher stiffness than unfilled nylon, complementing the benefits of optimized tooth geometry. Additionally, post-processing techniques like heat treatment or coating can further enhance performance. Designers must weigh these factors holistically, as over-emphasizing one aspect may compromise others. By integrating these strategies, engineers can create plastic gears that withstand demanding applications without sacrificing efficiency or cost-effectiveness.
Easy DIY Guide: Drilling Perfect Holes in Plastic Beads
You may want to see also
Explore related products
Manufacturing Precision: Ensure tight tolerances and smooth finishes to minimize wear
Achieving tight tolerances in plastic gear manufacturing is critical for reducing backlash and ensuring smooth operation. Tolerances as precise as ±0.02 mm for pitch diameter and ±0.01 mm for tooth thickness are industry standards for high-performance applications. Advanced machining techniques, such as CNC gear hobbing or injection molding with precision tooling, are essential to meet these specifications. Even minor deviations can lead to misalignment, increased friction, and premature wear, undermining the gear’s strength and longevity.
Smooth finishes on gear teeth and surfaces are equally vital to minimize wear and friction. A surface roughness of Ra 0.8 μm or finer is recommended for most plastic gears, particularly in high-speed or high-load applications. Post-molding processes like tumbling, vibratory finishing, or CNC polishing can achieve this level of smoothness. Rough surfaces act as stress concentrators, accelerating fatigue and reducing the gear’s ability to withstand cyclic loading. By eliminating these imperfections, you enhance the gear’s resistance to wear and extend its operational life.
Material selection and processing conditions must align with precision manufacturing goals. For instance, glass-filled nylon or PEEK offer better dimensional stability during machining or molding compared to unfilled polymers, which can warp or shrink unevenly. Maintaining consistent molding temperatures and pressures is equally crucial to avoid internal stresses that compromise precision. Without the right material and process control, even the most advanced manufacturing techniques will fall short of delivering the required tolerances and finishes.
Inspecting gears post-manufacturing is non-negotiable to verify precision. Coordinate measuring machines (CMMs) and laser scanning can confirm dimensional accuracy, while surface profilometers ensure the desired finish. Rejecting gears that fall outside tolerances, even slightly, is essential to maintain quality. While this may increase initial costs, it prevents costly failures and downtime in the long run, making it a strategic investment in gear strength and reliability.
Revive Yellowed White Plastic: Simple Tips to Restore Its Original Shine
You may want to see also
Explore related products
Reinforcement Techniques: Add fibers (glass, carbon) or fillers to boost mechanical properties
One of the most effective ways to enhance the strength of plastic gears is by incorporating reinforcing materials such as glass or carbon fibers and mineral fillers. These additives significantly improve mechanical properties like tensile strength, stiffness, and wear resistance, making the gears more durable under load. For instance, glass fibers, when added at a concentration of 30-40% by weight, can increase the tensile strength of nylon gears by up to 50%. Similarly, carbon fibers, though more expensive, offer even greater strength-to-weight ratios, ideal for high-performance applications.
The process of adding fibers or fillers requires careful consideration of material compatibility and manufacturing techniques. Injection molding, the most common method for producing plastic gears, must be optimized to ensure proper dispersion of the reinforcing agents. For example, glass fibers should be pre-treated with a coupling agent to enhance adhesion to the polymer matrix, preventing delamination under stress. Carbon fibers, due to their higher stiffness, may require specialized processing to avoid breakage during molding. Mineral fillers like calcium carbonate or talc, typically added at 10-20% by weight, improve dimensional stability and reduce thermal expansion, but excessive amounts can compromise impact resistance.
A comparative analysis reveals that the choice of reinforcement depends on the specific application. Glass fibers are cost-effective and widely used in general-purpose gears, while carbon fibers are reserved for applications demanding lightweight and high strength, such as aerospace or automotive systems. Mineral fillers are best suited for gears requiring tight tolerances and low thermal distortion, like those used in precision machinery. For instance, a gear in a robotic arm might benefit from carbon fiber reinforcement for its strength and low weight, whereas a gear in a household appliance could perform well with glass fibers or mineral fillers due to their lower cost and adequate performance.
Practical implementation of these techniques involves several steps. First, select the appropriate reinforcing material based on the gear’s operational requirements. Next, determine the optimal dosage—typically, 30-40% for glass fibers, 20-30% for carbon fibers, and 10-20% for mineral fillers. Ensure the molding process is fine-tuned to handle the additives, including adjusting temperatures and pressures to avoid fiber degradation or uneven distribution. Finally, conduct post-production testing to verify the gear’s improved properties, such as tensile strength, stiffness, and wear resistance. By following these guidelines, manufacturers can produce plastic gears that meet or exceed performance expectations in demanding applications.
Hard Plastic Night Guards: Do They Cause Lip Protrusion?
You may want to see also
Explore related products
Surface Treatments: Apply coatings or hardening processes to increase wear resistance
Plastic gears, while lightweight and cost-effective, often suffer from lower wear resistance compared to metal counterparts. Surface treatments offer a targeted solution by enhancing the outer layer’s durability without altering the core material properties. Coatings such as diamond-like carbon (DLC) or polytetrafluoroethylene (PTFE) can significantly reduce friction and increase hardness, making them ideal for high-stress applications. Hardening processes like flame or induction hardening, though more common in metals, have adapted techniques for plastics, such as laser surface hardening, which creates a thin, hardened outer shell while preserving the gear’s flexibility.
Consider the application-specific benefits of different coatings. DLC coatings, for instance, provide exceptional hardness (up to 2000 HV) and low friction, making them suitable for gears in automotive or aerospace systems. PTFE, on the other hand, offers superior chemical resistance and self-lubrication, ideal for gears in corrosive environments or food processing machinery. When selecting a coating, factor in operating temperature, load conditions, and compatibility with the base plastic material. For example, nylon gears coated with PTFE can withstand temperatures up to 260°C, while PEEK gears with DLC coatings perform well under continuous loads exceeding 50 MPa.
Applying these treatments requires precision to avoid compromising the gear’s integrity. Coatings are typically applied via physical vapor deposition (PVD) or chemical vapor deposition (CVD), with thicknesses ranging from 1 to 10 micrometers. Overly thick coatings can lead to cracking or delamination under stress, while insufficient thickness may fail to provide adequate protection. Hardening processes, such as laser treatment, demand careful control of energy input to prevent thermal degradation of the plastic. Post-treatment inspection, including hardness testing (e.g., Vickers hardness test) and adhesion checks, ensures the treatment meets performance requirements.
A comparative analysis reveals that surface treatments often outperform bulk material modifications in terms of cost-effectiveness and versatility. While reinforcing plastics with fibers or additives can improve strength, these methods may increase weight or reduce manufacturability. Surface treatments, in contrast, maintain the gear’s lightweight advantage while addressing specific weaknesses. For instance, a POM gear with a DLC coating can achieve a 300% increase in wear life compared to an uncoated version, at a fraction of the cost of switching to a metal gear. This makes surface treatments a strategic choice for optimizing performance without overhauling the design.
In practice, successful implementation hinges on understanding the interplay between the treatment and the gear’s operational demands. For high-speed applications, prioritize coatings that minimize friction and heat buildup. In wet or chemically aggressive environments, focus on treatments that enhance corrosion resistance. Always consult material compatibility charts and conduct pilot testing to validate performance. With the right surface treatment, plastic gears can rival or even surpass metal gears in specific applications, offering a balance of strength, weight, and cost that aligns with modern engineering needs.
DIY Easter Egg Lampshade: Creative Crafting with Plastic Eggs
You may want to see also
Frequently asked questions
High-performance plastics like PEEK, nylon, acetal (POM), or reinforced composites with glass or carbon fibers can significantly enhance gear strength and durability.
Optimizing design features such as tooth profile, thickness, and stress distribution through proper engineering and FEA (Finite Element Analysis) can reduce weak points and improve gear strength.
Yes, surface treatments like heat treatment, coating with hard materials (e.g., Teflon or metal), or chemical hardening can increase wear resistance and overall strength.
Using compatible lubricants reduces friction and wear, minimizing stress on the gear teeth and extending their lifespan, thereby indirectly enhancing their strength.
