Ethan Clarke

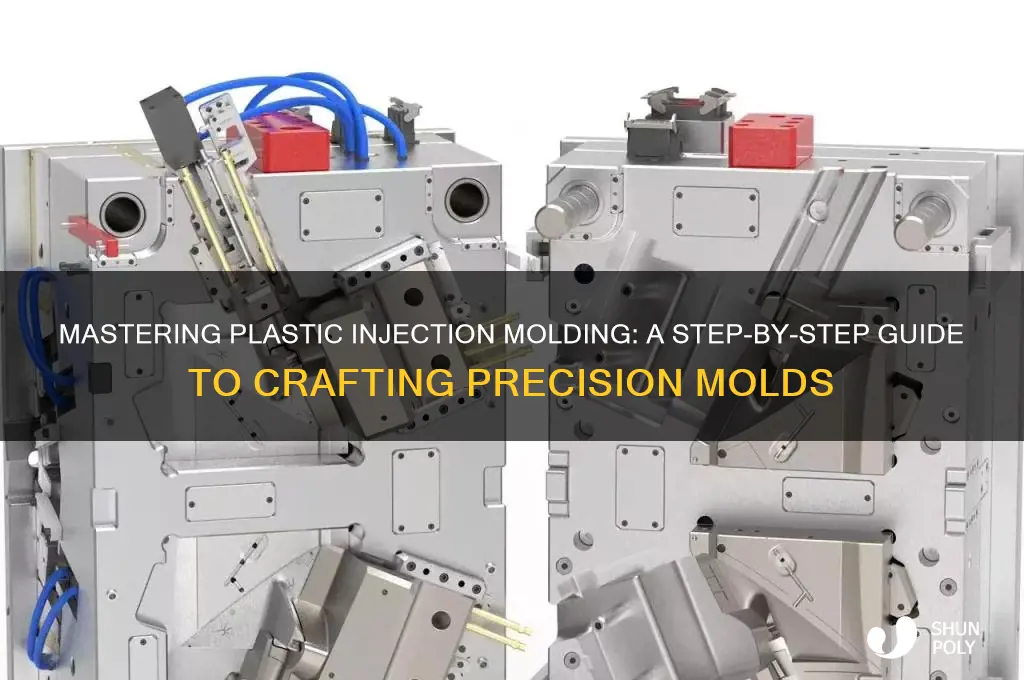

Plastic injection molding is a widely used manufacturing process for producing high-quality, complex plastic parts at scale. Creating a plastic injection mold involves several critical steps, starting with designing the mold using CAD software to ensure precision and functionality. Once the design is finalized, the mold is typically machined from high-strength materials like steel or aluminum using CNC milling or EDM (Electrical Discharge Machining). The mold consists of two main halves—the cavity and core—which, when closed, form the desired part shape. After machining, the mold undergoes polishing and surface treatment to achieve the required finish. Finally, the mold is assembled, tested, and optimized for production, ensuring it can withstand the high pressures and temperatures of the injection molding process. Proper planning, material selection, and attention to detail are essential to creating a durable and efficient mold that meets production needs.
| Characteristics | Values |
|---|---|
| Material Selection | Tool steel (P20, H13), aluminum, or beryllium copper for mold base. |
| Design Software | CAD (SolidWorks, AutoCAD), CAM (Mastercam, Fusion 360) for mold design. |
| Mold Type | 2-plate, 3-plate, hot runner, cold runner, family mold. |
| Machining Process | CNC milling, EDM (Electrical Discharge Machining), grinding. |
| Surface Finish | SPI (Society of the Plastics Industry) standards (A-1 to A-3). |
| Cooling System | Baffles, conformal cooling channels for uniform cooling. |
| Ejection System | Ejector pins, sleeves, strips, or blades for part removal. |
| Gating System | Sprue, runner, gate (edge, subsurface, pin-point, fan, ring). |
| Venting | 0.025 mm to 0.1 mm clearance to allow air escape during injection. |
| Draft Angles | 1° to 3° for easy part ejection. |
| Tolerance | ±0.002 mm to ±0.05 mm depending on part complexity. |
| Cycle Time | 15 to 60 seconds depending on part size and material. |
| Cost | $1,000 to $100,000+ depending on complexity and material. |
| Lead Time | 4 to 12 weeks from design to production. |
| Maintenance | Regular cleaning, lubrication, and inspection for wear. |
| Testing | Trial runs, dimensional inspection, and material flow analysis. |
| Sustainability | Recyclable materials, energy-efficient machining, and waste reduction. |
Explore related products
What You'll Learn
- Design Considerations: Optimize part design for moldability, including draft angles, wall thickness, and gate placement
- Material Selection: Choose suitable mold materials like P20 steel, aluminum, or beryllium copper
- Mold Manufacturing: Use CNC machining, EDM, and polishing for precision mold fabrication
- Cooling System Design: Implement efficient cooling channels to reduce cycle time and prevent warping
- Mold Testing & Maintenance: Conduct trial runs, inspect for defects, and perform regular cleaning and repairs
Design Considerations: Optimize part design for moldability, including draft angles, wall thickness, and gate placement
Draft angles are non-negotiable in injection molding. Without them, parts fuse to the mold, requiring excessive force for ejection, which damages both the part and the tool. A minimum draft angle of 1° is standard, but 2° to 3° is safer for most plastics. For materials prone to sticking, like PVC or ABS, aim for 3° to 5°. Tapered walls ensure smooth release, reduce cycle times, and minimize wear on the mold. Ignore this, and you’ll face warped parts, increased scrap rates, and costly downtime.
Wall thickness consistency is critical to prevent defects like sink marks, voids, and uneven cooling. Aim for a uniform thickness across the part, with a variation of no more than ±10%. For example, a part with a 2 mm wall should avoid sections thinner than 1.8 mm or thicker than 2.2 mm. If uniformity isn’t possible, use gradual transitions (radii or tapers) to distribute material flow evenly. Thick sections cool slower, leading to internal stresses and warping, while thin sections risk short shots or weak spots.
Gate placement dictates material flow and part quality. Place gates in thick sections or areas where weld lines won’t compromise strength. For example, a circular part benefits from a center gate to promote balanced filling, while a rectangular part may use edge gates to minimize flow lines. Avoid gating in high-stress areas or visible surfaces unless the gate can be easily trimmed. Poor gate placement results in air traps, incomplete filling, or cosmetic defects that require secondary operations.
Combine these principles for optimal moldability. Start with draft angles to ensure ejection, then balance wall thickness to control cooling and strength. Finally, position gates to direct material flow efficiently. For instance, a ribbed enclosure with a 3° draft, 2 mm walls, and a side gate near a thick rib exemplifies these considerations. This approach reduces cycle times, improves part quality, and extends mold life, turning design constraints into opportunities for innovation.
Mako Skates: Unveiling the Plastic Material Behind Their Design
You may want to see also
Explore related products
Material Selection: Choose suitable mold materials like P20 steel, aluminum, or beryllium copper
Selecting the right material for a plastic injection mold is a critical decision that impacts durability, cost, and production efficiency. P20 steel, aluminum, and beryllium copper are among the most commonly used materials, each with distinct advantages and trade-offs. P20 steel, for instance, is a workhorse in the industry, prized for its balance of hardness and machinability. It’s ideal for high-volume production runs where the mold will be used repeatedly, as it can withstand up to 500,000 cycles without significant wear. However, its higher cost and longer lead times for machining make it less suitable for low-volume or prototype projects.
For applications requiring faster turnaround times and lower costs, aluminum emerges as a compelling alternative. Its excellent thermal conductivity reduces cycle times by up to 30%, making it efficient for small to medium production runs. Aluminum molds are also lighter and easier to machine, often cutting lead times in half compared to steel. However, aluminum’s lower hardness limits its lifespan to around 10,000 cycles, making it unsuitable for abrasive materials or high-pressure molding. It’s best reserved for non-abrasive plastics like polyethylene or polypropylene.
Beryllium copper occupies a niche in the material spectrum, offering unparalleled thermal conductivity—up to three times that of aluminum. This makes it ideal for molds requiring rapid cooling, such as those used for thin-walled or intricate parts. Its ability to dissipate heat quickly reduces warping and improves part quality. However, beryllium copper is expensive and challenging to machine, often requiring specialized tools and expertise. Additionally, its toxicity during machining necessitates strict safety protocols, including ventilation and personal protective equipment.
When deciding between these materials, consider the production volume, part complexity, and budget. For high-volume, long-term projects, P20 steel’s durability justifies its higher cost. Aluminum is the go-to for rapid prototyping or short runs, while beryllium copper is reserved for specialized applications where thermal management is critical. Always factor in the material’s compatibility with the plastic being molded, as some combinations can accelerate wear or degrade part quality.
In practice, material selection is not a one-size-fits-all decision. For example, a mold producing 10,000 units of a simple polyethylene part might benefit from an aluminum mold, while a high-precision, high-volume mold for polycarbonate components would require P20 steel. Beryllium copper, though expensive, can be cost-effective for applications where cycle time reduction directly translates to higher productivity. By aligning material properties with project requirements, manufacturers can optimize both quality and efficiency in plastic injection molding.
Enhancing Plastic Flexibility: Benefits, Applications, and Sustainable Innovations
You may want to see also
Explore related products
Mold Manufacturing: Use CNC machining, EDM, and polishing for precision mold fabrication
CNC machining stands as the backbone of precision mold fabrication, offering unparalleled accuracy and repeatability. This subtractive manufacturing process begins with a solid block of tool steel, such as P20 or H13, and meticulously carves out the mold’s geometry using computer-controlled cutting tools. For intricate details, a 0.005-inch end mill can achieve tolerances as tight as ±0.001 inches, ensuring the mold cavity matches the product design flawlessly. The process is ideal for creating core and cavity components, but it’s crucial to program toolpaths that minimize tool deflection and material stress. Always pre-harden the steel to 38-42 HRC before machining to prevent distortion during later heat treatment stages.
While CNC machining handles the bulk material removal, Electrical Discharge Machining (EDM) steps in for features beyond the reach of mechanical cutting. EDM excels at producing sharp corners, deep ribs, and intricate textures by eroding material using controlled electrical sparks. For example, a sinker EDM can create a 0.5mm radius on a rib with a surface finish of Ra 0.4 μm, a task impossible with conventional milling. This process is particularly valuable for molds requiring micro-details or hardened steel components (up to 62 HRC). However, EDM is slower and more expensive than CNC, so limit its use to critical areas where precision outweighs cost concerns.
Polishing transforms a functional mold into a production-ready tool by refining surface finishes to meet part requirements. A typical polishing sequence starts with 220-grit silicon carbide paper and progresses to 1200-grit diamond paste, achieving finishes from Ra 1.6 μm to mirror-like Ra 0.1 μm. For optical or medical parts, a final buffing with cerium oxide ensures clarity and biocompatibility. Polishing must be done carefully to avoid altering critical dimensions—use a coordinate measuring machine (CMM) to verify tolerances post-polishing. Outsourcing this step to specialists often yields better results, as it demands both skill and patience.
Integrating these three processes requires careful planning to balance precision, cost, and lead time. Start with CNC machining to establish the mold’s basic geometry, reserving EDM for fine details and polishing for the final surface quality. For instance, a mold for a smartphone case might undergo 80 hours of CNC work, 20 hours of EDM for logo details, and 15 hours of polishing to achieve a Class A surface. Always conduct a trial run after fabrication to identify issues like venting or cooling imbalances. By mastering this workflow, manufacturers can produce molds capable of delivering millions of defect-free parts with cycle times as low as 15 seconds.
Top Plastic Kit Manufacturers for Yamaha WR450F: A Comprehensive Review
You may want to see also
Explore related products
$35.99
Cooling System Design: Implement efficient cooling channels to reduce cycle time and prevent warping
Efficient cooling is the unsung hero of plastic injection molding. While the molten plastic's flow and the mold's precision grab the spotlight, it's the cooling system that dictates cycle time, part quality, and ultimately, profitability. Think of it as the mold's internal air conditioning – a poorly designed system leads to warped parts, extended production times, and frustrated operators.
A well-designed cooling system relies on strategically placed channels that act as highways for heat transfer. These channels, often integrated directly into the mold core and cavity, circulate coolant (typically water or oil) to rapidly extract heat from the solidified plastic. The goal? Achieve uniform cooling across the entire part, minimizing internal stresses that cause warping and ensuring consistent dimensional accuracy.
Designing these channels isn't a one-size-fits-all approach. Factors like part geometry, material properties, and desired cycle time dictate the channel layout, diameter, and coolant flow rate. For instance, thicker sections require more aggressive cooling, often achieved through larger channels or increased coolant velocity. Conversely, delicate features demand a gentler touch, utilizing smaller channels and lower flow rates to prevent thermal shock.
Simulations play a crucial role in optimizing cooling channel design. Advanced software allows engineers to model heat flow, predict temperature gradients, and identify potential hot spots before the mold is even built. This virtual prototyping saves time, reduces costly revisions, and ensures the final mold delivers consistent, high-quality parts from the outset.
Remember, efficient cooling isn't just about speed. It's about control. By carefully tailoring the cooling system to the specific demands of the part and process, manufacturers can achieve faster cycle times, minimize defects, and maximize the lifespan of their molds. It's an investment that pays dividends in both quality and productivity.
Why Cooking Eggs Sometimes Results in a Plastic-Like Texture
You may want to see also
Explore related products
Mold Testing & Maintenance: Conduct trial runs, inspect for defects, and perform regular cleaning and repairs
Trial runs are the litmus test for any injection mold’s readiness for production. Before committing to full-scale manufacturing, run short cycles with the actual material to evaluate the mold’s performance under real-world conditions. Monitor factors like cycle time, material flow, and cooling efficiency. For instance, if the mold is designed for polypropylene, ensure the injection pressure and temperature align with the material’s processing window (typically 180°C to 240°C). Document the results to identify inconsistencies, such as short shots or warping, which may indicate issues with gate design or cooling channels.
Defect inspection is both an art and a science. After each trial run, visually inspect the molded parts for surface imperfections like sink marks, flash, or ejector pin marks. Use magnification tools for micro-defects, and employ non-destructive testing methods like ultrasonic inspection for internal flaws. For example, a mold producing medical components must meet stringent quality standards, so defects like voids or delamination are unacceptable. Maintain a defect log to track recurring issues, as patterns may reveal systemic problems like wear on core pins or misaligned mold halves.
Regular cleaning and maintenance are non-negotiable for mold longevity. Resin buildup, rust, and debris can compromise part quality and increase cycle times. Clean the mold cavity and core surfaces with a solvent suitable for the mold material—for instance, isopropyl alcohol for steel molds. Disassemble the mold periodically to clean hard-to-reach areas like vents and cooling lines. Lubricate moving parts like ejector pins and guide bushes with a high-temperature grease to prevent seizing. Schedule maintenance based on usage: a mold running 24/7 may require weekly cleaning, while a low-volume mold might need attention monthly.
Repairs should be proactive, not reactive. Monitor wear-prone areas like parting lines and shut-off surfaces for signs of degradation. Replace damaged components immediately—for example, a worn ejector pin can cause part sticking, leading to increased cycle times and potential damage. Keep a spare parts inventory for critical components to minimize downtime. For complex repairs, such as welding cracked cavities, consult a specialist to ensure structural integrity is restored without compromising precision.
The ultimate goal of testing and maintenance is to maximize mold lifespan while ensuring consistent part quality. A well-maintained mold can produce millions of cycles, but neglect accelerates wear and increases scrap rates. For instance, a mold producing automotive parts may need to last 500,000 cycles, requiring rigorous maintenance to meet this benchmark. By integrating trial runs, defect inspection, cleaning, and repairs into a structured maintenance plan, manufacturers can avoid costly downtime and maintain production efficiency. Treat the mold as an investment, and its ROI will be measured in flawless parts and uninterrupted operations.
Top Plastic Welder Brands: Expert Reviews and Recommendations
You may want to see also
Frequently asked questions
Common materials for plastic injection molds include tool steels (e.g., P20, H13), aluminum, and beryllium copper. The choice depends on factors like production volume, part complexity, and budget.
The process typically involves mold design, material selection, machining (CNC milling, EDM), polishing, assembly, and testing to ensure the mold meets specifications and produces quality parts.
The time varies based on mold complexity, size, and production volume. Simple molds can take 2-4 weeks, while complex, high-cavity molds may require 8-12 weeks or more.
Costs are influenced by mold size, complexity, material choice, cavity number, surface finish requirements, and production volume. Higher precision and larger molds generally increase expenses.
