Maya Ellison

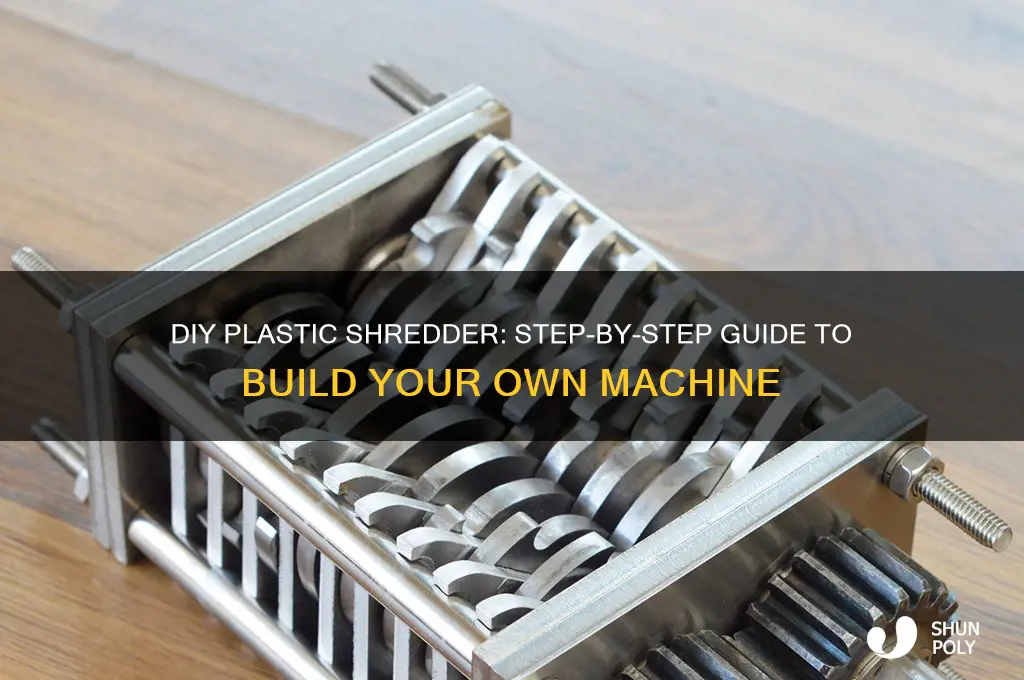

Creating a plastic shredder is an innovative and eco-friendly project that empowers individuals and communities to tackle plastic waste effectively. By building a plastic shredder, you can break down plastic materials into smaller, manageable pieces, which can then be recycled, repurposed, or used in creative projects like 3D printing or molding. This DIY approach not only reduces environmental impact by diverting plastic from landfills but also fosters self-sufficiency and sustainability. Whether for personal use or community initiatives, constructing a plastic shredder involves understanding basic mechanics, selecting appropriate materials, and ensuring safety measures. With the right tools and guidance, anyone can contribute to the global effort to combat plastic pollution while exploring practical solutions for waste management.
| Characteristics | Values |
|---|---|
| Purpose | To shred plastic waste into smaller pieces for recycling or repurposing. |
| Materials Needed | Wood/metal frame, motor (1-3 HP), blades (steel), bearings, pulleys, belt, safety guards, power source. |
| Design Types | Rotary shredder, claw shredder, granulator. |
| Blade Material | Hardened steel or stainless steel for durability. |
| Motor Power | 1-3 HP depending on shredding capacity. |
| Shredding Capacity | 10-50 kg/hour (varies based on design and motor power). |
| Safety Features | Emergency stop button, safety guards, and protective gear (gloves, goggles). |
| Cost | $100-$500 (DIY) depending on materials and motor. |
| Energy Consumption | 1-2 kWh per hour (varies with motor size). |
| Maintenance | Regular blade sharpening, lubrication of bearings, and motor maintenance. |
| Noise Level | 70-90 dB (use ear protection). |
| Output Size | Adjustable, typically 5-20 mm plastic flakes. |
| Environmental Impact | Reduces plastic waste and supports recycling efforts. |
| Skill Level Required | Intermediate DIY skills (basic carpentry, electrical, and mechanical). |
| Time to Build | 10-20 hours depending on design complexity. |
| Applications | Recycling, 3D printing filament, eco-bricks, and art projects. |
Explore related products
What You'll Learn
- Design Basics: Understand shredder types, blade geometry, and material flow for efficient plastic cutting
- Materials Needed: List essential components like motors, frames, blades, and safety gear for construction
- Assembly Steps: Detailed guide on assembling parts, ensuring alignment, and securing components for stability
- Safety Measures: Implement guards, emergency stops, and protective gear to prevent accidents during operation
- Testing & Optimization: Run trials, adjust blade speed, and refine design for optimal shredding performance
Design Basics: Understand shredder types, blade geometry, and material flow for efficient plastic cutting
Plastic shredders are not one-size-fits-all. Understanding the types of shredders available is the first step in designing an efficient machine. Single-shaft shredders, for instance, use a rotating blade to cut plastic against a stationary surface, making them ideal for smaller, uniform pieces. In contrast, double-shaft shredders employ two counter-rotating blades, offering higher throughput and better handling of larger, bulkier materials. For DIY enthusiasts, the choice often hinges on the intended scale of operation and the type of plastic waste being processed. A single-shaft design might suffice for home-based recycling, while community projects may benefit from the robustness of a double-shaft system.
Blade geometry is a critical factor that directly impacts cutting efficiency and energy consumption. Straight blades are simple and effective for thin plastics but struggle with thicker materials. Serrated blades, on the other hand, provide a tearing action that can handle tougher plastics with ease. The angle of the blade, or hook angle, also plays a role—a steeper angle increases cutting aggression but may reduce blade life. For optimal performance, consider the material properties of the plastic being shredded. PET bottles, for example, require sharper, more durable blades compared to softer plastics like LDPE. Experimenting with blade designs using CAD software can help refine the geometry before fabrication.
Material flow is often overlooked but is essential for preventing jams and ensuring consistent shredding. The feed system should guide plastic into the cutting chamber without bunching or tangling. A forced-feed mechanism, such as a conveyor belt or auger, can improve material handling, especially for flexible plastics like bags or films. Additionally, the discharge system must be designed to handle the shredded output efficiently. A chute with a vibrating mechanism can prevent clogs, while a collection bin with a volume of at least 50 liters is practical for small-scale operations. Proper material flow not only enhances efficiency but also reduces wear on the shredder components.
Combining these design elements requires a systematic approach. Start by defining the shredder’s purpose—whether it’s for personal use, community recycling, or small-scale industrial applications. Next, select a shredder type and blade geometry that align with the material characteristics and desired output size. For instance, a double-shaft shredder with serrated blades is well-suited for processing mixed plastic waste. Finally, integrate a material flow system that minimizes bottlenecks and maximizes throughput. Testing the design with small batches of plastic can reveal areas for improvement, ensuring the final machine meets both performance and safety standards.
Crafting Realistic Plastic Rocks: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Materials Needed: List essential components like motors, frames, blades, and safety gear for construction
Building a plastic shredder requires a careful selection of materials to ensure durability, efficiency, and safety. At the heart of the machine is the motor, which should be powerful enough to handle the load without overheating. A 1-3 horsepower motor is ideal for most DIY shredders, with a speed of 1400-2800 RPM to balance torque and cutting efficiency. Opt for a used or surplus motor to keep costs down, but ensure it’s in good working condition to avoid mid-project failures.
The frame serves as the backbone of the shredder, providing stability and support for all components. Steel or aluminum are preferred materials due to their strength and resistance to wear. For a small-scale shredder, a 20x20x20-inch frame is sufficient, but larger projects may require custom dimensions. Welding skills are essential here, as joints must be secure to withstand the stress of shredding. If welding isn’t an option, consider bolting pre-cut metal sheets together, though this may compromise rigidity.
Blades are the workhorses of the shredder, and their design directly impacts performance. High-carbon steel or hardened tool steel blades are recommended for their sharpness and longevity. A set of 4-6 rotating blades paired with stationary blades works well for most plastics. Ensure blades are sharpened at a 30-degree angle for optimal cutting. Regular maintenance, such as sharpening every 20-30 hours of use, will extend their lifespan and maintain efficiency.
Safety gear is non-negotiable when constructing and operating a shredder. Gloves, safety goggles, and ear protection are mandatory during assembly to prevent injuries from sharp edges and loud machinery. Once operational, install a safety guard around the blades and ensure the machine has an emergency stop button. Additionally, use a dust mask to avoid inhaling plastic particles, and keep a fire extinguisher nearby, as friction from shredding can generate heat.
Finally, consider auxiliary components like bearings, pulleys, and belts to connect the motor to the blades efficiently. Ball bearings reduce friction in rotating parts, while V-belts or timing belts transmit power effectively. A tensioning system for the belts ensures consistent performance and prevents slippage. These small but critical parts often determine the shredder’s reliability, so invest in quality components to avoid frequent replacements. With the right materials, your plastic shredder will be a robust tool for recycling and upcycling.
Crafting a 3D Plastic Canvas Box: Step-by-Step DIY Guide
You may want to see also
Explore related products
Assembly Steps: Detailed guide on assembling parts, ensuring alignment, and securing components for stability
Assembling a plastic shredder requires precision and attention to detail to ensure functionality and safety. Begin by laying out all components on a flat surface, categorizing them by function—frame parts, cutting mechanisms, motors, and safety guards. Refer to your design blueprint or a trusted guide to identify each piece. Start with the base frame, typically a sturdy metal or wooden structure, and secure it to a stable workbench using clamps or bolts. This foundation must be immovable to handle the shredder’s vibrations during operation.
Next, focus on aligning the cutting mechanism, the heart of the shredder. Position the rotating blades or shredding discs onto the motor shaft, ensuring they are centered and securely fastened with locking nuts or set screws. Use a caliper or ruler to verify alignment; even a slight misalignment can cause uneven wear or jamming. Attach the motor to the frame, double-checking that its mounting holes align with the frame’s brackets. Secure it with high-tensile bolts and lock washers to prevent loosening under vibration.
Once the motor and cutting mechanism are in place, install the feed chute and safety guards. The feed chute should align directly with the cutting blades, allowing plastic to enter smoothly without obstruction. Secure it with screws or welding, depending on your design. Safety guards are non-negotiable—attach them around moving parts to prevent accidental contact. Use transparent polycarbonate for visibility while ensuring durability. Test the alignment by manually rotating the blades to confirm no interference with guards or other components.
Finally, connect the power supply and control system. Use a heavy-duty power cord rated for the motor’s amperage and attach it to a switch or variable speed controller. Ensure all electrical connections are insulated with heat-shrink tubing or electrical tape to prevent shorts. Mount the control panel on the frame within easy reach. Before powering on, double-check all fasteners, alignment, and safety features. A thorough inspection now prevents costly repairs or accidents later.
Practical tips: Use thread-locking adhesive on critical fasteners to prevent vibration-induced loosening. Keep a wrench set and Allen keys nearby for adjustments. If using a 3D-printed frame, reinforce stress points with metal brackets. Always wear safety goggles and gloves during assembly and operation. Test the shredder with small plastic pieces initially to ensure smooth operation before handling larger volumes.
Mastering Plastic Icing: Easy Techniques for Smooth Cake Decorating
You may want to see also
Explore related products
$30.99 $32.99
Safety Measures: Implement guards, emergency stops, and protective gear to prevent accidents during operation
Building a plastic shredder without prioritizing safety is like handing a chainsaw to a toddler—disastrous waiting to happen. The whirring blades, flying debris, and powerful motors demand respect. Guards, emergency stops, and protective gear aren't optional luxuries; they're the bare minimum for anyone serious about keeping their limbs intact.
Skimping on safety features to save a few bucks or time is a gamble with permanent consequences. A momentary lapse in attention, a snagged piece of plastic, or a loose article of clothing can turn your DIY project into a trip to the emergency room.
Let's break down the essentials. Guards act as physical barriers, shielding you from the shredder's most dangerous zones. Design them to enclose the blades completely, leaving no gaps for fingers, clothing, or debris to slip through. Use sturdy materials like metal or thick plastic, ensuring they're securely fastened and impossible to bypass. Don't underestimate the importance of proper guarding – it's your first line of defense against catastrophic accidents.
Emergency stops are your panic button, instantly halting the shredder in case of trouble. Position them within easy reach, clearly marked and brightly colored for instant recognition. Test them regularly to ensure they work flawlessly, and train everyone who uses the shredder on their location and operation. Remember, in an emergency, every second counts.
Protective gear isn't just for show – it's your last line of defense. Safety goggles shield your eyes from flying plastic shards, while heavy-duty gloves protect your hands from sharp edges and accidental contact with moving parts. Closed-toe shoes prevent injuries from falling debris, and ear protection safeguards your hearing from the shredder's noisy operation. Don't skimp on quality – invest in gear that meets industry safety standards.
Finally, remember that safety is a mindset, not just a checklist. Regular maintenance is crucial – inspect your shredder for loose parts, worn blades, or damaged guards before each use. Stay focused while operating the machine, avoiding distractions like phones or conversations. Never attempt repairs or adjustments while the shredder is running. By combining these measures with a healthy respect for the machine's power, you can turn your plastic shredder into a safe and effective tool, not a hazard.
Oil's Role in Plastic Production: A Necessary Ingredient Explained
You may want to see also
Explore related products
Testing & Optimization: Run trials, adjust blade speed, and refine design for optimal shredding performance
Once your plastic shredder is assembled, the real work begins: testing and optimization. This phase is crucial for transforming a functional machine into an efficient, reliable tool. Start by running initial trials with small batches of plastic waste, observing how the material feeds into the shredder, how it interacts with the blades, and the consistency of the output. Note any jams, uneven shredding, or excessive noise, as these are early indicators of design or operational issues. Document each trial with details like blade speed, material type, and shred size to establish a baseline for comparison.
Blade speed is a critical variable that directly impacts shredding performance. Too slow, and the process becomes inefficient; too fast, and you risk overheating the motor or producing inconsistent shreds. Begin with a moderate speed (e.g., 500–800 RPM for a small-scale shredder) and incrementally adjust in 50 RPM intervals. Test each speed with the same material to isolate its effect on output quality and throughput. For harder plastics like HDPE, slower speeds may be necessary to prevent blade dulling, while softer materials like PET might allow for higher speeds. Use a tachometer to measure RPM accurately and ensure consistency across trials.
Refining the design often becomes necessary after identifying recurring issues during testing. For example, if material is bunching up near the blades, consider modifying the feed mechanism or adding a guide to ensure even distribution. If the shreds are too large or too fine, adjust the blade spacing or consider adding a screen to control particle size. Small changes, like adding a tensioning system for the belt drive or improving ventilation to prevent motor overheating, can significantly enhance performance. Each modification should be followed by another round of testing to quantify its impact.
Optimization is an iterative process that requires patience and attention to detail. After several rounds of testing and adjustments, analyze the data to identify trends. For instance, you might find that a blade speed of 700 RPM consistently produces the desired shred size while minimizing energy consumption. Use this information to establish optimal operating parameters for your shredder. Additionally, consider long-term maintenance needs, such as regular blade sharpening or motor lubrication, to ensure sustained performance. By systematically testing, adjusting, and refining, you’ll transform your shredder into a robust tool tailored to your specific needs.
Transform Your Yard: DIY Pond Using a Plastic Pool Guide
You may want to see also
Frequently asked questions
To build a plastic shredder, you will need materials such as a sturdy metal frame, a motor (preferably a high-torque one), shredding blades (often made from hardened steel), bearings, pulleys, belts, a power source, and safety components like a switch and guard.
Safety is crucial when operating a plastic shredder. Always use a safety guard to cover moving parts, wear protective gear (gloves, goggles, and sturdy shoes), ensure the machine is securely mounted, and install an emergency stop switch. Never feed materials by hand; use a pusher stick instead.
A high-torque motor, such as a gear motor or a heavy-duty electric motor, is ideal for a plastic shredder. The size depends on the scale of your project: smaller shredders (for home use) may require a 1-3 HP motor, while larger industrial ones may need 5 HP or more. Match the motor's power to the expected load and shredding capacity.
