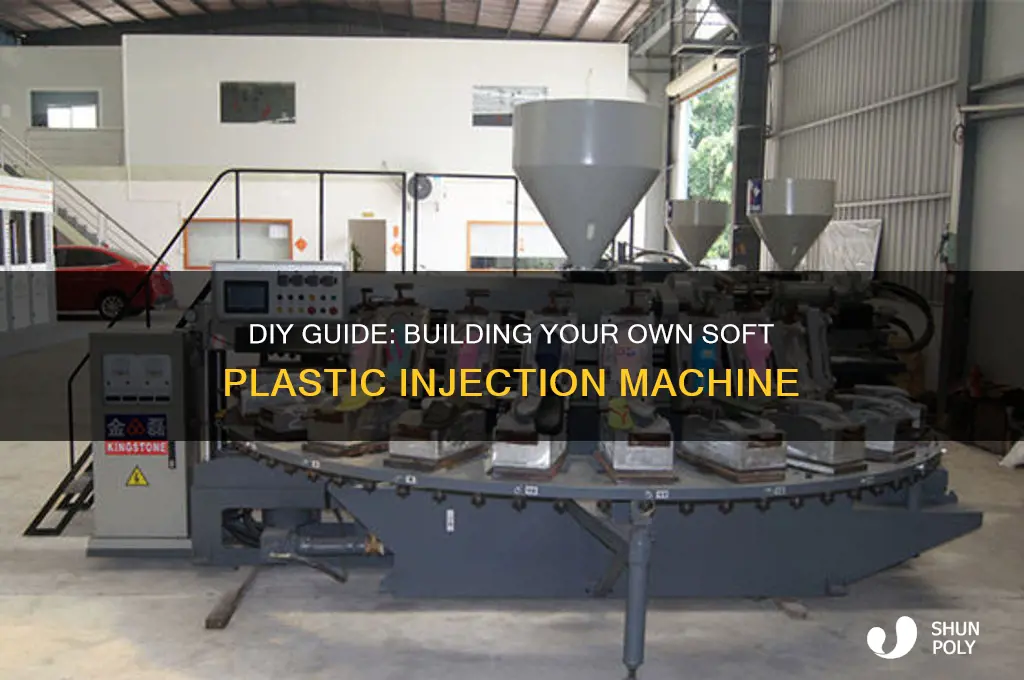

Creating a soft plastic injection machine involves a blend of mechanical engineering, material science, and precision manufacturing. The process begins with designing a robust machine frame capable of withstanding the pressures and temperatures required for plastic injection molding. Key components include a heated barrel and screw assembly to melt and mix the soft plastic material, a mold cavity to shape the final product, and a hydraulic or electric system to inject the molten plastic with controlled force. Additionally, temperature and pressure sensors are essential for maintaining consistency and quality. Building such a machine requires careful selection of materials, precise machining, and thorough testing to ensure durability, efficiency, and safety. This DIY approach allows for customization to specific production needs, making it a valuable project for small-scale manufacturers or enthusiasts in the plastics industry.
Explore related products
What You'll Learn
- Machine Frame Design: Construct sturdy frame using steel or aluminum for stability and durability
- Injection Unit Assembly: Build injection unit with screw, barrel, and hydraulic system for material melting
- Mold Clamping Mechanism: Design clamping system using toggle or hydraulic clamps for precise mold closure
- Control System Integration: Install PLC or microcontroller for automated temperature, pressure, and cycle control
- Safety Features Implementation: Add emergency stops, interlocks, and guards to ensure operator safety
Machine Frame Design: Construct sturdy frame using steel or aluminum for stability and durability
A robust machine frame is the backbone of any plastic injection molding system, ensuring precision and longevity under the intense pressures and temperatures inherent in the process. Steel and aluminum are the materials of choice for this critical component, each offering distinct advantages. Steel, with its high tensile strength and resistance to deformation, is ideal for heavy-duty applications where the machine will operate continuously at maximum capacity. Aluminum, while lighter and more susceptible to wear, provides excellent thermal conductivity, reducing the risk of heat-induced warping during prolonged use. The decision between these materials hinges on the specific demands of your operation, balancing load requirements, thermal management, and cost-effectiveness.
Designing the frame requires meticulous attention to structural integrity. Begin by calculating the expected loads, including the clamping force, injection pressure, and weight of the mold and material. Use finite element analysis (FEA) to simulate stress distribution and identify potential weak points. Incorporate gussets, ribs, and cross-bracing to enhance rigidity, particularly at joints and corners where stress concentration is highest. For aluminum frames, consider thicker sections or hybrid designs that combine aluminum with steel reinforcements in high-stress areas to optimize both weight and strength.
Assembly techniques play a pivotal role in ensuring the frame’s durability. Welding is the preferred method for steel frames, providing a strong, permanent bond. TIG welding, in particular, offers precision and minimizes distortion, which is crucial for maintaining dimensional accuracy. Aluminum frames, however, are best assembled using mechanical fasteners or adhesive bonding due to aluminum’s lower melting point and susceptibility to weld cracking. Ensure all joints are tightly secured and use locking mechanisms, such as locknuts or thread-locking adhesives, to prevent vibration-induced loosening over time.
Surface treatment is another critical aspect of frame design. Steel frames should be galvanized or powder-coated to resist corrosion, especially in humid environments. Aluminum, naturally resistant to corrosion due to its oxide layer, may still benefit from anodizing to enhance durability and aesthetic appeal. Additionally, consider incorporating vibration-damping materials, such as rubber pads or mounts, to reduce machine vibration and noise, which can otherwise lead to premature wear and fatigue.
Finally, modularity in frame design can significantly extend the machine’s lifespan and adaptability. Design the frame with interchangeable components, allowing for easy upgrades or repairs without replacing the entire structure. This approach not only reduces downtime but also future-proofs your investment, enabling the machine to accommodate advancements in injection molding technology. By prioritizing strength, precision, and flexibility in your frame design, you lay a solid foundation for a reliable and efficient plastic injection machine.
