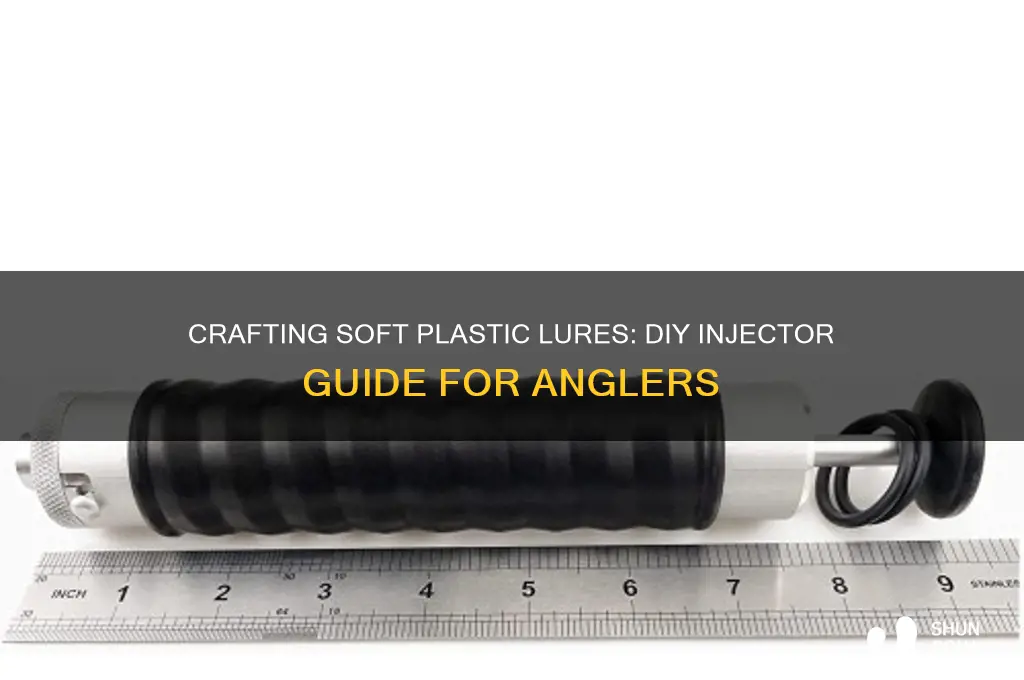

Creating a soft plastic injector is a specialized process that involves crafting a tool designed to inject molten plastic into molds for producing soft plastic baits, commonly used in fishing. This DIY project requires careful planning, precision, and adherence to safety guidelines, as it involves working with high temperatures and potentially hazardous materials. The process typically includes selecting appropriate materials, such as a durable metal barrel and nozzle, designing a heating mechanism to melt the plastic, and assembling a plunger system for controlled injection. Additionally, understanding the properties of soft plastics and mastering temperature control are crucial for achieving consistent results. With the right tools, knowledge, and attention to detail, enthusiasts can successfully build a functional soft plastic injector tailored to their specific needs.
| Characteristics | Values |
|---|---|
| Materials Needed | PVC pipe, nozzle tip, plunger, heating element, mold, soft plastic pellets |
| Pipe Diameter | Typically 1-2 inches (25-50 mm) depending on desired bait size |
| Nozzle Tip | Stainless steel or brass for durability and heat resistance |
| Heating Method | Electric heating element or propane torch |
| Temperature Range | 350-450°F (177-232°C) for melting soft plastic |
| Mold Material | Aluminum or silicone for easy release and durability |
| Plunger Design | Sturdy handle with a tight seal to push molten plastic into the mold |
| Safety Equipment | Heat-resistant gloves, safety goggles, and a well-ventilated workspace |
| Cost Estimate | $50-$150 depending on materials and complexity |
| Time to Build | 2-4 hours for assembly and testing |
| Maintenance | Regular cleaning of the nozzle and mold to prevent clogs |
| Applications | DIY fishing lures, custom bait designs, small-scale production |
| Skill Level Required | Intermediate DIY skills; basic knowledge of heating and molding |
| Portability | Depends on design; smaller setups are more portable |
| Energy Source | Electricity or propane, depending on heating method |
| Environmental Impact | Minimal if using energy-efficient heating and recyclable materials |
Explore related products
What You'll Learn
- Materials Needed: List essential materials like plastic pellets, molds, injector machine, and safety gear
- Machine Setup: Steps to assemble and calibrate the soft plastic injector machine
- Mold Preparation: Cleaning, heating, and preparing molds for injection molding
- Injection Process: Techniques for melting plastic and injecting it into molds
- Post-Processing: Cooling, trimming, and finishing soft plastic products for use
Materials Needed: List essential materials like plastic pellets, molds, injector machine, and safety gear
Creating a soft plastic injector requires a precise selection of materials to ensure both functionality and safety. At the core of this process are plastic pellets, specifically soft plastic varieties like PVC or TPE, which melt at lower temperatures, making them ideal for injection molding. These pellets are the raw material that will be transformed into your desired shapes, so choose a grade that suits your project’s flexibility and durability needs. For instance, PVC pellets are cost-effective and widely available, while TPE offers superior elasticity for more intricate designs.
Equally critical is the injector machine, the heart of the operation. This machine must be capable of heating the plastic pellets to their melting point (typically 150°C to 200°C for soft plastics) and injecting the molten material into molds under controlled pressure. Entry-level machines are available for hobbyists, but for larger-scale production, industrial-grade injectors with programmable settings are recommended. Ensure the machine has safety features like automatic shut-off to prevent overheating, as melted plastic can pose a fire hazard.
Molds are another indispensable component, dictating the final shape and quality of your product. Silicone molds are popular for soft plastic injection due to their flexibility and ease of release, but aluminum or steel molds offer longevity for high-volume production. When designing or selecting molds, consider factors like draft angles (typically 2-3 degrees) to ensure easy ejection of the finished piece. Custom molds can be 3D printed or machined, depending on your budget and precision requirements.
Safety gear cannot be overlooked in this process. Heat-resistant gloves are essential when handling hot molds or machinery, while safety goggles protect against splatters of molten plastic. A well-ventilated workspace or respirator is crucial to avoid inhaling fumes from heated plastics, especially when working with PVC. Additionally, keep a fire extinguisher rated for Class B fires nearby, as melted plastic burns differently than solid materials.
Finally, ancillary materials like release agents (e.g., silicone spray) and cooling systems (e.g., water baths or air coolers) enhance efficiency and product quality. Release agents prevent plastic from sticking to molds, reducing waste and cleanup time. Cooling systems expedite the solidification process, allowing for faster cycle times. While not mandatory, these additions streamline production and improve the overall outcome, making them worthwhile investments for serious enthusiasts or professionals.
