Plastic is everywhere, and it's easy to throw away broken plastic items and buy new ones. However, with some simple techniques, you can fix cracked or broken plastic and give your items a new lease of life. Whether you're repairing a favourite toy or mending a broken bin lid, there are several ways to approach it. You can use glue or adhesive, melt the plastic to weld it back together, or use a two-part epoxy system.
| Characteristics | Values |
|---|---|
| Type of plastic | Polypropylene, ABS, PLA |
| Tools | Soldering iron, glue, adhesive, epoxy, slurry, welding tools, C-clamp |
| Safety | Protective eyewear, respirator or breathing mask, gloves, well-ventilated area, fan |
| Process | Melt plastic, apply heat, weld, glue, tape, add weight, cure, sandpaper, clean-up |
Explore related products
What You'll Learn
Using glue or adhesive
Before gluing, ensure the surfaces are close-fitting, free of residue, and dry. If the surfaces are smooth, you can improve adhesion by roughening them slightly with sandpaper. When you are ready to glue, apply the adhesive sparingly to one surface and press the parts together immediately. Hold the pieces in place until the bond sets, which may take up to 24 hours. To prevent slipping while the glue sets, you can tape the broken piece down or set a weighted object on top.
Super glue is another option for bonding plastic. The super glue molecules pull together and form a strong bond when the water in the molecules evaporates. However, if your plastic item will come into contact with water, be aware that water can compromise the bond of super glue.
Knitting on a Plane: Plastic Needles Allowed?
You may want to see also
Explore related products

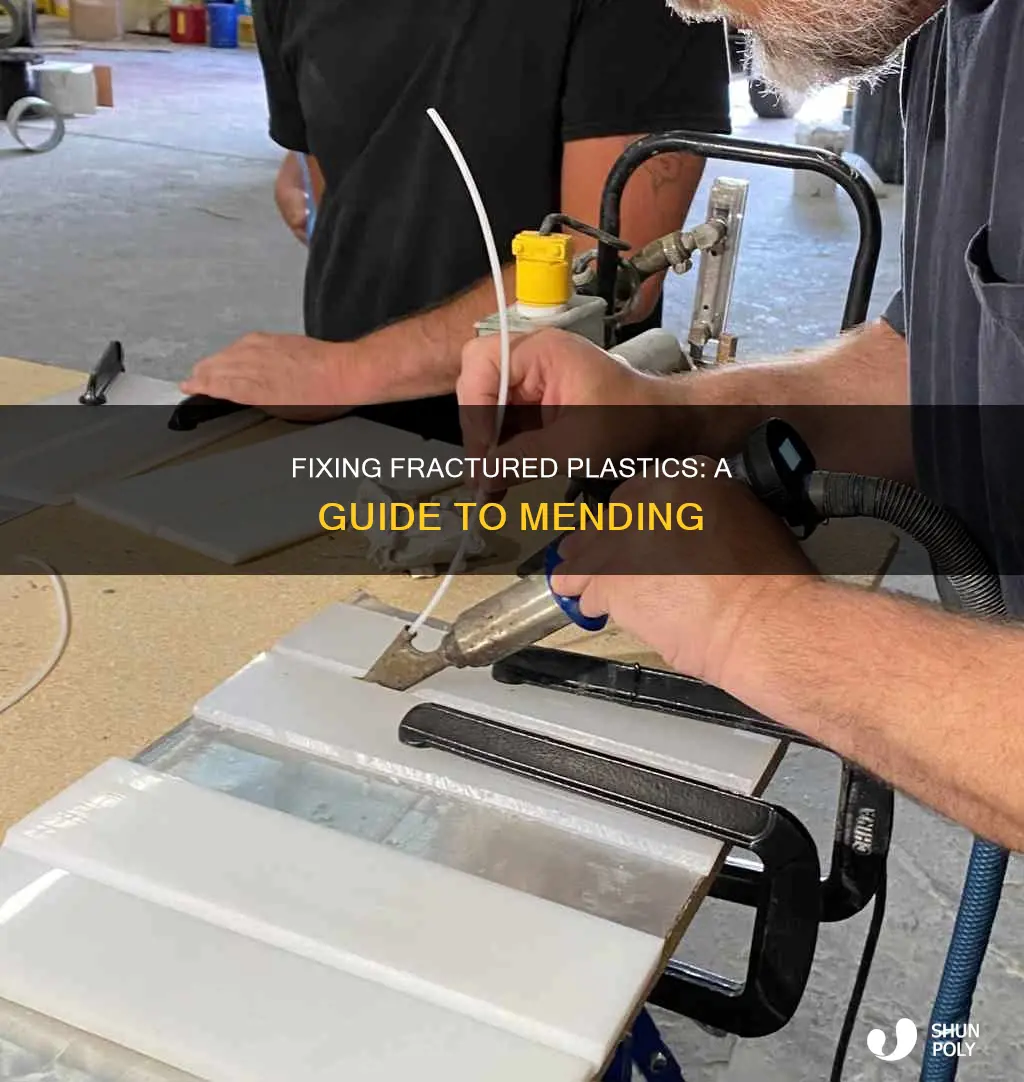

Plastic welding
The specific heating technique depends on the plastic material. For example, Polypropylene (used in most car bumpers) can only be welded with a Polypropylene welding rod. PVC, on the other hand, is commonly joined using ultrasonic welding, which does not involve direct heating and thus avoids the emission of dangerous fumes. Other welding techniques, such as vibration-based welding, also do not produce fumes, reducing the need for protective gear and ventilation infrastructure.
To weld plastic, you will need a workspace with proper ventilation and protective gear, such as eyewear, a respirator, and a fan to blow fumes away. Clean the thermoplastics with soap and warm water, and dry them with a clean, lint-free cloth. If there are stains, use liquid solvents like Methyl Ethyl Ketone (MEK), 80-grit sandpaper, or a paint scraper to remove them.
Once the plastic is clean, clamp and tape the two pieces together to form the desired joint. You can use C-clamps to hold the pieces in place on a workbench. If you are using a hot air tool, push-fit the Tacking Nozzle onto the tool and run the tip along the weld line, swaging the two materials together. For short weld runs or difficult-to-access areas, the Pendulum Welding technique can be used. Adjust the welding tool to the appropriate temperature and select the correct welding rod. Cut the tip of the welding rod to a point to aid the initial flow.
Weld the plastic in one continuous run, adjusting the speed to create a slight 'wash' or shiny spot at the sides of the welding rod. Ensure even heating of both the parent material and the welding rod. When welding is complete, allow the plastic to cool completely before trimming or sanding.
Plastic Surgery: Weekend's Transformation, a New Look?
You may want to see also
Explore related products
Spin welding
Step 1: Prepare the Plastic Pieces
Before beginning the spin welding process, ensure that the plastic pieces you want to join are clean and free from any paint or debris. If there is paint on the plastic, use 80-grit sandpaper to scrub it off gently. You can also use other tools like an abrasive disc, a sanding wheel, or a paint scraper to remove the paint, being careful not to scratch the plastic underneath.
Step 2: Set Up Your Workspace
Step 3: Choose the Right Welding Rod
Select a welding rod that matches the type of plastic you are working with. Look for letter identifiers on the plastic, such as PE (polyethylene), PP (polypropylene), or PVC (polyvinyl chloride). Choose a welding rod with the corresponding letter to ensure compatibility. If you are unsure about the plastic type, use a welding rod testing kit to find the closest match.
Step 4: Prepare the Joint
Position the plastic pieces on a workbench, pushing them as close together as possible. Use C-clamps to secure the pieces to the table and foil tape to hold them tightly together. Ensure that the area you wish to weld is not covered by the tape. If necessary, tack-weld the ends of the joint by melting them slightly to keep the pieces from moving during the spin welding process.
Step 5: Perform Spin Welding
Use an electric welding gun to generate the necessary heat for spin welding. Set the welding gun to the appropriate temperature for the type of plastic you are working with. For example, propylene and polyurethane require a temperature of around 300°C (572°F), while PVC should be welded at approximately 275°C (527°F). Fit the welding gun with a tack welding nozzle, which looks like a tube with a fin on the end. Press the fin against the spinning plastic to melt and join the two pieces together.
Step 6: Smooth the Weld
Once the plastic pieces are welded together, finish the process by smoothing out the weld. This will create a stronger and more aesthetically pleasing joint. Your spin-welded plastic is now ready, and the joint should be about 95% as strong as the original plastic.
Sticker Decals: Will They Stick to Plastic?
You may want to see also
Explore related products
Soldering iron
Firstly, clean the plastic with soap and a degreaser, if necessary. Sand down the edges to be welded so that they are not jagged. If your plastic is thin, you may need to add more plastic to the seam to strengthen it. You can do this by laying smaller pieces of plastic along the seam and melting them fully with the soldering iron.
Next, heat up your soldering iron. Set it to the lowest temperature setting, ideally no higher than 400-500 °F (204-260 °C). If you are using a soldering iron with adjustable temperature, you can start at 210 °C and increase the temperature gradually to avoid burning the plastic.
Once the soldering iron is heated, push the two pieces of plastic together and run the soldering iron tip back and forth over the seam to partially melt the plastic together. You can also use the soldering iron to melt the edges of the plastic. Lightly rake the tip of the iron over the joint where the two surfaces connect. The intense heat will instantly liquefy the soft plastic on either side, which will then merge together and reharden.
Finally, go over the seam and surrounding area with the soldering iron using fast, smooth strokes to create an even, smoothly welded surface.
Plastic Army Men: How Tall Are These Toys?
You may want to see also
Explore related products
Filling holes with scrap plastic
If you have a hole in a piece of plastic that you want to fill, you can use scrap plastic to do so. This method is a great way to reuse and recycle plastic, and it can create a strong and long-lasting repair. Here is a step-by-step guide to filling holes with scrap plastic:
First, gather your materials. You will need some scrap plastic of a similar type to the piece you are repairing. For example, if you are filling a hole in a plastic bottle, use another plastic bottle of similar material as your scrap. You will also need a heat source such as a soldering iron or hot air gun, and some sort of clamp or vise to hold the plastic in place while you work.
Cut or break your scrap plastic into small pieces. The pieces should be slightly larger than the hole you are filling, as the plastic will melt and shrink slightly. You can use scissors, a knife, or even a sharp chisel to cut the plastic, depending on its thickness and your personal preference.
Next, use your heat source to carefully melt the plastic. Hold the heat source near the plastic pieces and allow them to soften and become moldable. Be careful not to overheat the plastic, as it may begin to burn or release toxic fumes. Once the plastic is soft enough, quickly remove the heat source and use a tool, such as a metal spoon or wooden dowel, to push and pack the molten plastic into the hole.
Hold the plastic in place with a clamp or vise while it cools. This will ensure that the molten plastic doesn't move or shift as it solidifies, creating a strong bond. Leave the plastic to cool completely, which may take several minutes depending on the thickness of the material and the size of the hole.
Finally, once the plastic has cooled, remove any excess material with a sharp knife or chisel. You can then sand the area to create a smooth finish if desired. Your repair is now complete, and the hole should be filled and structurally sound.
This method is a simple and effective way to mend plastic items and can be used for a variety of applications, from toys to household items and even some automotive repairs. It is a useful skill to have, especially as it reduces waste by reusing scrap plastic.
Printing on Plastic: Techniques and Tricks for Success
You may want to see also
Frequently asked questions
There are several ways to mend plastic, including using glue or adhesive, soldering or welding, and using epoxy. The best method depends on the type of plastic and the size and nature of the damage.
To glue plastic, start by reconnecting the separated surfaces. Then, apply a small amount of glue or adhesive to one surface and press the parts together immediately. Hold in place or use tape or a weight to keep the pieces steady while the glue dries.
Super glue, plastic model glue, and two-part epoxy adhesives are all suitable for mending plastic. Some adhesives are formulated to bond specific types of plastic, such as polyethylene, polypropylene, and Teflon.
To weld plastic, use a soldering iron to melt the edges of the plastic until it is liquid enough to blend the edges together. You can add additional plastic or metal to create a stronger bond. This method is suitable for thick plastics and will not work with flexible plastics like plastic bags.
Yes, it is important to work in a well-ventilated area when mending plastic to avoid inhaling toxic fumes. You should also wear protective eyewear and a respirator or breathing mask. Wash your hands after handling plastic, and avoid touching the surfaces of the break with your bare hands.
