There are several ways to mount 3-inch plastic pipe. One way is to use regular pipe straps with one or two holes, which can be found at any local hardware store. Another way is to use PVC pipe clamps, which can be found in the electrical section of a hardware store. If you are mounting the pipe to a concrete wall, you can cut sections of unistrut to mount however many pipes you need, and then get the properly sized clamps to attach the pipes.
| Characteristics | Values |
|---|---|
| Cutting | Use a hacksaw or pipe cutter to cut the pipe. Make sure the cut is square, not angled. |
| Gluing | Use PVC cement or glue to join the pipe and fitting. Ensure the pipe end is square, free of debris and oils. |
| Mounting to a concrete wall | Use pipe straps, clamps, or unistrut sections to mount the pipe to the wall. |
| Mounting to a wooden wall | Attach pipe mounts to the wood. |
Explore related products
What You'll Learn
Using PVC pipe clamps
When mounting 3 plastic pipes, one method is to use PVC pipe clamps. These are readily available at hardware stores, often in the electrical section. PVC pipe clamps are a good option for mounting pipes to concrete walls.
To use PVC pipe clamps, you can follow these steps:
- Cut the unistrut to the required length. The unistrut is the piece of material that will be bolted to the wall, and the pipes will be attached to it.
- Bolt the unistrut to the wall at the desired height. Ensure that the bolts are secure and can support the weight of the pipes.
- Attach the plastic pipes to the unistrut using the PVC pipe clamps. Ensure that the clamps are properly sized for the pipes and that they are securely tightened.
- You can cut the unistrut to mount as many pipes as needed and use clamps to attach the pipes at each desired location. This ensures that the pipes are evenly spaced and level.
Depressurizing a Plastic Keg: Easy Steps to Success
You may want to see also
Explore related products
Using metal or plastic straps
When mounting a 3-inch plastic pipe, you have the option of using metal or plastic straps. Metal straps are more durable, have a higher weight rating, and are more expensive than plastic straps. Plastic straps, on the other hand, are more flexible, easier to work with, and will not corrode.
If you choose to use metal straps, it is important to note that galvanised metal can cause a chemical reaction with the chlorine in PVC pipes, leading to pipe failure over time. To prevent this, you can line the metal straps with a softer material such as plastic from a soda bottle or moisture-proof insulation sheets. Alternatively, you can use stainless steel straps, which do not have the same chemical reaction issues. When using metal straps, ensure that the pipes are not held too tightly as this can create points of stress and lead to fractures.

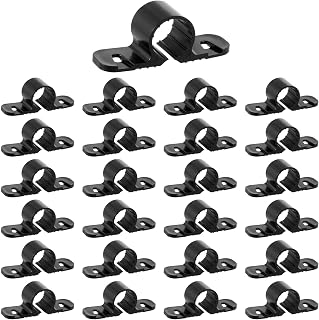

Plastic straps, specifically PVC hanger straps, are commonly used by plumbers and are readily available at home improvement stores. They are also easier to use than metal straps and can be cut to size using tin snips or scissors. Plastic straps are a cost-effective solution for hanging pipes and can be purchased with pre-made holes for easy placement of nails or screws.
When using either metal or plastic straps, it is important to ensure that the straps are wrapped securely around the pipe and affixed to a sturdy structure such as wood framing using nails or screws. This will provide support and stability to the pipe, preventing sagging or damage. Additionally, make sure that the straps are compatible with the type of pipe you are using to avoid any issues with expansion and contraction over time.
Cinnamon Bark Oil: Plastic's Worst Enemy?
You may want to see also
Explore related products
Using Uni-strut
Uni-strut, also known as channel strut, is a pre-fabricated, modular metal framing system used for mounting, bracing, and supporting various building components. It is a popular choice for both commercial and residential projects due to its versatility, ease of assembly, and reconfigurability. Uni-strut is available in lengths of 10, 16, or 20 feet, in solid or slotted form, and comes in fifteen different channel sizes and hundreds of fittings, making it suitable for a wide range of projects.
When using Uni-strut to mount 3" plastic pipe, it is important to first determine the placement and layout of the Uni-strut on the wall or structure. This will ensure that you have the correct spacing for your pipes. Once the placement is identified, you can use the Uni-strut pipe clamps, such as the UNICLAMP Strut Pipe Clamp, to attach the Uni-strut to the wall. This clamp is designed to accommodate pipe sizes ranging from 3/8" to 5" (9mm to 127mm), making it versatile for different applications.
To attach the 3" plastic pipe to the Uni-strut, you can use clamps, such as the Cush-A-Clamp or Cush-A-Claw, which are suitable for a range of temperatures and designed to prevent galvanic corrosion. These clamps provide a secure and stable connection between the pipe and the Uni-strut. Additionally, you can use bolts, nuts, and washers to fasten the pipe to the Uni-strut. Ensure that you follow the manufacturer's instructions and local building codes when installing the Uni-strut and mounting the pipe.
When mounting the 3" plastic pipe onto the Uni-strut, it is important to consider factors such as vibration, shock, surge, galvanic corrosion, and unwanted noise. Properly securing the pipe and minimizing these factors will ensure a safe and durable installation. Additionally, the Uni-strut can be attached to the pipe frame using U-bolts as an alternative to solar mount rails. This provides flexibility in the mounting process.
Gold Chrome Finish on Plastics: DIY Guide
You may want to see also
Explore related products
Using a plywood frame
When mounting three plastic pipes using a plywood frame, there are several methods you can use to ensure a secure fit. Here is a step-by-step guide using one of these methods:
Planning and Preparation:
Firstly, gather your materials and tools. You will need a plywood sheet, PVC pipes, drill bits, a drill, a screwdriver, screws, and any additional adhesive materials such as PVC glue or epoxy. It is important to ensure that your drill bits are the appropriate size for the screws you will be using.
Cutting and Drilling:
Cut the plywood sheet to the desired size and shape, considering the number of pipes you will be mounting and any spatial constraints. Mark the locations for the pipe holes on the plywood, ensuring they are evenly spaced and aligned correctly. Use a drill bit that is slightly larger than the outer diameter of your pipes to create these holes.
Assembly:
Insert the pipes through the holes in the plywood. To secure the pipes, drill screws through the plywood and into the pipes. For added stability, you can also use PVC glue or epoxy to adhere the pipes to the plywood. Drill screws at a 90-degree angle into the wood and PVC, or consider using tiny wedges to hold the pipe in the hole. Additionally, you can use small "L" brackets bolted into both the plywood and the PVC for further reinforcement.
Finishing:
Once the pipes are securely mounted to the plywood, you can make any necessary adjustments to ensure the pipes are level and aligned correctly. If needed, you can fill any gaps or imperfections with spray foam, which can be sanded, filled, and painted after curing.
This method provides a sturdy and secure way to mount three plastic pipes using a plywood frame. By following these steps, you can confidently attach your pipes and customize your project as needed.
Plastic-Free Living: Is It Possible?
You may want to see also
Explore related products
Using RAM® PVC Pipe Mounts
RAM® Mounts is the industry leader in rugged device mounts for cars, trucks, motorcycles, planes, forklifts, and snowmobiles. They offer a range of PVC pipe mounts that are intended for light-duty applications, kayaks, and static environments. These mounts are not suitable for heavy vibration, vehicles, or extreme heat.
The RAM® PVC Pipe Mount with Single Ball & Socket and Round Plate (RAP-B-134U) is one such product offered by RAM® Mounts. It features a high-strength composite construction and a weight capacity of 2 lbs for standard use and 1 lb for heavy-duty use. The product includes the following components:
- RAM® PVC Pipe Socket with Round Base Plate (RAP-278U)
- RAM® 6" Long PVC Pipe (RAP-PP-1106)
- RAM® PVC Pipe Socket with Composite Octagon Button (RAP-276U)
- RAM® Single Socket Arm with Octagon Button Socket (RAP-B-200-1U)
- RAM® Round Plate with Ball (RAM-B-202U)
The RAM® PVC Pipe Mount allows for customisation and flexibility in its usage. The interchangeable components can be combined in various ways to create different mounting solutions. This versatility enables users to build custom mounts tailored to their specific needs.
RAM® Mounts provides a wide range of mounting options for PVC pipes, ensuring that devices can be securely attached to a variety of surfaces and structures. These mounts are ideal for light-duty applications and static environments, offering a reliable and stable solution for mounting devices in a variety of settings.
UPS Plastic Envelopes: Available Options and Uses
You may want to see also
Frequently asked questions
The easiest and most cost-effective way to mount 3-inch plastic pipe is by using metal or plastic straps from the electrical section of a hardware store. You can also use wall anchor screws to match the surface you're mounting the pipe on.
You can cut sections of unistrut to mount the number of pipes you need and then get the properly sized clamps to attach the pipes to each location of the unistrut. This way, you only need to bolt the unistrut to the wall.
You can use regular pipe straps with one or two holes, which can be found at any local hardware store. You can also special order colours to match your plumbing if you're using coloured piping.
You can use PVC pipe clamps, which can be found in the electrical section of a hardware store. You can also use rawl plugs or plastic wall plugs as there is little weight on them.
