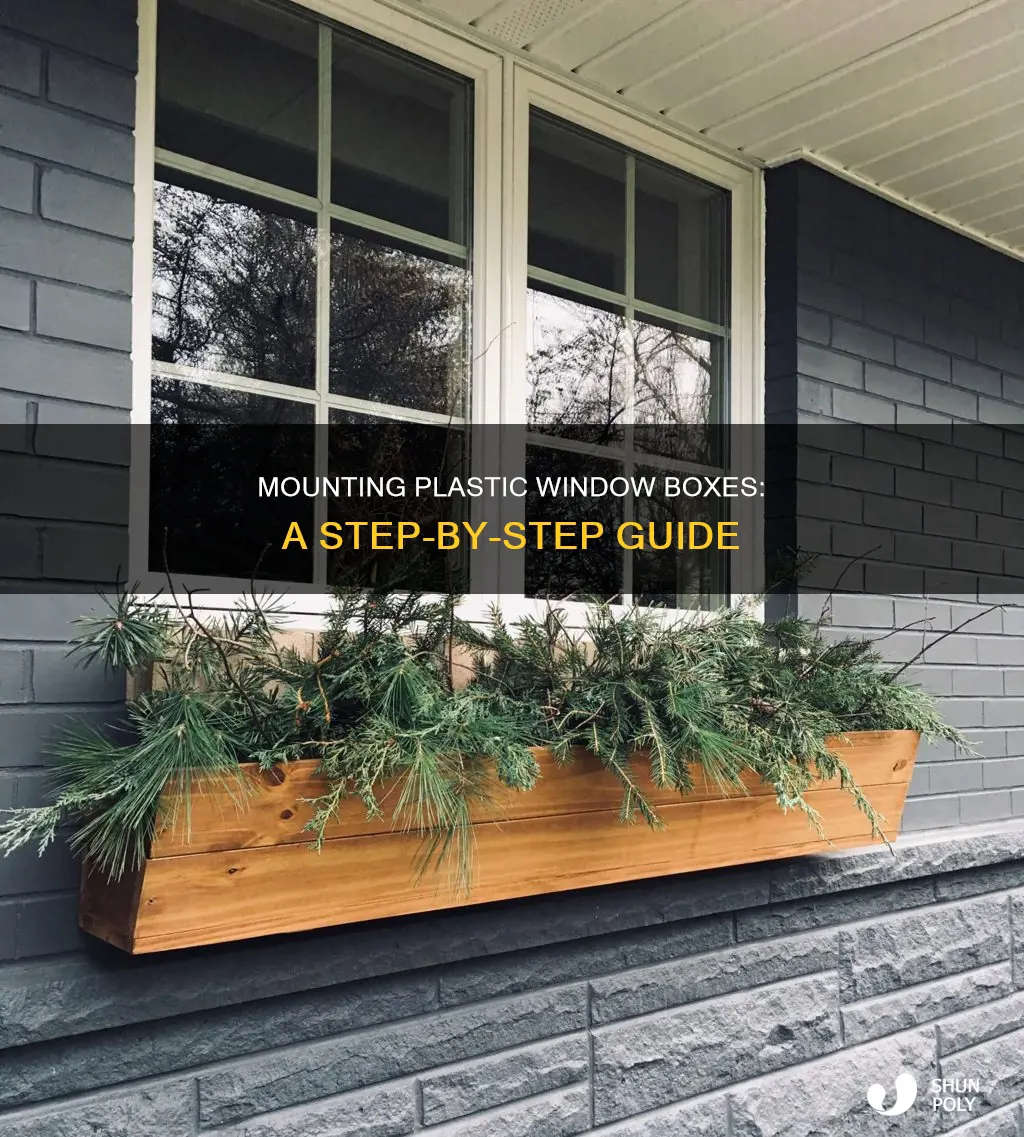

Mounting Plastic Window Boxes: A Step-By-Step Guide

how to mount a plastic window box

Window boxes are a great way to add a pop of colour to your home's exterior, and with the right tools, they are easy to install. You can choose from a variety of materials, including wood, plastic, or composite, and decide between mounting options like brackets or vinyl siding hooks. When installing a plastic window box, the first step is to identify the location of the wall studs and mark the mounting location. Next, you'll want to install the first bracket, ensuring it's level and secure. After that, simply attach the window box to the bracket, and you're done! Of course, there are a few additional considerations, such as choosing a box with drainage holes and filling it with high-quality potting mix.

Characteristics Values
Materials Plastic window box, mounting brackets, appropriate fasteners, drill, screws, tape measure, pencil, stud finder, level
Installation process 1. Determine mounting location and mark with pencil. 2. Install first bracket by aligning with mark, drilling pilot hole, and fastening with screw. 3. Ensure bracket is plumb and secure with second screw. 4. Install second bracket level with the first and repeat drilling and fastening steps. 5. Set window box into brackets and screw in place.
Maintenance Choose a location with exposure to sunlight and accessibility for watering and plant maintenance.

shunpoly

Choosing the right window box

The size of the window box is another important factor. It should be at least as wide as the window but should not extend more than three inches beyond the trim on each side for the best visual effect. You can measure the outdoor width of your window to choose a box that frames it well, both in terms of fit and aesthetics. Additionally, consider the depth of the box, ensuring it is sufficient for the roots of the plants you plan to grow.

The placement of the window box is crucial. Determine whether you want it mounted directly under the window or perched on the exterior windowsill. Consider the exposure to sunlight, accessibility for watering and maintenance, and the overall visual appeal. Mark the mounting location with a pencil, ensuring it is level and aligned correctly. If installing on brick, use a masonry drill bit and a hammer drill to avoid damaging the brick.

When choosing a window box, select one with drainage holes, as plants need well-drained soil to thrive. If the box doesn't have drainage holes, you will need to drill them before installing. Additionally, consider decorative features such as corbels or brackets that complement the design of your home's exterior.

Finally, select the appropriate mounting hardware, such as L-shaped mounting brackets or vinyl siding hooks, depending on the surface you are mounting the box on. Ensure the hardware is heavy-duty and can bear the weight of the window box and plants. Review the product specifications to determine if the window box comes with the necessary mounting hardware or if you need to purchase it separately.

Exploring Noodle's Age in Plastic Beach

You may want to see also

shunpoly

Identifying the correct location

The first step to installing a window box is determining the correct location for mounting. This involves several considerations, from the type of wall to the placement of the box in relation to the window.

Firstly, it is important to identify the type of wall you will be mounting the window box on. Common exterior siding materials include wood, shake/shingle, stucco, HardiBoard, or vinyl. If you are mounting into block or hollow brick blocks, it is recommended to mount into the mortar as blocks and brick blocks may crumble otherwise. For brick walls, use a masonry drill bit and a hammer drill, or another type of drill meant for masonry materials. This ensures the brick stays intact. Before attaching any mounting brackets, place a plastic insert into each drill hole to help hold the bracket in place without damaging the brick. For vinyl siding, it is recommended to use vinyl siding hooks that fit into the siding's grooves.

Secondly, locate the studs on the wall where you will be mounting the window box. Studs can be found using a stud finder, which can be purchased at most local hardware stores. Simply drag the stud finder across the wall, and mark the stud locations lightly with a pencil. It is recommended that you mount your window box to as many studs as practical.

Thirdly, determine the placement of the window box in relation to the window. Measure the outdoor width of your window to choose the right box planter size. For windows with shutters, measure from the edge of the exterior left shutter to the edge of the right shutter. The window's opening orientation will determine how close you should mount the window box to the bottom of the window ledge. Mark the mounting location with a pencil, ensuring it is level and aligned with the window. For double-hung or sliding windows, measure down 1 inch from the underside of the windowsill directly below one side of the window frame. If you have a window that swings out, measure and mark down 6 to 8 inches instead.

Once you have identified the correct location, you can proceed with the installation of the window box by marking and drilling pilot holes, and fastening mounting brackets or hooks.

shunpoly

Marking the mounting location

If you are mounting your window box onto a wall made of wood, stucco, HardiBoard, or vinyl, you should first identify and mark the location of the wall studs. You can do this by using a stud finder, which can be purchased at most local hardware stores. Simply drag the stud finder across the wall, and it will signal the location of the stud. When you've found a stud, mark it lightly with a pencil on the window sill or directly below it. Most people put a small "S" on their sill or wall to differentiate the stud locations from the centre of the window, which will be marked with a "C".

Once you've found and marked the supporting wall studs, you can then measure and mark the centre of your window on the sill or right below it. With a partner, hold the window box up to the wall so that the "C" on the box matches the "C" on the sill. Adjust the box until you are happy with how it is centred below the window. While holding the box in this position, mark on the top edge of the back of the box where the corresponding stud locations are on the wall. These will be the locations for you to drill pilot holes in the back of your window box.

If you are mounting your window box into brick, you will need to use a masonry drill bit and a hammer drill, or another type of drill meant to drill into masonry materials. This ensures the brick stays intact when drilled into. Before attaching any mounting brackets, place a plastic insert into each drill hole. When you begin to screw in the mounting brackets, the plastic insert will expand, helping to hold the bracket in place without damaging the brick.

If you are mounting into block or hollow brick blocks, it is recommended that you mount into the mortar, as blocks and brick blocks may crumble if not adequately filled with concrete/mortar on the inside.

shunpoly

Installing the first bracket

First, identify the location of the wall studs using a stud finder. Most hardware stores sell electronic or magnetic stud finders. Once you've located a stud, mark it lightly with a pencil on the window sill or directly below it. You can use a small "S" to differentiate the stud locations from the centre of the window, which will be marked with a "C".

Now, you can determine the mounting location for your window box. Consider the exposure to sunlight, accessibility for watering, and the overall aesthetic appeal. For double-hung or sliding windows, a common practice is to measure down 1 inch from the underside of the windowsill, directly below one side of the window frame. This mark indicates where the top of the bracket will go.

Hold the first bracket with its top aligned with the pencil mark. Mark the bracket for the top screw hole, which should be near the bottom of the first course of siding below the window. Use a countersink bit on a drill to create a pilot hole and a counterbore into the bracket on the mark.

If you are mounting the bracket to vinyl, aluminium, or fibre cement siding, remember to bore a pilot hole through the siding as well. This allows the screw to bite into the sheathing behind, providing a secure hold.

Finally, fasten the bracket to the house using a 3-inch-long galvanised decking screw through the pilot hole. Double-check the alignment and make any necessary adjustments to ensure consistency with your initial marks.

By following these steps carefully, you will successfully install the first bracket for your plastic window box, creating a strong foundation for the entire structure.

shunpoly

Securing the window box

First, identify the location of the wall studs using a stud finder. Most hardware stores sell electronic or magnetic stud finders. Mark the locations of the studs lightly with a pencil on the window sill or directly below it. You can use a small "S" to mark the stud locations and a "C" to indicate the centre of the window.

Next, hold the window box up to the wall, aligning the "C" on the box with the "C" on the sill. Adjust the box to your preferred position. With the box held in place, mark the corresponding stud locations on the top edge of the back of the box. These marks indicate where you will drill the pilot holes.

Now, decide on the height of the box and draw a horizontal line at that level across the wall. This line will guide you in ensuring the brackets are level.

The next step is to install the first bracket. Hold the bracket against the wall, aligning its top with the height line you drew. Mark the bracket for the top screw hole, which should be near the bottom of the first course of siding below the window. Drill a pilot hole and counterbore into the bracket and the siding, if applicable. Secure the bracket with a 3-inch-long galvanised decking screw through the pilot hole.

After installing the top screw, ensure the bracket is level before securing it with the second screw. Drill the second screw into the bottom hole, which will be hidden once the window box is in place.

Finally, install the second mounting bracket level with the first one. Mark the location with a pencil, then drill the holes and fasten the bracket in place. Check that the brackets are even, and make any necessary adjustments.

With the brackets securely in place, you can now set the window box into them. Ensure the box is seated properly before filling it with soil and plants.

Frequently asked questions

You should consider the exposure of your window box to sunlight and its accessibility for watering and maintaining plants. You should also measure the outdoor width of your window to choose the right box planter size.

You will need a drill, a 3-inch-long galvanized decking screw, a pencil, a tape measure, and a stud finder. If you are installing the window box into brick, you will need a masonry drill bit and a hammer drill.

First, identify and mark the location of your wall studs. Then, centre the window box under the window. Next, locate where you would like the top of the window box to rest and draw a horizontal line across the wall. Bore pilot holes into the back of the box and drill the first screw. Fasten the mounting bracket and drill the second screw. Set the box into the brackets and screw it into place.

If your window box does not have drainage holes, you will need to drill holes in the bottom before installing. You can also add decorative corbels to the bottom of the brackets for architectural flair.
