Pressure testing a plastic radiator is a simple task that can be done at home, and it's useful for identifying leaks in your vehicle's cooling system. The process involves using a pressure tester kit to pressurize the system and locate the source of the problem. It's important to ensure that the engine is cool before beginning the test, as hot coolant can cause burns. The radiator cap should be removed, and the pressure tester attached in its place. The tester is then pumped by hand to match the pressure indicated on the radiator cap, which is typically between 13-16 psi for modern vehicles. Once the desired pressure is reached, the vehicle is left for 20-30 minutes, and the pressure gauge is monitored for any drops, which would indicate a leak.
Explore related products
What You'll Learn
Pressure testing without a kit
Pressure testing a radiator without a kit can be done using a homemade tester. Here is a step-by-step guide on how to do it:
Firstly, inspect the radiator for any apparent damage, such as puncture holes caused by rocks or the fan. If there is no obvious damage, proceed to the next step.
Next, you will need to gather the necessary materials for your homemade tester kit. A bicycle pump with a gauge is the heart of the DIY setup. Ensure the pump is of good quality, as cheap pumps often have inaccurate gauges. You will also need vinyl tubing, a plastic hose barb, and clamps.
Once you have the required materials, attach the vinyl tubing to the bicycle pump by cutting off the existing hose and connecting the tubing directly to the pump. Then, attach one end of the vinyl tubing to the bike pump nipple.
Now, it's time to attach the tester to the radiator. If your radiator has a radiator cap, you will need to do some DIY adjustments for the tester to work. Remove the old hoses from the radiator and mount a spare set. Use a piece of pipe to close the loop, ensuring it forms an airtight seal. If your radiator has an overflow outlet, you can attach the bike pump there.
With the tester attached, it's time to pressurize the system. Pump the system until you reach the pressure rating specified for your car. Do not exceed this rating, as it may cause damage. While the system is pressurized, inspect for any leaks. Listen for a hissing sound or look for moisture, as these indicate a leak. If the pressure reading drops slowly without any visible or audible signs of leaks, the leak may be inside the engine, requiring further investigation.
Finally, inspect the hose clamps, especially if your car is older. Over time, clamps can lose tension due to material fatigue and constant road vibrations. If the clamps are solid and the hoses aren't leaking at the joints, examine the hoses themselves. Coolant hoses tend to become brittle and crack over time due to temperature cycles. If the hoses are hard but not leaking, consider replacing them preemptively.
The Evolution of 3D-Printed Medical Tools: Plastic Pros and Cons
You may want to see also
Explore related products

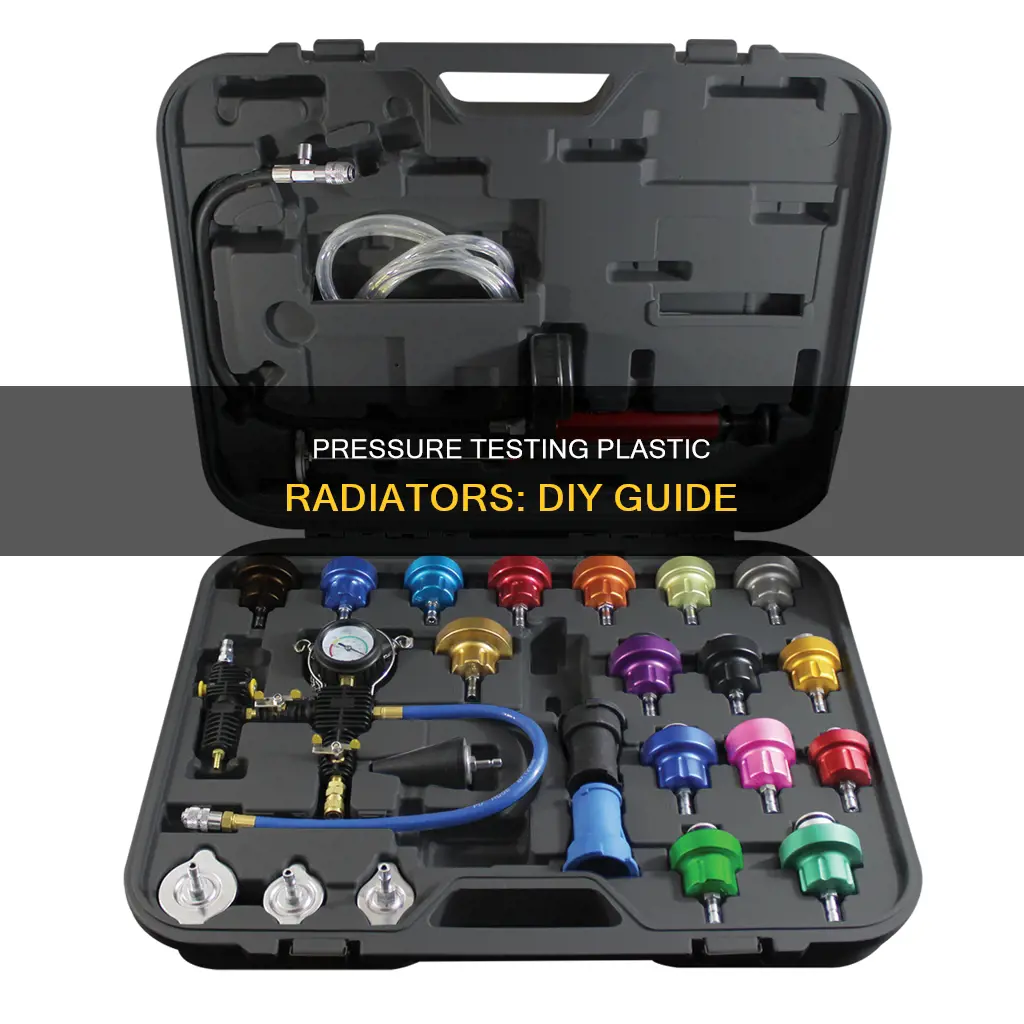

Using a pressure testing kit
Firstly, ensure that the engine is cool before you begin. Then, determine whether your vehicle releases excess pressure via the radiator or an expansion tank. Some vehicles will have only a cap on the expansion tank, while others will have a cap on both. Once you have identified the pressure cap, select the correct adaptor from the kit. The supplied instructions should offer a guide to which adaptor suits which make of vehicle. Securely attach the adaptor to the filler neck of the radiator or the expansion tank from which the pressure cap was removed.
If your kit comes with a pressure tester adapter, attach the radiator cap to the adapter, and then attach the adapter to the pressure tester. Now, pump the pressure tester handle until the pressure builds to the manufacturer’s specification. It may lose some pressure, but it should not rapidly lose a good amount. If the pressure gauge holds its value, your cooling system is likely free of leaks. If the pressure slowly drops, listen out for the hiss or bubbling of escaping pressure and thoroughly check the engine bay for any signs of leaks. The pressure may also drop with no visible or audible sign of leaks, which may mean that the leak is inside the engine.
If you are using a bike pump, you will need to do some DIY jerry-rigging. Grab your new radiator cap, drill a hole in the centre, and mount the bike stem valve to it. Ensure that the stem valve is securely mounted on the cap and is forming a hermetic seal. Once everything is set and your hoses are mounted to the radiator, forming a closed loop, grab the bike pump and pump the system. Do not exceed the maximum system pressure rating, which should be etched or printed on the cap.
If you are pressure testing the cooling system, you will need to mount the radiator back on the car, run coolant through the system, and bleed the air if your car requires manual bleeding. Install your custom radiator cap and pump the system until you hit the pressure rating for your car. While the system is pressurised, start looking for leaks.
Soft Plastic Mold Kit: DIY Success Secrets
You may want to see also
Explore related products
Locating the radiator cap
The radiator cap is an integral part of the cooling system, as it allows for the release of excess pressure. This pressure release is crucial to preventing the coolant from boiling over and causing serious issues such as overheating, a blown head gasket, or even a cracked engine.
To determine if your vehicle releases pressure through the radiator cap, carefully inspect the cap for a spring. This indicates that it is the pressure cap. Once you have located the pressure cap, you can proceed with the pressure test.
If your vehicle does not have a radiator cap, you may need to consult your vehicle's manual for alternative methods to release pressure. Additionally, when performing a pressure test, ensure that the engine and the system are cool to avoid any burns from hot coolant.
By locating the radiator cap and understanding its function, you can effectively proceed with pressure testing your radiator and ensuring the optimal performance of your vehicle's cooling system.
Drilling Holes in Plastic Planters: A Quick Guide
You may want to see also
Explore related products
Checking for leaks
Next, locate the radiator cap and remove it. Some vehicles will have a cap on the radiator, while others will have one on the expansion tank. You may need to consult your vehicle's manual to locate this. If you are using a pressure tester kit, you will need to attach the tester to the radiator or coolant reservoir. If your kit has an adapter, connect it to the radiator or coolant reservoir, and tighten the tester to it.
Now, you can start to apply pressure. Pump the tester by hand until the pressure matches the pressure written on the radiator cap, or the manufacturer's specification. This is typically between 13 and 16 psi for modern vehicles. Do not exceed this pressure, as it could cause damage.
Once the desired pressure is reached, leave the vehicle for 20-30 minutes. After this time, check the pressure gauge. If the pressure has dropped, there may be a leak. The faster the pressure drops, the larger the leak is likely to be. If the pressure has held, the cooling system is likely free of leaks. If there is a leak, you will need to locate it. Check the radiator, hoses, hose clamps, water pump, thermostat, and other components for any signs of leaks.
The Perfect Plastic Deck Railing: Installation Guide
You may want to see also
Explore related products
$34.69 $36.52
What to do if there's a leak
If there is a leak, you will need to fix the cooling system parts, including the radiator, thermostat, coolant reservoir, water pump, etc.
If you are not experienced in repairing cooling systems, you should seek help from a trusted professional nearby. You can also refer to videos for different makes and models in 1A Auto's video library.
There are some temporary fixes you can try if you need to get somewhere and don't have access to a repair shop. One option is to leave the radiator cap loose so that pressure does not build up. You should also avoid idling for long periods and keep an eye on the temperature gauge. If the temperature starts to rise, turn on the heater. If the heater gets cold, add coolant.
Another temporary fix is to use a product like JB Weld or epoxy to patch the leak. Clean the area with alcohol or another solvent, then use sandpaper to roughen the surface. Fill the crack with epoxy or JB Weld, allowing it to cure completely. You can reinforce the repair with a heat-resistant epoxy or fiberglass cloth. However, keep in mind that these are only temporary fixes, and you will eventually need to replace the radiator.
Eco-Friendly Glycerin Soap Packaging: Plastic-Free Solutions
You may want to see also
Frequently asked questions
A radiator pressure test is performed to check for leaks in the cooling system or to test the pressure of the cooling system after a coolant flush.
You can pressure test a plastic radiator using a homemade tester kit or a radiator pressure testing kit. Firstly, ensure that the engine is cool and remove the radiator cap. If you are using a radiator pressure testing kit, attach the tester to the radiator where the radiator cap goes. Pump by hand until the pressure matches the pressure written on the radiator cap. If you are using a homemade tester kit, you will need to drill a hole in the radiator cap and mount a bike stem valve. Once the setup is complete, pump the system until you reach the maximum pressure rating for your radiator.
If the pressure gauge on the pump holds its value, the cooling system is likely free of leaks. If the pressure drops slowly, listen for any hissing or bubbling sounds indicating escaping pressure. If there is no visible or audible sign of leaks, the leak may be inside the engine. If the pressure drops quickly, there is definitely a leak.
