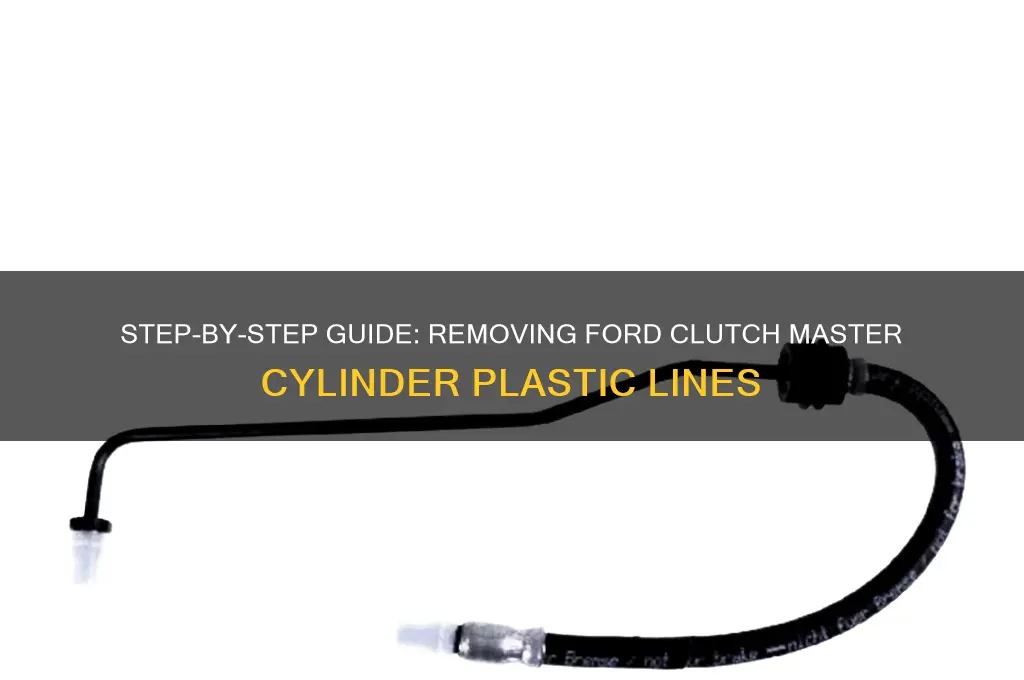

Removing the plastic lines from a Ford clutch master cylinder requires careful attention to detail to avoid damage and ensure a successful repair. These lines, typically made of durable plastic, connect the master cylinder to the slave cylinder and are crucial for the clutch system's operation. Before starting, gather the necessary tools, including a wrench or pliers, and ensure the vehicle is securely parked and the engine is off. Begin by locating the plastic lines attached to the master cylinder, usually found near the firewall or clutch pedal assembly. Gently loosen the fittings using the appropriate tool, taking care not to apply excessive force that could crack the plastic. Once the fittings are loose, carefully detach the lines, inspecting them for wear or damage. If replacement is necessary, ensure the new lines are compatible with your Ford model. This process demands patience and precision to maintain the integrity of the clutch system.
| Characteristics | Values |
|---|---|
| Tool Required | Pliers, Flathead Screwdriver, or Pick Tool |
| Line Type | Plastic Clutch Master Cylinder Lines (Quick-Connect Fittings) |
| Disconnection Method | Press and Pull Technique |
| Steps | 1. Locate the quick-connect fitting at the end of the plastic line. 2. Use a flathead screwdriver or pick tool to depress the collar/tab on the fitting. 3. While holding the collar/tab depressed, pull the plastic line straight out of the fitting. |
| Precautions | Avoid twisting or bending the plastic lines to prevent damage. Work carefully to avoid spilling brake fluid. |
| Reinstallation | Ensure the collar/tab is fully engaged when reinstalling the line. |
| Common Ford Models | Ford Focus, Ford Fiesta, Ford Transit, and other models with similar clutch master cylinder setups. |
| Difficulty Level | Moderate (requires precision and care) |
| Time Required | 10-15 minutes per line |
| Additional Tips | Have a drain pan or cloth ready to catch any spilled brake fluid. Inspect lines for cracks or damage before reinstallation. |
Explore related products
What You'll Learn
Gather Tools and Materials
Before tackling the removal of the plastic lines from your Ford's clutch master cylinder, it's crucial to gather the necessary tools and materials to ensure a smooth and efficient process. Start by acquiring a set of basic hand tools, including various sizes of wrenches and sockets, as you'll need these to loosen and remove bolts and fittings securely attached to the lines. A 10mm and 12mm wrench or socket are typically required for this task, but it's wise to have a full set on hand to accommodate any variations in bolt sizes.
In addition to the wrenches, you'll need a pair of pliers, preferably needle-nose pliers, to grip and manipulate the plastic lines and clips carefully. These lines can be delicate, and using the right tool will help prevent damage during removal. A flathead screwdriver is another essential item, as it can be used to pry and release any clips or retaining mechanisms holding the lines in place. For a more specialized approach, consider getting a clutch line removal tool, which is designed to simplify the process of detaching the lines from the master cylinder.
##
When it comes to materials, having the right fluids is vital. You'll need a suitable replacement clutch fluid, typically DOT 3 or DOT 4 brake fluid, to refill the system after the lines are removed and reinstalled. It's essential to use the correct type of fluid to maintain the integrity of the clutch system. Additionally, prepare a container to catch any fluid that may spill during the removal process, as this will help keep your work area clean and prevent fluid loss.
To protect your vehicle and work area, gather some rags or towels to wipe up any spills and to place under the work area to catch drips. Wearing safety gear, such as gloves and safety goggles, is highly recommended to protect your hands and eyes from fluid contact and debris. Having a clean, well-lit workspace is essential, so consider using a work lamp if necessary to ensure you can see all components clearly.
Lastly, it's beneficial to have a service manual or a reliable online resource specific to your Ford model. This will provide detailed diagrams and instructions tailored to your vehicle, ensuring you have the most accurate information for the task. With these tools and materials assembled, you'll be well-prepared to tackle the removal of the plastic lines from your Ford's clutch master cylinder efficiently and safely.
Effective Ways to Remove Feviquick Gum from Plastic Surfaces Easily
You may want to see also
Explore related products
Locate and Inspect Lines
Before attempting to remove the plastic lines from your Ford's clutch master cylinder, it's essential to locate and inspect them thoroughly. Start by opening the hood of your vehicle and identifying the clutch master cylinder, typically located near the firewall on the driver's side. The master cylinder is connected to the clutch pedal assembly via a pushrod and has two plastic lines attached to it. These lines are responsible for transferring brake fluid between the master cylinder and the slave cylinder, so it's crucial to handle them with care. Take a moment to familiarize yourself with the layout of the master cylinder and its surrounding components to avoid accidentally damaging any nearby parts.
Once you've located the clutch master cylinder, carefully trace the path of the plastic lines from the master cylinder to the slave cylinder. One line is the inlet line, which supplies fluid to the master cylinder, while the other is the outlet line, which carries fluid to the slave cylinder. The inlet line is usually connected to the brake fluid reservoir, ensuring a consistent supply of fluid. Inspect both lines for any signs of wear, cracking, or damage, as compromised lines can lead to fluid leaks and clutch performance issues. Pay close attention to areas where the lines may rub against other components or are exposed to high temperatures, as these are common points of failure.
Next, examine the fittings and connections where the plastic lines attach to the master cylinder and slave cylinder. Ensure that all fittings are tight and secure, as loose connections can cause air to enter the system or fluid to leak out. If you notice any corrosion or debris around the fittings, clean the area with a suitable solvent and a soft brush to prevent contamination. It's also a good idea to check the condition of the rubber seals or O-rings within the fittings, as these can degrade over time and cause leaks. If any seals appear damaged or worn, make a note to replace them during the removal process.
As you inspect the lines, take note of their routing and any clips or brackets that hold them in place. These clips are designed to keep the lines secure and prevent them from chafing against other parts. If any clips are broken or missing, the lines may become dislodged or damaged during operation. Gently test the retention of each clip by trying to move the lines slightly; if they feel loose, consider replacing the clips before proceeding with the removal. Properly secured lines not only ensure the longevity of the components but also make the removal process smoother and safer.
Finally, before proceeding with the removal, inspect the overall condition of the clutch master cylinder and its surrounding area. Look for any signs of fluid leaks, corrosion, or damage that might affect the removal process or indicate a larger issue. If you notice any significant problems, such as a damaged master cylinder or contaminated fluid, address these concerns before attempting to remove the lines. Taking the time to thoroughly locate and inspect the plastic lines will help you identify potential issues early and ensure a successful and safe removal process.
Quick Fix: Removing Melted Plastic Straws from Your Dishwasher
You may want to see also
Explore related products
Disconnect and Remove Lines
Before attempting to disconnect and remove the plastic lines from your Ford’s clutch master cylinder, ensure the vehicle is securely parked on a level surface, and the engine is turned off. Begin by locating the plastic lines connected to the clutch master cylinder, typically found near the firewall on the driver’s side of the engine bay. These lines are usually color-coded or labeled for identification. Inspect the lines for any signs of damage or wear, as this may affect the removal process. Gather the necessary tools, such as pliers, a wrench, or a line removal tool, depending on the type of fittings used.
To disconnect the lines, start by relieving any pressure in the hydraulic system. This can be done by depressing the clutch pedal several times with the engine off, which will release any residual pressure. Once the pressure is relieved, place a drain pan or cloth beneath the lines to catch any fluid that may spill during removal. Carefully inspect the fittings to determine if they are push-to-connect, clip-on, or threaded. For push-to-connect fittings, use a pair of pliers to gently pull back the collar or locking mechanism while firmly pulling the line away from the master cylinder. Avoid twisting or bending the line excessively to prevent damage.
If the lines are secured with clips or brackets, use a flathead screwdriver or appropriate tool to carefully release the clips. Once the clips are removed, gently pull the lines straight out of the master cylinder. For threaded fittings, use a wrench or line wrench to loosen the fitting without damaging the threads. Once loosened, unscrew the line by hand and remove it. Be cautious not to strip the threads or force the fitting if it feels stuck. If resistance is encountered, recheck for any remaining clips or locking mechanisms.
After disconnecting the lines, inspect the master cylinder ports for any debris or damage. Clean the area if necessary to ensure a proper seal when reinstalling or replacing components. If fluid spilled during removal, wipe it up promptly to avoid slipping hazards or damage to surrounding components. Double-check that all lines are fully disconnected and ready for removal or replacement. Properly dispose of any old fluid and lines according to local regulations.
Finally, take note of the orientation and routing of the lines for reassembly. If replacing the lines, ensure the new ones are compatible and correctly aligned. Labeling the lines or taking photos before removal can help with reinstallation. With the lines successfully disconnected and removed, you can proceed to the next steps of your clutch master cylinder repair or replacement process. Always refer to your vehicle’s service manual for specific instructions related to your Ford model.
Easy DIY Guide: Removing Plastic Scratches from Door Panels
You may want to see also
Explore related products
Clean and Prepare Fittings
Before reinstalling or replacing the plastic lines on your Ford’s clutch master cylinder, it’s crucial to clean and prepare the fittings to ensure a secure, leak-free connection. Start by inspecting the fittings for any signs of damage, corrosion, or debris. Use a bright LED light to thoroughly examine the threads and the interior of the fittings. If you notice any cracks, burrs, or excessive wear, replace the fitting immediately, as compromised components can lead to clutch system failure. Once inspected, use a clean cloth or rag to wipe away any surface dirt or grime. Avoid using oily or greasy rags, as residual oil can interfere with the sealing process later.
Next, focus on cleaning the threads of the fittings. Use a nylon brush or a soft-bristled toothbrush to gently scrub the threads, removing any built-up dirt, rust, or old sealant. For stubborn debris, a small pick or awl can be carefully used to dislodge particles without damaging the threads. After brushing, blow compressed air through the fittings to remove any loose contaminants. If rust is present, lightly sand the threads with fine-grit sandpaper (400-600 grit) to smooth them out, ensuring a proper seal when reassembled. Wipe the fittings clean again after sanding to remove any metal particles.
For the interior of the fittings, use a clean, lint-free cloth wrapped around a small screwdriver or tool to wipe away any debris or residue. Alternatively, a cotton swab dipped in isopropyl alcohol can be used to clean hard-to-reach areas. Ensure no lint or fibers are left behind, as these can cause blockages. If the fittings have O-rings or seals, inspect them for damage and replace them if necessary. Lightly lubricate new O-rings with silicone grease or a compatible lubricant to aid installation and ensure a proper seal.
Once the fittings are clean, prepare them for reassembly by applying a thin layer of thread sealant or Teflon tape to the threads. Use Teflon tape specifically designed for hydraulic systems, wrapping it in the direction of the threads (clockwise for most fittings). Apply no more than two layers to avoid over-tightening issues. If using thread sealant, apply a small amount to the male threads only, ensuring it doesn’t enter the fitting’s interior. Wipe away any excess sealant to prevent contamination.
Finally, before reattaching the plastic lines, ensure both the fittings and the lines themselves are free of debris. Use compressed air to blow out the lines and fittings one last time. Double-check that all components are dry and free of solvents or cleaners, as residual chemicals can degrade the plastic lines over time. Properly cleaned and prepared fittings will not only ensure a reliable connection but also extend the life of your clutch master cylinder system.
Effective Methods to Remove Crazy Glue Stains from Plastic Surfaces
You may want to see also
Explore related products
Reinstall or Replace Lines
When reinstalling or replacing the plastic lines on a Ford clutch master cylinder, it's essential to ensure a proper seal and secure connection to prevent leaks and maintain clutch performance. Begin by inspecting the new lines or the ones you’re reinstalling for any damage, cracks, or wear. If the lines are old or compromised, it’s best to replace them with new ones to avoid future issues. Ensure the replacement lines are compatible with your Ford model, as using incorrect parts can lead to poor fitment or failure.
Before reinstalling the lines, clean the connection points on the master cylinder and the slave cylinder thoroughly. Use a clean cloth and brake cleaner to remove any dirt, debris, or old fluid residue. This step is crucial to ensure a tight seal and prevent contamination. If the lines have quick-connect fittings, inspect the locking mechanisms to ensure they are in good condition. If the fittings are damaged, replace them to avoid leaks.
To reinstall the lines, align the quick-connect fittings with their respective ports on the master and slave cylinders. Push the fittings firmly until you hear or feel a click, indicating they are securely locked in place. If your lines use hose clamps or other securing methods, tighten them according to the manufacturer’s specifications, being careful not to overtighten, as this can damage the plastic lines. Double-check that all connections are snug and properly seated.
Once the lines are reinstalled, fill the clutch fluid reservoir with the recommended fluid type for your Ford vehicle. Slowly depress the clutch pedal several times to purge any air from the system, and check for leaks at the connection points. If leaks are detected, recheck the fittings and tighten as necessary. Wipe away any excess fluid to prevent contamination and ensure a clean workspace.
Finally, test the clutch operation by starting the vehicle and engaging the clutch through its full range of motion. Ensure there is no sponginess or abnormal resistance, which could indicate air in the system or a faulty connection. If the clutch operates smoothly, the lines have been successfully reinstalled or replaced. Regularly inspect the lines for leaks or damage during routine maintenance to ensure long-term reliability.
Effective Methods to Remove Paint from Plastic Buckets Easily
You may want to see also
Frequently asked questions
The plastic lines are typically clear or translucent and connect the clutch master cylinder to the slave cylinder. They are often labeled or marked with arrows indicating fluid flow direction.
You’ll need a line wrench or flare nut wrench to loosen the fittings, a flathead screwdriver or pick tool to release any clips, and possibly pliers to carefully remove the lines without damaging them.
It’s generally recommended to replace the plastic lines if they show signs of wear, cracking, or deterioration. Reusing old lines can lead to leaks or failure.
Work carefully to avoid bending or twisting the lines excessively. Use the correct size wrench to prevent stripping the fittings, and ensure the system is depressurized by releasing the clutch fluid before starting.
