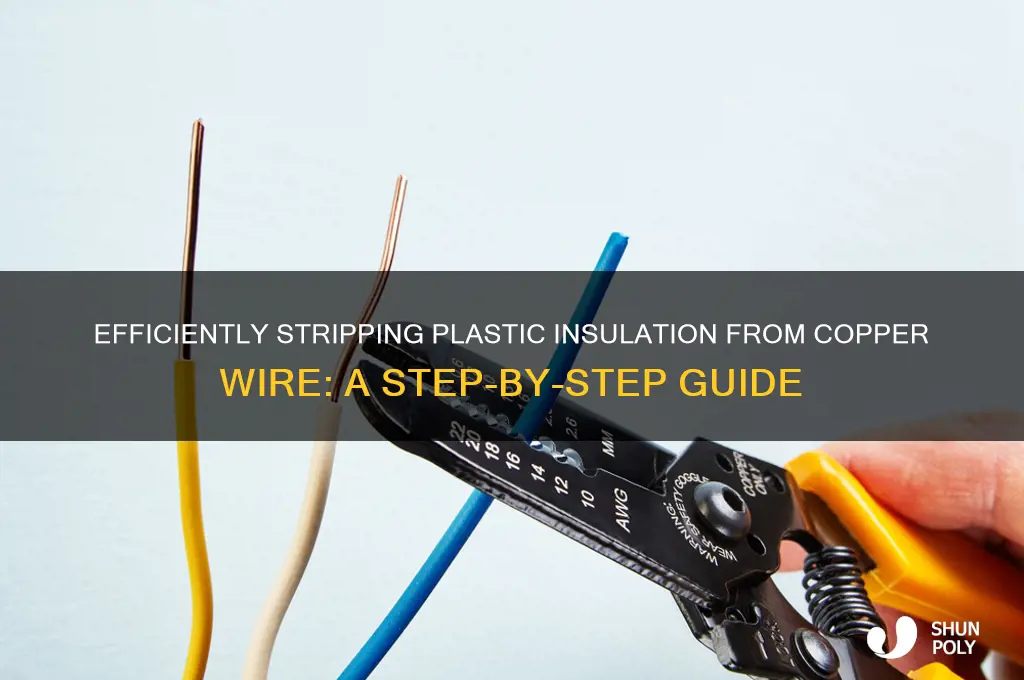

Removing plastic insulation from copper wire is a common task in electrical repairs and DIY projects, and it can be accomplished using several methods depending on the tools available and the scale of the job. One of the simplest techniques involves using a wire stripper, a specialized tool designed to cut through the plastic without damaging the copper core. For those without a wire stripper, a utility knife or fine-toothed sandpaper can be used carefully to score and peel away the insulation. Another effective method is applying heat with a heat gun or lighter, though this requires caution to avoid overheating the wire. Each approach has its advantages, and choosing the right one ensures efficient and safe removal of the plastic coating.
| Characteristics | Values |
|---|---|
| Methods | Mechanical (e.g., wire strippers, knives), Thermal (e.g., heat gun, lighter), Chemical (e.g., solvents) |
| Tools Required | Wire strippers, heat gun, knife, lighter, pliers, chemical solvents |
| Safety Precautions | Wear gloves, safety goggles, work in a well-ventilated area, avoid open flames near chemicals |
| Effectiveness | Mechanical: High precision, Thermal: Quick but risks wire damage, Chemical: Effective but slow |
| Cost | Low to moderate (depends on tools and chemicals) |
| Environmental Impact | Mechanical: Minimal, Thermal: Low, Chemical: Moderate (due to solvent disposal) |
| Time Efficiency | Mechanical: Moderate, Thermal: Fast, Chemical: Slow |
| Skill Level Required | Beginner to intermediate (varies by method) |
| Suitable Wire Gauge | All gauges (though thicker wires may require more effort) |
| Residue Left | Mechanical: None, Thermal: Possible charring, Chemical: Minimal if cleaned properly |
| Risk of Wire Damage | Mechanical: Low, Thermal: High (if overheated), Chemical: Low |
| Common Mistakes | Overheating wire, using excessive force, improper solvent application |
| Best for | Mechanical: Precision work, Thermal: Large quantities, Chemical: Tough insulation |
| Alternative Methods | Using a rotary tool, freezing the wire, manual peeling |
Explore related products
What You'll Learn
- Heat Method: Use a heat gun or lighter to soften plastic for easy peeling
- Chemical Removal: Apply solvents like acetone to dissolve plastic coating
- Mechanical Stripping: Use wire strippers or knives to cut and remove plastic
- Freezing Technique: Freeze wire to make plastic brittle, then crack it off
- Abrasive Tools: Sandpaper or wire brushes to grind away plastic coating
Heat Method: Use a heat gun or lighter to soften plastic for easy peeling
Applying heat to remove plastic insulation from copper wire is a straightforward method that leverages the material's thermal properties. When exposed to sufficient heat, the plastic softens, becoming pliable and easier to peel away. This technique is particularly effective for thicker insulation or when dealing with multiple wires simultaneously. A heat gun, set to a medium temperature (around 300–400°F), provides controlled heat, minimizing the risk of damaging the copper beneath. Alternatively, a lighter can be used for smaller projects, though it requires more precision to avoid overheating.
The process begins by securing the wire in a vice or clamp to keep it steady. Gradually apply heat along the length of the wire, moving the heat source back and forth to ensure even warming. The plastic will begin to soften and bubble slightly, indicating it’s ready for removal. At this point, use a pair of pliers or a blunt tool to gently peel the insulation away from the copper. Work slowly to avoid leaving residue or nicking the wire. For safety, wear heat-resistant gloves and ensure proper ventilation to avoid inhaling fumes.
While the heat method is efficient, it’s not without risks. Overheating can degrade the copper or ignite the plastic, especially when using an open flame. To mitigate this, test the technique on a small section of wire first. Additionally, avoid direct contact between the heat source and the wire, as prolonged exposure can weaken the copper. For thin insulation, a lighter may suffice, but a heat gun offers better control for thicker layers. Always prioritize safety by keeping a fire extinguisher nearby and working in a clear, non-flammable area.
Comparatively, the heat method stands out for its speed and effectiveness, especially when contrasted with mechanical methods like sanding or scraping. Unlike chemical solvents, it doesn’t require additional materials or lengthy drying times. However, it’s less suitable for delicate wires or those with heat-sensitive components. For DIY enthusiasts or professionals handling bulk wire stripping, mastering this technique can save time and effort. With practice, the heat method becomes a reliable tool in any wire-stripping arsenal, offering a balance of precision and efficiency.
Safely Removing Plastic Components from Your Hard Drive: A Step-by-Step Guide
You may want to see also
Explore related products
Chemical Removal: Apply solvents like acetone to dissolve plastic coating
Acetone, a powerful solvent commonly found in nail polish removers, can effectively dissolve many types of plastic coatings on copper wire. This method is particularly useful for thin, stubborn coatings that resist mechanical removal techniques. However, its effectiveness depends on the specific plastic type; acetone works best on plastics like ABS, PVC, and polystyrene, but may not affect others like polyethylene or polypropylene. Always test a small area first to ensure compatibility.
Application Process: Begin by placing the coated wire in a well-ventilated area or outdoors to avoid inhaling acetone fumes. Wear gloves to protect your skin. Dip a clean cloth or cotton swab into pure acetone (ensure it’s free of additives like moisturizers) and gently rub the plastic coating. For thicker coatings, submerge the wire in a container of acetone for 10–15 minutes, then use a soft brush to scrub away softened plastic. Rinse the wire with water and dry thoroughly to prevent oxidation.
Cautions and Considerations: Acetone is highly flammable and can irritate skin, eyes, and respiratory systems. Work in a well-ventilated area, avoid open flames, and store acetone in a cool, dry place. Dispose of acetone-soaked materials safely, as they pose a fire risk. Additionally, prolonged exposure to acetone can damage certain wire insulations or underlying copper, so limit soaking time and monitor the wire closely.
Comparative Advantage: Compared to mechanical methods like sanding or scraping, chemical removal with acetone is less labor-intensive and minimizes the risk of damaging the copper wire. It’s ideal for delicate or intricately coated wires where precision is crucial. However, it’s less environmentally friendly due to acetone’s toxicity and requires careful handling, making it a trade-off between convenience and safety.
Practical Tips: For small-scale projects, use a glass or metal container for acetone soaking, as plastic containers may degrade. If acetone is unavailable, alternatives like methyl ethyl ketone (MEK) or isopropyl alcohol (less effective) can be considered. After removal, inspect the wire for any residual plastic or chemical traces, as these can affect conductivity or performance in electrical applications. Always prioritize safety and follow local regulations for chemical disposal.
Effortless Ways to Remove Sticky Labels from Plastic Jars
You may want to see also
Explore related products
Mechanical Stripping: Use wire strippers or knives to cut and remove plastic
Mechanical stripping stands as a direct, hands-on method for removing plastic insulation from copper wire, favored for its simplicity and immediacy. At its core, this technique relies on physical tools—wire strippers or knives—to cut through the outer layer without damaging the conductive core. Wire strippers, designed specifically for this task, feature calibrated blades that adjust to the wire’s gauge, ensuring a clean cut. Knives, while less precise, offer versatility in situations where specialized tools are unavailable. Both tools demand careful handling to avoid nicking the copper, which can compromise the wire’s integrity.
The process begins with identifying the wire’s gauge, a critical step for using wire strippers effectively. Most strippers have labeled holes corresponding to standard wire sizes, ranging from 10 AWG (thick) to 24 AWG (thin). Insert the wire into the appropriate hole, then squeeze the handles to score the insulation. A gentle pull separates the plastic from the copper, leaving a clean, exposed conductor. Knives require more finesse: hold the wire taut, position the blade at a shallow angle, and carefully slice along the insulation’s length. Peel away the cut section, taking care not to apply excessive force that could cut into the copper.
While mechanical stripping is efficient, it carries risks that warrant caution. Over-stripping can weaken the wire, while under-stripping leaves residual insulation that hinders connections. Knives, in particular, pose a higher risk of injury and wire damage due to their lack of precision. To mitigate these risks, practice on scrap wire before tackling critical projects. Additionally, wear safety gloves and maintain sharp tools to ensure clean cuts with minimal effort. For high-volume tasks, investing in self-adjusting wire strippers can save time and reduce errors.
Comparatively, mechanical stripping outshines chemical or thermal methods in terms of speed and accessibility. Unlike solvents or heat guns, it requires no drying time or specialized equipment, making it ideal for on-the-spot repairs or small-scale projects. However, it falls short for wires with thick or hardened insulation, where alternative methods may prove more effective. The choice ultimately hinges on the wire’s condition, the project’s scale, and the user’s comfort with the tool.
In conclusion, mechanical stripping remains a cornerstone technique for removing plastic from copper wire, blending practicality with precision. Its success hinges on selecting the right tool, understanding the wire’s gauge, and exercising caution to avoid damage. While not universally applicable, it offers a reliable solution for most household and DIY scenarios, embodying the adage that sometimes, the simplest tools yield the best results.
Effective DIY Methods to Remove Scratches from ATV Plastic
You may want to see also
Explore related products
Freezing Technique: Freeze wire to make plastic brittle, then crack it off
Freezing temperatures can transform the properties of materials, and this principle is cleverly applied in the freezing technique for removing plastic insulation from copper wire. By exposing the wire to extremely low temperatures, typically below -20°C (-4°F), the plastic becomes brittle, losing its flexibility and toughness. This change in material behavior is rooted in the science of polymer physics, where cold temperatures reduce molecular mobility, making the plastic more prone to cracking. For home applications, a standard household freezer, which reaches around -18°C (0°F), is sufficient to achieve the desired effect.
To execute this method, begin by placing the copper wire in a sealed plastic bag to prevent moisture absorption, which could lead to ice buildup or corrosion. Leave the wire in the freezer for at least 4 to 6 hours, ensuring the plastic insulation is thoroughly chilled. Longer freezing times, up to 12 hours, may be necessary for thicker insulation or denser plastics. Once removed, work quickly to avoid the plastic regaining flexibility. Using a pair of pliers or a small hammer, apply controlled force to crack the plastic along the wire’s length. The brittle material should fracture easily, allowing you to peel or scrape it off with minimal effort.
While this technique is effective, it’s not without limitations. Freezing works best on thinner wires with relatively soft plastic insulation, such as PVC or polyethylene. Harder plastics or thick insulation layers may not become brittle enough to crack cleanly. Additionally, freezing is impractical for large volumes of wire due to the time and space required. For industrial-scale stripping, mechanical methods like automated wire strippers remain more efficient. However, for small-scale projects or DIY enthusiasts, freezing offers a cost-effective and tool-minimal solution.
A practical tip to enhance this method is to pre-score the plastic insulation with a sharp blade before freezing. This creates a weak point along which the plastic will crack more predictably. After freezing, the scored line acts as a guide for breaking the insulation. Always wear gloves when handling frozen wire to protect your hands from both the cold and sharp edges of the cracked plastic. With patience and precision, the freezing technique can turn a tedious task into a straightforward process, making it a valuable addition to any wire-stripping toolkit.
Removing Plastic Near Key on Ford Thunderbird: A Step-by-Step Guide
You may want to see also
Explore related products
Abrasive Tools: Sandpaper or wire brushes to grind away plastic coating
Abrasive tools like sandpaper and wire brushes offer a hands-on, effective method for stripping plastic insulation from copper wire. The key lies in their ability to physically grind away the coating through friction. Sandpaper, available in various grits, allows for controlled material removal. Start with a coarse grit (80-120) to quickly break through the plastic, then progress to finer grits (220-400) for a smoother finish on the exposed copper. Wire brushes, particularly those with stiff stainless steel bristles, excel at tackling thicker or more stubborn insulation. Their aggressive action makes quick work of larger wires but requires careful handling to avoid damaging the copper underneath.
Both tools demand patience and a steady hand. Work in short, even strokes, following the wire's natural contour. Regularly inspect your progress to prevent over-sanding, which can compromise the copper's integrity. For safety, wear gloves and a dust mask, as the process generates fine plastic particles. While abrasive tools may not be the fastest method, they provide a reliable, accessible solution for those seeking a DIY approach to wire stripping.
Easy Steps to Remove Plastic Bra from Your Car's Front
You may want to see also
Frequently asked questions
The safest method is to use a dedicated wire stripping tool or a sharp utility knife. Ensure the blade is precise to avoid damaging the copper wire. Always cut away from yourself and wear safety gloves.
Yes, heat can be used, but it must be done carefully. A heat gun or lighter can soften the plastic, but avoid overheating to prevent damage to the wire. Use pliers to peel off the softened plastic.
Yes, chemicals like acetone or paint thinner can dissolve some types of plastic insulation. However, this method is less precise and can be hazardous. Ensure proper ventilation and protective gear if using chemicals.
For thin wires, use a fine wire stripping tool or a small, sharp blade. Alternatively, gently rub the wire against a sanding block or use a specialized wire stripper designed for thin wires to avoid cutting into the copper.
