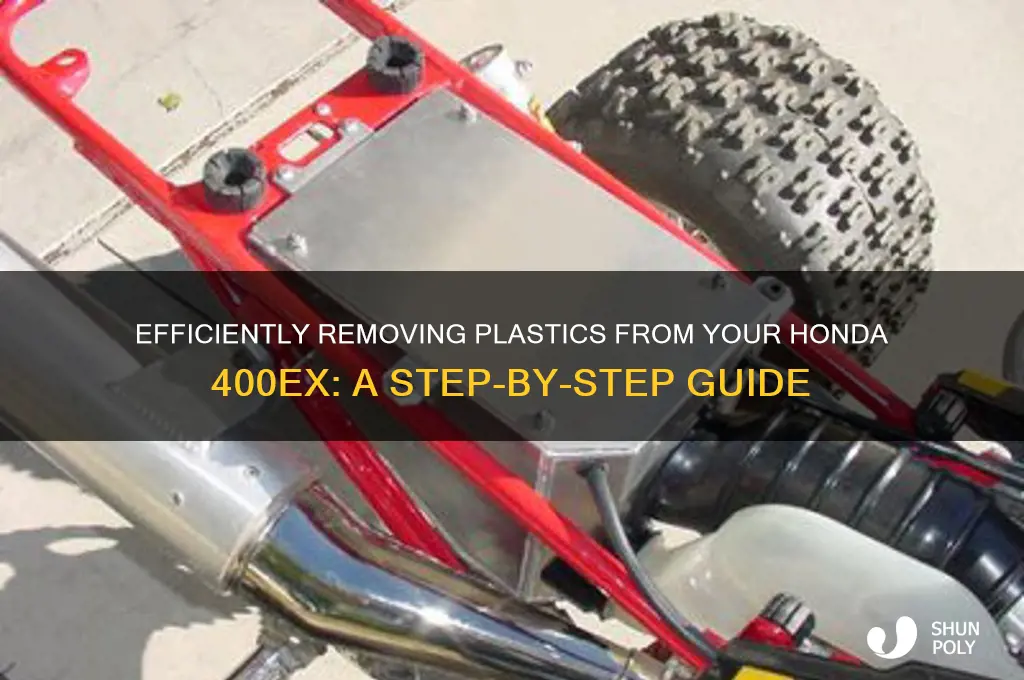

Removing plastics from a Honda 400EX is a straightforward process that requires basic tools and attention to detail. Start by gathering a Phillips screwdriver, a socket set, and possibly a trim removal tool to avoid damaging any components. Begin by removing the seat, which typically involves unscrewing a bolt or two at the rear. Next, locate and remove the screws or bolts securing the side panels, front fender, and any other plastic components. Some parts may be held in place with clips, so gently pry them loose using the trim removal tool. Be mindful of any wiring or hoses connected to the plastics, ensuring they are disconnected carefully to avoid damage. Once all fasteners are removed, lift the plastics away from the ATV, taking care not to scratch or dent the surfaces. This process allows for easy access to the engine, frame, or other components for maintenance, repairs, or customization. Always refer to the Honda 400EX service manual for specific instructions and torque specifications to ensure proper reassembly.
| Characteristics | Values |
|---|---|
| Tools Required | Phillips screwdriver, flathead screwdriver, socket wrench, hex keys |
| Plastic Components | Front fender, rear fender, side panels, radiator shrouds, headlight cover |
| Fastener Types | Phillips screws, hex bolts, plastic clips, rivets |
| Removal Order | Start with front fender, then side panels, followed by rear fender |
| Clip Removal Tool | Recommended for plastic clips to avoid breakage |
| Electrical Disconnect | Disconnect headlights and turn signals before removing related plastics |
| Radiator Shroud Removal | Loosen radiator bolts slightly before removing shrouds |
| Seat Removal | Required to access rear plastics and fuel tank area |
| Fuel Tank Access | Remove side panels and loosen fuel tank straps if needed |
| Reinstallation Tips | Align plastics carefully and tighten fasteners evenly |
| Common Issues | Broken clips, stripped screws, cracked plastics |
| Time Estimate | 30-60 minutes depending on experience and tools |
| Safety Precautions | Wear gloves, ensure the ATV is turned off, and stabilize it securely |
| Replacement Parts | Available at Honda dealerships or aftermarket suppliers |
| Maintenance Tips | Clean plastics before reinstallation and inspect for damage |
Explore related products
What You'll Learn
Removing Plastic Body Panels
The Honda 400EX’s plastic body panels are designed for durability but require careful removal to avoid damage. Unlike metal components, these panels often rely on snap-fit clips, Phillips-head screws, and hidden fasteners, making disassembly a blend of technique and patience. Before starting, gather a Phillips screwdriver (sizes #2 and #3), a flathead screwdriver for prying, and a trim removal tool to minimize surface scratches. Always work in a clean, well-lit area to prevent losing small parts like screws or clips.
Begin by identifying the panel’s attachment points. Most 400EX panels, such as the side covers and front fender, are secured by a combination of screws and clips. Start by removing visible screws, typically located along the edges or near the seat. For panels with snap-fit clips, insert a trim removal tool between the panel and frame, gently prying outward to disengage the clips. Avoid using excessive force, as these clips can break if stressed too hard. Work systematically around the panel, releasing one clip at a time to prevent warping the plastic.
One common challenge is accessing hidden fasteners, often found beneath decals or rubber grommets. Use a flathead screwdriver to carefully lift decals or remove grommets, exposing the underlying screws. For stubborn panels, apply heat with a hairdryer to soften the plastic, making it more pliable and reducing the risk of cracking. However, avoid overheating, as this can distort the panel’s shape. Once all fasteners are removed, lift the panel straight outward, being mindful of any wiring harnesses or hoses that may still be connected.
After removal, inspect the panel and mounting points for wear or damage. Replace broken clips or screws to ensure a secure fit upon reinstallation. If cleaning or painting the panel, use mild soap and water or plastic-safe solvents to avoid chemical damage. For painted panels, consider applying a UV protectant to prevent fading from sun exposure. Proper maintenance extends the life of these components, keeping your 400EX looking and functioning its best.
In summary, removing plastic body panels from a Honda 400EX requires a methodical approach, the right tools, and awareness of the panel’s design. By understanding the fastening mechanisms and working carefully, you can avoid damage and ensure a smooth process. Whether for maintenance, customization, or repair, mastering this skill empowers you to tackle future projects with confidence.
Should You Remove Laptop Plastic Stickers? Pros, Cons, and Best Practices
You may want to see also
Explore related products
Disconnecting Electrical Components Safely
Before tackling the plastics on your Honda 400EX, remember that electrical components are the nervous system of your ATV. Mishandling them can lead to shorts, blown fuses, or even damage to the ECU. Start by locating the battery and disconnecting it to eliminate the risk of accidental shocks or system malfunctions. This simple step is often overlooked but is crucial for safety and prevents unnecessary complications during the removal process.
Next, identify the electrical connectors attached to the plastics you’re removing. These typically include wiring for headlights, taillights, turn signals, and dashboard components. Most connectors on the 400EX use a clip-and-release mechanism. Gently press the release tab—usually located on the side of the connector—and pull apart the wires. Avoid tugging directly on the wires themselves, as this can damage the internal strands or loosen connections. Label each connector with tape or take photos to ensure you know where everything goes during reassembly.
While disconnecting, inspect each connector for corrosion, fraying, or loose pins. Corroded terminals can be cleaned with a mixture of baking soda and water, followed by a thorough drying process. If you notice damaged wires, consider replacing them to prevent future issues. For connectors that are difficult to access, use a small pry tool or a flathead screwdriver with a cloth wrapped around the tip to avoid scratching nearby components.
Finally, store the disconnected components in a safe place, away from dirt and moisture. If you’re removing plastics for painting or repairs, ensure the wiring is secured and protected to avoid accidental damage. Reassembly is the reverse of disassembly, but double-check that all connectors are securely seated and the battery is reconnected properly. By approaching this step methodically, you’ll safeguard your 400EX’s electrical system and make the process smoother overall.
Should You Remove Plastic from Turkey Breast Before Cooking?
You may want to see also
Explore related products
Tools Needed for Plastic Removal
Removing plastics from a Honda 400EX requires a precise set of tools to avoid damaging clips, fasteners, or the bike’s frame. The primary tools include a Phillips-head screwdriver (size #2 or #3) for most body panel screws, a flathead screwdriver for prying stubborn clips, and a T20 Torx bit for specialized fasteners near the fuel tank and shrouds. A magnetic tip on your screwdriver can save time by preventing screws from falling into hard-to-reach areas. Always use hand tools instead of power tools to maintain control and prevent over-tightening or stripping.
Beyond screwdrivers, a trim removal tool or plastic pry bar is essential for safely dislodging snap-on panels without cracking them. These tools are designed to distribute force evenly, reducing the risk of breakage. For areas with recessed screws, a ¼-inch ratchet with a 2-inch extension bar provides the necessary reach. Keep a set of metric sockets (8mm, 10mm) handy, as some models use hex bolts for side panels. A small parts tray or magnetic organizer will keep screws and fasteners sorted by location, streamlining reassembly.
While not always necessary, a heat gun or hairdryer can soften stubborn plastics that have become brittle over time, making them easier to remove without snapping. Apply low heat and work gradually, avoiding direct contact with fuel lines or electrical components. Alternatively, a spray-on adhesive remover can loosen stuck-on decals or residue, but test it on a small area first to ensure it doesn’t damage the plastic’s finish.
For the radiator shrouds and front fender, a pair of needle-nose pliers can help extract broken clips or bent fasteners. If clips are damaged, have replacements ready—Honda OEM part numbers 90451-HR3-000 (6mm) and 90461-HR3-000 (8mm) are commonly needed. A flashlight or headlamp is invaluable for illuminating hidden screws or clips, especially in shaded areas like the airbox cover.
Finally, a clean microfiber cloth and mild soap solution are useful for wiping down panels after removal, preserving their condition. Store removed plastics in a flat, protected area to prevent warping. By equipping yourself with these tools and organizing them within arm’s reach, you’ll streamline the removal process and minimize the risk of errors or damage.
Quick Fix: Removing Hair Dye Stains from Plastic Toilet Seats
You may want to see also
Explore related products
Reinstalling Plastics Properly
Reinstalling the plastics on your Honda 400EX requires precision and patience to ensure a secure fit without damaging clips or fasteners. Begin by aligning the plastic panels with their respective mounting points, using the original removal process as a guide for proper placement. Start with the largest pieces, such as the front fender or side panels, and work your way to smaller components like the radiator shrouds or number plate. Each piece should click or snap into place audibly, confirming a correct fit. If force is required, reassess alignment to avoid breaking tabs or bending metal brackets.
A common mistake during reinstallation is overtightening screws or bolts, which can strip threads or crack plastic. Use a torque wrench to tighten fasteners to the manufacturer’s specifications, typically 5–10 Nm for most plastic components. If specifications are unavailable, hand-tighten until snug, then add a quarter-turn to secure. Apply threadlocker (blue Loctite) to metal fasteners in plastic threads to prevent vibration-induced loosening, especially on high-impact areas like the front fender or side panels. Avoid using washers unless specified, as they can create stress points that lead to cracking over time.
For panels with integrated grommets or rubber seals, inspect these components for wear or damage before reinstalling. Replace worn grommets to maintain a tight seal against water and debris. When reattaching panels with zip ties or plastic rivets, ensure the ties are trimmed flush to prevent snagging on gear or brush. If using rivets, confirm they are the correct length to avoid protruding through the plastic. Double-check all electrical connections, such as taillight or turn signal wiring, to ensure they are routed correctly and secured to avoid pinching.
Finally, test the fitment of all reinstalled plastics by gently tugging or pressing on each panel to confirm stability. Take the bike for a short, low-speed ride to identify any rattling or movement, addressing issues immediately. Properly reinstalled plastics not only enhance aesthetics but also protect vital components like the engine and radiator. By following these steps, you’ll ensure a professional-grade finish that withstands trail rides and maintains the 400EX’s functionality.
Effortlessly Remove Screwless Plastic Shower Drain Covers: A Step-by-Step Guide
You may want to see also
Explore related products
Avoiding Damage During Removal
Removing plastics from a Honda 400EX requires precision to avoid costly damage. Start by identifying the type of fasteners used—most panels are secured with Phillips-head screws, plastic clips, or a combination of both. Use a magnetic screwdriver to prevent screws from falling into hard-to-reach areas, and keep a clipboard nearby to organize removed hardware in the order of disassembly. This systematic approach minimizes the risk of misplacing parts or stripping threads.
Plastic components on the 400EX are prone to brittleness, especially if the ATV is over five years old or has been exposed to UV rays. Before applying force, inspect each panel for cracks or stress marks. If detected, apply heat using a hairdryer set to medium (120°F–150°F) to soften the plastic temporarily. Avoid direct heat on decals or painted surfaces, as this can cause bubbling or discoloration. Always test the heat on a small, inconspicuous area first.
When prying panels apart, use a non-marring tool like a plastic trim removal kit instead of metal screwdrivers. Position the tool at a shallow angle (15°–20°) to distribute force evenly and reduce the risk of snapping clips. For stubborn areas, apply a small amount of silicone-based lubricant to the edges, allowing it to penetrate for 2–3 minutes before attempting removal again. This technique is particularly useful for the side panels and front fender, which often have tight tolerances.
Reassembly is as critical as removal. Before reinstalling plastics, clean all mating surfaces with isopropyl alcohol to ensure a secure fit. Inspect clips and fasteners for deformation—replace any that show signs of wear. If reusing screws, apply a threadlocker (Loctite 222 or equivalent) to prevent vibration-related loosening. For panels with decals, align them under natural light to avoid misalignment, which becomes more noticeable over time.
Comparing the 400EX to similar models like the Yamaha Raptor 250 highlights the importance of patience. The Raptor’s plastics are often more flexible but less durable, whereas the 400EX’s rigid panels demand a gentler touch. By treating each step as a delicate operation rather than a brute-force task, you preserve the ATV’s structural integrity and resale value. Remember: haste makes waste, especially when working with aged plastics.
Effective Ways to Remove Grease Film from Plastic Surfaces Easily
You may want to see also
Frequently asked questions
You’ll need a Phillips screwdriver, a flathead screwdriver, a socket set (typically 8mm and 10mm), and possibly a trim removal tool to avoid scratching the plastics.
Start by removing the screws along the edges of the fender using a Phillips screwdriver. Gently pry the fender away from the frame, being careful not to crack the plastic. Disconnect any attached wiring or hoses before fully removing it.
Yes, locate and remove the screws or bolts holding the side panels in place. Some panels may also have clips or tabs that need to be gently pried loose. Work slowly and avoid forcing the panels to prevent damage.
