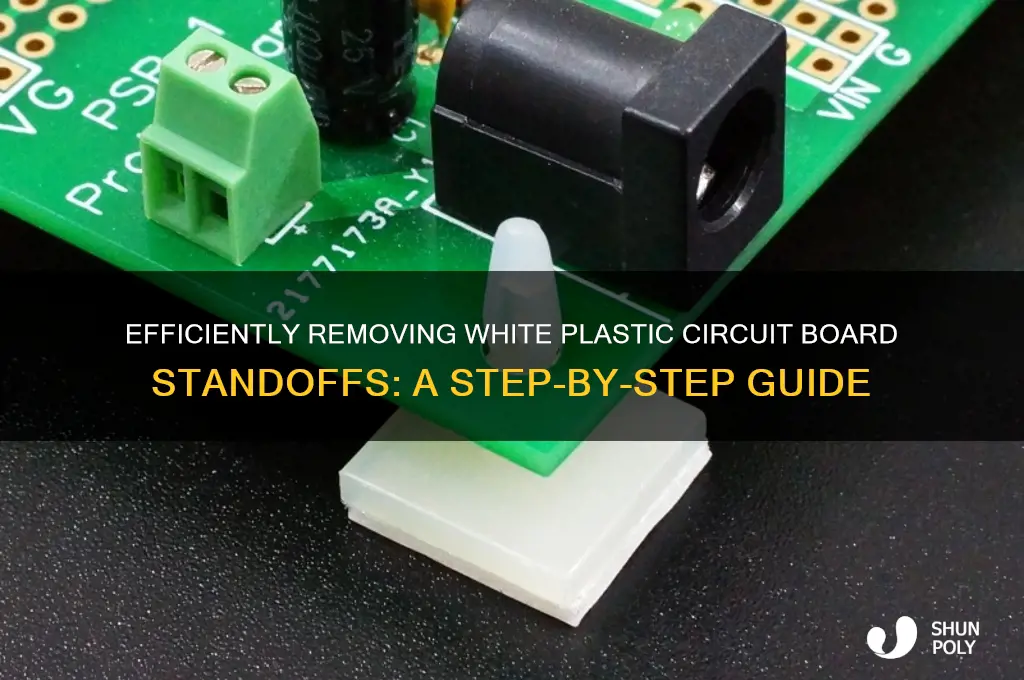

Removing white plastic circuit board standoffs can be a delicate task, as these components are often tightly secured and play a crucial role in maintaining the structural integrity of electronic devices. Typically made from nylon or other durable plastics, these standoffs are designed to insulate and elevate circuit boards, preventing short circuits and ensuring proper airflow. To remove them, start by assessing the type of standoff—whether it’s threaded, press-fit, or glued—as this will determine the appropriate removal method. For threaded standoffs, a screwdriver or hex key can be used to unscrew them carefully, while press-fit standoffs may require gentle prying with a flat tool or controlled heat application to loosen the adhesive. Always work with precision to avoid damaging the circuit board or surrounding components, and consider using magnifying tools or tweezers for better control in tight spaces.
| Characteristics | Values |
|---|---|
| Method 1: Heating | Apply heat using a soldering iron, hot air gun, or heat gun to soften the plastic, then gently twist or pull the standoff. |
| Method 2: Cutting | Use a sharp hobby knife, Dremel tool, or rotary cutter to carefully cut the standoff at its base. |
| Method 3: Prying | Use a flathead screwdriver or spudger to gently pry the standoff out, applying even pressure. |
| Method 4: Drilling | Drill a small hole through the center of the standoff to weaken it, then remove the remaining plastic. |
| Method 5: Chemical Removal | Apply a plastic-safe solvent (e.g., acetone or plastic adhesive remover) to dissolve the standoff, then wipe away the residue. |
| Precautions | Avoid excessive heat to prevent PCB damage; work in a well-ventilated area when using chemicals. |
| Tools Required | Soldering iron, heat gun, hobby knife, Dremel, screwdriver, spudger, drill, solvents. |
| Difficulty Level | Moderate to High (depends on method and precision required). |
| Risk of PCB Damage | Low to Moderate (higher with heat or forceful prying). |
| Common Applications | Repairing or modifying electronics, replacing damaged standoffs. |
| Alternative Solutions | Replace the entire PCB section if standoffs are integral to the board. |
Explore related products
What You'll Learn
- Heat Application: Use a heat gun or soldering iron to soften and remove standoffs safely
- Drilling Technique: Drill through the standoff carefully to avoid damaging the circuit board
- Chemical Removal: Apply plastic-dissolving chemicals like acetone to weaken and remove standoffs
- Mechanical Extraction: Use pliers or a standoff removal tool to grip and pull out standoffs
- Prevention Tips: Avoid future issues by using removable standoffs or alternative mounting methods
Heat Application: Use a heat gun or soldering iron to soften and remove standoffs safely
Heat application is a highly effective method for removing white plastic circuit board standoffs, as it softens the plastic, making it easier to extract without damaging the board. To begin, gather the necessary tools: a heat gun or soldering iron, safety gear (such as heat-resistant gloves and safety goggles), and a flat-head screwdriver or similar tool for prying. Ensure your workspace is well-ventilated to avoid inhaling fumes from the heated plastic. Start by setting your heat gun to a medium setting or your soldering iron to a temperature sufficient to soften the plastic but not high enough to damage the circuit board, typically around 300-400°F (150-200°C).
Position the heat source approximately 1-2 inches away from the standoff to avoid concentrating heat on one spot, which could warp the board. Slowly and evenly apply heat to the standoff, rotating the heat source around it to ensure uniform warming. Be patient, as rushing this process can lead to overheating and potential damage. After 30-60 seconds, test the standoff by gently pressing on it with a screwdriver. If it feels soft and yields slightly, it’s ready for removal. If not, continue applying heat in short intervals until it softens sufficiently.
Once the standoff is softened, use the flat-head screwdriver to carefully pry it out of the board. Insert the screwdriver between the standoff and the board, applying gentle, steady pressure to lift it out. Avoid using excessive force, as this could damage the board or surrounding components. If the standoff doesn’t come out easily, reapply heat for a few more seconds and try again. Work slowly to ensure precision and minimize the risk of harm to the circuit board.
After removing the standoff, inspect the hole to ensure no plastic residue remains. If there are remnants, reheat the area slightly and use a small pick or needle to clear the hole. Allow the board to cool completely before proceeding with any further work. This method is particularly useful for standoffs that are tightly fitted or broken off at the surface, as the heat effectively loosens the plastic’s grip on the board.
Always prioritize safety when using heat tools. Keep flammable materials away from your workspace, and never leave a heat gun or soldering iron unattended. If you’re inexperienced with these tools, practice on a scrap piece of material first to get a feel for the process. With careful application of heat and gentle prying, you can safely remove white plastic standoffs without compromising the integrity of the circuit board.
Eliminate Lingering Odors: Effective Tips to Freshen Plastic Food Containers
You may want to see also
Explore related products
Drilling Technique: Drill through the standoff carefully to avoid damaging the circuit board
When using the Drilling Technique to remove white plastic circuit board standoffs, precision and caution are paramount to avoid damaging the underlying circuit board. Begin by securing the circuit board firmly in place, either with a vice or a specialized fixture, ensuring it remains stable during the drilling process. Use a high-speed rotary tool or a precision drill with a small, sharp bit—ideally a 1/16-inch or smaller bit designed for hard plastics. The goal is to drill directly through the center of the standoff without allowing the bit to wander, as this could damage nearby components or traces on the board.
Before drilling, mark the center of the standoff with a fine-tipped marker or awl to ensure accuracy. Start drilling at a slow speed and apply gentle, consistent pressure. Avoid forcing the drill, as excessive force can cause the bit to slip or the board to crack. If the standoff is tall, consider drilling halfway through from one side, then flipping the board to complete the hole from the other side. This reduces the risk of the bit catching and tearing the board material.
To minimize heat buildup, which can damage the circuit board, periodically withdraw the drill bit to clear debris and allow it to cool. Using a cutting lubricant or wax can also help reduce friction and heat. If the standoff is particularly stubborn, pause frequently to assess progress and ensure the bit is not overheating or causing stress to the board.
Once the drill bit breaks through the standoff, continue drilling until the plastic is completely removed. Take care not to drill too deeply, as this could damage the board’s internal layers or components on the opposite side. After drilling, use a small file or sandpaper to smooth any rough edges left by the standoff’s removal, ensuring the area is clean and free of debris.
Finally, inspect the circuit board for any signs of damage, such as cracked traces or displaced components. If the board appears intact, proceed with your repair or modification. This technique, while effective, requires patience and a steady hand to ensure the circuit board remains unharmed throughout the process.
Effective Ways to Remove Hard Water Stains from Plastic Shower Curtains
You may want to see also
Explore related products
Chemical Removal: Apply plastic-dissolving chemicals like acetone to weaken and remove standoffs
Chemical removal is a highly effective method for dissolving white plastic circuit board standoffs, particularly when mechanical methods are impractical or risky. This approach involves using plastic-dissolving chemicals like acetone to weaken and eventually remove the standoffs. Acetone is a common solvent that can break down many types of plastics, including the white nylon or polycarbonate materials often used in standoffs. Before starting, ensure you work in a well-ventilated area and wear protective gear, such as gloves and safety goggles, to avoid skin and eye irritation.
To begin the chemical removal process, clean the area around the standoff to remove any dirt, grease, or debris that might interfere with the solvent’s effectiveness. Use a soft brush or compressed air to gently clean the surface. Once the area is prepared, apply a small amount of acetone directly to the standoff using a cotton swab or a brush with stiff bristles. Be precise to avoid damaging nearby components. Allow the acetone to sit on the standoff for a few minutes, giving it time to penetrate and weaken the plastic. You may notice the standoff becoming softer or changing color as the plastic begins to dissolve.
If the standoff does not fully dissolve after the first application, reapply the acetone and let it sit for another few minutes. In some cases, gently probing the standoff with a non-conductive tool, like a plastic spudger, can help dislodge it once it has been sufficiently weakened. Be cautious not to apply excessive force, as this could damage the circuit board. Repeat the process as needed until the standoff is completely removed or can be easily lifted off the board.
After removing the standoff, clean the area thoroughly to eliminate any residual acetone or dissolved plastic. Use isopropyl alcohol and a clean cloth or cotton swab to wipe down the surface, ensuring no chemical residue remains. This step is crucial to prevent corrosion or damage to the circuit board over time. Once cleaned, inspect the area to ensure the standoff has been fully removed and the board is ready for further work or reassembly.
While acetone is a popular choice for this method, other solvents like methylene chloride or specialized plastic-dissolving agents can also be used, depending on the specific plastic material of the standoff. Always test the solvent on a small, inconspicuous area first to ensure it does not harm the circuit board or surrounding components. Chemical removal is a precise and controlled process that, when done correctly, can effectively eliminate white plastic standoffs without damaging the underlying circuitry.
Effective Methods to Remove Liquid Cement from Plastic Surfaces
You may want to see also
Explore related products
Mechanical Extraction: Use pliers or a standoff removal tool to grip and pull out standoffs
Mechanical extraction is a straightforward and effective method for removing white plastic circuit board standoffs, especially when they are damaged, broken, or need replacement. This technique involves using tools like pliers or a specialized standoff removal tool to grip and pull out the standoffs directly. Before beginning, ensure you have the appropriate tools and that the circuit board is safely disconnected from any power source to avoid damage or injury. Start by inspecting the standoff to determine the best angle and grip point for extraction.
To begin the mechanical extraction process, position the pliers or removal tool around the base of the standoff, as close to the circuit board as possible. This ensures maximum leverage and minimizes the risk of damaging the board. If using pliers, choose a pair with a narrow, flat tip to provide a secure grip without slipping. For a standoff removal tool, align the jaws or grip mechanism with the standoff’s shape and size. Apply steady, even pressure to grip the standoff firmly, avoiding excessive force that could crack the plastic or harm the board.
Once the tool is securely gripping the standoff, pull it straight upward in a controlled motion. Avoid twisting or jerking, as this can cause the standoff to break unevenly or leave remnants behind. If the standoff is stubborn or stuck, gently rock the tool back and forth while maintaining upward pressure to loosen it. Be patient and persistent, as some standoffs may require more effort due to adhesive residue or tight fitting. If the standoff breaks during extraction, use a pair of tweezers or a small pick tool to carefully remove any remaining pieces from the hole.
After successfully removing the standoff, inspect the hole and surrounding area for any debris or damage. Clean the hole with compressed air or a soft brush to ensure it is free of plastic fragments or dust. If the hole appears damaged or enlarged, consider using a thread repair kit or consulting a professional to restore it. Properly disposing of the removed standoff and cleaning your tools will keep your workspace organized and ready for the next step, whether it’s installing a new standoff or reassembling the circuit board.
For those who frequently work with circuit boards, investing in a dedicated standoff removal tool can save time and reduce the risk of damage compared to using pliers. These tools are designed specifically for gripping and extracting standoffs, offering better control and precision. Regardless of the tool used, practicing the mechanical extraction method on a spare or less critical board can help you refine your technique before tackling more important projects. With the right tools and approach, removing white plastic circuit board standoffs through mechanical extraction can be a quick and reliable process.
Can Washing Plastic Eliminate BPA and Lead? The Truth Revealed
You may want to see also
Explore related products
Prevention Tips: Avoid future issues by using removable standoffs or alternative mounting methods
When working with circuit boards, preventing the need to remove stubborn white plastic standoffs in the first place is the most efficient approach. One effective prevention tip is to use removable standoffs instead of permanent ones. Removable standoffs, often made of nylon or other durable plastics, are designed with threads or snap-fit mechanisms that allow for easy installation and removal. These standoffs can be unscrewed or detached without damaging the circuit board or the mounting surface, saving time and reducing the risk of breakage during future maintenance or upgrades.
Another preventive measure is to explore alternative mounting methods that eliminate the need for standoffs altogether. For example, adhesive-backed spacers or double-sided foam tape can be used to secure circuit boards in place without drilling holes or using plastic standoffs. While this method may not be suitable for heavy or high-vibration applications, it works well for lightweight boards in low-stress environments. Ensure the adhesive used is non-conductive and compatible with electronic components to avoid interference.
For applications requiring more robust mounting, metal standoffs with captive screws are a reliable alternative to white plastic standoffs. Metal standoffs are more durable and less prone to cracking or breaking during removal. Captive screws, which remain attached to the standoff, reduce the risk of losing small components during disassembly. This combination ensures easier removal and reinstallation, making future maintenance more straightforward.
If standoffs are necessary, choose ones with a larger diameter or smoother surface to minimize the chances of them becoming stuck or damaged. White plastic standoffs often become difficult to remove due to their small size and tendency to fuse with the board over time. Opting for standoffs with a larger head or a design that reduces surface friction can make removal easier in the long run. Additionally, applying a thin layer of non-conductive lubricant during installation can aid in future disassembly.
Finally, document the assembly process and keep track of the types of standoffs or mounting methods used. This documentation can serve as a reference for future maintenance, ensuring that the correct tools and techniques are used for removal. Labeling components or creating a diagram of the assembly can also help technicians avoid unnecessary damage when disassembling the circuit board. By planning ahead and choosing the right mounting solutions, you can avoid the frustration of dealing with difficult-to-remove white plastic standoffs.
Easy Steps to Remove Thin Plastic from Faucet Base
You may want to see also
Frequently asked questions
You typically need a soldering iron, desoldering pump or braid, pliers, and a flathead screwdriver. Heat is often required to melt the plastic or solder holding the standoff in place.
Yes, but care is needed. Apply controlled heat to melt the plastic or solder, and avoid overheating the board. Use a screwdriver to gently pry the standoff once it’s loose.
If the standoff breaks, use a soldering iron to melt and remove any remaining plastic. Clean the area with a desoldering tool and isopropyl alcohol to ensure no residue remains.
