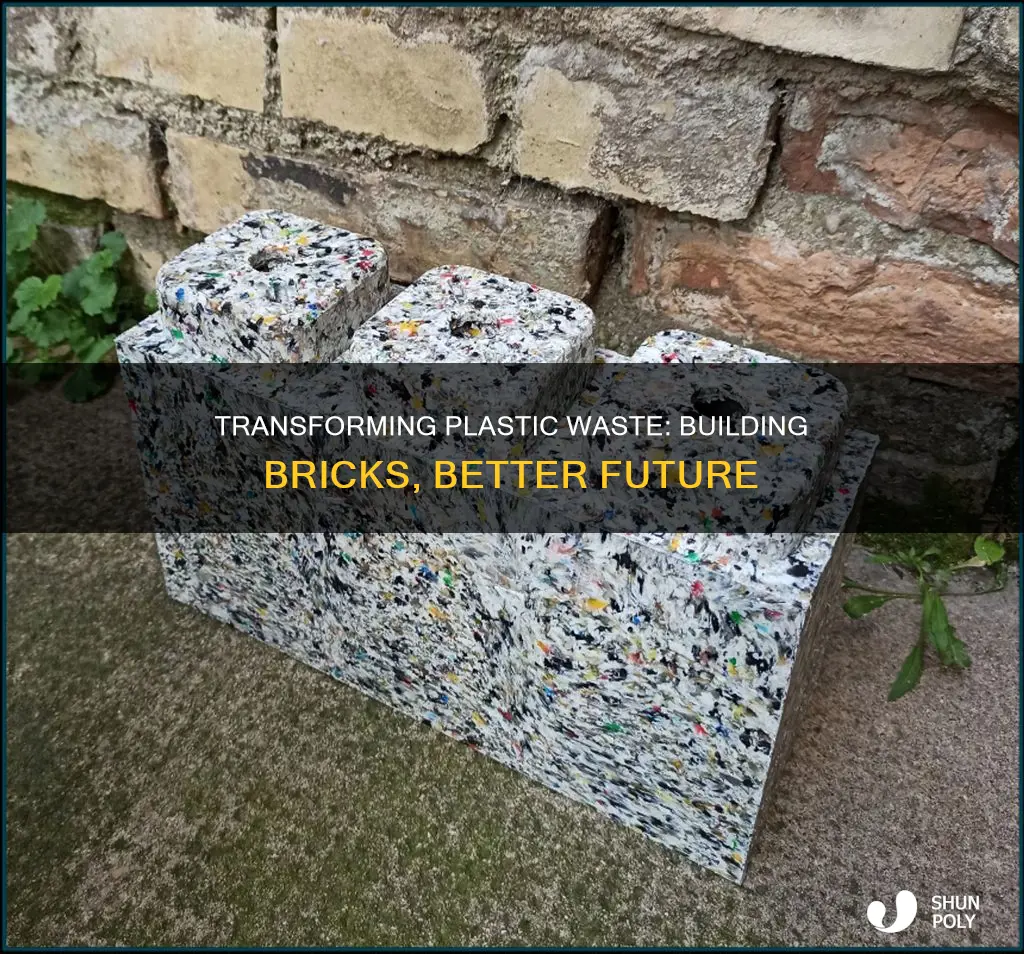

Plastic pollution is a pressing issue, with most waste ending up in landfills, rivers, and oceans. However, innovators are now turning plastic waste into bricks, creating a sustainable solution for construction. This process involves shredding plastic into flakes, mixing it with sand, and moulding it under high temperatures to form sturdy bricks. These bricks are not only affordable but also stronger and lighter than concrete. This innovative approach addresses environmental concerns, promotes recycling, and provides an alternative to traditional building materials.
Explore related products
What You'll Learn
Shredding and mixing plastic with sand
Shredding plastic waste is a crucial step in the process of creating plastic bricks. The waste plastic, which can include PET bottles, LDPE bags, and HDPE containers, is cut into small pieces or shredded into a mix of LDPE, PP, and sometimes PET. This waste plastic is then dried to remove excess moisture that may hinder the shredding and melting process.
The shredded plastic is then heated and melted, typically between 90-110 °C, although some methods suggest heating above 180 °C or even 200 °C. At this stage, river sand or foundry sand is added to the semi-solid or melted plastic. The sand is sieved to a size of 600 microns or through 4.75–0.075 mm sieves. The sand-to-plastic ratio can vary, with some recipes calling for a 50:50 mix, while others experiment with ratios of 1:3, 1:4, or 1:5 (plastic to sand). The mixture is stirred continuously to ensure even blending, which helps prevent cracking in the final product.
Once the sand and plastic are thoroughly mixed, the blend is poured into molds and compacted. The curing time for the bricks can vary, with some recipes suggesting 7 or 28 days. After curing, the bricks are removed from the molds and can then be used for construction.
It is worth noting that during the mixing and melting process, the sand and plastic mixture can separate due to density differences, which can cause issues with the equipment. Additionally, the high temperatures involved in the process can lead to the emission of excessive gases. Therefore, it is important to carefully monitor the mixing, melting, and molding processes to ensure the desired outcome.
Installing a Plastic Window on Your BMW Z3
You may want to see also
Explore related products
Heating the mixture to mould
Heating the mixture is an important step in moulding plastic into bricks. The mixture of sand and shredded plastic is heated to a temperature of about 680˚F (360˚C). This temperature is maintained while the mixture is further mixed in an extruder. The extruder ensures that the plastic and sand are evenly distributed and bound together.
The heated mixture is then shovelled out of the extruder and cut and weighed by workers wearing heavy protective gloves. The cut and weighed product is then placed into moulds. The moulds are then pressed with a weight of 100–200 metric tons. The weight used for pressing is dependent on the desired shape and size of the final brick.
The bricks are then allowed to cool for a few minutes before being placed in a water bath to cool further. After this process, the bricks are ready to be handled, stacked, and transported.
The heating and moulding process is an important step in ensuring the structural strength of the bricks. The plastic acts as a fibrous binding material, giving the brick more strength and making it less brittle, with greater compression strength than traditional bricks.
Welding Plastic Bumpers: A Step-by-Step Guide
You may want to see also
Explore related products
Creating stronger and lighter bricks
The process of turning plastic into bricks begins with shredding plastic waste into small flakes. This can be done by grinding or using a machine that cuts and weighs the plastic. The shredded plastic is then mixed with sand and pigment to create a sludge or "mud". This mixture is then heated to very high temperatures, approximately 360˚C or 680˚F, and compressed into a mould to form the bricks.
The key to creating stronger and lighter bricks lies in the selection of plastic types and the ratio of sand to plastic. Some plastics bind together better than others, so it is important to choose plastics that have good fibrous properties, such as polypropylene and polyethylene. Polypropylene is commonly found in microwaveable food packaging and bottle caps, while polyethylene is used in plastic bags, trays, and containers. By using these plastics, the bricks gain more structural strength and become less brittle, with greater compression strength than traditional bricks.
The ratio of sand to plastic is also crucial. Through experimentation, the optimal ratio can be determined to achieve the desired strength and weight. In addition, the use of additives can further enhance the properties of the bricks. For example, introducing CO2 bubbles can improve the insulation value of the bricks, making them more suitable for certain construction applications.
The process of moulding the bricks is another factor that contributes to their strength and lightness. After mixing and heating the plastic and sand mixture, it is essential to apply high pressure during the moulding process. This can be achieved using a hydraulic press or a press rig with a steel plate. The weight applied during pressing can range from 100 to 200 metric tons, ensuring that the bricks are properly compacted and dense.
By following these steps and carefully controlling the variables, it is possible to create plastic bricks that are significantly stronger and lighter than traditional concrete bricks. These bricks have the potential to revolutionise the construction industry by providing a sustainable and cost-effective alternative building material.
Repairing a Cracked Plastic Tank: Sealing Solutions
You may want to see also
Explore related products
Using bricks for construction
Bricks have been used for construction for thousands of years. The earliest bricks were dried mud bricks, formed from clay-bearing earth or mud and dried in the sun. By 5000–4500 BC, bricks were being fired in Mesopotamia, and by the third century BC, they were being used for vaulting underground tombs.
Bricks are typically made from concrete, sand, lime, or clay, and are used to construct walls, pavements, and other types of architecture. They are prized for their sturdiness, strength, and fire resistance. Clay bricks, in particular, are the most abundant and natural material on Earth. They are also user-friendly and require little maintenance, creating energy-efficient buildings.
Bricks can be produced in a variety of shapes and types, depending on their intended use. For instance, bricks used for load-bearing walls have a smooth surface and sharp edges, while bricks used for decorative purposes may have a rough texture or pattern.
Bricks are also reusable and can be recycled. Brick walls can be dismantled, and the bricks can be used again after removing mortar residues. Similarly, brick rubble from demolition sites can be recycled and reused, for example, as filling and stabilising material for infrastructure work, or as ingredients for poured concrete.
Nzambi Matee from Nairobi, Kenya, has invented a type of brick made from a mixture of sand and plastic. These plastic bricks are twice as sturdy as concrete and are sold at a cheaper price than normal bricks. They are produced by mixing sand and plastic at very high temperatures and then compressing the mixture into brick form.
Kleen Kanteen's Plastic Liner: What's the Deal?
You may want to see also
Explore related products
Benefits of plastic bricks
Plastic bricks are a sustainable and durable building option with multiple benefits. Firstly, they help tackle the global environmental problem of plastic waste. Plastic is a non-biodegradable material that often ends up polluting oceans and land. By using plastic waste as a resource, plastic bricks promote sustainability, reduce plastic pollution, lower greenhouse gas emissions, and decrease the use of virgin materials.
Secondly, plastic bricks offer superior insulation compared to traditional clay bricks, leading to energy savings and improved comfort. They are also strong and durable, with some plastic bricks being twice as sturdy as concrete. This makes them suitable for use in full-scale construction projects, including houses, schools, and roads.
Thirdly, plastic bricks are versatile and can be produced in various colours and shapes, offering design flexibility. They are also affordable, as they are made from waste materials, and have low production costs. This makes them accessible to a wider range of people, especially in communities where they are produced locally.
Finally, the production of plastic bricks can connect and benefit communities by providing job opportunities, especially for youth groups and women. Additionally, the process of converting plastic waste into bricks can promote a circular economy and foster innovation in sustainable solutions.
Plastic Pollution: A Deadly Threat to Marine Life
You may want to see also
Frequently asked questions
Plastic bricks are made from a mixture of sand and plastics. The sand and plastic are mixed at very high temperatures and are then compressed into bricks.
Plastic bricks are between two and seven times stronger than concrete, half the weight, and up to 15% cheaper. They are also tougher and less brittle than traditional bricks.
First, sand and shredded plastic are mixed with pigment and shoveled into an extruder, which further mixes the ingredients under temperatures of about 680˚F (360˚C). Then, workers in heavy protective gloves cut and weigh the extruded product, placing it in a mould where it’s pressed with a weight of 100–200 metric tons. Once pressed, the bricks are left to cool for a few minutes, then sit in a water bath until they can be handled, stacked, and transported.
